Joan ePaper Badge 4-Inch Reusable E-Paper ID Badge with NFC and Bluetooth

The Joan ePaper badge is a reusable digital name tag that replaces printed paper and plastic ID cards for visitors, employees and event attendees. Its 4-inch electronic paper display shows a name, photo, company, department or any custom field pulled straight from the Joan Workplace platform, and it re-syncs whenever the record behind it changes, so a new hire, a substitute delegate or a corrected title never means a reprint. Company templates and department colors keep a whole fleet of badges looking consistent.

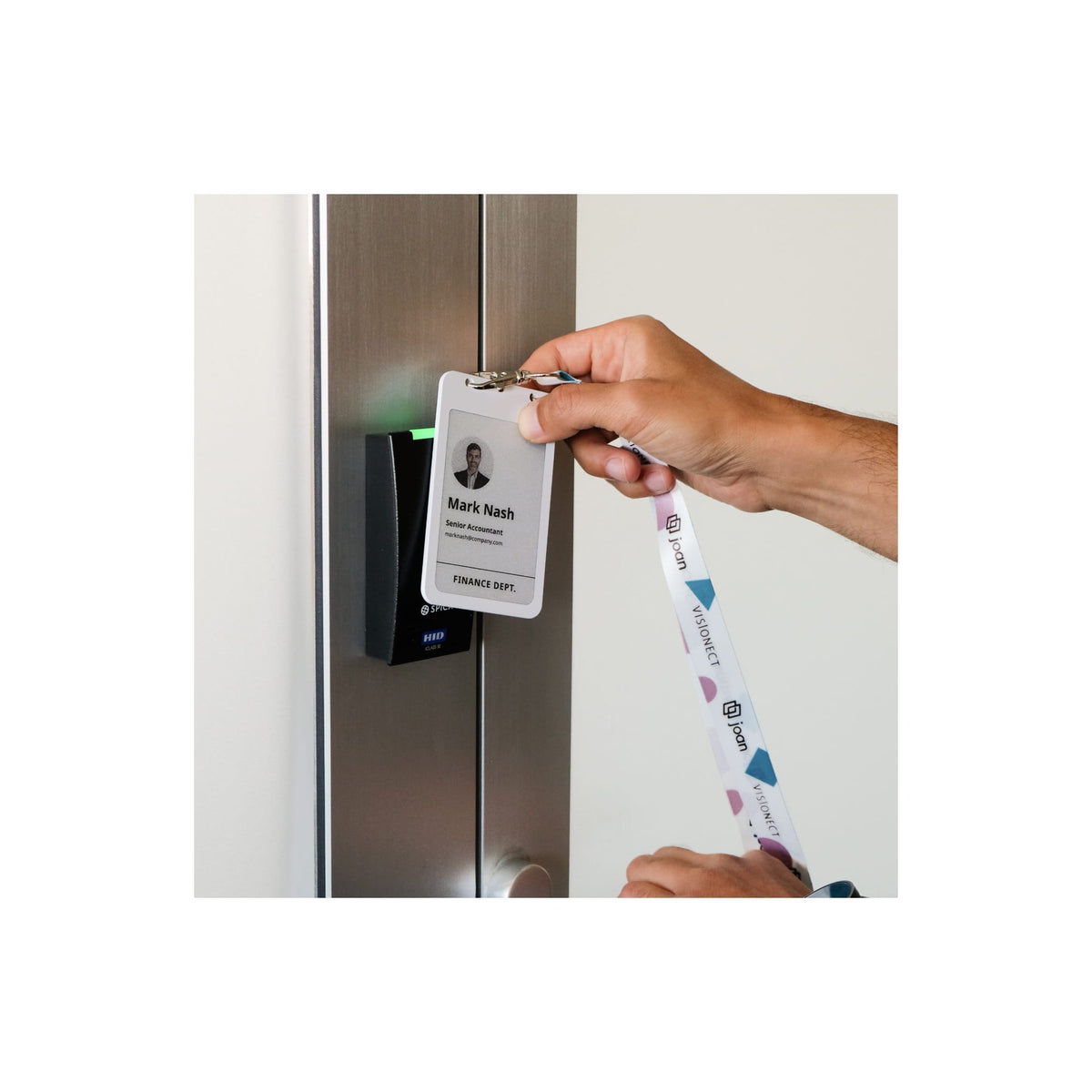

Each badge updates over Bluetooth 5.1 from the Joan Mobile App or a visitor kiosk, with no cables, label printers or card stock to maintain. An onboard NXP MIFARE DESFire EV3 NFC chip can be keyed to a building's access-control system where supported, turning the badge into a credential that opens doors as well as identifying the wearer. Up to six layouts can be stored on one badge and switched with a resync, which lets the same hardware move between the visitor, employee and event use cases.

A 100 mAh rechargeable battery supports roughly 700 display updates per charge and tops up on any standard Qi wireless pad, with a red LED while charging and battery status reported in the Joan Portal. The white PVC and PET housing weighs about an ounce and measures 2.61 x 4.09 x 0.11 inches. A Joan subscription (Team plan or higher) plus an annual per-badge license is required to configure and update badges.

Features

• 4-inch four-color electronic paper display (black, white, red, yellow) that holds its image with no power
• Three use cases on one badge: visitor badges, employee ID badges and event badges
• Syncs name, photo, company, department and custom fields from Joan; re-syncs instead of reprinting
• Bluetooth 5.1 wireless updates from the Joan Mobile App or visitor kiosk
• NXP MIFARE DESFire EV3 NFC chip (8 kB) can be keyed to supported access-control systems
• Stores up to six images or layouts per badge
• Rechargeable via standard Qi wireless charging pad, about 700 updates per full charge
• Lost badges are revoked instantly from the Joan Portal

Technical Specifications

• Display: 4-inch (3:4) electronic paper, non-touch, portrait, 528 x 768 pixels, 236 PPI
• Colors: black, white, red, yellow
• Connectivity: Bluetooth 5.1, NFC (NXP MIFARE DESFire EV3, 8 kB)
• Battery: 100 mAh rechargeable lithium-ion, Qi wireless charging, red charging LED
• Dimensions: 2.61 x 4.09 x 0.11 in (66.25 x 104 x 2.8 mm)
• Weight: 1.04 oz (29.4 g)
• Casing: white PVC and PET plastic
• Operating temperature: 32 to 104 F (0 to 40 C)
• Warranty: one-year limited
• EAN: 3830065467336

What's Included

• 1 x Joan ePaper badge (4-inch)

Note: requires an active Joan subscription and a yearly per-badge license, sold separately. Badges are not eligible for return once shipped.
