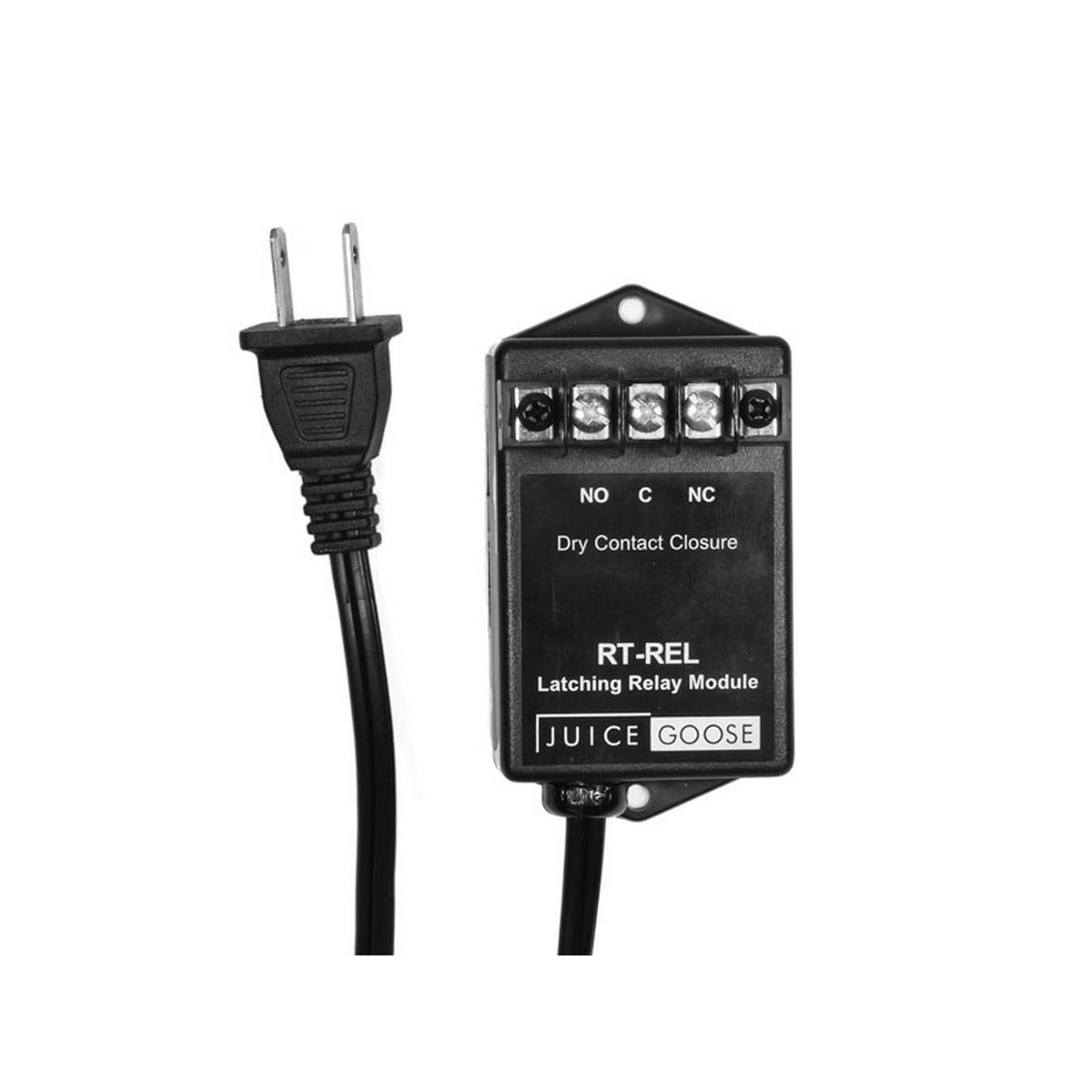

Juice Goose RT-REL Power Sensing Dry Contact Relay

Juice Goose RT-REL Power Sensing Dry Contact Relay

The Juice Goose RT-REL Power Sensing Relay converts the presence of 120 VAC power at a switched outlet into a dry contact control signal. When AC power is applied, the relay changes its contact state, allowing compatible power sequencers, amplifiers, AV systems, and control equipment to respond automatically without a separate control power supply.

Designed for installed AV, rack systems, studios, venues, and commercial audio applications, the RT-REL can extend control from a switched outlet on a power strip, sequencer, receiver, amplifier, or similar component. Its external normally open, common, and normally closed connections provide flexible integration with equipment that accepts contact-closure control.

The compact black enclosure uses a permanently attached 3-foot, 18/2 AWG power cable with a NEMA 5-15P plug. Juice Goose rates the relay contacts for up to 10 amps and specifies operation from 120 V, 60 Hz power. At only 3 x 2 x 1 inches and 4.8 ounces, the RT-REL can fit easily behind racks or near controlled AV equipment.

Key Features

• AC Power Sensing: Detects the presence of 120 VAC at a switched outlet and changes the connected dry contact state.
• Dry Contact Control: Provides contact-closure operation for compatible sequencers, amplifiers, receivers, and AV control equipment.
• NO, C, and NC Connections: Supports normally open, common, and normally closed control wiring for flexible system integration.
• 10-Amp Contact Rating: Manufacturer-rated relay contacts accommodate control applications requiring up to 10 amps.
• Integrated Power Cable: A 3-foot 18/2 AWG cable with NEMA 5-15P plug connects directly to a switched AC receptacle.
• Compact Enclosure: Small 3 x 2 x 1-inch housing fits conveniently behind equipment racks and within installed AV systems.
• AV System Integration: Suitable for extending switched-outlet control to compatible power sequencing and remotely activated equipment.

Technical Specifications

• Model: RT-REL
• Product Type: Power Sensing Relay
• Control Function: AC Current Sensing to Dry Contact Closure
• Operating Voltage: 120 VAC
• Operating Frequency: 60 Hz
• Contact Connections: Normally Open, Common, Normally Closed
• Unpowered State: Common connected to Normally Closed
• Powered State: Common connected to Normally Open
• Relay Contact Rating: 10 A
• Power Cable: 3 ft, 18/2 AWG
• AC Plug: NEMA 5-15P
• Chassis: Durable Plastic
• Color: Black
• Dimensions: 3 x 2 x 1 in
• Weight: 0.3 lb

What's In the Box

• Juice Goose RT-REL Power Sensing Relay
