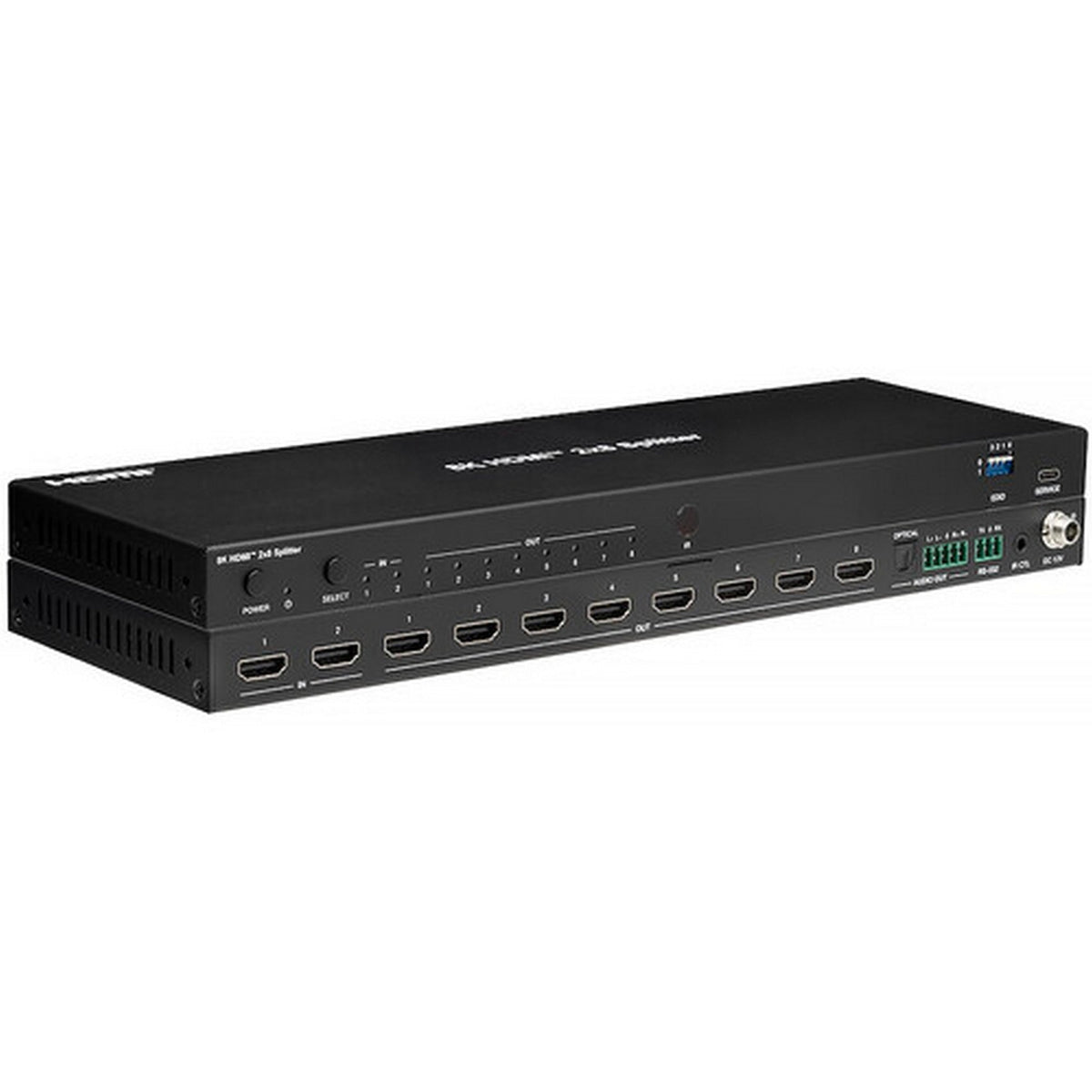

KanexPro SP-HDMI2X8-8K 8K60 2x8 HDMI 2.1 Matrix Splitter

KanexPro SP-HDMI2X8-8K 8K60 2x8 HDMI 2.1 Matrix Splitter

The KanexPro SP-HDMI2X8-8K 8K60 2x8 HDMI 2.1 Matrix Splitter routes either of two HDMI sources to eight displays while supporting resolutions up to 8K60 and 4K120. Its 48 Gbps HDMI 2.1 architecture combines source switching, video distribution, per-output scaling, HDR conversion, audio de-embedding, and diagnostic tools in one compact metal enclosure.

Each HDMI output can independently downscale an 8K source for 4K or 1080p displays, making the unit practical for mixed-resolution installations. Per-output HDR-to-SDR conversion helps integrate legacy screens, while HDR10, HDR10+, Dolby Vision, HLG, ALLM, and VRR pass through to compatible equipment. A built-in signal generator provides 15 resolutions and 13 test patterns for installation testing and cable diagnostics.

Audio can remain embedded over HDMI or be extracted through optical S/PDIF and balanced or unbalanced analog outputs. Advanced EDID management provides hardware and software presets, user-defined slots, and pass-through operation. Front-panel buttons, IR, and RS-232 provide system control, while the USB-C service connection supports firmware servicing. The included mounting ears support integration into professional AV racks and equipment installations.

Key Features

• 2x8 HDMI Matrix Distribution: Routes two HDMI 2.1 sources across eight HDMI displays from a single distribution device.
• 8K60 and 4K120 Support: Handles up to 8K60 4:2:0, 8K30 4:4:4, and 4K120 4:4:4 video.
• 48 Gbps Bandwidth: Supports high-bandwidth HDMI 2.1 signals with HDCP 2.3 content protection.
• Independent Downscaling: Configures each output for automatic scaling, bypass, or forced 1080p operation.
• Per-Output HDR Conversion: Converts HDR content to SDR for compatible legacy displays while other outputs retain HDR.
• Audio De-Embedding: Extracts audio through optical S/PDIF or balanced/unbalanced analog connections with adjustable gain.
• Built-In Signal Generator: Offers 15 output resolutions and 13 test patterns for commissioning and troubleshooting.
• Flexible System Control: Supports front-panel operation, IR remote control, RS-232 commands, and USB-C servicing.

Technical Specifications

• Model: SP-HDMI2X8-8K
• Product Type: 2x8 HDMI 2.1 Matrix Splitter
• HDMI Compliance: HDMI 2.1
• HDCP Compliance: HDCP 2.3
• Video Bandwidth: 48 Gbps
• Maximum Video Resolutions: 8K at 60 Hz 4:2:0 12-bit; 8K at 30 Hz 4:4:4 12-bit; 4K at 120 Hz 4:4:4 12-bit
• Color Depth: 8-bit, 10-bit, 12-bit
• Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
• HDR Formats: HDR, HDR10, HDR10+, Dolby Vision, HLG
• Gaming Features: ALLM, VRR
• HDMI Audio Pass-Through: LPCM, Dolby Digital, Dolby Digital Plus, Dolby Digital EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Resolution, DTS-HD Master Audio, DSD
• Optical Audio De-Embedding: LPCM, Dolby, DTS up to 5.1 channels
• Analog Audio De-Embedding: LPCM 2-channel, balanced or unbalanced
• Maximum Balanced Analog Output: 8.2 dBu
• Maximum Unbalanced Analog Output: 2.2 dBu
• Analog Audio Signal-to-Noise Ratio: 99 dB at 2 Vrms, 1 kHz, A-weighted
• Analog Audio THD+N: Less than 0.2% at 0 dBV, 1 kHz
• Analog Audio Impedance: 300 Ohms
• Analog Audio Frequency Response: 20 Hz to 20 kHz
• Analog Audio Gain: Adjustable from 0 to -79 dB
• HDMI Inputs: 2 x HDMI Type-A 19-pin female
• HDMI Outputs: 8 x HDMI Type-A 19-pin female
• Digital Audio Output: 1 x Optical S/PDIF
• Analog Audio Output: 1 x 5-pin Phoenix L/R
• RS-232: 1 x 3-pin Phoenix
• IR Control: 1 x 3.5 mm stereo mini-jack
• Service Port: 1 x USB Type-C
• IR Level: 12 Vp-p
• IR Frequency: Wideband 20 to 60 kHz
• HDMI Transmission Distance: Up to 9.8 ft
• EDID Management: 16 hardware DIP presets, 33 software presets, 2 user-defined slots, pass-through mode
• Signal Generator: 15 resolutions and 13 test patterns
• ESD Protection: IEC 61000-4-2, ±8 kV air-gap and ±4 kV contact
• Housing: Metal
• Color: Black
• Power Supply: 12 VDC, 2.5 A multinational locking adapter
• Maximum Power Consumption: 9.6 W
• Operating Temperature: 32 to 104°F
• Storage Temperature: -4 to 140°F
• Operating Humidity: 20 to 80% RH, non-condensing
• Storage Humidity: 10 to 90% RH, non-condensing
• Dimensions: 12.6 x 3.9 x 0.8"
• Weight: 1.8 lb

What's In the Box

• KanexPro SP-HDMI2X8-8K 48 Gbps 2x8 HDMI Matrix Splitter
• 12 VDC / 2.5 A Multinational Locking Power Supply
• IR Remote
• IR Wideband Receiver
• 3-Pin Phoenix Connector
• 5-Pin Phoenix Connector
• 2 x Mounting Ears
• 4 x Machine Screws
• User Manual
