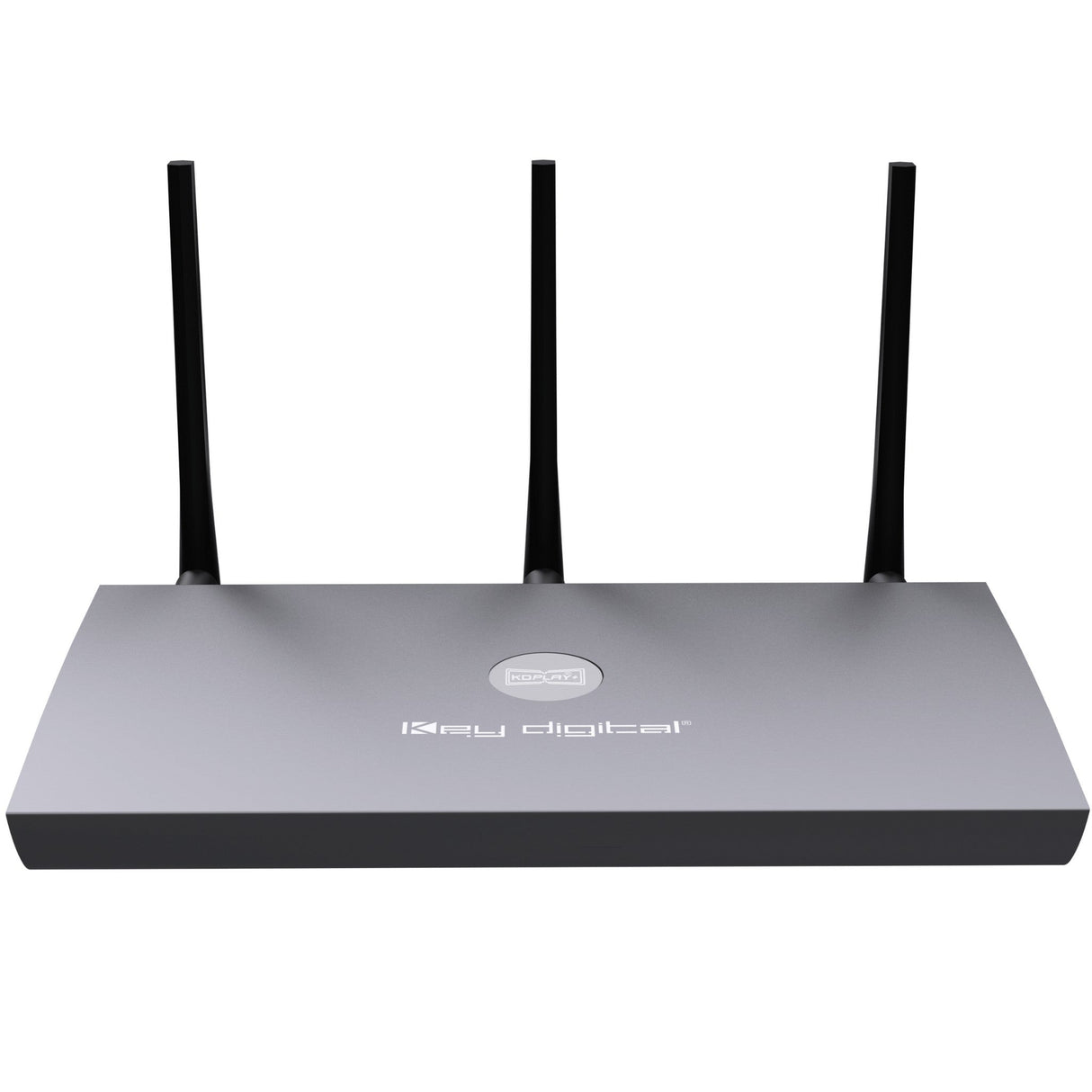

Key Digital KD-BYOD4KHUB 4K Wireless Presentation and Conferencing Gateway

The Key Digital KD-BYOD4KHUB is a cutting-edge presentation switcher and tiling processor designed for modern AV environments. Perfect for boardrooms, conference rooms, education settings, and live event spaces, this versatile device allows for seamless integration of multiple video sources, providing the ability to switch between them or display them side-by-side in custom layouts. Supporting 4K UHD resolution at 60Hz with 4:4:4 chroma subsampling, the KD-BYOD4KHUB ensures stunning image quality and smooth transitions, making it an ideal solution for professional AV systems where visual clarity and flexibility are paramount.

Equipped with advanced tiling features, the KD-BYOD4KHUB can display multiple sources simultaneously on a single screen, offering an interactive and dynamic experience for users. Whether it's for a collaborative meeting, a live broadcast, or an interactive classroom presentation, this device allows for effortless switching between sources and a variety of custom layout options. With its HDMI 2.0 and HDCP 2.2 compliance, the KD-BYOD4KHUB is fully compatible with the latest 4K devices, ensuring superior performance with modern AV setups. Additionally, its user-friendly interface, combined with multiple control options (front-panel, IR, RS-232, and IP control), provides convenience and ease of operation.

Key Features

• Supports 4K UHD at 60Hz with 4:4:4 chroma subsampling for vibrant, high-quality video
• Advanced tiling processor for displaying multiple sources simultaneously in customizable layouts
• HDMI 2.0 and HDCP 2.2 compliant for full compatibility with UHD sources and displays
• Seamless switching between up to four video sources for dynamic presentations
• Ideal for boardrooms, conference rooms, classrooms, live events, and more
• Multiple control options: Front-panel buttons, IR remote, RS-232, and IP control (web interface)
• User-friendly interface for easy setup and operation
• Built-in audio embedding and de-embedding for flexibility in AV signal routing

Technical Specifications

Input Ports: 4 x HDMI 2.0 (supports 4K@60Hz, HDR, 18Gbps)
Output Ports: 1 x HDMI 2.0 (supports 4K@60Hz, HDR, 18Gbps)
Video Resolution Support: Up to 4K UHD (3840x2160) at 60Hz with 4:4:4 chroma subsampling
Audio: Embedded and de-embedded audio support, with analog and digital audio output options
Control Options: Front-panel buttons, IR remote, RS-232, IP control via web interface
Power Supply: 12V/2A DC (includes power supply)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Regulatory Compliance: CE, RoHS, WEEE

Accessories:

• Power Supply: 12V/2A DC
• Rack Ears for 1U rackmount installation
• IR Remote Control
• RS-232 control cable
• USB Setup Cable: USB Micro to USB-A
