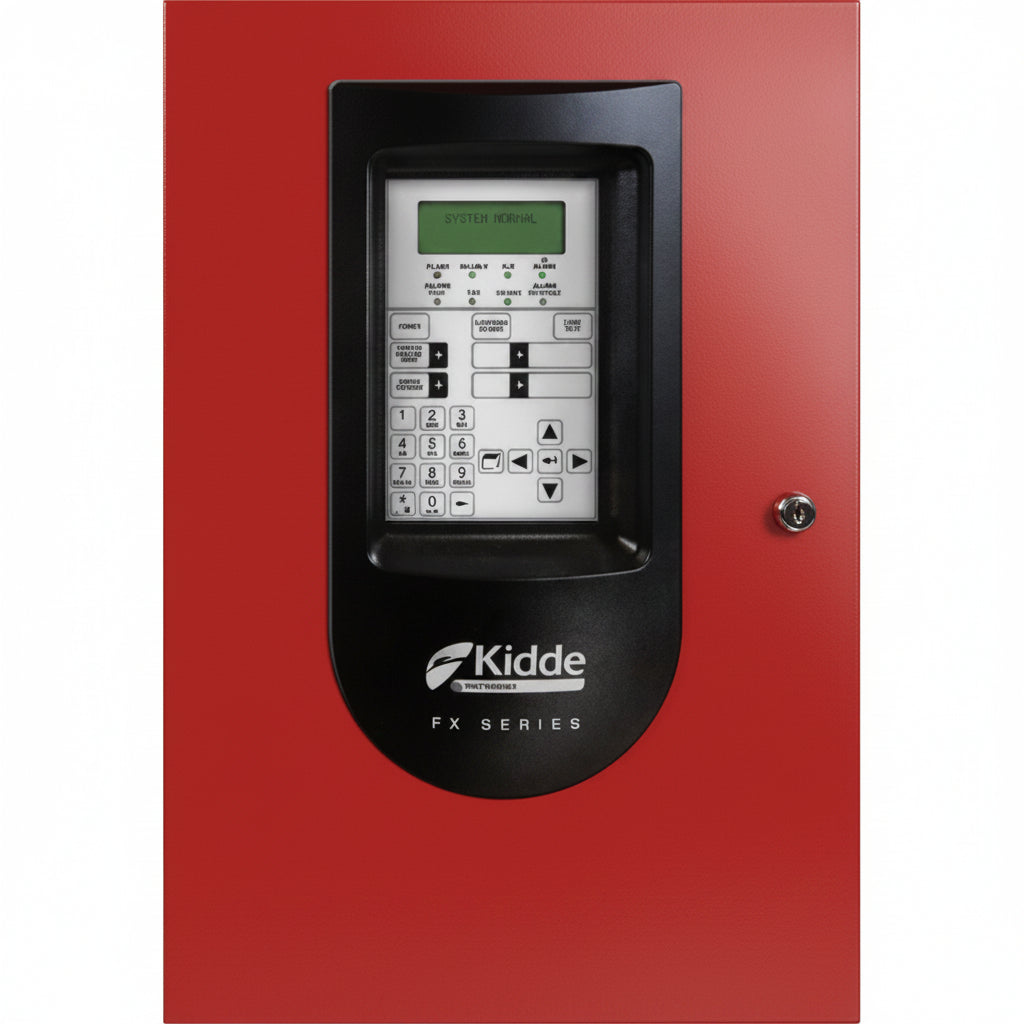

The Kidde Commercial FX-64R Intelligent Fire Alarm Control Panel is a 120 VAC, 64-point addressable life-safety system for small to midsize buildings. It provides one Class A or Class B intelligent device loop, two Class B notification appliance circuits, rotary addressing, automatic device mapping, and a 4 x 20-character backlit LCD.

Designed for commercial fire alarm installations and retrofit projects, the FX-64R supports up to 64 addressable detectors and modules in any combination. Auto-programming helps reduce initial setup time, while point-level alarm verification, adjustable detector sensitivity, programmable front-panel controls, and support for existing wiring make it practical for contractors upgrading smaller facilities.

The panel supports Genesis notification appliances with UL 1971-compliant strobe synchronization and two-wire horn silence. Optional communications include Ethernet, serial connectivity, a DACT dialer, and a FieldServer bridge for BACnet or Modbus integration. Up to eight remote annunciators can be connected, while optional Class A capability expands wiring flexibility for professional life-safety system designs.

Key Features

• 64-Point Addressable Capacity: One intelligent loop supports up to 64 device addresses using detectors and modules in any combination.
• Flexible Loop Wiring: Supports Class B or Class A SLC configurations with up to 63 T-taps.
• Two Notification Circuits: Includes two Class B NACs with optional Class A operation using the compatible adapter module.
• Automatic Configuration: Auto-programming, rotary device addressing, and automatic device mapping simplify commissioning and service.
• Integrated User Interface: A 4 x 20-character backlit LCD and two programmable switch-and-LED controls provide local system operation.
• Notification Appliance Support: Provides two-wire horn silence and UL 1971-compliant strobe synchronization for compatible notification devices.
• Expandable Communications: Optional Ethernet, serial, dialer, and building-management interfaces support monitoring, programming, and integration.
• Retrofit-Friendly Design: Standard wiring support and optional conventional zone expansion help integrate intelligent detection into existing installations.

Technical Specifications

• Product Type: Intelligent addressable fire alarm control panel
• Model: FX-64R
• System Configuration: One-loop, 64-point system
• Device Capacity: Up to 64 addressable devices in any combination of detectors and modules
• Device Capacity Expansion: Standard 64-point capacity is not expandable
• Device Loop Wiring: Class B or Class A, Styles 4, 6, and 7
• Maximum T-Taps: 63
• Maximum Loop Wiring Length: 20,000 ft
• Maximum Loop Resistance: 66 ohms
• Maximum Loop Capacitance: 0.5 µF
• Communication Line Voltage: 20.6 V peak-to-peak maximum
• Loop Circuit Current: 0.5 A maximum
• Maximum Isolators: 64 per loop, including isolator bases and modules
• Notification Appliance Circuits: 2 Class B, with Class A operation available using the optional SA-CLA module
• NAC Output at 120 VAC / 60 Hz: 3.75 A FWR total
• Maximum NAC Output Per Circuit: 2.5 A FWR
• Primary Power: 120 VAC, 60 Hz, 1.3 A maximum
• Panel Operating Voltage: 24 VDC
• Base Panel Standby Current: 155 mA
• Base Panel Alarm Current: 204 mA
• Input Zones: 16 maximum
• Display: 4 x 20-character backlit LCD
• Programmable Controls: 2 front-panel switches with LEDs and customizable labeling
• Remote Annunciators: Up to 8 drops
• Annunciator Interface: RS-485 Class B, with optional Class A operation
• Maximum Annunciator Data Line: 4,000 ft
• Auxiliary Power 1: 24 VDC, 500 mA
• Auxiliary Power 2: 24 VDC, 500 mA; up to 1 A with corresponding reduction in available NAC power
• Auxiliary Output Range: 21.9 to 28.3 VDC
• Alarm Contact: Form C, 24 VDC at 1 A resistive
• Trouble Contact: Form C, 24 VDC at 1 A resistive
• Supervisory Contact: Form A normally open, 24 VDC at 1 A resistive
• Ground Fault Impedance: 0 to 5 kohms
• Terminal Wire Range: 12 to 18 AWG
• Battery Type: Sealed lead-acid
• Battery Voltage: 24 VDC
• Maximum Battery Charging Current: 2.47 A
• Battery Capacity: Up to 26 Ah
• Internal Battery Accommodation: Up to two 10 Ah batteries
• Standby Operation: 24-hour or 60-hour configurations
• Optional Ethernet: SA-ETH 10/100 Base-T Ethernet interface
• Optional Dialer: SA-DACT dual-line dialer/modem; not included with FX-64R
• Optional Serial Connectivity: SA-232 or SA-USB interface
• Optional Building Management Integration: FieldServer bridge supporting BACnet and Modbus
• Operating Temperature: 32 to 120 degrees F
• Relative Humidity: 0 to 93% non-condensing
• Enclosure: Red door with surface-mount enclosure
• Backbox Dimensions: 14.25 x 21.5 x 3.85 inches (W x H x D)
• Panel Height with Door Attached: 21.7 inches
• Panel Depth with Door Attached: 3.9 inches
• Agency Markings: UL, ULC, and FDNY COA 6231
• UPC: 793016036964
