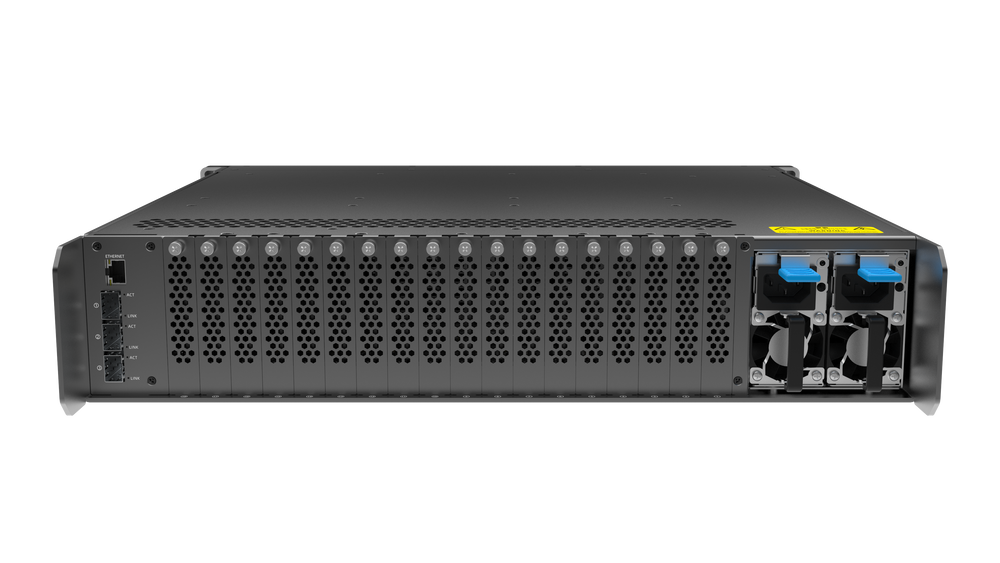

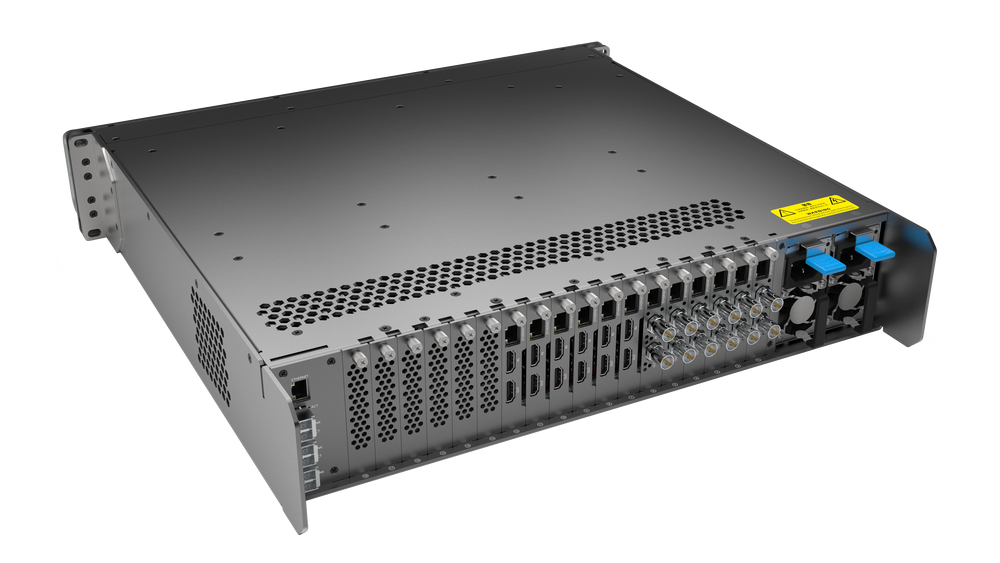

Kiloview Cradle Series RF02

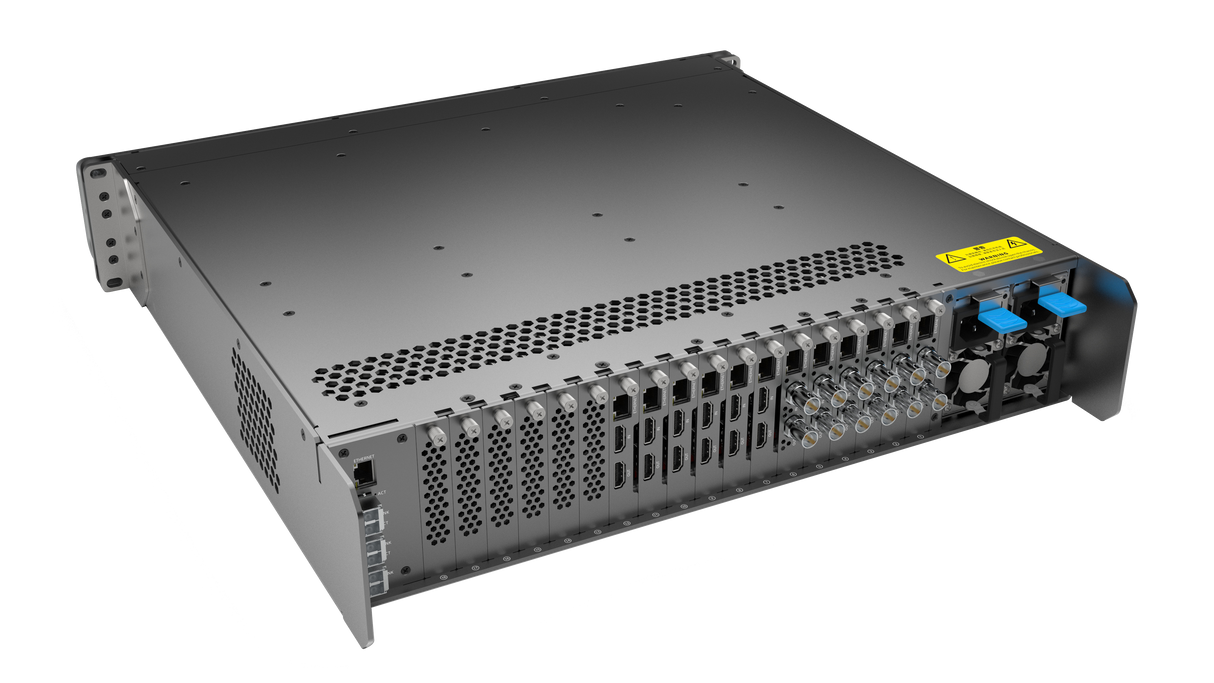

The Kiloview Cradle Series RF02 is a 2RU rack-mounted media platform that consolidates AV-over-IP processing into a single chassis. With flexible configuration for up to 18 card modules covering encoding, decoding, media gateway, and bonding duties, it replaces a clutter of standalone devices for broadcast-grade production, medical imaging transmission, remote education, and live event streaming.
Connectivity includes three 10 Gbps SFP+ fiber ports and one 10 Gbps RJ45 port, with a built-in 1G/2.5G managed switch delivering 120 Gbps of capacity to interconnect every card without an external switch. An 8-core ARM64 controller with 12 GB DDR4 runs KiloLink Server Pro for unified discovery, monitoring, and configuration, while dual hot-swappable redundant power supplies and a 3-inch LCD display support dependable rack operation.
Key Features

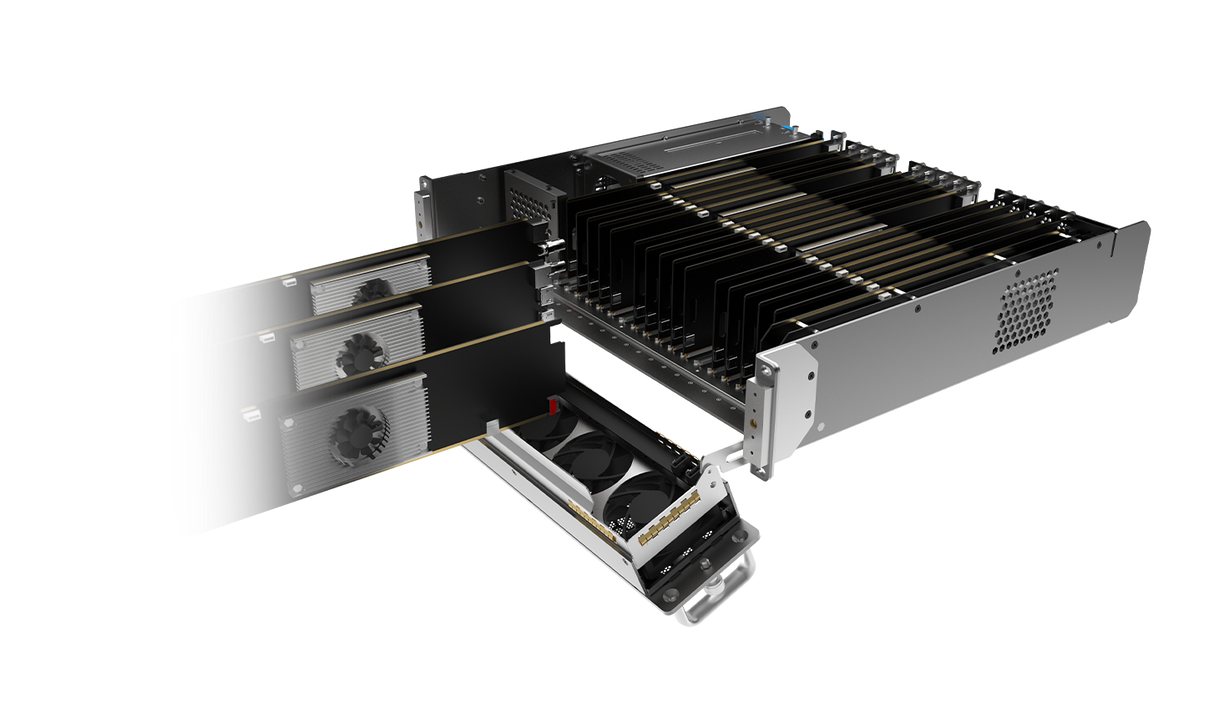

- 2RU chassis holds up to 18 card modules for encoding, decoding, gateway, and bonding
- Three 10 Gbps SFP+ optical ports plus one 10 Gbps RJ45 Ethernet port
- Built-in three-layer managed switch with VLAN support and 120 Gbps switching capacity
- 8-core ARM64 controller, 12 GB DDR4, and 128 GB eMMC running KiloLink Server Pro
- Dual hot-swappable modular power supplies with redundant backup
- 3-inch LCD color display with front-panel buttons; web and HTTP API management
- Serves as on-premise bonding server for Kiloview P Series 4G/5G encoders with the FMG-400 card
Specifications
- Processor: 8-core ARM64 high-performance processor (Cortex) A73@1.8GHz
- Memory: 12GB DDR4
- Storage: 128GB EMMC
- Operating System /Software: Linux 5.10/KiloLink Server Pro RF version
- Management and Control: Web/ HTTP API
- Service Cards Connection: 18 x 1Gbps/2.5Gbps Adaptive Ethernet (Slot1/2 can support up to 10Gbps)

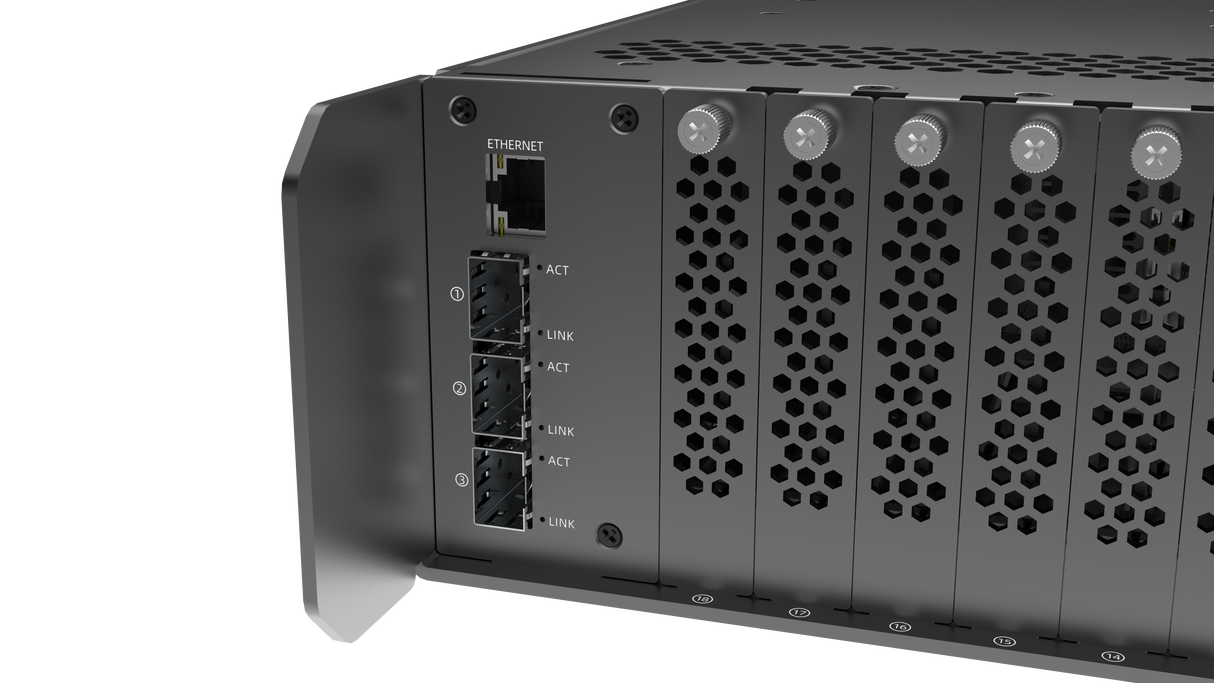

- External Connection: 3 x 10Gbps SFP+ Optical Ports (IEEE 802.3ae) 1 x 10Gbps RJ45 Ethernet port
- Type: Three-layer managment switch/VLAN support
- Switching Capacity: 120Gbps

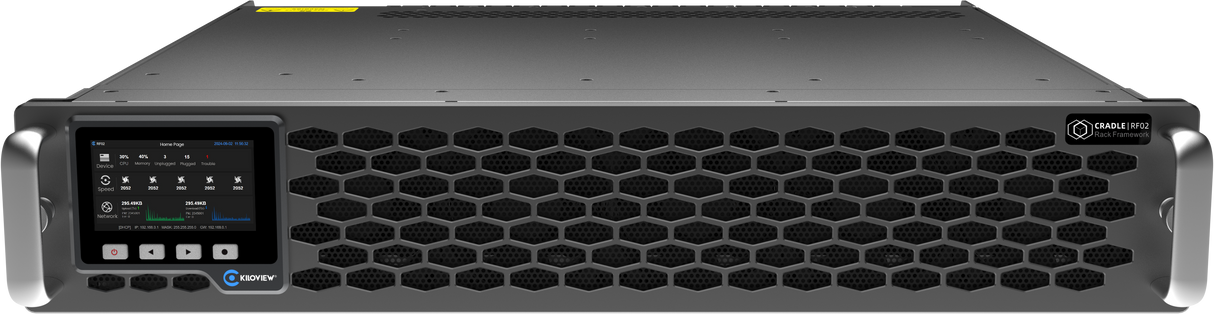

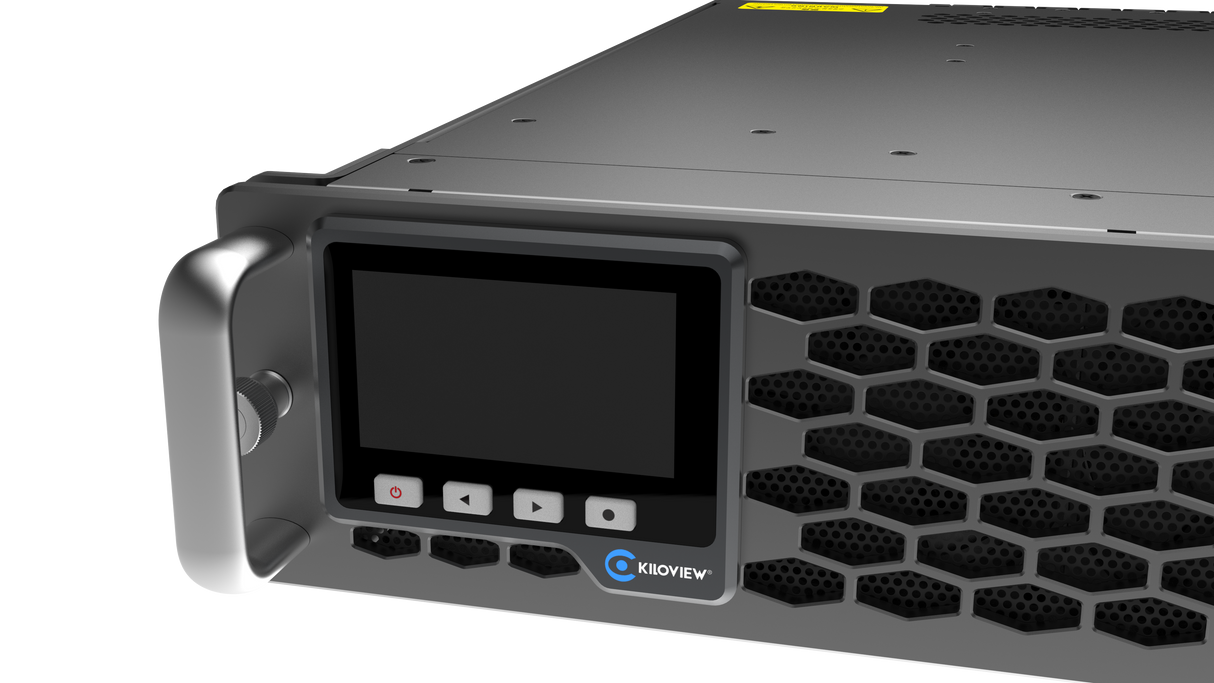

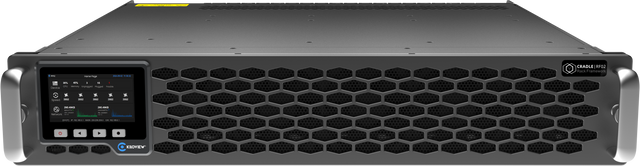

- Display: 3-inch LCD color display (non-touchable)
- Buttons: 4 (Power/Flip left/Flip right/Select)
- External Connection: 3 x 10Gbps SFP+ Optical Ports, 1 x 10Gbps RJ45 Ethernet port

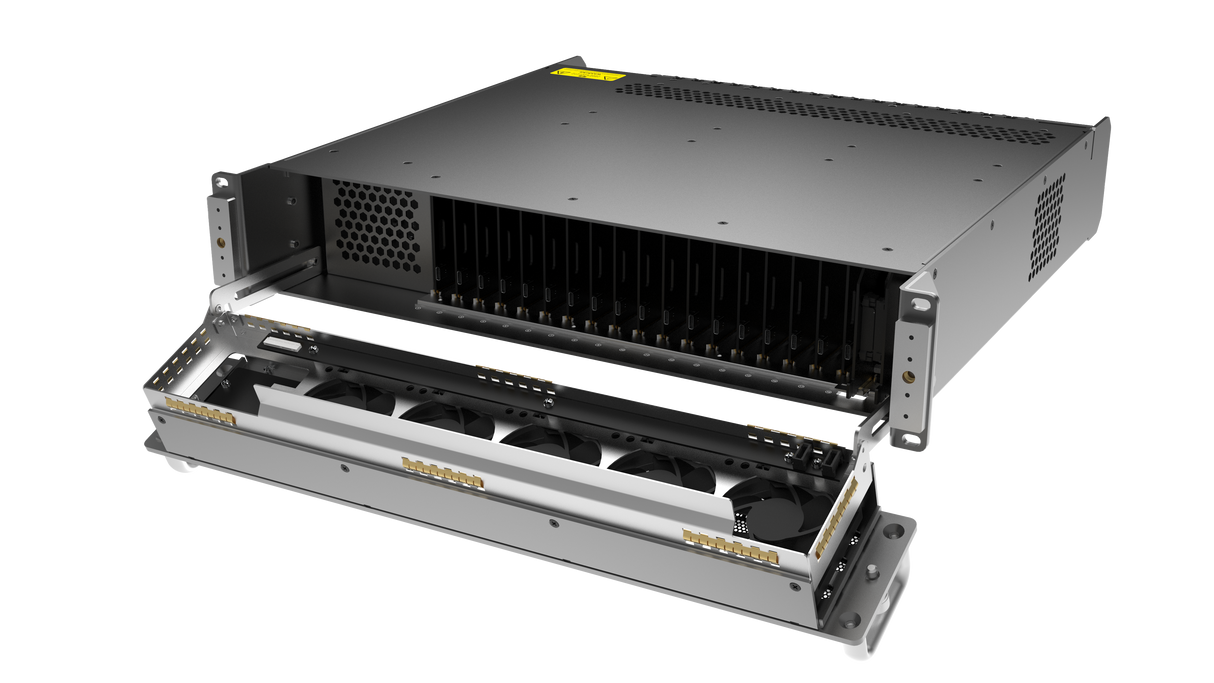

- Heat dissipation: Self-Adjust heat dissipation/ Auto-temp control

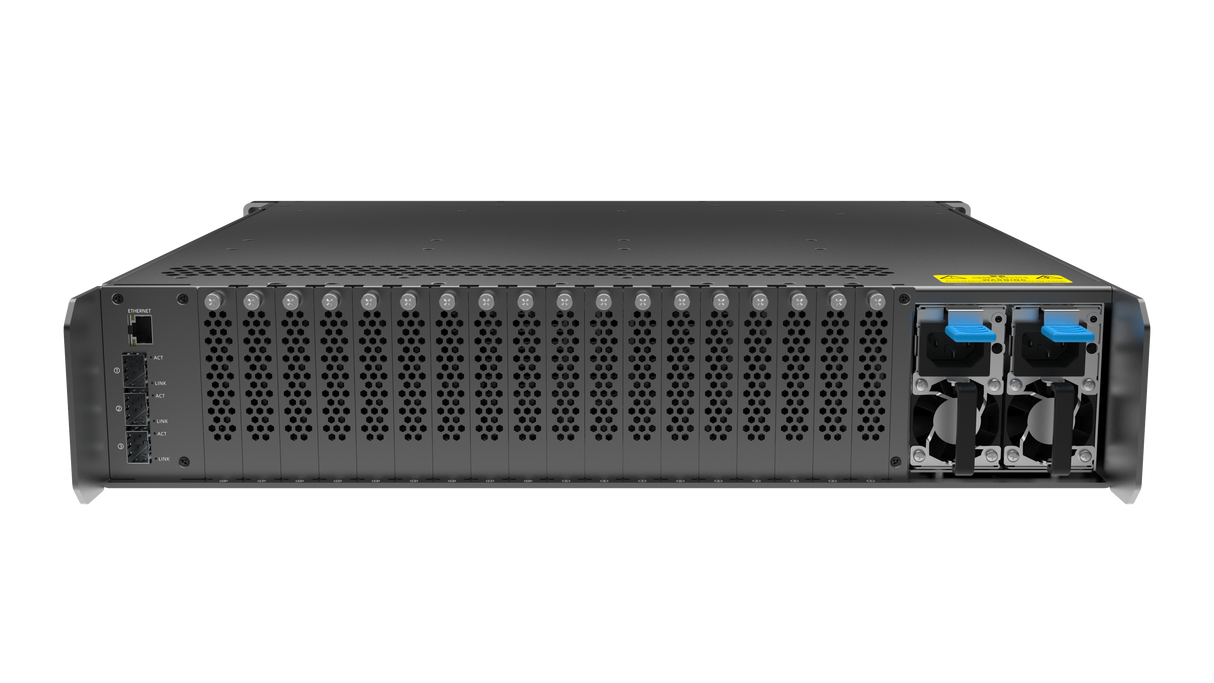

- Power supply: Dual hot-swappable modular power supplies with redundant backup (configurable to single power mode), Single module specifications: AC 100 240V, 7A(Max), 60/50Hz, 500W Max
- Dimensions: 483mm x 487mm x 88 mm (2RU)
- Working Temperature: -10°C to 50°C
- Main Controller Module
- Network Switch Module
- Overall Chassis
What's Included
- RF02 frame/1PC
- 800W Power supply/2PCs
- Power cable 220V/2PCs
- Quick start guide /1PC
- Operation Guide Card/1PC
- Certificate/Warranty card /1PC
