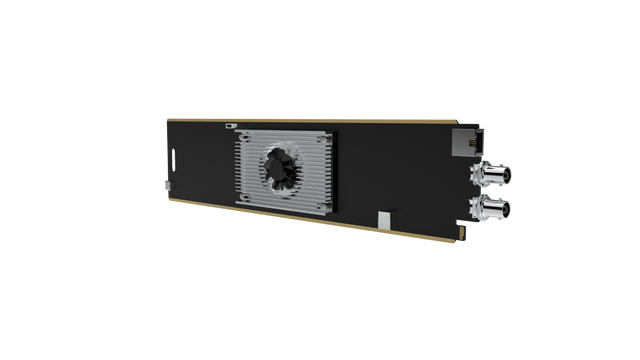

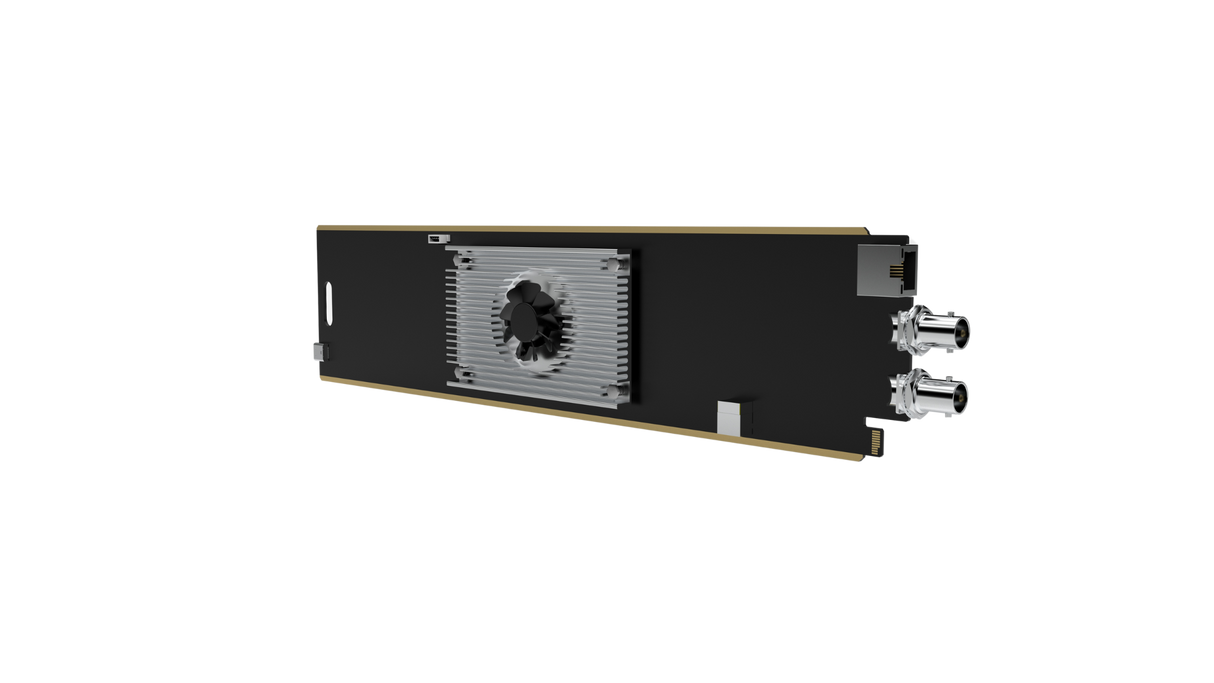

Kiloview FN-50 Rackmount Card for N50
The Kiloview FN-50 is a 4K bidirectional conversion card built for the Cradle Series RF02 frame, bridging 12G-SDI signals and IP video. It encodes a 12G-SDI input to NDI and other streaming formats, or decodes 4K NDI streams back out to 12G-SDI, serving broadcasters, live events, theaters, conferences, and sports productions running professional IP workflows.
The card supports NDI High Bandwidth, NDI HX, NDI HX3, SRT, RTMP, RTSP, HLS, UDP, and RTP, with SpeedHQ, H.264, and H.265 codecs at up to 3840x2160 at 60 fps and 4:2:2 10-bit HDR color. NDI 6 and NDI Bridge integration enable remote production links, while network PTZ control, NAS recording, a 12G-SDI loop-out, and KiloLink Server Pro management round out the feature set.
Key Features
- Bidirectional 12G-SDI conversion: encode to IP formats or decode 4K NDI to 12G-SDI output
- Up to 4Kp60 input and output with 12G-SDI loop-out for monitoring
- 4:2:2 10-bit HDR color for broadcast-grade image quality
- Supports NDI High Bandwidth, NDI HX/HX3, SRT, RTMP, RTSP, HLS, UDP, and RTP
- SpeedHQ NDI codec plus H.264 and H.265 encoding, with H.264 and H.265 bitrates adjustable from 1 to 120 Mbps
- Network PTZ control and recording to NAS
- Powered by the RF02 frame at 16 W maximum; managed via web UI or KiloLink Server Pro
Specifications
- FN-50
- 1*12G-SDI
- 1* 12G-SDI
- Input: up to 3840x2160 60fps (4Kp60), lowest
- 720p50
- Output (decoding or loop out): up to 3840x2160 60fps (4Kp60),
- lowest 720p23.98
- SpeedHQ (NDI CODEC): SHQ0, SHQ2
- ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
- ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU
- H.265
- AVC (H.264): Baseline, Main, High, High10, High 4:2:2 up to 5.2
- level
- HEVC (H.265): Main, Main Intra, Main10, Main10 Intra, Main 4:2:2
- 10, Main 4:2:2 10 Intra up to 5.1 High Tier
- NDI Audio, AAC-LC, other
- software expansion
- SpeedHQ (NDI CODEC):
- 4Kp60: 250Mbps, 1080p60: 132Mbps, 1080p30/1080i60:
- 112Mbps, 720p60: 105Mbps
- 480i60: 62.5Mbp
- AVC (.264):
- Adjustable from 1Mbpsto 120Mbps. >24Mbps (4Kp60);
- >10Mbps(1080p60).
- HEVC (H.265):
- Adjustable from 1Mbps to 120Mbps. >15Mbps (4Kp60);
- >6Mbps(1080p60).
- NDI High Bandwidth
- NDI HX/HX3
- SRT/RTSP/RTMP/HLS/UDP/RTP（*Encoding only）
- Supports NDI High Bandwidth, NDI|HX, N
- DI|HX3, SRT, RTSP, and RTMP simultaneously.
- Supports recording to NAS
- Network PTZ
- Web UI and remote management with KILOVIEW KiloLink Server Pro
- 1x USB 3.0 Type-A
- Powered by RF02
- 16W Max
- 86.84*238.9mm
- -20℃~45℃
- -20℃~70
- Model
- Video input interface
- Video output interface
- Video resolution
- NDI CODEC feature
- Audio encoding and decoding
- Typical Bitrates
- Internet protocols
- NDI® codec capacity
- Recording
- PTZ control
- Management
- USB
- Power
- Power consumption
- Dimension
- Operating temperature
- Storage temperature
What's Included
- FN-50 card/1PC
- SDI Port Rear Bracket/1PC
- Quick start guide /1PC
- Certificate/Warranty card /1PC
