Kiloview FN-60 Rackmount Card for N60
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

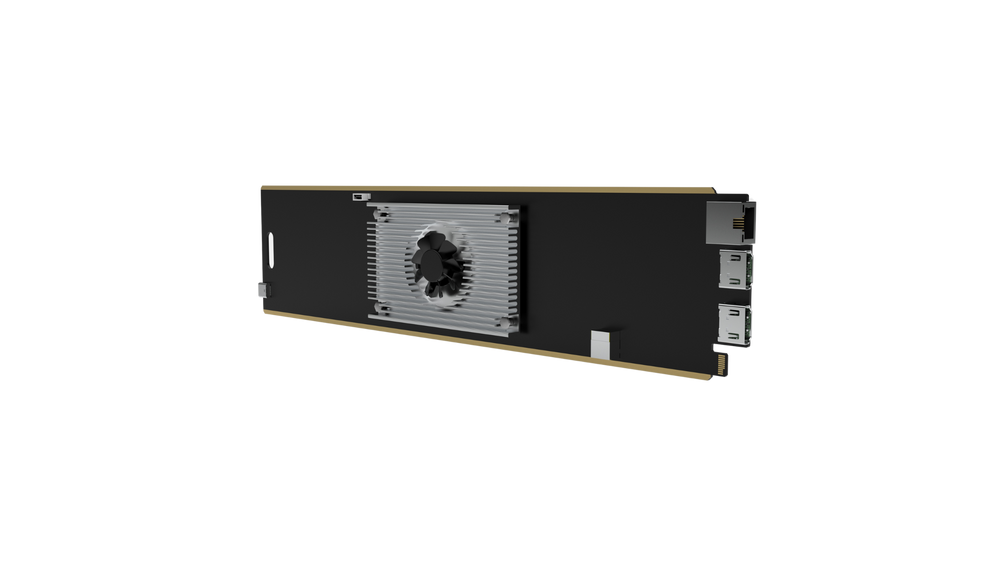

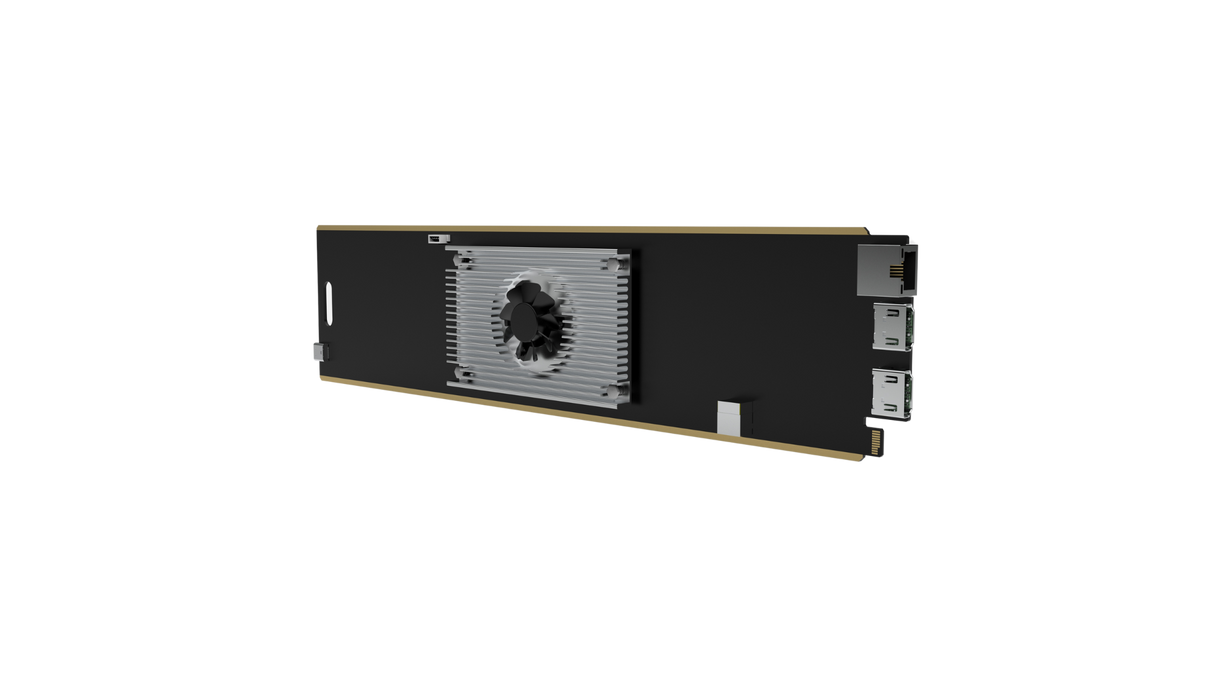

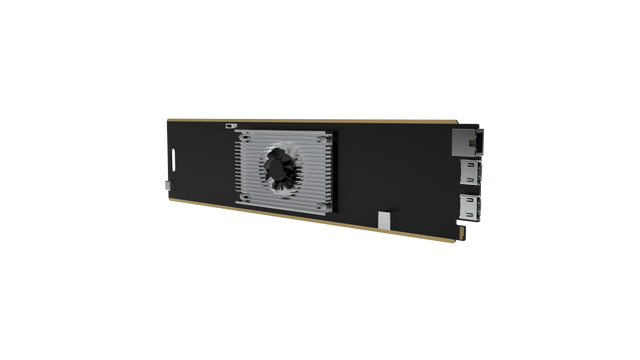

Kiloview FN-60 Rackmount Card for N60
Kiloview's FN-60 brings HDMI sources into IP video workflows as a 4K bidirectional conversion card for the Cradle Series RF02 platform. It encodes a 4Kp60 HDMI 2.0 input to NDI and mainstream streaming protocols, or decodes 4K NDI streams to HDMI output, making it a fit for broadcasting, live events, theaters, conference facilities, and multi-location productions.
Video runs up to 3840x2160 at 60 fps with 4:2:2 10-bit HDR support and an HDMI loop-out for local monitoring. Codec options span SpeedHQ, H.264, and H.265, with protocol coverage for NDI High Bandwidth, NDI HX, NDI HX3, SRT, RTMP, RTSP, HLS, UDP, and RTP. NDI 6 and NDI Bridge enable remote transmission, alongside network PTZ control, NAS recording, and KiloLink Server Pro management.
Key Features
- HDMI 2.0 input and output with bidirectional encode and decode at up to 4Kp60
- HDMI loop-out for confidence monitoring
- 4:2:2 10-bit HDR color quality with NDI 6 and NDI Bridge support
- Protocols include NDI High Bandwidth, NDI HX/HX3, SRT, RTMP, RTSP, HLS, UDP, and RTP
- H.264 and H.265 bitrate control from 1 to 120 Mbps alongside the SpeedHQ NDI codec
- Network PTZ control, NAS recording, and USB 3.0 Type-A port
- Powered by the RF02 frame with 16 W maximum consumption
Specifications
- FN-60
- 1*HDMI 2.0
- 1* HDMI 2.0
- Input: up to 3840x2160 60fps (4Kp60), lowest
- 720p50
- Output (decoding or loop out): up to 3840x2160 60fps (4Kp60),
- lowest 720p23.98
- SpeedHQ (NDI CODEC): SHQ0, SHQ2
- ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
- ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU
- H.265
- AVC (H.264): Baseline, Main, High, High10, High 4:2:2 up to 5.2
- level
- HEVC (H.265): Main, Main Intra, Main10, Main10 Intra, Main 4:2:2
- 10, Main 4:2:2 10 Intra up to 5.1 High Tier
- NDI Audio, AAC-LC, other
- software expansion
- SpeedHQ (NDI CODEC):
- 4Kp60: 250Mbps, 1080p60: 132Mbps, 1080p30/1080i60:
- 112Mbps, 720p60: 105Mbps
- 480i60: 62.5Mbp
- AVC (.264):
- Adjustable from 1Mbpsto 120Mbps. >24Mbps (4Kp60);
- >10Mbps(1080p60).
- HEVC (H.265):
- Adjustable from 1Mbps to 120Mbps. >15Mbps (4Kp60);
- >6Mbps(1080p60).
- NDI High Bandwidth
- NDI HX/HX3
- SRT/RTSP/RTMP/HLS/UDP/RTP（*Encoding only）
- Supports NDI High Bandwidth, NDI|HX, N
- DI|HX3, SRT, RTSP, and RTMP simultaneously.
- Supports recording to NAS
- Network PTZ
- Web UI and remote management with KILOVIEW KiloLink Server Pro
- 1x USB 3.0 Type-A
- Powered by RF02
- 16W Max
- 86.84*238.9mm
- -20℃~45℃
- -20℃~70
- Model
- Video input interface
- Video output interface
- Video resolution
- NDI CODEC feature
- Audio encoding and decoding
- Typical Bitrates
- Internet protocols
- NDI® codec capacity
- Recording
- PTZ control
- Management
- USB
- Power
- Power consumption
- Dimension
- Operating temperature
- Storage temperature
What's Included
- FN-60 card/1PC
- HDMI Port Rear Bracket/1PC
- Quick start guide /1PC
- Certificate/Warranty card /1PC
