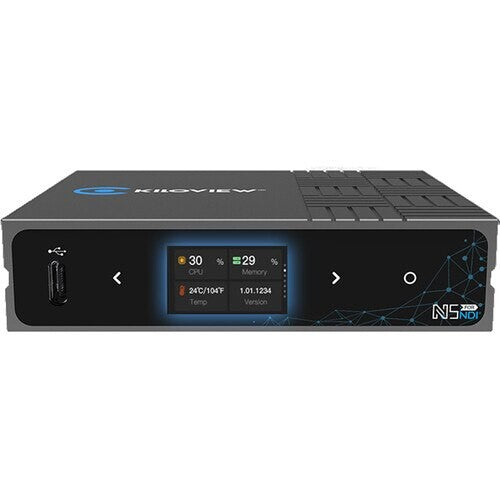

Kiloview N5 3G-SDI USB to NDI Bi-Directional Converter

N5 3G-SDI & USB to NDI Encoder/Decoder
Kiloview N5 is a compact, cost-effective NDI converter that supports both NDI High Bandwidth and NDI HX2/HX3 formats. With 3G-SDI input and loop-through, it encodes SDI signals into high-quality NDI streams and can also decode them back for SDI output—it’s your most affordable way into the world of NDI. Additionally, the N5 can be connected to cameras via a USB port to convert USB video outputs into NDI streams. This capability is perfect for a variety of applications such as video conferencing, live streaming, and training sessions.

Integrated Encoding & Decoding with SDI-to-IP Flexibility
The N5 supports both NDI High Bandwidth and NDI HX2/ HX3 formats in a single, compact unit. It features 3G-SDI input with loop-through and decoding output, supporting resolutions up to 1080p60.

• In encoding mode: the N5 can simultaneously output both NDI High Bandwidth and NDI HX2/HX3 streams from a 3G-SDI source.
• In decoding mode: it decodes any NDI High Bandwidth, NDI HX2, or HX3 stream and outputs directly to baseband 3G-SDI for on-screen monitoring.

From USB to NDI—Simplify Your Setup, Elevate Your Stream
The N5 allows direct input from USB video devices such as webcams, UVC cameras, and built-in laptop cameras—instantly converting them into NDI streams at up to 1080p60. With no need for external capture cards or complex setup, it offers a fast and efficient way to integrate lightweight video sources into professional NDI workflows.

Large-sized Color LCD Screen with Tally

• Clear status display with touch buttons: Real-time display of network connection, operating mode, and device information keeps you fully informed, while the touch buttons allow quick navigation and precise adjustment of key settings.
• Tally Indicators: Front panel LCD and rear Tally LEDs provide clear red/green indicators for PGM (program) and PVW (preview) status. (It also supports external Tally through USB expansion.)

Centralized Management with Kilolink Server Pro
The N5 seamlessly connects to the KiloLink Server Pro once registered, enabling centralized remote management with real-time monitoring of device status, including connectivity, video preview, bandwidth, and IP address—all in one interface for streamlined oversight.

PTZ Control for All-in-One Production
The N5 enables flexible PTZ camera control without needing additional controllers. It supports serial connections (RS-232/RS-485/RS-422) via USB and mainstream network protocols. This allows precise pan, tilt, and zoom adjustments, enhancing multi-camera live streaming and conference setups with seamless integration and user-friendly operation.

Smarter Preview, Powerful OSD Capabilities
N5 offers real-time preview of up to 10 video sources, allowing quick signal verification and issue detection before going live for smooth, reliable multi-camera production. In addition, it supports flexible OSD tools, including real-time VU meter display, customizable border overlays, and full graphics and text overlays, enabling visually engaging, branded outputs while saving time and streamlining the overall workflow.

Power It as You Wish
The N5 supports PoE for single-cable power and data transmission. With a 12V–18V DC input range, it can also be powered via USB or camera batteries for flexible deployment.

Control with a USB Keypad
In decoding mode, you can preset up to 10 NDI sources (0–9) and quickly switch outputs using a connected USB keypad. You can even use the keypad to control a PTZ camera, making it the most affordable PTZ controller available.

Visual Input Loss Alerts for Instant Issue Identification
When a video source or network stream is interrupted, the system automatically displays a preset “No Video” screen or a custom PNG image (1920 × 1080 or 1280 × 720), instead of defaulting to a black or blue screen. This maintains a clean, professional output while helping users quickly pinpoint input-side issues—minimizing downtime and avoiding confusion.

Audio Support with Real-Time Intercom
The N5 fully supports USB headset connectivity. When paired with the Kiloview Intercom System (KIS), the N5 supports real-time voice intercom, enabling seamless talkback during production workflows.

Compact Design with Easy Camera Mounting
The N5 features a compact design and comes with a standard threaded cold shoe mount, making it easy to attach directly to a camera.

Technical Specifications

• Video Resolution
  • Input support:
  • 1920*1080p 60/59.94/50/30/29.97/25/24/23.98fps
  • 1920*1080i 60/59.94/50fps
  • 1280*720p 60/59.94/50/30/29.97/25/24/23.98fps
  • Output support:
  • 1920*1080p 60/59.94/50/30/29.97/25/24/23.98fps
  • 1920*1080i 60/59.94/50fps
  • 1280*720p 60/59.94/50/30/29.97/25/24/23.98fps

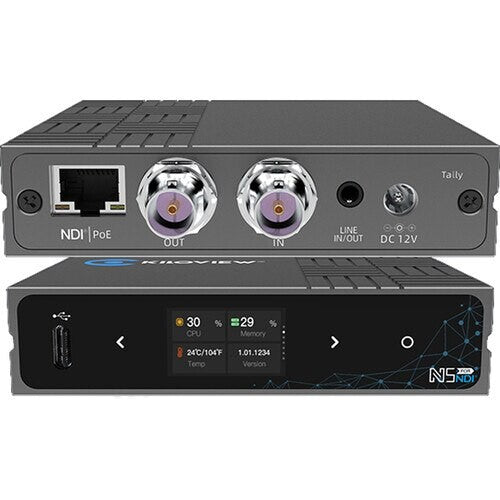

• Video Port
  • 1 × 3G-SDI for input
  • 1 × 3G-SDI for output for decoding /loop-out for encoding
• Video Encoding and Decoding: SpeedHQ(NDI), H.264(AVC), H.265(HEVC)
• Streaming Protocols: NDI HB/NDI HX2/HX3
• Interlaced Video Support: Interlaced video input, with encoding output limited to progressive format only
• Color Space
  • Encoding
  • NDI HB: YUV 4:2:2
  • NDI HX: YVU 4:2:0
  • Decoding
  • NDI HB: 4:2:0, 4:2:2
  • NDI HX: 4:2:0
• Color Depth: 8-bit
• Audio Port: 1 × 3.5mm Line in/Line out
• Audio Encoding and Decoding: NDI Audio, AAC-LC, more audio formats and channels available through custom development
• Audio Sampling: Fixed at 48 kHz
• Audio Channels
  • Encoding: 2 channels
  • Decoding: 2 channels
• Network Port: 1 × 1000Mbps Ethernet port (support PoE)
• Physical Controls: 1.14'' LCD with touch buttons
• Management: Web-based UI or centralized management via KiloLink Server Pro
• Tally
  • An LCD tally indicator on the front panel
  • A Tally LED on the rear
  • External Tally supported
• Voice Intercom: USB headset expansion or group calls via Kiloview Intercom System (KIS)
• Video Input Loss Alerts
  • Default “NO INPUT SIGNAL” image on HDMI disconnect
  • Custom PNG (1920 × 1080 or 1280 × 720) display supported
• PTZ Control: USB-to-serial (RS-232/RS-485/RS-422) and network protocols (Sony Visca, Pelco-D/P) for external PTZ control
• USB Port: 1 × USB 3.0 Type-C (USB web cam supported)
• Mounting: Cold shoe adapter
• Power Supply: DC 12V （5.5/2.5）or PoE
• Power Consumption: 6W (Max)
• Weight: 500g
• Dimensions: 100×95×23mm
• Working Temperature: -20℃~45℃/-4℉~113℉

What's Included

• Kiloview N5 3G-SDI/NDI Bi-Directional Converter Power adapter/1PC Cold shoe /1PC Quick start guide/1PC Certificate/Warranty card/1PC Warranty: Limited 1-Year Manufacturer Warranty. Registration Extension: 1-Year
