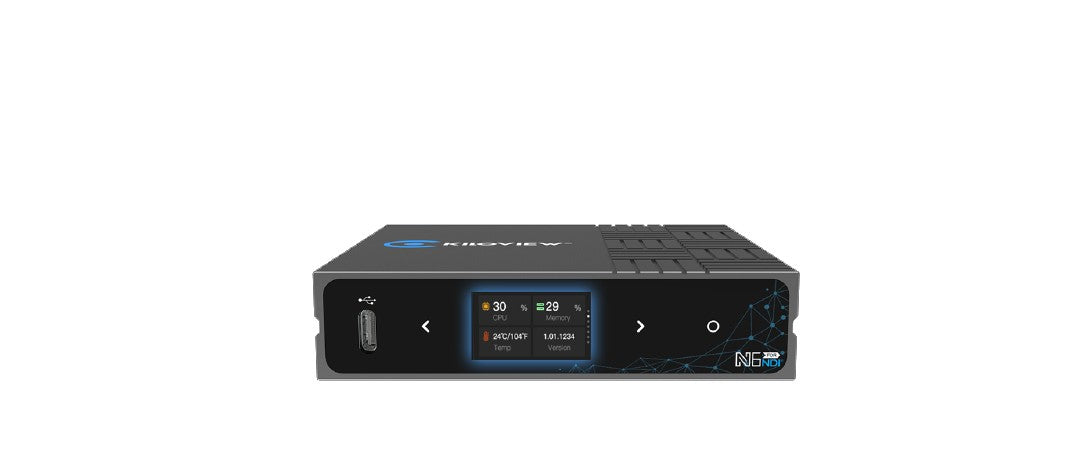

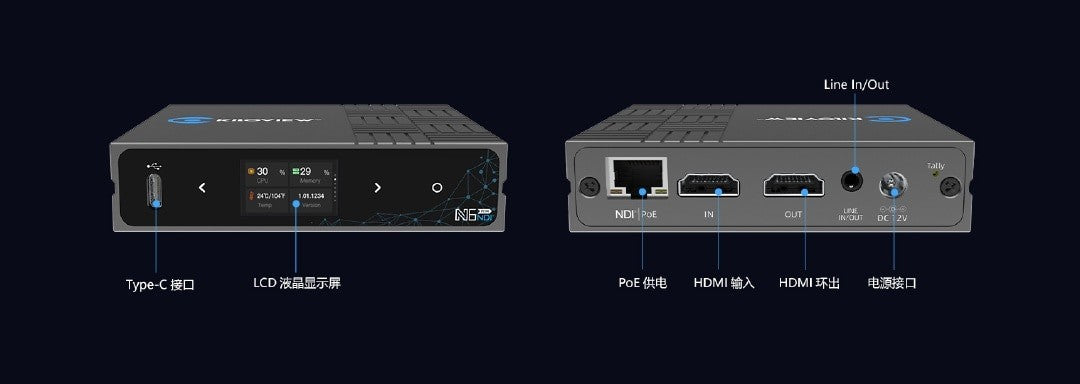

Kiloview N6 1080p60 HDMI Full NDI Bi-Directional Converter

N6 - HDMI & USB to NDI Encoder/Decoder
Kiloview N6 is a compact, cost-effective NDI encoder/decoder. Compatible with NDI 6.2, it provides improved stability and performance with the latest NDI ecosystem. With support for both NDI high bandwidth and NDI HX2/3, N5/N6 is capable of processing all NDI sources from any camera, software or device. Featured with powerful functions such as PoE, LCD display with large tally and external Tally support, PTZ control, 3.5mm audio line in/out, multi-channel audio encoding, on-screen overlays, intercom and centralized management, N6 is the easiest and most cost-effective way to get access to the fabulous NDI world for low latency and high image quality.

Integrated Encoding & Decoding with NDI HB/HX Flexibility
The N6 supports both NDI High Bandwidth and NDI HX2/HX3 formats in a single, compact unit. It features HDMI input with loop-through and decoding output, supporting resolutions up to 1080p60.

• In encoding mode: the N6 can simultaneously output both NDI High Bandwidth and NDI HX2/HX3 streams from a HDMI source.
• In decoding mode: it decodes any NDI High Bandwidth, NDI HX2, or HX3 stream and outputs directly to baseband HDMI for on-screen monitoring.

From USB to NDI—Simplify Your Setup, Elevate Your Stream
The N6 allows direct input from USB video devices such as webcams, UVC cameras, and built-in laptop cameras—instantly converting them into NDI streams at up to 1080p60. With no need for external capture cards or complex setup, it offers a fast and efficient way to integrate lightweight video sources into professional NDI workflows.

Large-sized Color LCD Screen with Tally

• Clear status display with touch buttons: Real-time display of network connection, operating mode, and device information keeps you fully informed, while the touch buttons allow quick navigation and precise adjustment of key settings.
• Tally Indicators: Front panel LCD and rear Tally LEDs provide clear red/green indicators for PGM (program) and PVW (preview) status. (It also supports external Tally through USB expansion.)

Central Management with Kilolink Server Pro
The N6 seamlessly connects to the KiloLink Server Pro once registered, enabling centralized remote management with real-time monitoring of device status, including connectivity, video preview, bandwidth, and IP address—all in one interface for streamlined oversight.

PTZ Control for All-in-One Production
The N6 enables flexible PTZ camera control without needing additional controllers. It supports serial connections (RS-232/RS-485/RS-422) via USB and mainstream network protocols. This allows precise pan, tilt, and zoom adjustments, enhancing multi-camera live streaming and conference setups with seamless integration and user-friendly operation.

Smarter Preview, Powerful OSD Capabilities
N6 offers real-time preview of up to 10 video sources, allowing quick signal verification and issue detection before going live for smooth, reliable multi-camera production. In addition, it supports flexible OSD tools, including real-time VU meter display, customizable border overlays, and full graphics and text overlays, enabling visually engaging, branded outputs while saving time and streamlining the overall workflow.

Power It as You Wish

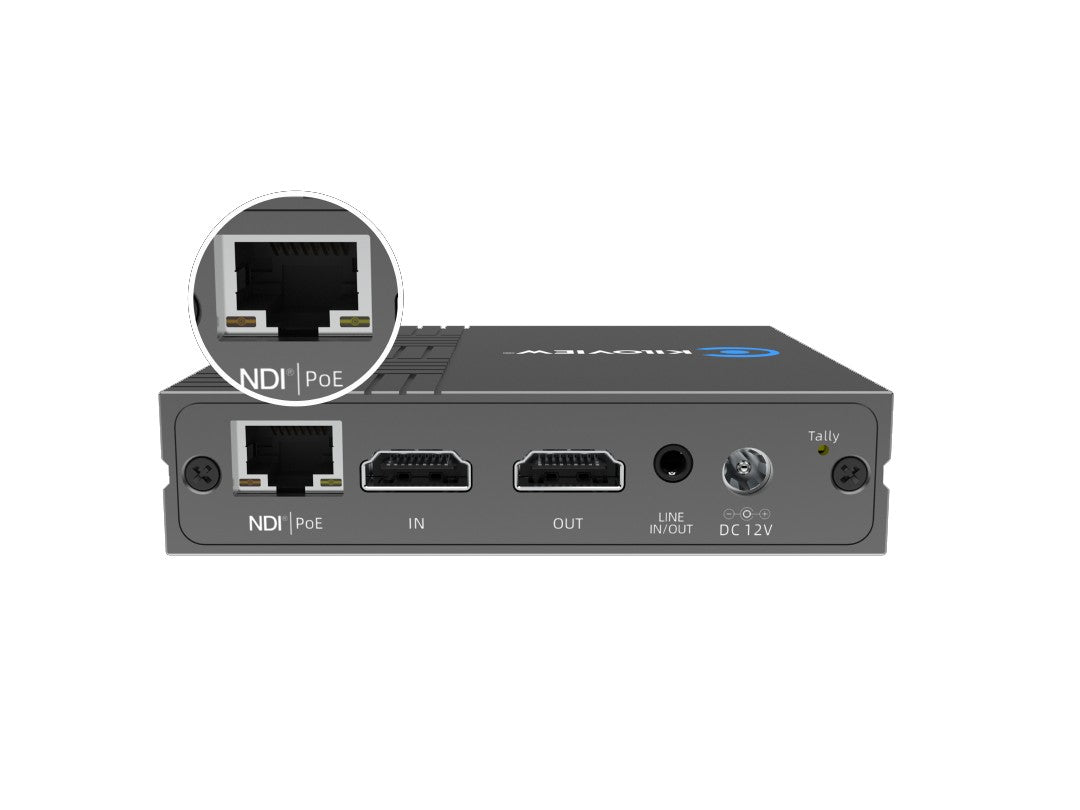

The N6 supports PoE for single-cable power and data transmission. With a wide 12V–18V DC input range, it can also be powered via USB or camera batteries for flexible deployment.

Control with a USB Keypad
In decoding mode, you can preset up to 10 NDI sources (0–9) and quickly switch outputs using a connected USB keypad. You can even use the keypad to control a PTZ camera, making it the most affordable PTZ controller available.

Visual Input Loss Alerts for Instant Issue Identification
When a video source or network stream is interrupted, the system automatically displays a preset “No Video” screen or a custom PNG image (1920 × 1080 or 1280 × 720), instead of defaulting to a black or blue screen. This maintains a clean, professional output while helping users quickly pinpoint input-side issues—minimizing downtime and avoiding confusion.

Audio Support with Real-Time Intercom
The N6 fully supports USB headset connectivity. When paired with the Kiloview Intercom System (KIS), the N5 supports real-time voice intercom, enabling seamless talkback during production workflows.

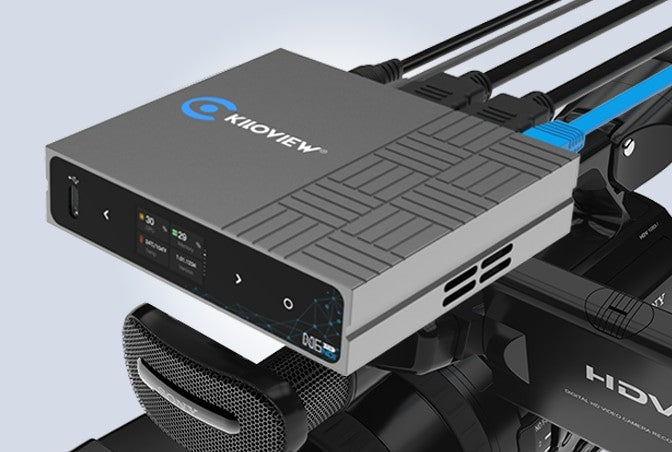

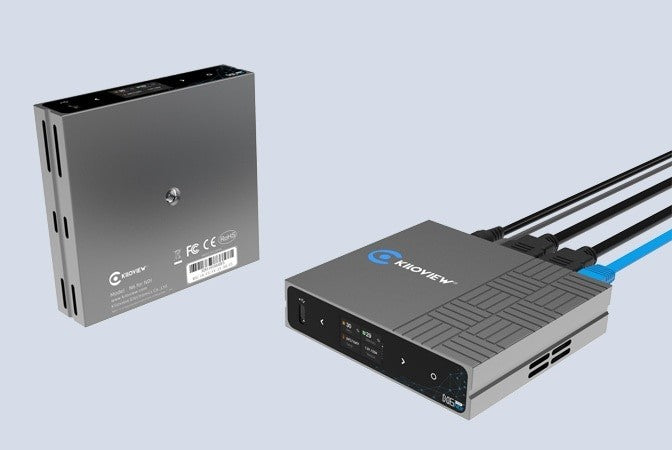

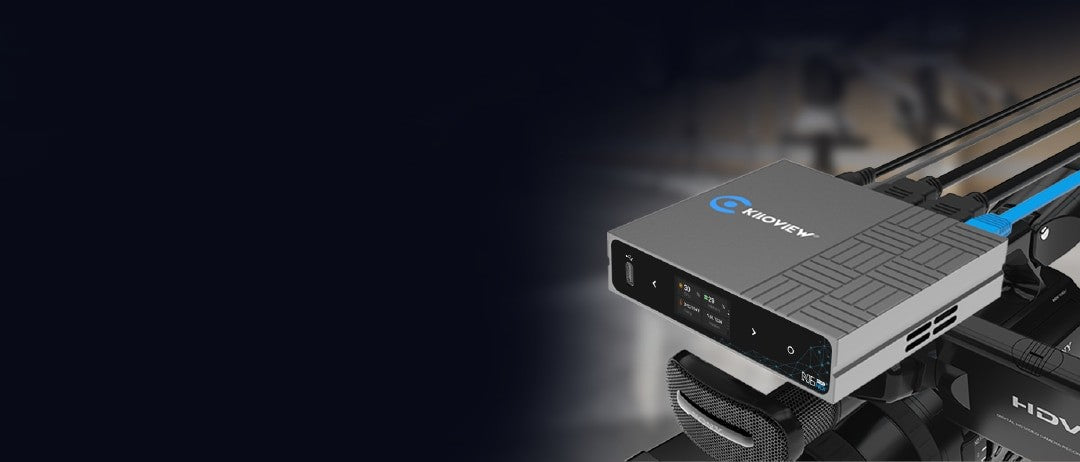

Compact Design with Easy Camera Mounting
The N6 features a compact design and comes with a standard threaded cold shoe mount, making it easy to attach directly to a camera.

Technical Specifications

• Video Resolution
  • Input support:
  • 1920*1080p 60/59.94/50/30/29.97/25/24/23.98fps
  • 1920*1080i 60/59.94/50fps
  • 1280*720p 60/59.94/50/30/29.97/25/24/23.98fps
  • Output support:
  • 1920*1080p 60/59.94/50/30/29.97/25/24/23.98fps
  • 1920*1080i 60/59.94/50fps
  • 1280*720p 60/59.94/50/30/29.97/25/24/23.98fps

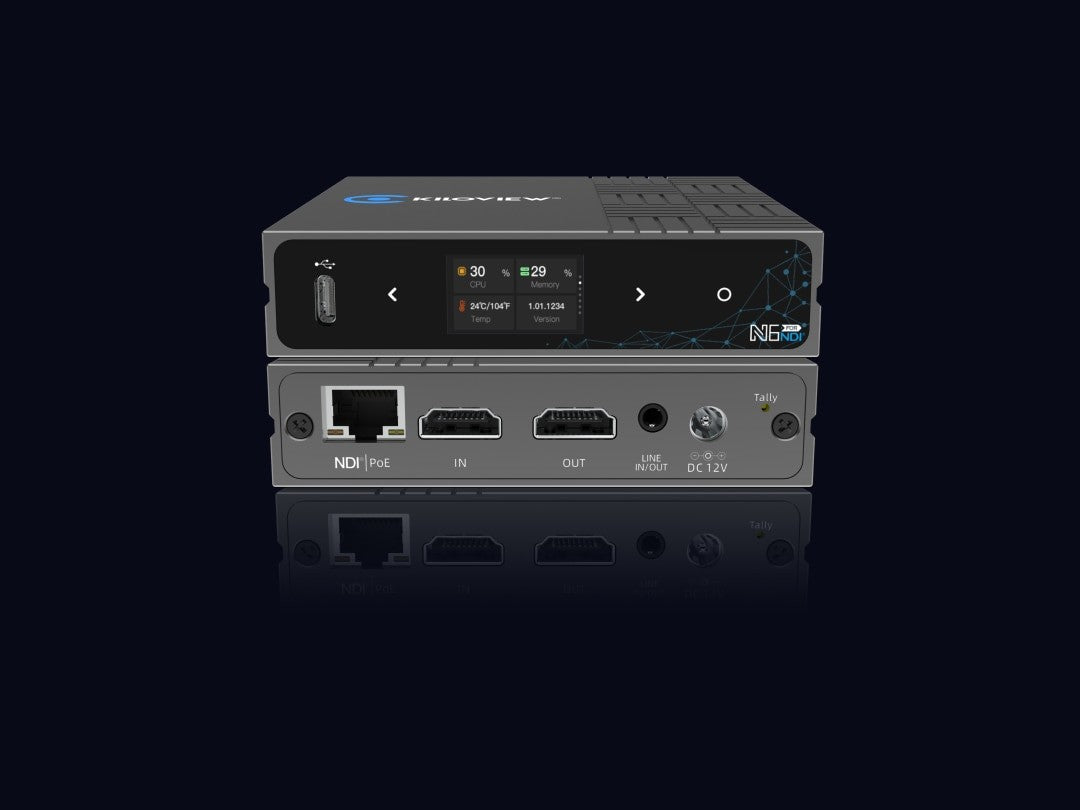

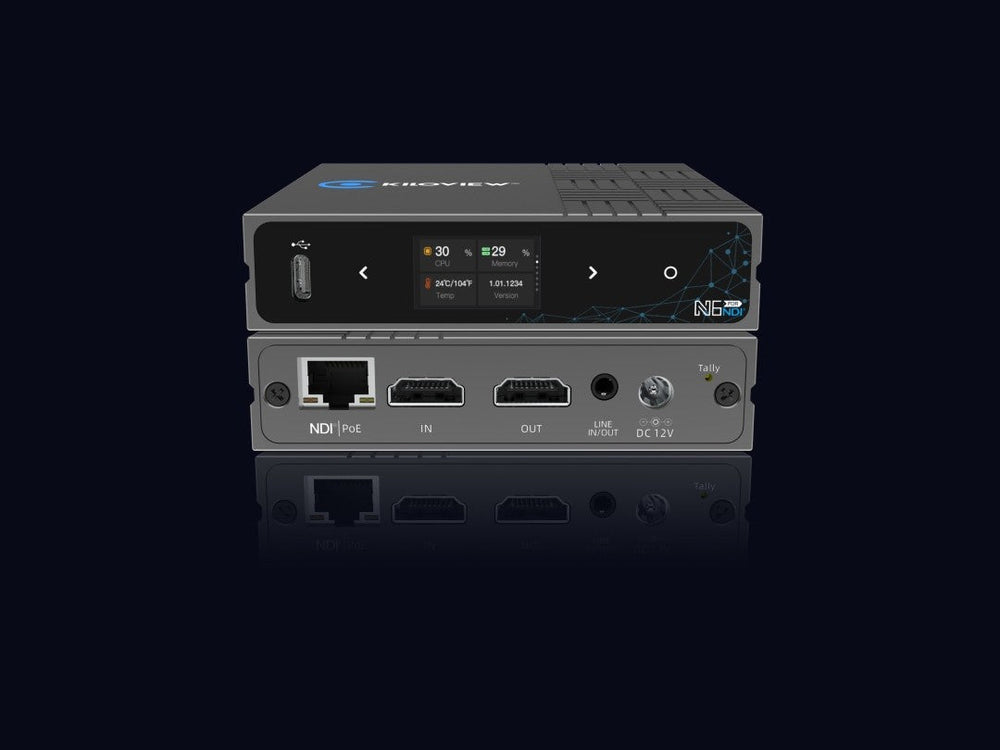

• Video Port
  • 1 × 1080p60 HDMI 2.0 input
  • 1 × 1080p60 HDMI 2.0 output for decoding/loop-out for encoding
• Video Encoding and Decoding: SpeedHQ(NDI), H.264(AVC), H.265(HEVC)
• Streaming Protocols: NDI HB/NDI HX2/HX3
• Interlaced Video Support: Interlaced video input, with encoding output limited to progressive format only
• Color Space
  • Encoding
  • NDI HB: YUV 4:2:2
  • NDI HX: YVU 4:2:0
  • Decoding
  • NDI HB: 4:2:0, 4:2:2
  • NDI HX: 4:2:0
• Color Depth: 8-bit
• Audio Port: 1 × 3.5mm Line in/Line out
• Audio Encoding and Decoding: NDI Audio, AAC-LC, more audio formats and channels available through custom development
• Audio Sampling: Fixed at 48 kHz
• Audio Channels
  • Encoding: 2 channels
  • Decoding: 2 channels
• Network Port: 1 × 1000Mbps Ethernet port (support PoE)
• Physical Controls: 1.14'' LCD with touch buttons
• Management: Web-based UI or centralized management via KiloLink Server Pro
• Tally
  • An LCD tally indicator on the front panel
  • A Tally LED on the rear
  • External Tally supported
• Voice Intercom: USB headset expansion or group calls via Kiloview Intercom System (KIS)
• Video Input Loss Alerts
  • Default “NO INPUT SIGNAL” image on HDMI disconnect
  • Custom PNG (1920 × 1080 or 1280 × 720) display supported
• PTZ Control: USB-to-serial (RS-232/RS-485/RS-422) and network protocols (Sony Visca, Pelco-D/P) for external PTZ control
• USB Port: 1 × USB 3.0 Type-C (USB web cam supported)
• Mounting: Cold shoe adapter
• Power Supply: DC 12V （5.5/2.5）or PoE
• Power Consumption: 6W (Max)
• Weight: 500g
• Dimensions: 100×95×23mm
• Working Temperature: -20℃~45℃/-4℉~113℉

What's Included

• NDI converter /1 SET Power adapter/1PC Cold shoe /1PC Quick start guide/1PC Certificate/Warranty card/1PC Warranty: Limited 1-Year Manufacturer Warranty
