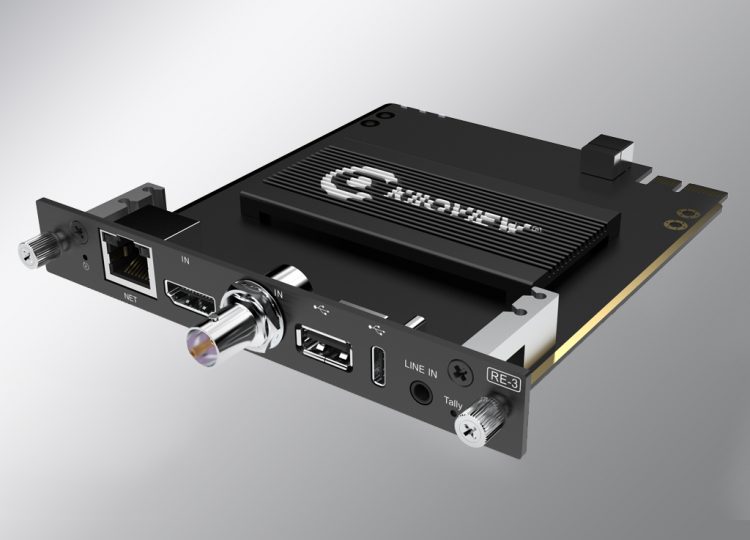

Kiloview RE-3 4K HDMI 3G-SDI NDI HX Encoding Card

Kiloview RE-3 is the latest version of our Cradle series rackmount encoding card, which enhances the capabilities of our previous RE-1 V2 and RE-2. RE-3 has all the same great features of the original RE series rackmount encoding card, but now it gets the same encoding performance as our E3 including 4K and dual video inputs support. With the upgraded encoding capabilities of RE-3, you can now encode 4K video at up to 30 frames per second or HD video at up to 60 frames per second. Dual-channel video inputs provide users with the highest level of flexibility, allowing them to encode both videos in multiple ways. HEVC technology also enables users to live stream to up to 4 destinations simultaneously. RE-3 is a versatile and cost-effective solution for video encoding in various industries. It can be used for live production, live streaming, remote transmission, and post-production.

Features:

• HDMI encoding and 3G-SDI encoding up to 4Kp30 / 1080p60
• HDMI input with 4-channel embedded audio
• 3G-SDI input with 4-channel embedded audio
• H.265/H.264 codec and multiple IP streaming protocols support including NDI|HX2, NDI|HX3, SRT, RTMP/ RTMPS, HLS,
• TS over UDP, RTP/RTSP
• Mix both video inputs as one output or simultaneously encode both video inputs in 1080p
• Up to 4 destinations live streaming available
• High-quality video deinterlacing
• Multiple audio encoding formats support including AAC/MPEG-4/MPEG-3/MPEG-2/Opus/G.711
• Low capture/encoding latency
• Local and NAS recording
• KiloLink Server
• Kiloview Intercom System (KIS)

Technical Specifications

Input

• 1*3G-SDI
• 1*4K HDMI

Applicable frame

• RU01, RU03, RU03S

Analog audio port

• 1*3.5mm

NDI|HX

• NDI|HX2/NDI|HX3

Protocols

• NDI|HX2/NDI|HX3/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/RTSP Onvif (Extensible for SIP/GB-T2818)

Video codec

• H.265(HEVC)/H.264(AVC)

Resolution

• HDMI: up to 4Kp30
• 3G-SDI: up to 1080p60

Network

• 1*10/100M/1000M RJ45 Ethernet Port

Audio encoding

AAC/G.711

Image and text overlay

• User-defined text and image overlay

Video rotation and cropping

• Support

Management Portal

• Web UI and remote management with KILOVIEW KiloLink Server

What's Included

• RE-3 encoding card /1PC Quick start guide /1PC Certificate/Warranty card /1PC
