Kiloview RU03 Rackmount Codec

Kiloview RU03 Rackmount Codec

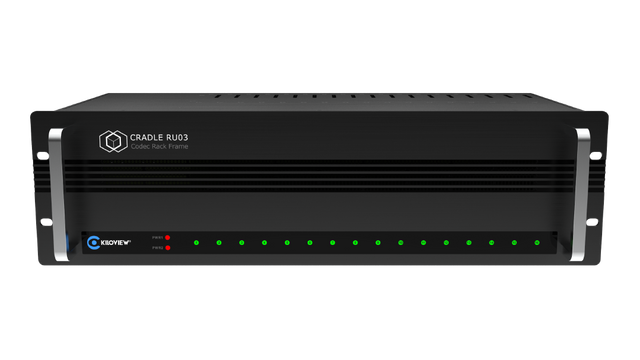

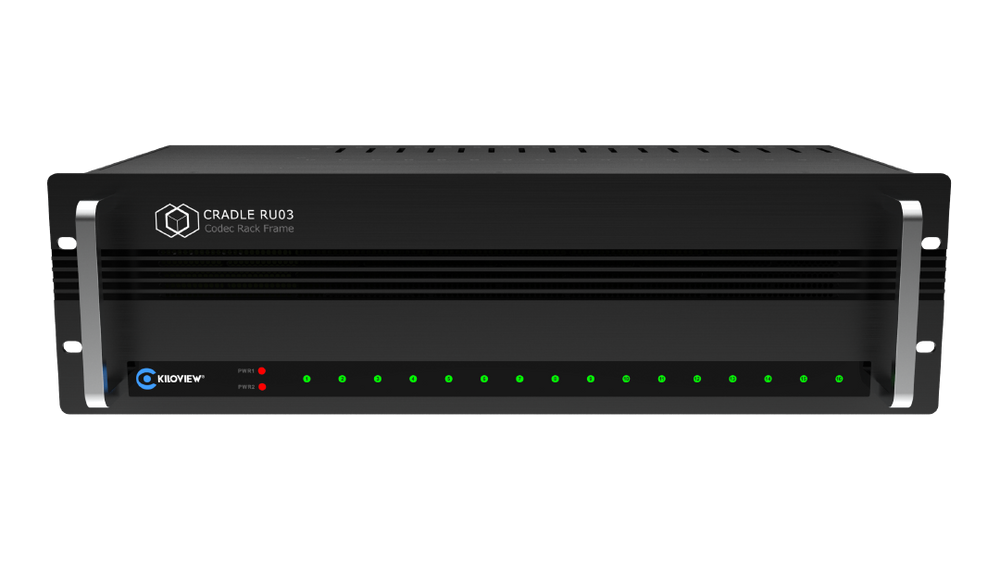

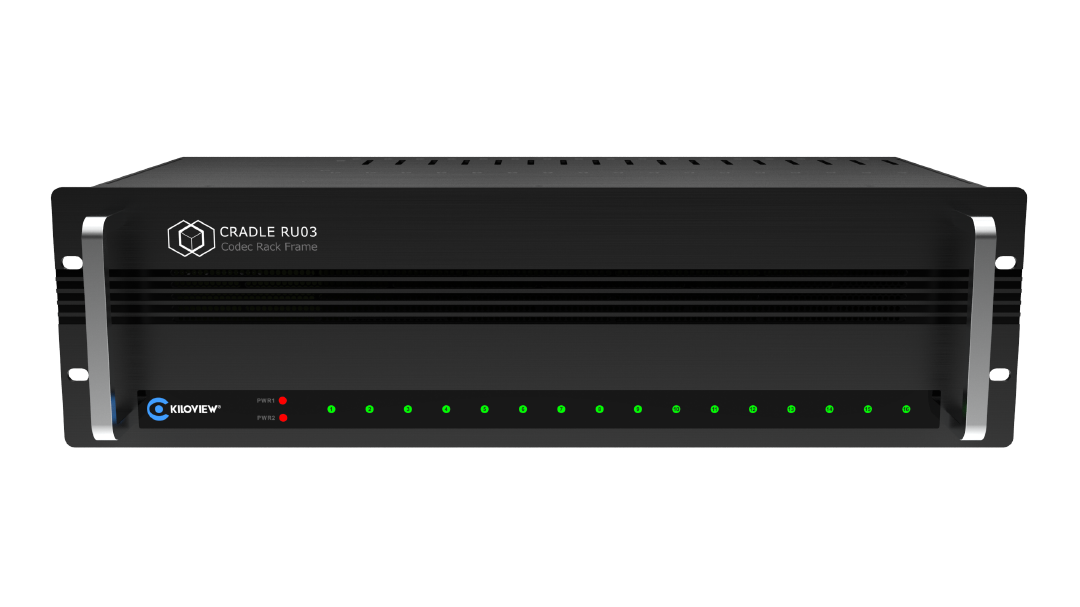

The Kiloview RU03 is a high-density rackmount codec chassis from the Cradle series, freely mixing 16 or even 32 encoding and decoding modules in a single frame. It targets IP video deployments of any scale where SDI and HDMI sources must move onto the network reliably, with redundant power and centralized cooling supporting continuous 24-hour operation.

Plug-in RE and REN series modules provide SDI or HDMI input with loop-through, 3.5 mm audio on most cards, and optional NDI|HX 1.0 and 2.0. Codec modules stream over SRT, RTMP, RTMPS, RTSP, HLS, TS over UDP, and RTP with H.264 or Motion-JPEG video up to 1080p60 and AAC or G.711 audio, plus text and image overlay, cropping, and KiloLink Server remote management.

Key Features

• Houses 16 or 32 plug-in codec modules in one chassis
• Accepts SDI and HDMI modules with loop outputs and 3.5 mm audio
• Streams via SRT, RTMP, RTMPS, RTSP, HLS, TS over UDP, and RTP
• H.264 and Motion-JPEG encoding at up to 1080p60
• Optional NDI|HX 1.0 and 2.0 on REN modules
• Redundant power supplies and dual cooling fans for stable operation
• Web UI plus remote management through Kiloview KiloLink Server

Specifications

• 1*BNC SDI
• 2*BNC SDI
• 1*HDMI
• 1*BNC SDI
•  2*BNC SDI
• 1*HDMI
• 1*BNC SDI
• 2*BNC SDI
• 1*HDMI
• 1*BNC SDI
•  2*BNC SDI
• 1*HDMI
• RU01, RU03, RU03S
• RU03S
• RU01, RU03, RU03S
• RU01, RU03, RU03S
•     RU03S
• RU01, RU03, RU03S
•  1*3.5mm
• /
• 1*3.5mm
• 1*3.5mm
•     /
•  1*3.5mm
• NDI|HX 1.0 and 2.0
•     NDI|HX 1.0 and 2.0
• NDI|HX 1.0 and 2.0
• H264/AVC, Motion-JPEG
• Up to 1080P60Hz
• AAC/G.711
• 1*100M RJ45 Ethernet
• User-defined text and image overlay
• Support
• Web UI and remote management with KILOVIEW KiloLink Server
• Input
• RE-1
•  RE-100
• RE-2
• REN-1（NDI)
• REN-100
• REN-2（NDI）
•
• Loop:
• RE-1
•  RE-100
• RE-2
• REN-1（NDI)
• REN-100
• REN-2（NDI）
•
• Applicable frame
• RE-1
•  RE-100
• RE-2
• REN-1（NDI)
• REN-100
• REN-2（NDI）
•
• Analog audio port
• RE-1
•  RE-100
• RE-2
• REN-1（NDI)
• REN-100
• REN-2（NDI）
•
• NDI|HX
• REN-1（NDI)
• REN-100
• REN-2（NDI）
•
• Protocols
• SRT/RTMP/ RTMPS/HLS/TS over UDP/RTP/RTSP /Onvif
• Video encoding
• Resolution
• Audio encoding
• Network
• Image and text overlay
• Video rotation and cropping
• Management Portal

What's Included

• RU03 frame/1PC
• 120W power supply/2PCs
• Power cable 220V/2PCs
• Quick start guide /1PC
• Certificate/Warranty card /1PC
