Kondor Blue HDMI to SDI Converter - Raven Black

Kondor Blue HDMI to SDI Converter

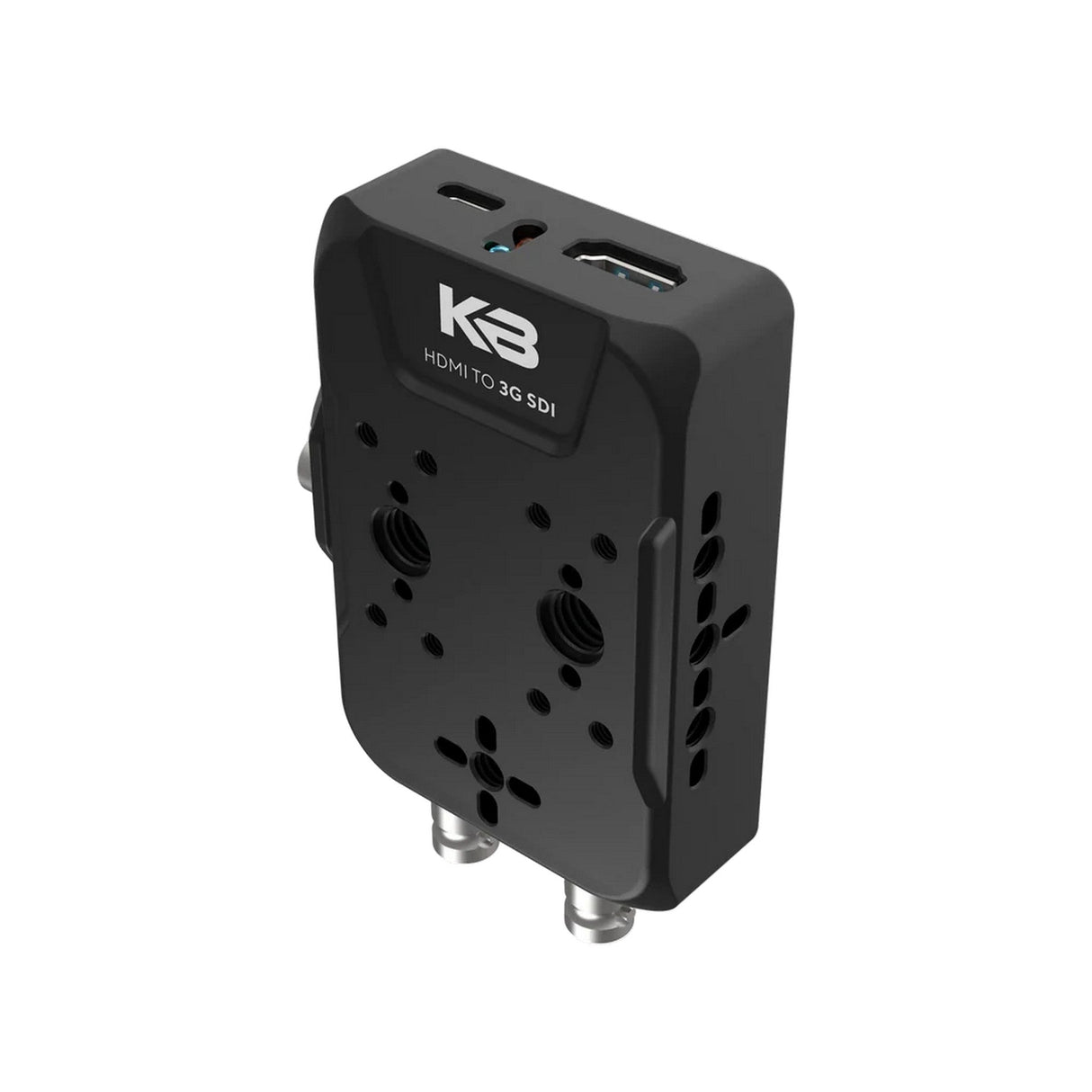

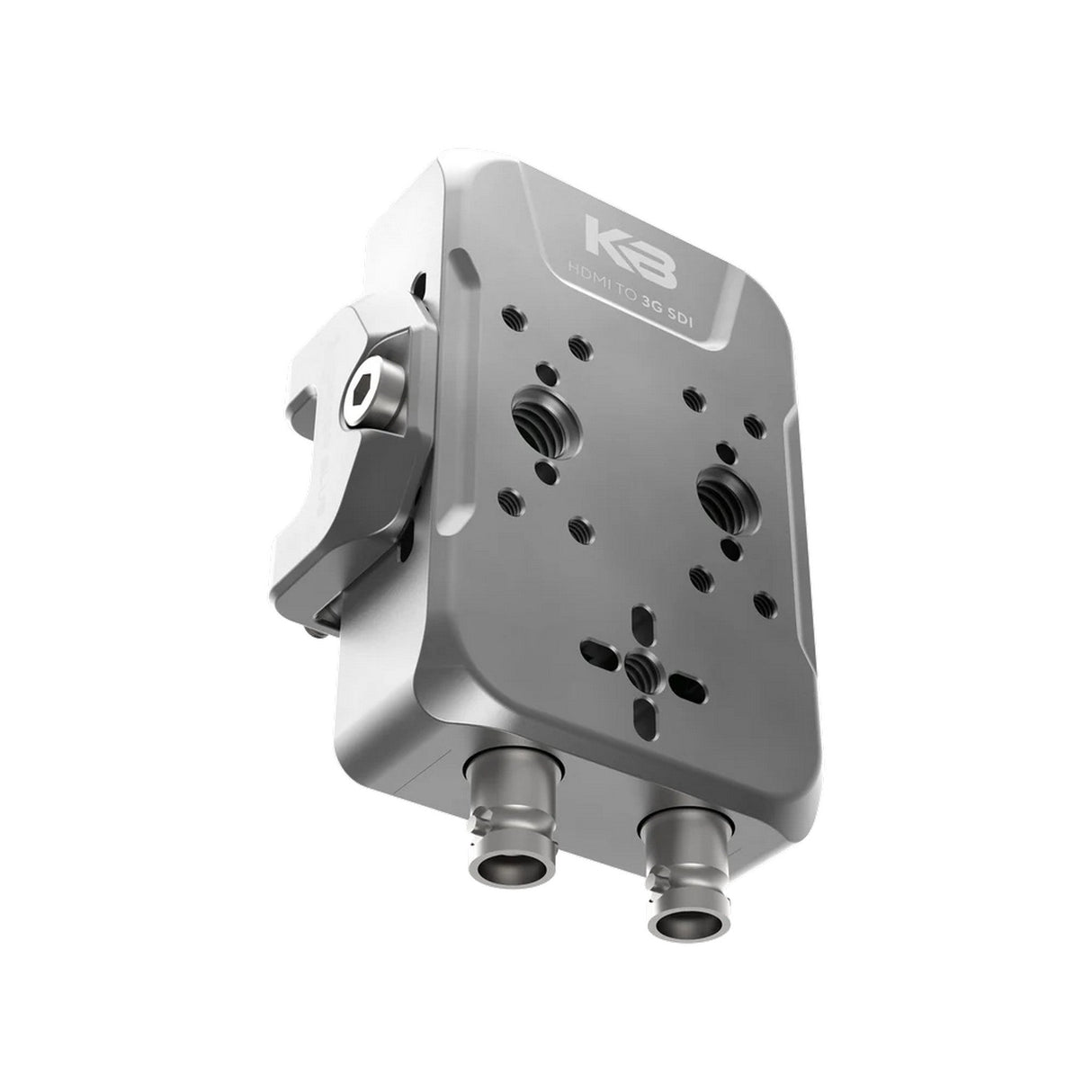

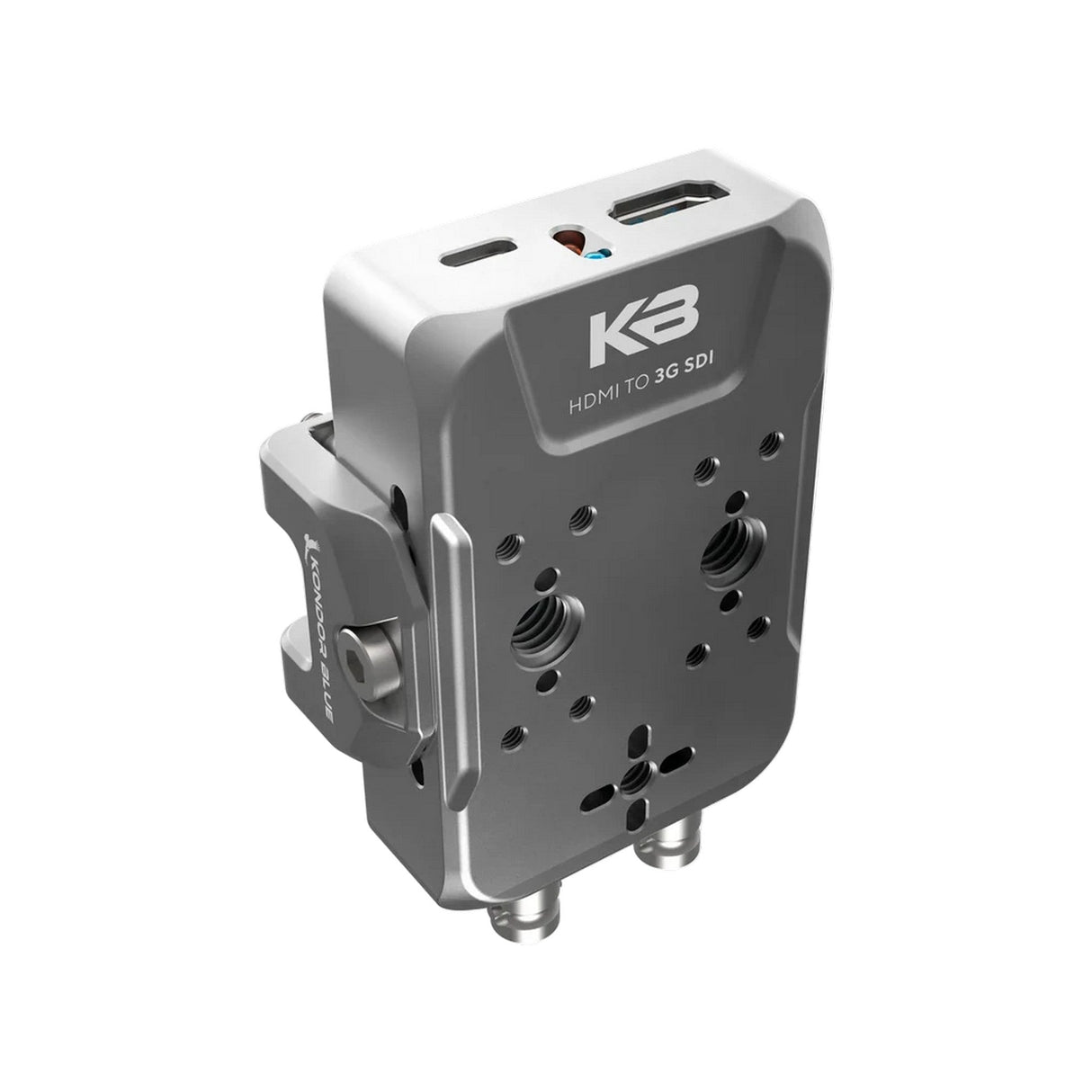

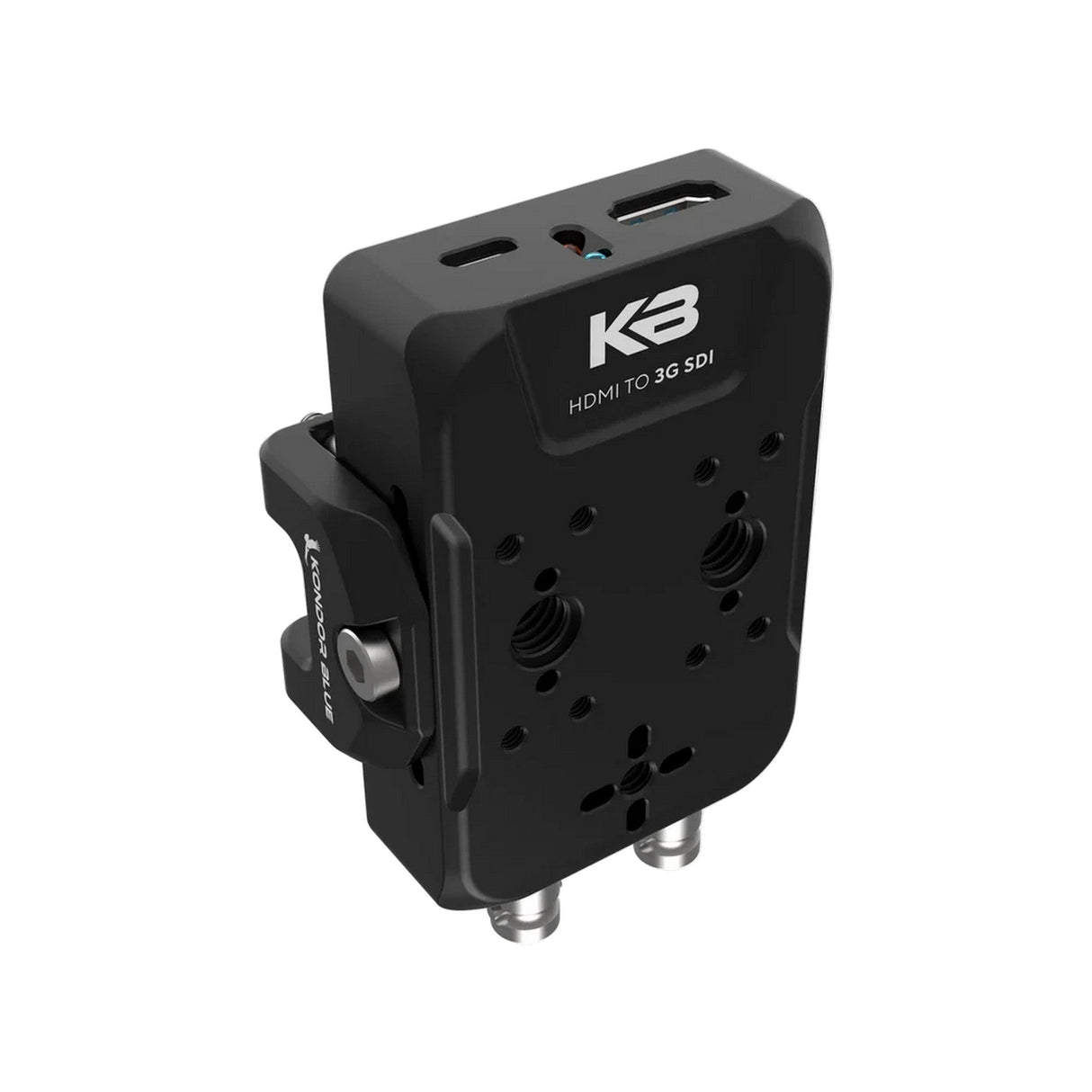

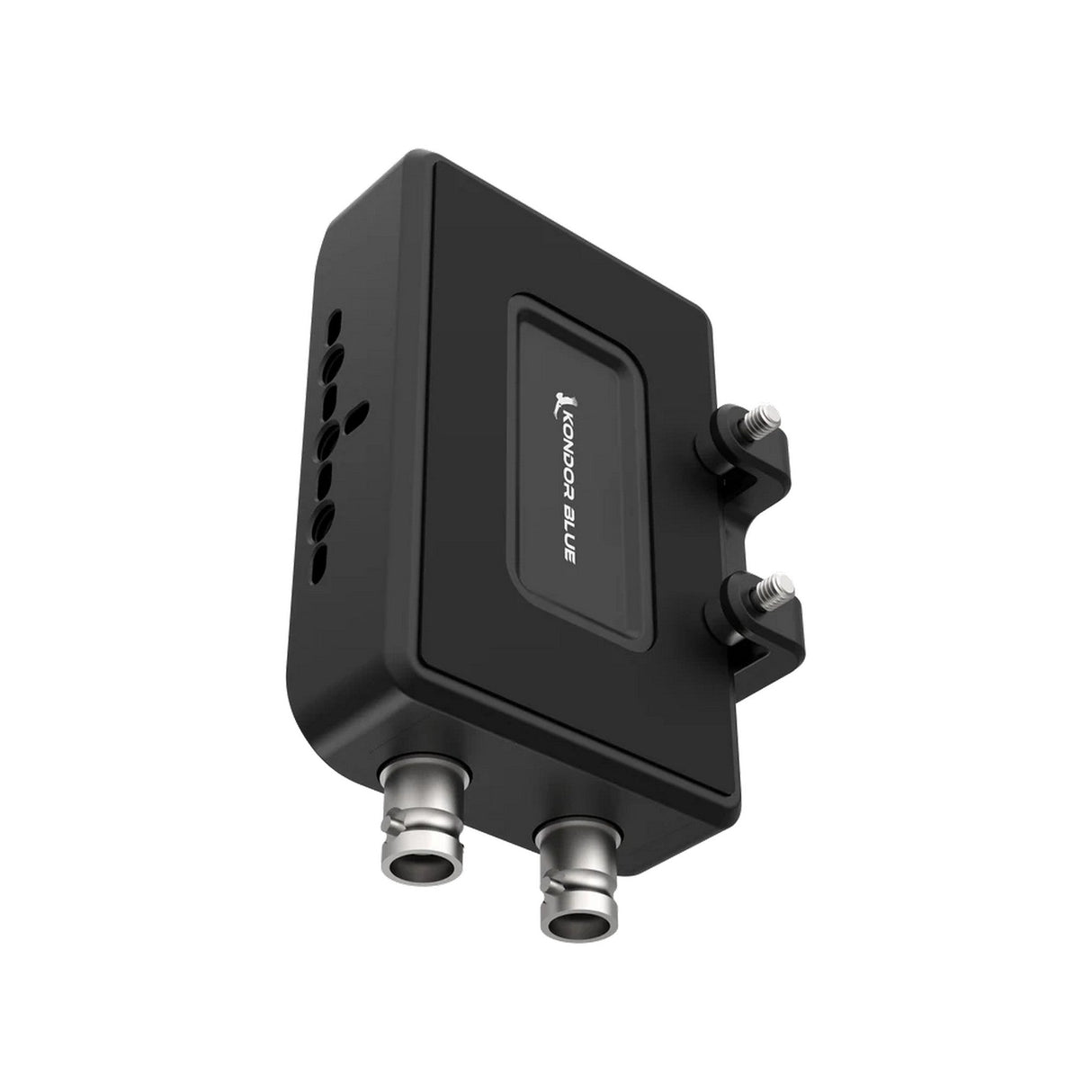

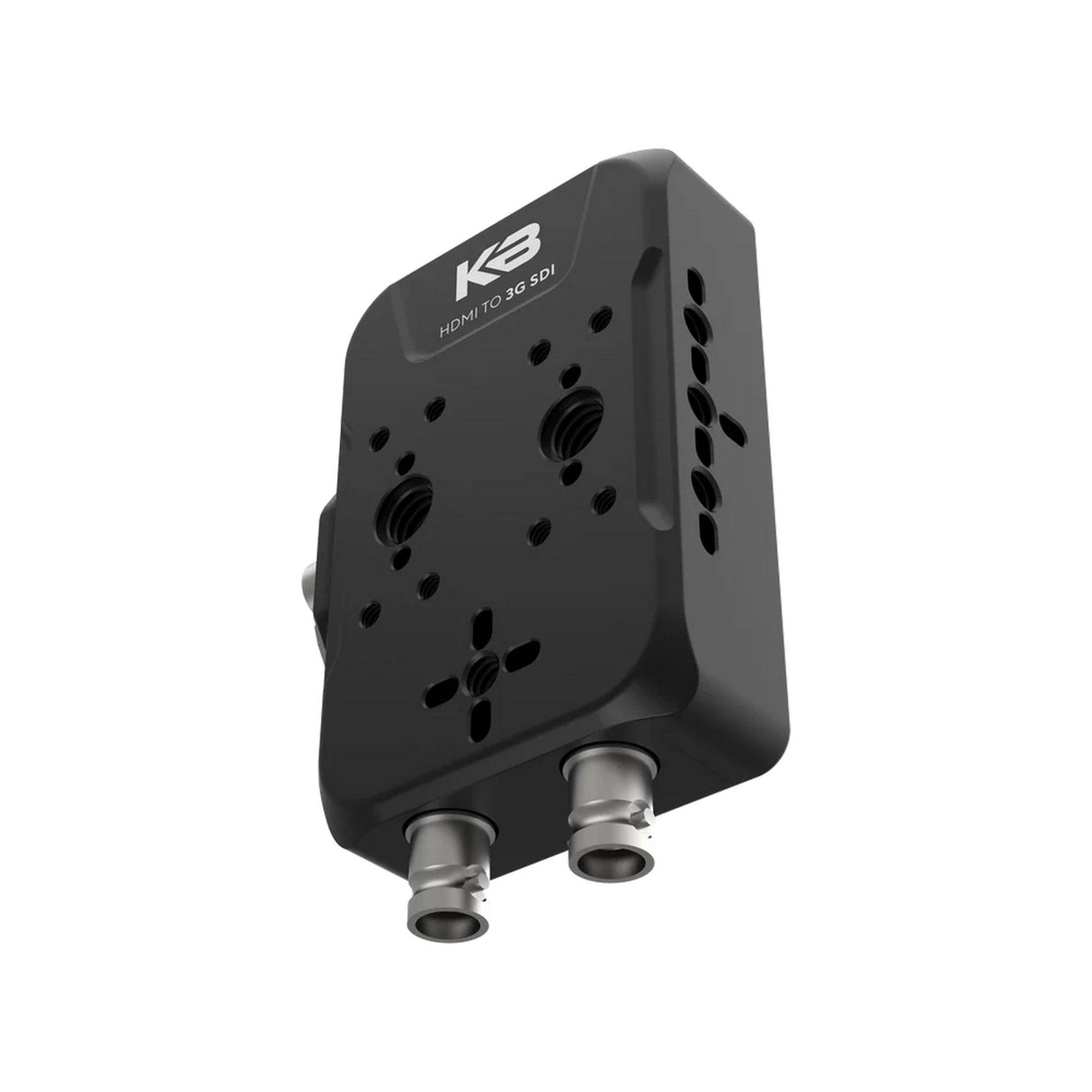

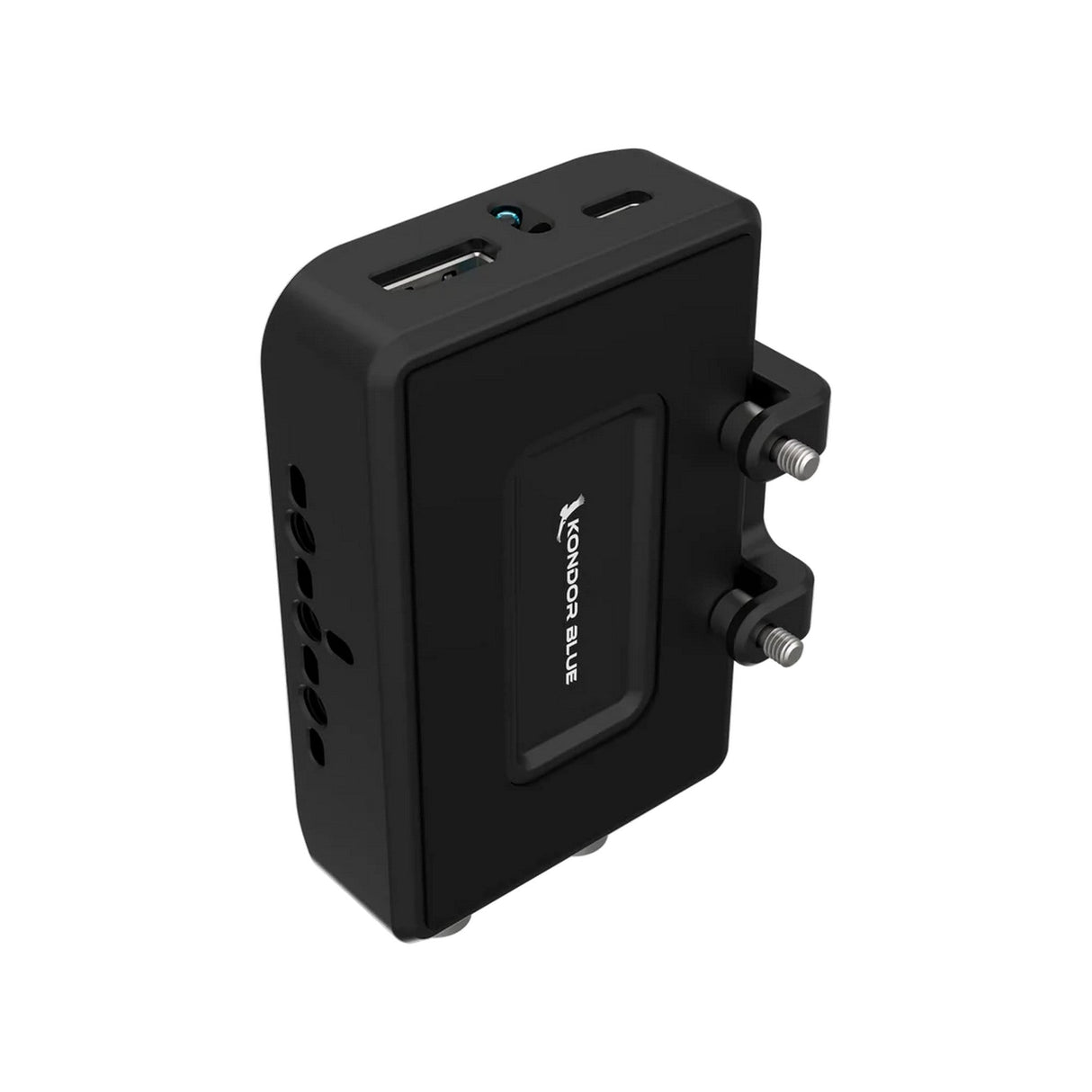

The Kondor Blue HDMI to SDI Converter is a compact video conversion module available in Raven Black and Space Gray color variants. It converts a single HDMI source into two simultaneous 3G-SDI outputs, giving professional camera operators a clean way to route Full HD video to multiple SDI devices from one camera connection.

Built for cinema rigs, field production, and monitoring setups, this converter can send the same HDMI feed to an on-camera monitor and wireless video transmitter at the same time. Its USB-C power connection and direct rig-mounting design help reduce loose adapters and unnecessary cabling. Choose Raven Black for KONDOR BLUE's classic finish or Space Gray for an alternate coordinated rig aesthetic without changing the converter's core functionality.

The module maintains the incoming frame rate and scan type through true 1:1 signal pass-through rather than scaling or deinterlacing the image. Line-based processing minimizes signal delay with sub-frame latency and no frame buffer in the conversion path. The converter works as a standalone HDMI-to-SDI solution or integrates with compatible KONDOR BLUE cages, battery plates, and camera-rig accessories.

Key Features

• Two Color Variants: Choose Raven Black or Space Gray while retaining the same HDMI-to-SDI conversion functionality.
• HDMI to Dual 3G-SDI Conversion: Converts one HDMI video source into two simultaneous SDI outputs.
• True 1:1 Pass-Through: Preserves the source frame rate and scan type without scaling or deinterlacing.
• Sub-Frame Latency: Uses line-based processing without a frame buffer to minimize conversion delay.
• Dual-Device Routing: Sends the same camera feed to two SDI devices, such as a monitor and wireless transmitter.
• USB-C Power: Integrates easily with modern camera-rig power systems.

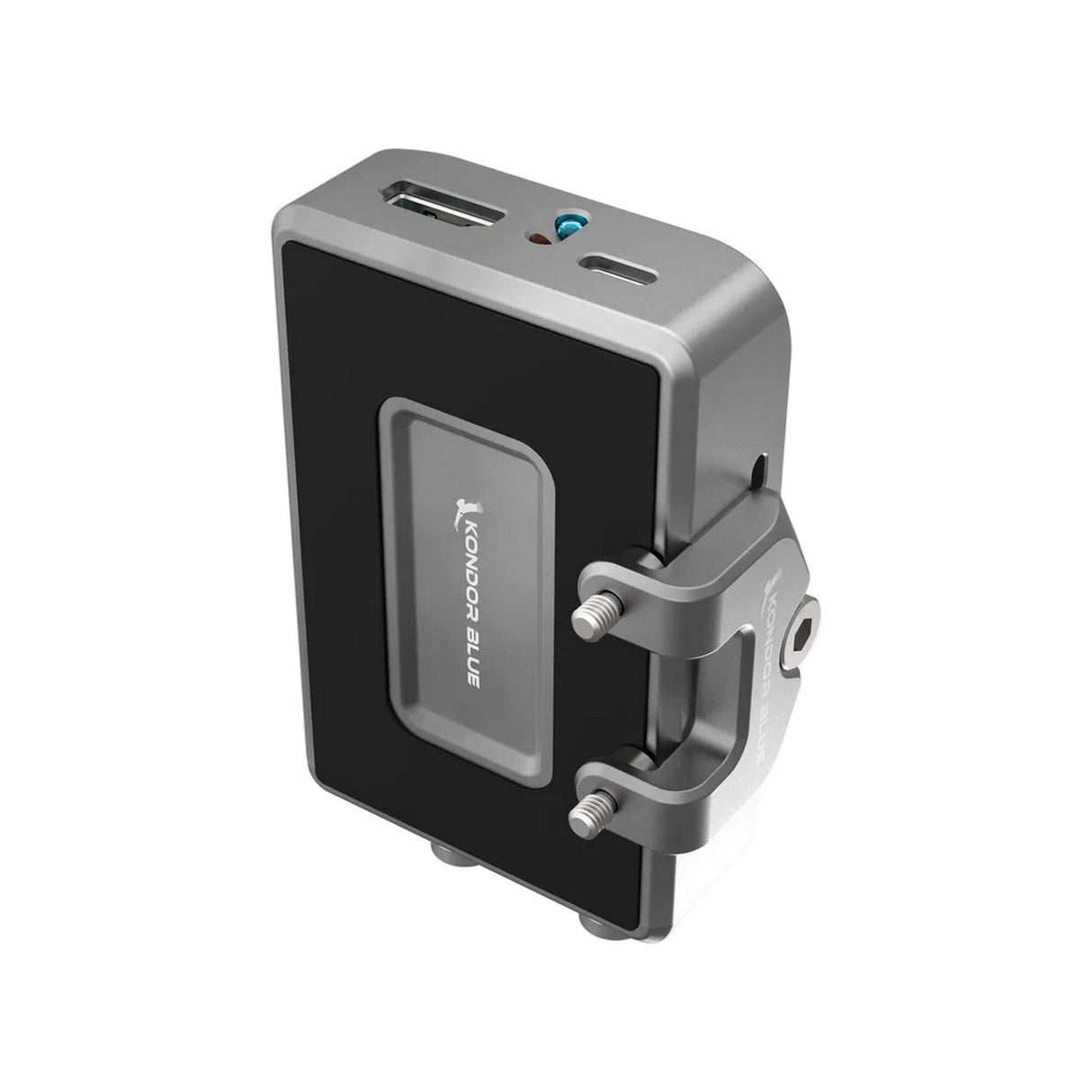

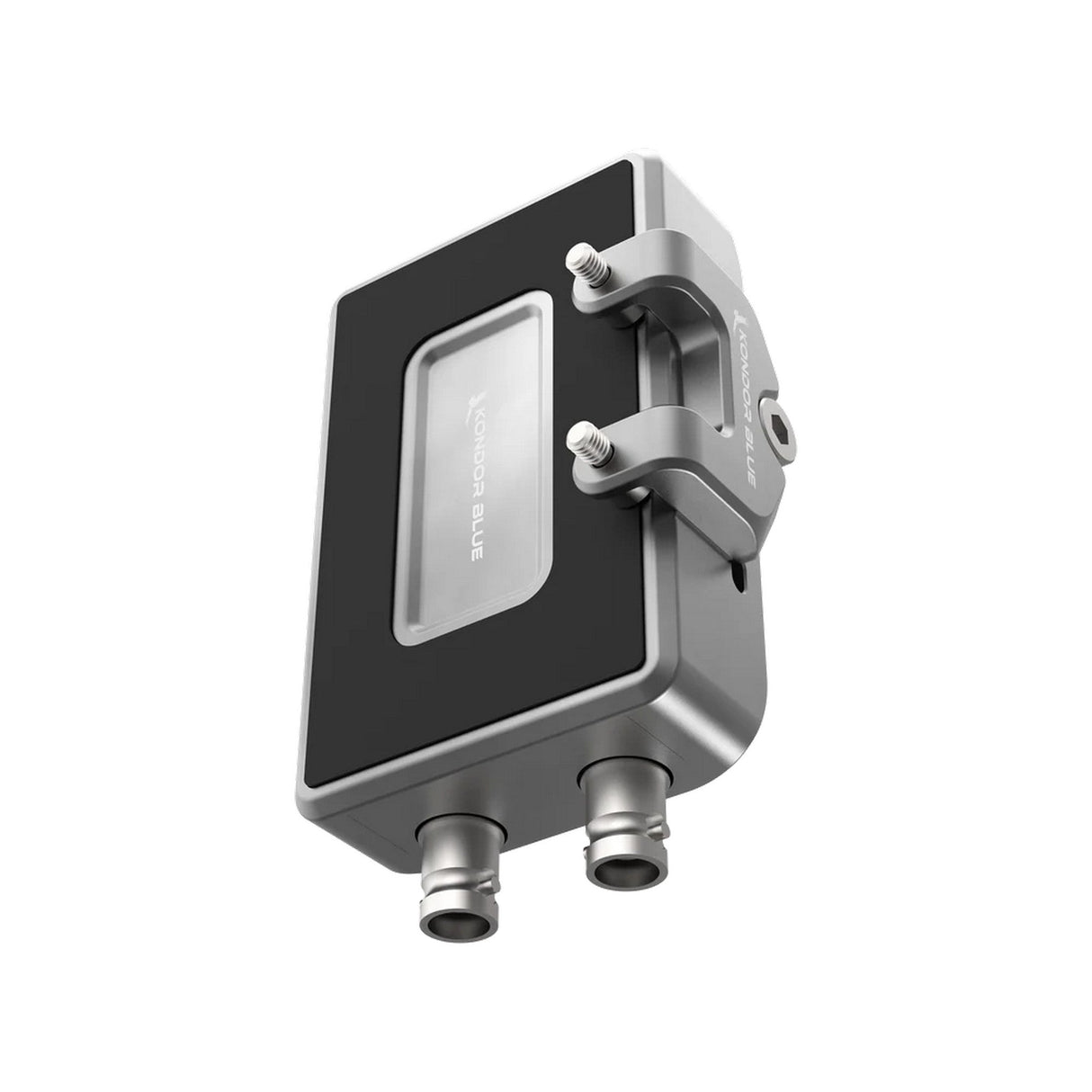

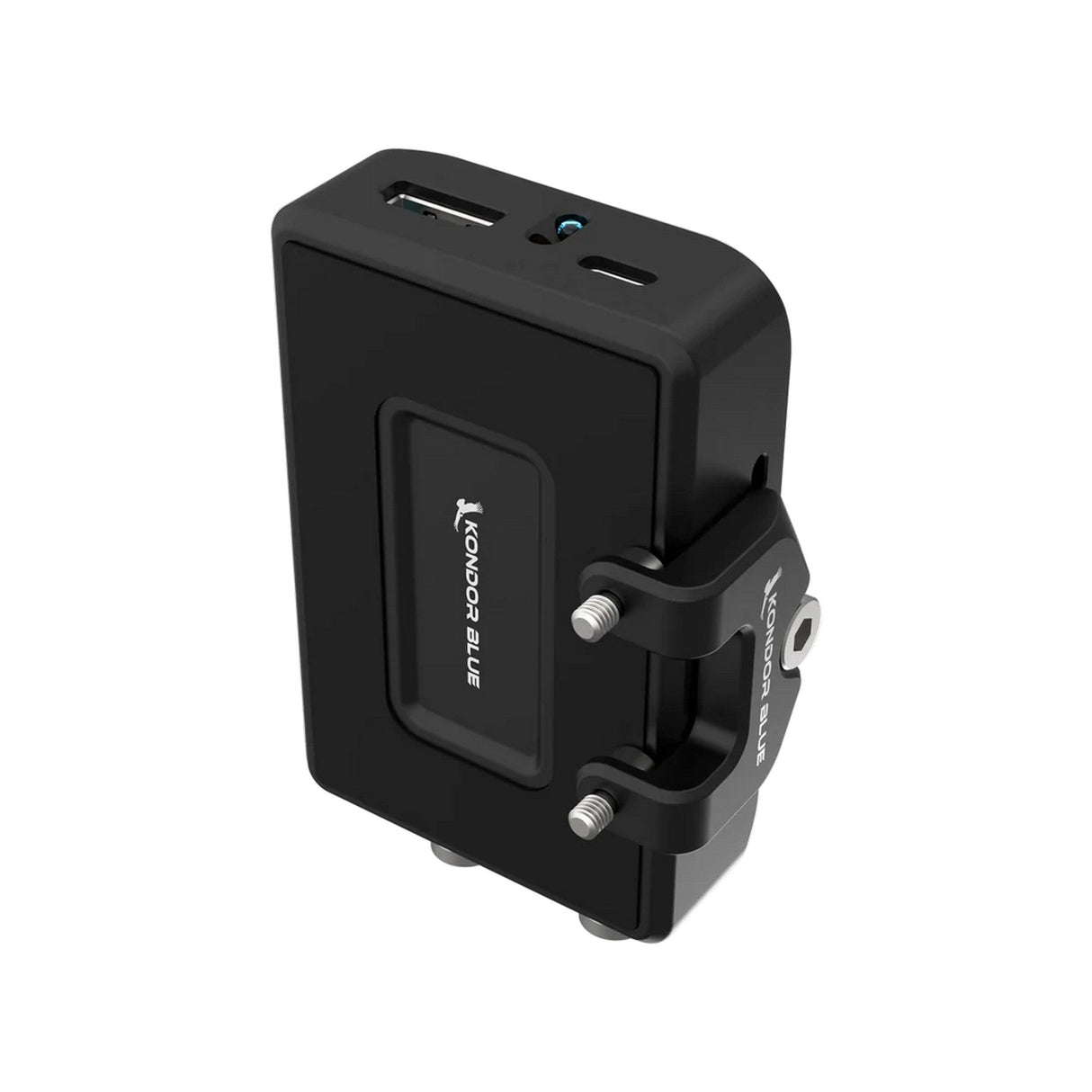

• Secure Rig Mounting: Provides a streamlined alternative to leaving an external converter loose on the camera setup.

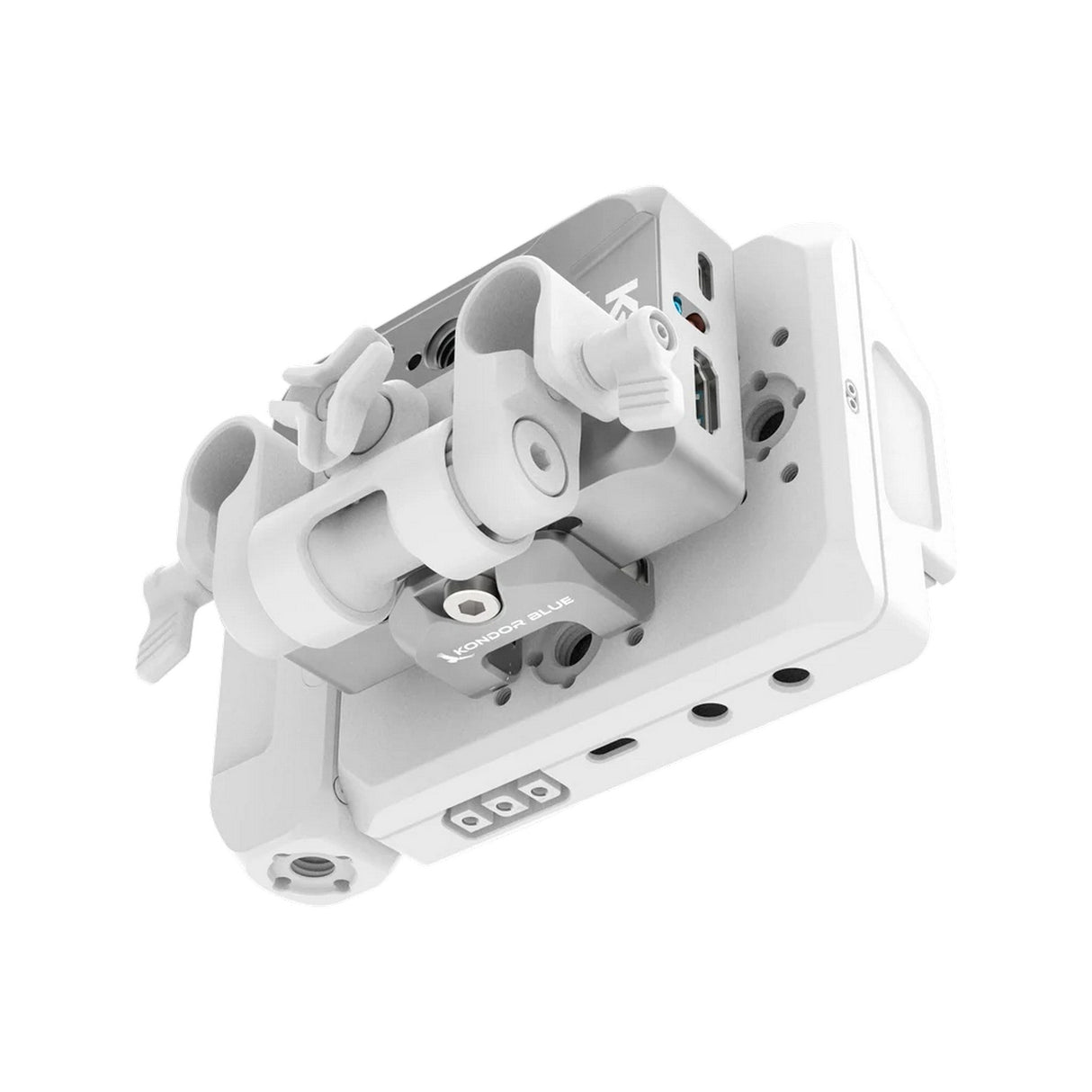

• Modular Integration: Works independently or alongside compatible KONDOR BLUE cages, battery plates, and rigging components.

Technical Specifications

• Brand: KONDOR BLUE
• Product Type: HDMI to SDI video converter
• Color Variants: Raven Black, Space Gray
• Raven Black SKU: KB-HDMI-SDI-BK
• Video Input: 1 x HDMI
• Video Outputs: 2 x 3G-SDI
• Output Operation: Two simultaneous SDI destinations from one HDMI source
• Maximum Workflow Resolution: 1080 Full HD
• 4K / 12G-SDI Conversion: Not supported
• Signal Processing: True 1:1 pass-through
• Scaling: None
• Deinterlacing: None
• Frame Rate Conversion: None
• Scan Type Preservation: Maintains the HDMI source scan type, including interlaced signals
• Frame Rate Preservation: Maintains the HDMI source frame rate, including 23.98p
• Latency: Sub-frame, line-based conversion with no frame buffer in the signal path
• Power: USB-C
• Mounting: Secure direct camera-rig mounting options
• Workflow: HD monitoring, wireless video transmission, and SDI-based production routing

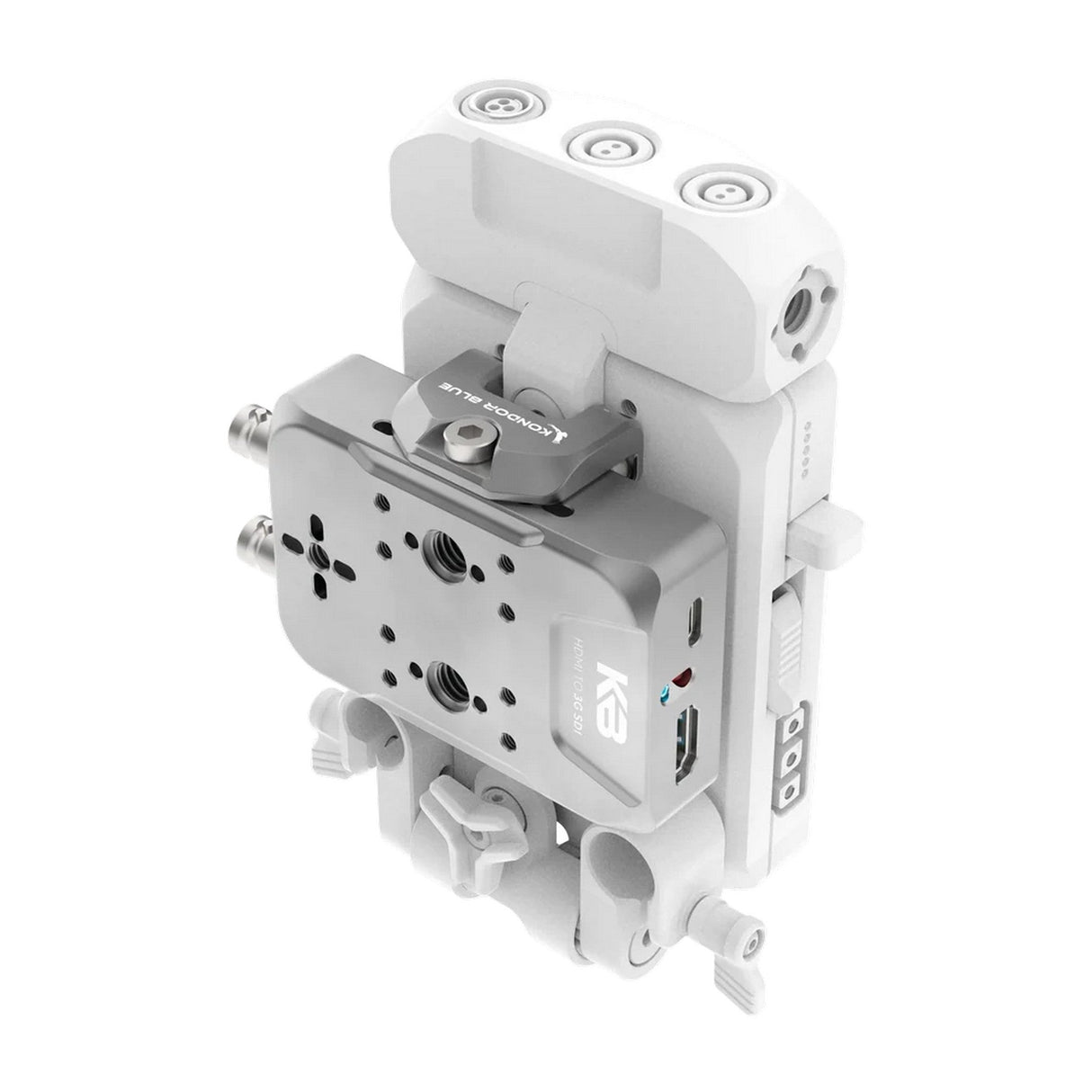

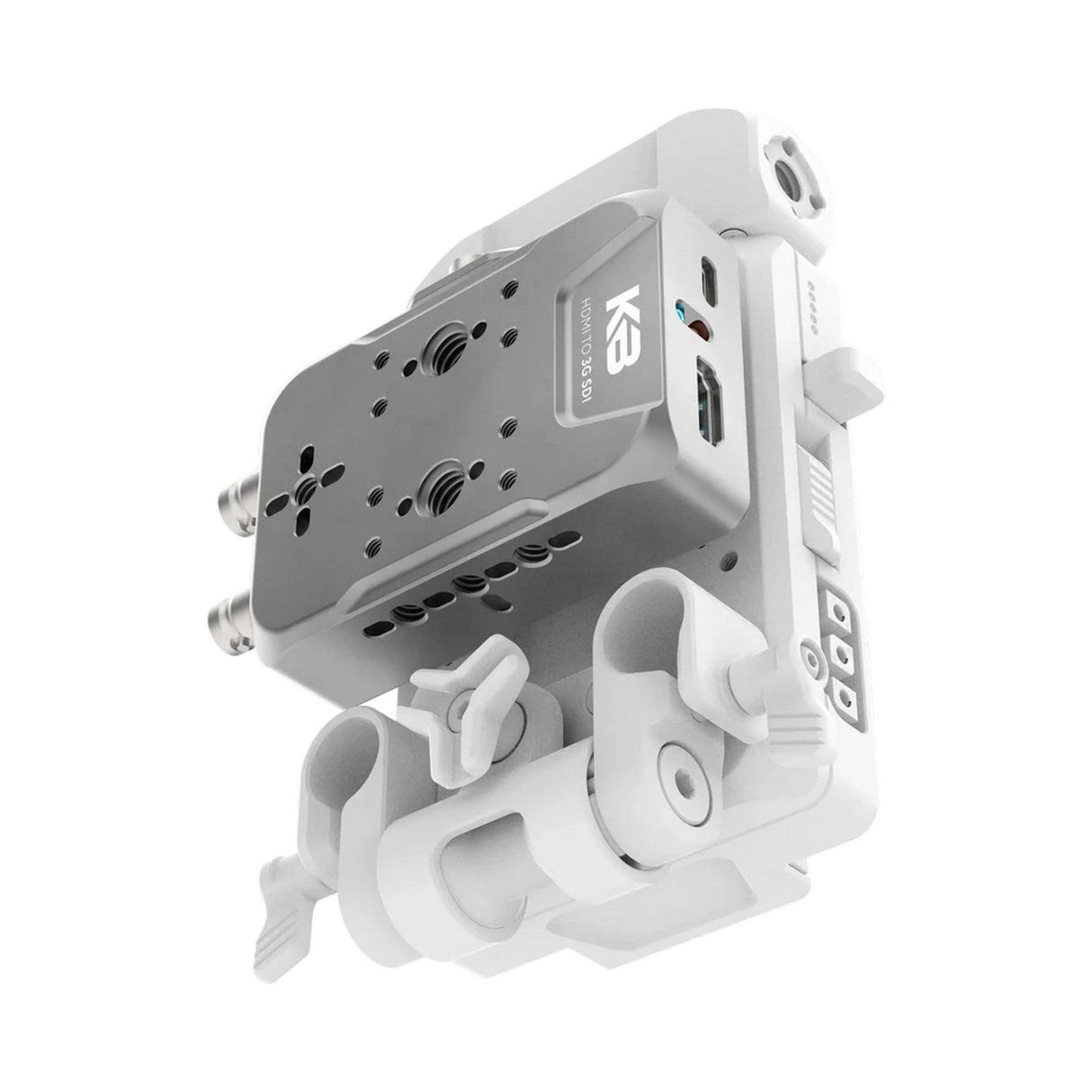

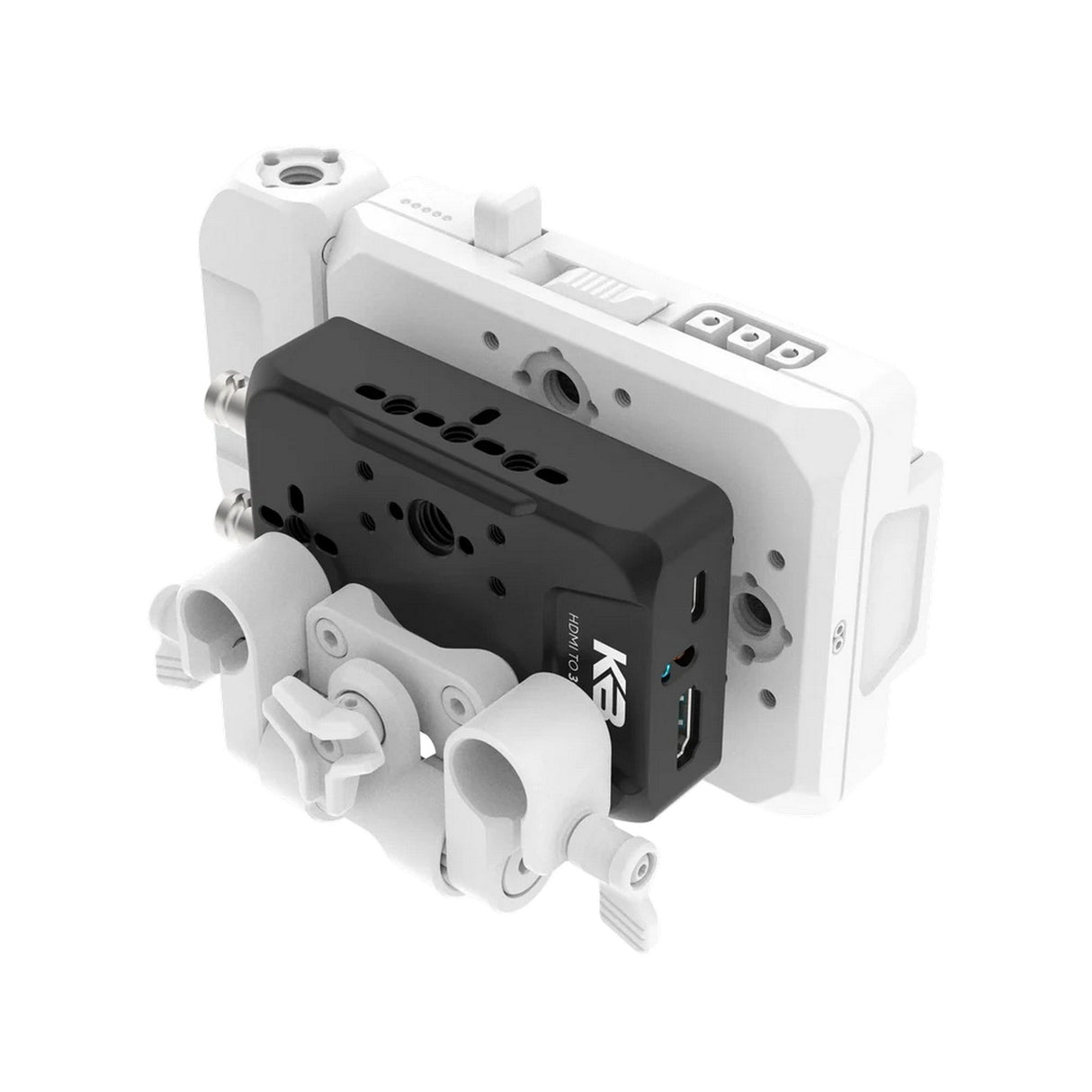

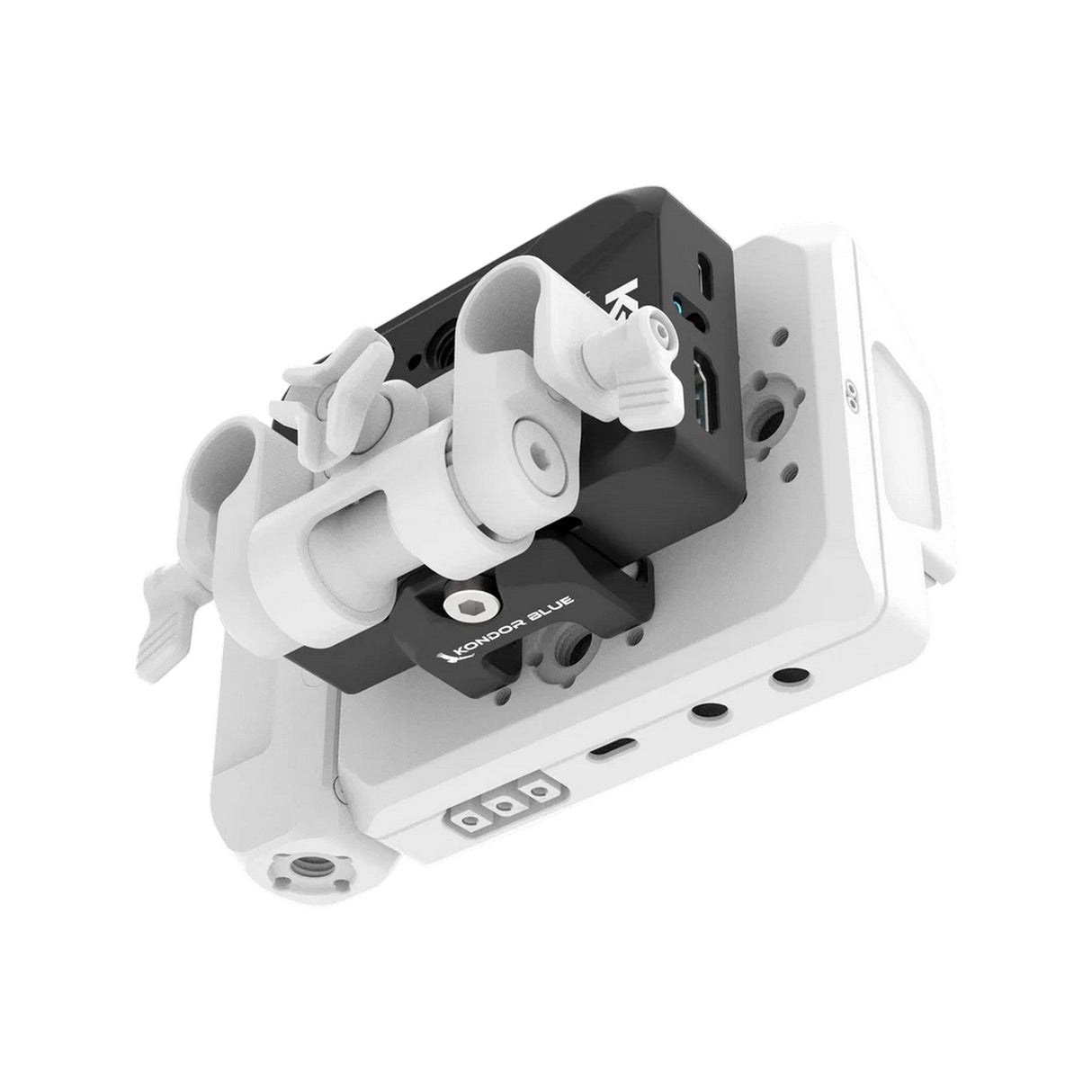

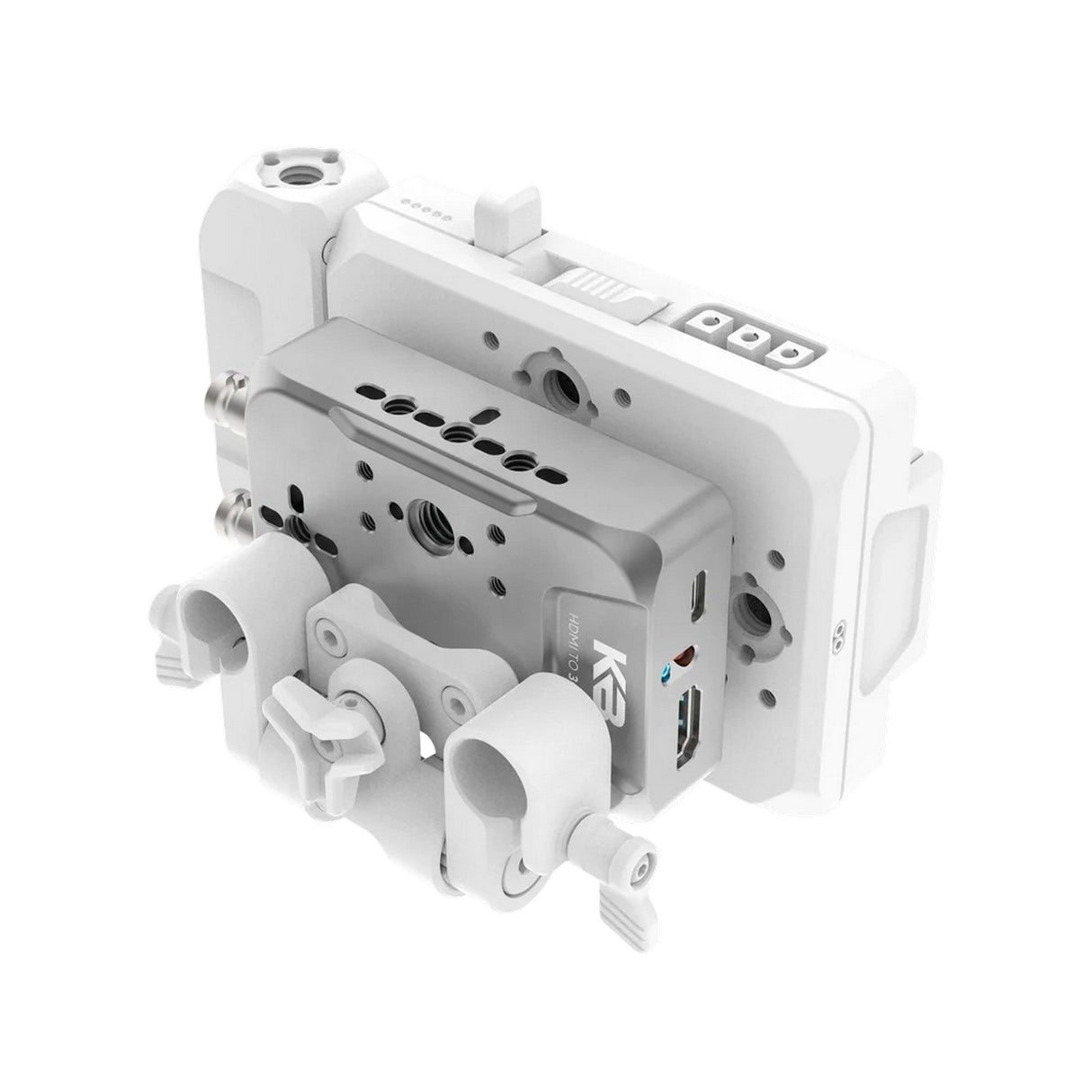

• System Integration: Standalone operation or integration with compatible KONDOR BLUE battery plates, cages, and rigging solutions
• Dimensions: 3.9" W x 2.3" T x 1" D
• Weight: 0.4 lb
