Kondor Blue KB-KOMX-BOT-BK Bottom Plate for RED KOMODO & KOMODO-X, Black

Kondor Blue KB-KOMX-BOT-BK Bottom Plate for RED KOMODO & KOMODO-X

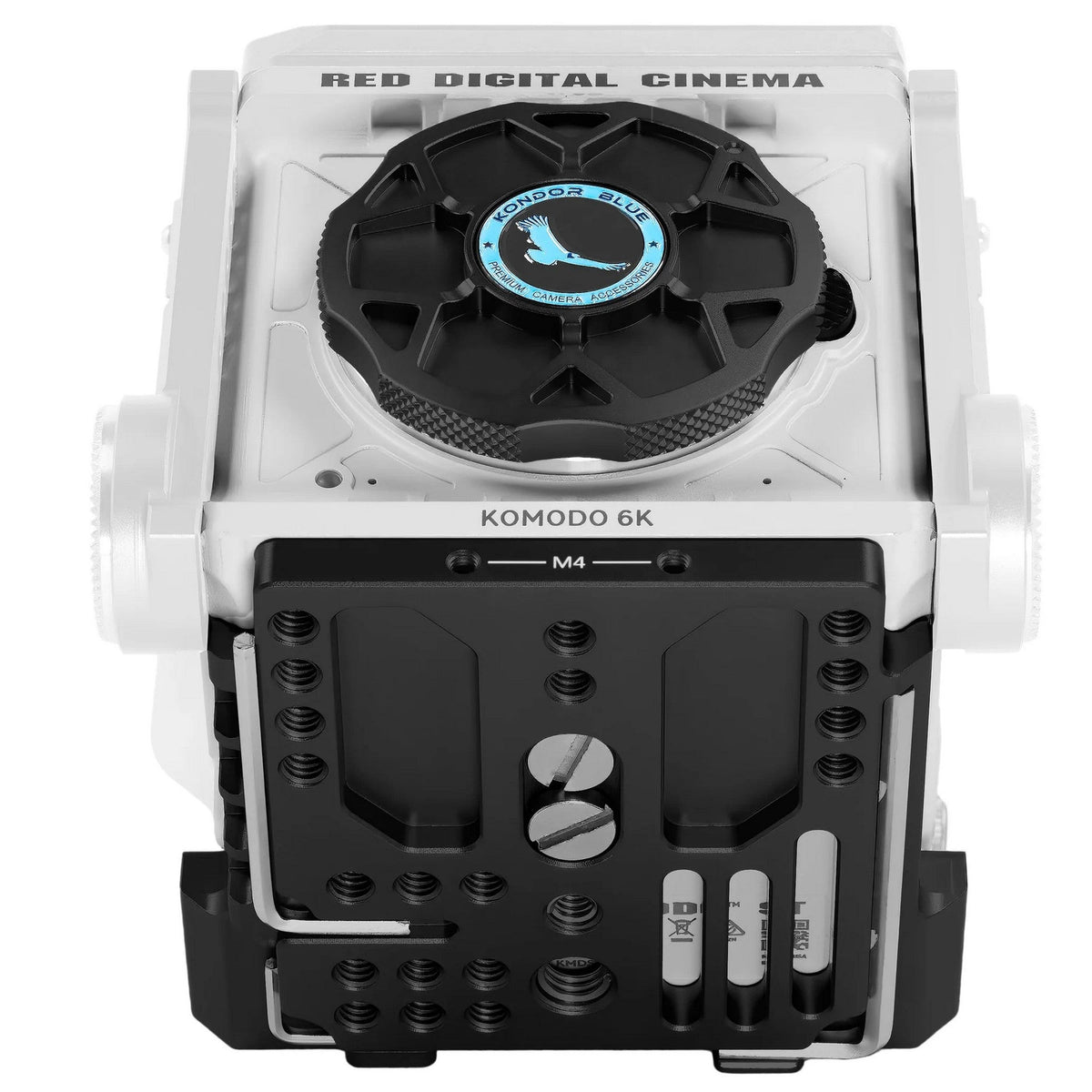

The Kondor Blue KB-KOMX-BOT-BK Bottom Plate is an aluminum alloy camera cage component designed for RED KOMODO and KOMODO-X cinema cameras. Featuring multiple 1/4"-20 and 3/8"-16 mounting threads, anti-twist accessory connections, and dedicated M4 lens support mounting points, this Raven Black bottom plate provides a versatile foundation for professional camera rigging, tripod mounting, and baseplate integration.

Designed for cinematographers, camera operators, and professional video production crews, the Kondor Blue Bottom Plate expands the mounting capabilities of RED cinema cameras while maintaining a compact, modular configuration. The plate attaches beneath the camera and provides mounting interfaces for compatible tripod plates, camera baseplates, and additional support equipment. Multiple standard and anti-twist threaded connections allow operators to adapt their camera setup for handheld production, tripod-based filming, and customized cinema rigs. Integrated rubber contact pads help protect the camera's underside where the plate meets the camera body.

As part of the Kondor Blue RED KOMODO-X modular cage system, the KB-KOMX-BOT-BK provides flexible mounting options without requiring every component of a complete camera cage. Its aluminum alloy construction delivers a lightweight support structure weighing approximately 0.3 lbs. Two M4 mounting threads, positioned 27mm apart, accommodate the compatible Kondor Blue Lens Adapter Bracket. The plate supports both original RED KOMODO and RED KOMODO-X camera bodies, making it suitable for professional productions using either camera platform. A limited lifetime manufacturer warranty provides additional support for long-term use.

Key Features

• RED KOMODO and KOMODO-X Compatibility: Designed for both RED cinema camera models, providing a dedicated bottom mounting interface for professional camera support systems.
• Multiple 1/4"-20 Mounting Threads: Accommodates compatible tripod plates, mounting adapters, and camera support accessories using standard threaded connections.
• 3/8"-16 Mounting Options: Provides additional attachment points for professional camera baseplates and support equipment.
• Anti-Twist Accessory Connections: Includes anti-twist 1/4"-20 and 3/8"-16 mounting interfaces to help prevent compatible accessories from rotating.
• Dedicated M4 Lens Support Threads: Features two M4 mounting points spaced 27mm apart for the compatible Kondor Blue Lens Adapter Bracket.
• Protective Rubber Pads: Integrated contact pads help protect the underside of the camera when the plate is installed.
• Lightweight Aluminum Alloy Construction: Provides durable metal construction while adding approximately 0.3 lbs to the camera setup.
• Modular Camera Cage Integration: Functions as an individual bottom plate or as part of the Kondor Blue KOMODO-X cage system.

Modular Bottom Plate for RED KOMODO and KOMODO-X Cameras

The Kondor Blue KB-KOMX-BOT-BK provides a dedicated mounting platform beneath compatible RED cinema cameras. Its design allows camera operators to connect their equipment to external support systems while maintaining flexibility in the overall camera configuration.

The plate installs between the camera body and a compatible tripod plate or camera baseplate. Multiple mounting connections accommodate different support accessories, allowing operators to adapt the camera for professional production environments.

Its modular construction makes it suitable for filmmakers who want to build a customized camera rig using individual components rather than relying exclusively on a complete camera cage assembly.

Multiple 1/4"-20 and 3/8"-16 Tripod Mounting Threads

The bottom plate incorporates multiple 1/4"-20 and 3/8"-16 threaded mounting points. These industry-standard connections allow the plate to interface with compatible camera support accessories commonly used in professional filmmaking.

The variety of mounting positions provides flexibility when attaching tripod plates, baseplates, and other camera support components. Operators can select the threaded connection that best matches their mounting hardware and preferred camera configuration.

Standard 1/4"-20 Mounting Connections

Multiple 1/4"-20 threaded connections accommodate compatible camera accessories and support equipment. These mounting points provide options for installing the camera onto supporting plates or incorporating additional rigging components beneath the camera body.

Standard 3/8"-16 Mounting Connections

The plate also provides multiple 3/8"-16 threaded connections for camera support equipment that uses larger mounting screws. These interfaces allow integration with compatible professional tripod plates and cinema baseplates.

Having both thread sizes available expands the range of compatible mounting configurations without requiring the operator to depend on a single threaded connection format.

Anti-Twist Mounting for Secure Camera Rigging

The KB-KOMX-BOT-BK incorporates anti-twist mounting points alongside its standard threaded connections. These interfaces are designed for compatible accessories that use locating pins or other anti-rotation features.

Anti-twist connections help resist unwanted accessory rotation around the mounting screw. This can be particularly useful when attaching camera support hardware that must maintain its orientation during equipment adjustments or operation.

The plate provides multiple anti-twist mounting positions in both 1/4"-20 and 3/8"-16 configurations, allowing operators to select the appropriate interface for their accessories.

M4 Lens Adapter Support Mounting Points

Two integrated M4 threaded mounting points provide compatibility with the Kondor Blue Lens Adapter Bracket. The mounting points are positioned 27mm apart to accommodate the corresponding bracket interface.

Lens adapter support can be useful when building cinema camera configurations that incorporate compatible lens mounting accessories. The dedicated M4 connections provide an additional attachment option without occupying the standard tripod mounting threads.

The lens adapter bracket is a separate accessory and is not included with this individual bottom plate.

Protective Rubber Pads for Camera Contact

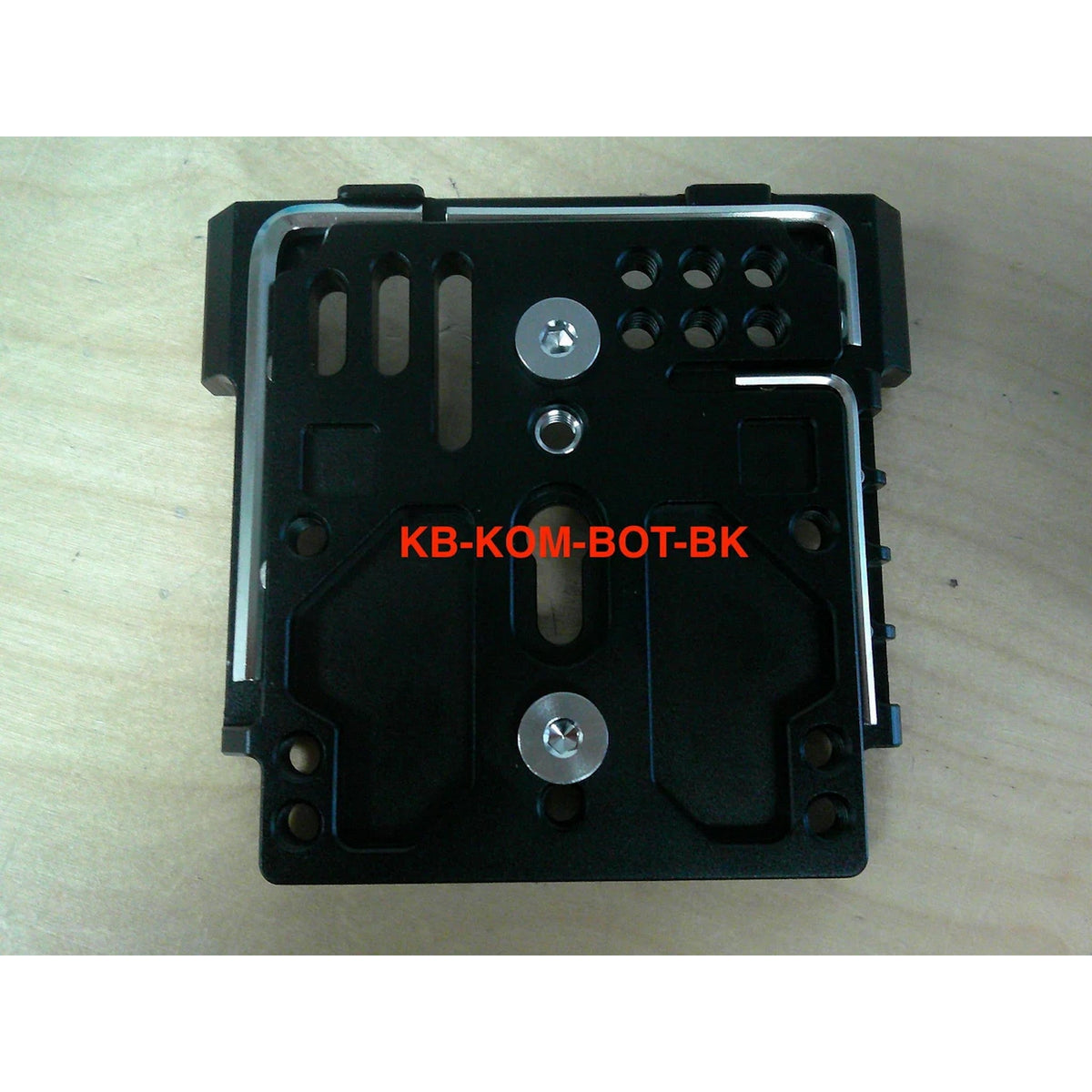

The bottom plate includes rubber contact pads positioned to protect the camera's underside. These pads provide a contact surface between the aluminum mounting plate and the camera body.

This design helps reduce direct metal-to-metal contact when the plate is installed. The protective pads are particularly useful for camera operators who frequently assemble or reconfigure their equipment.

The plate combines this protective interface with multiple threaded mounting options to support practical camera installation and rigging workflows.

Lightweight Aluminum Alloy Construction

The Kondor Blue Bottom Plate is constructed from aluminum alloy, providing a metal support structure suitable for professional camera mounting applications.

Weighing approximately 0.3 lbs, the plate adds minimal weight to the overall camera configuration. Its compact design allows operators to incorporate additional mounting interfaces without installing a full camera cage.

The Raven Black finish provides a coordinated appearance with compatible RED cinema cameras and Kondor Blue camera support accessories.

Compatible with the Kondor Blue KOMODO-X Cage System

The KB-KOMX-BOT-BK is designed as a modular component of the Kondor Blue KOMODO-X camera cage system. It can be used as an individual bottom mounting plate or incorporated into a larger cage configuration.

The complete modular cage system accommodates additional side plates, top mounting components, and compatible camera accessories. The bottom plate provides the lower mounting interface for compatible tripod and baseplate configurations.

Compatibility with both the original RED KOMODO and RED KOMODO-X cameras gives operators flexibility when configuring different RED cinema camera systems.

Professional Camera Support Applications

Tripod-Based Cinema Production

The multiple threaded mounting points provide compatibility with tripod plates and camera mounting hardware, making the bottom plate suitable for controlled studio recording, interviews, commercial productions, and other tripod-based applications.

Camera Baseplate Integration

The plate can be positioned between the camera and a compatible baseplate, providing additional mounting flexibility when assembling a professional cinema camera rig.

Modular Camera Cage Construction

Operators building a custom RED KOMODO or KOMODO-X camera configuration can incorporate the bottom plate alongside compatible components from the Kondor Blue modular cage system.

Lens Adapter Support

The two dedicated M4 mounting threads provide an attachment interface for the compatible Kondor Blue Lens Adapter Bracket, supporting camera configurations that require additional lens adapter mounting hardware.

Technical Specifications

General Information

• Manufacturer: Kondor Blue
• Manufacturer Part Number: KB-KOMX-BOT-Bk
• Product Type: Camera Cage Bottom Plate
• Product Configuration: Bottom Plate Only
• Color: Raven Black
• Material: Aluminum Alloy
• Camera Mounting Position: Bottom
• Design: Modular Camera Cage Component

Camera Compatibility

• Compatible Camera 1: RED KOMODO
• Compatible Camera 2: RED KOMODO-X
• Compatible Cage System: Kondor Blue KOMODO-X Modular Camera Cage
• Tripod Plate Integration: Supported with Compatible Mounting Hardware
• Camera Baseplate Integration: Supported with Compatible Mounting Hardware

Mounting Interfaces

• Standard 1/4"-20 Threads: Multiple
• Anti-Twist 1/4"-20 Threads: Multiple
• Standard 3/8"-16 Threads: Multiple
• Anti-Twist 3/8"-16 Threads: Multiple
• M4 Mounting Threads: 2
• M4 Thread Spacing: 1.1"
• M4 Mounting Application: Kondor Blue Lens Adapter Bracket
• Tripod Mounting: 1/4"-20 and 3/8"-16 Threaded Connections

Construction and Protection

• Construction Material: Aluminum Alloy
• Finish: Raven Black
• Camera Contact Protection: Integrated Rubber Pads
• Environmental Protection Rating: No Rated Protection

Physical Specifications

• Product Weight: 0.3 lbs

Packaging Specifications

• Package Weight: 0.3 lbs
• Package Dimensions (L x W x H): 8.1" x 5.1" x 0.7"

Warranty

• Manufacturer Warranty: Limited Lifetime

What's in the Box

• Kondor Blue KB-KOMX-BOT-Bk Bottom Plate for RED KOMODO and KOMODO-X Cameras (Raven Black)
