Korg Grandstage X 88-Key Stage Piano

Korg Grandstage X 88-Key Stage Piano

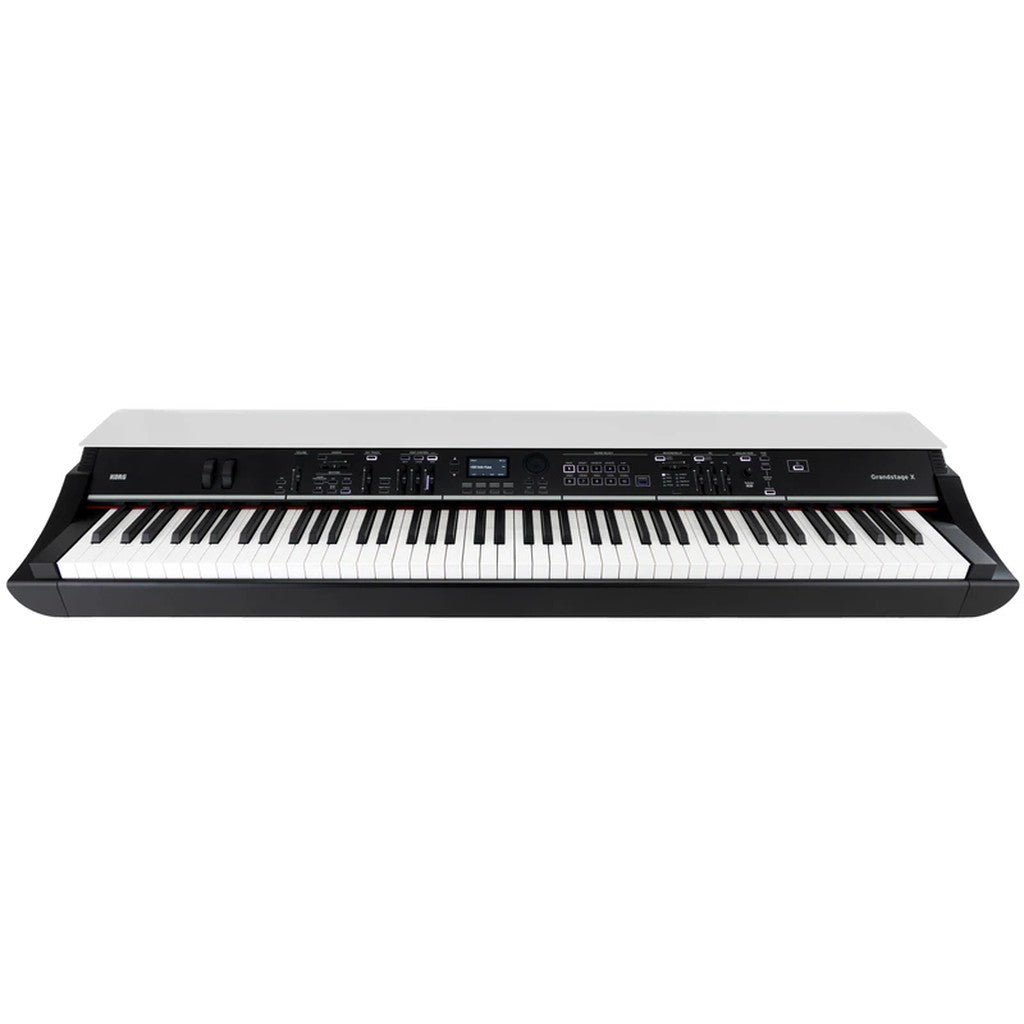

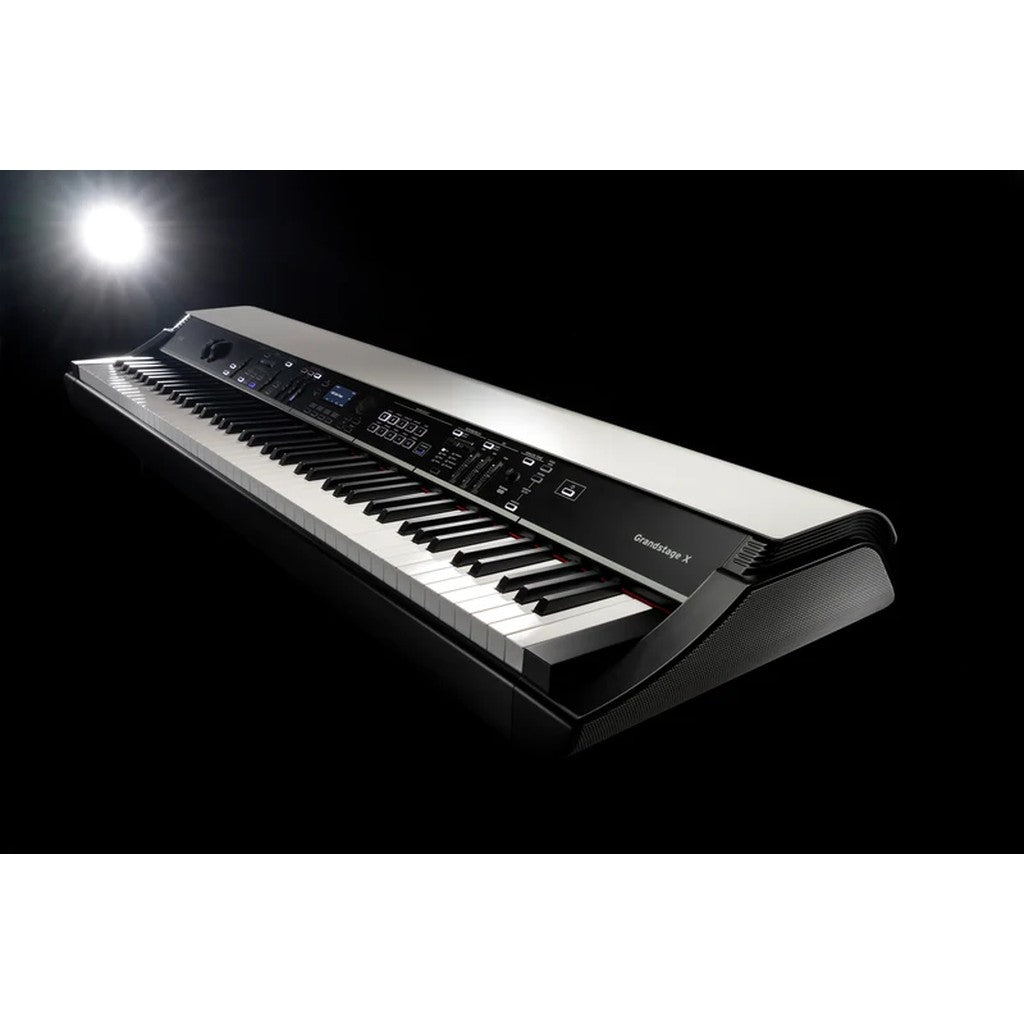

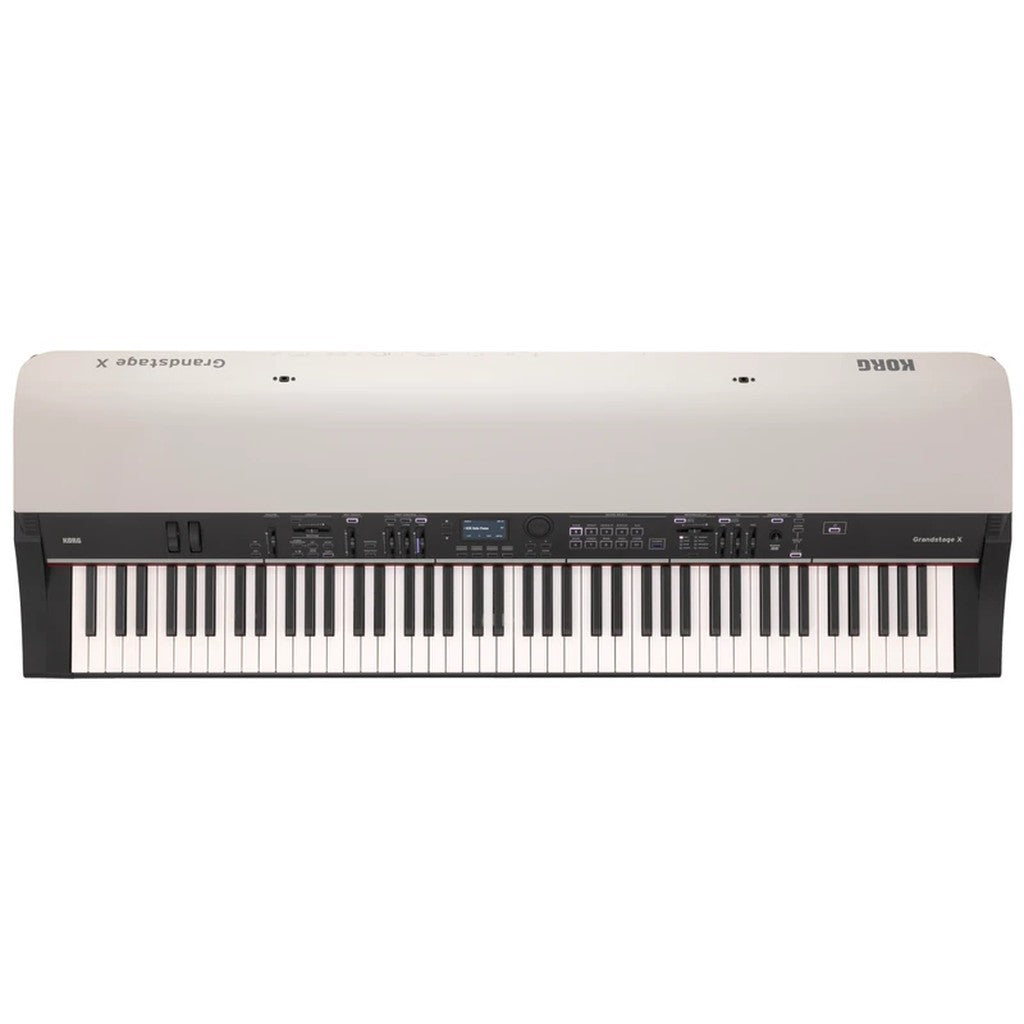

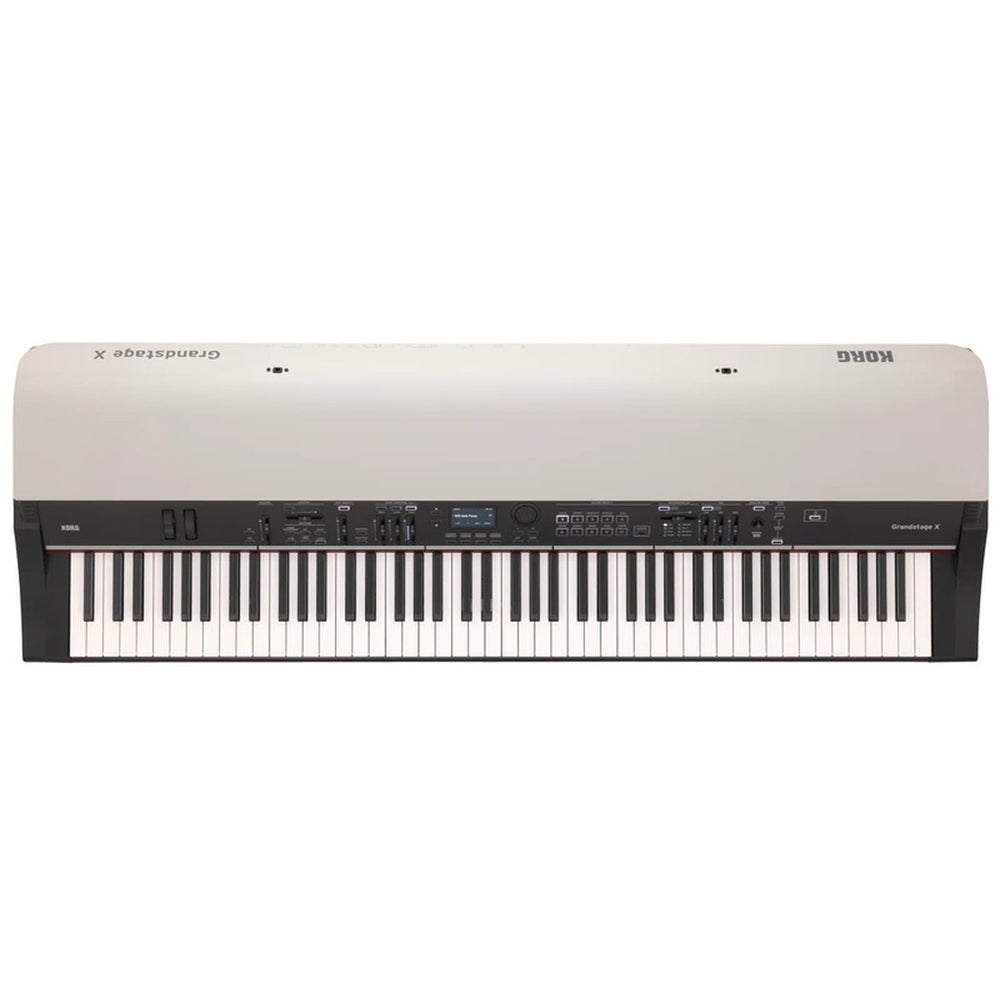

The Korg Grandstage X 88-Key Stage Piano is a flagship performance keyboard with seven sound engines, 700 preloaded sounds, RH3 weighted hammer action, and a redesigned stage-focused interface. It gives pianists and keyboardists expressive acoustic piano, electric piano, organ, synth, and PCM sounds in one premium instrument.

Designed for touring performers, worship teams, studios, and serious players, the Grandstage X makes it easy to buy an 88-key stage piano for live performance, build layered keyboard sounds, or perform with realistic piano feel. Dedicated split, layer, unison, rhythm, reverb, delay, and EQ controls keep core adjustments within quick reach.

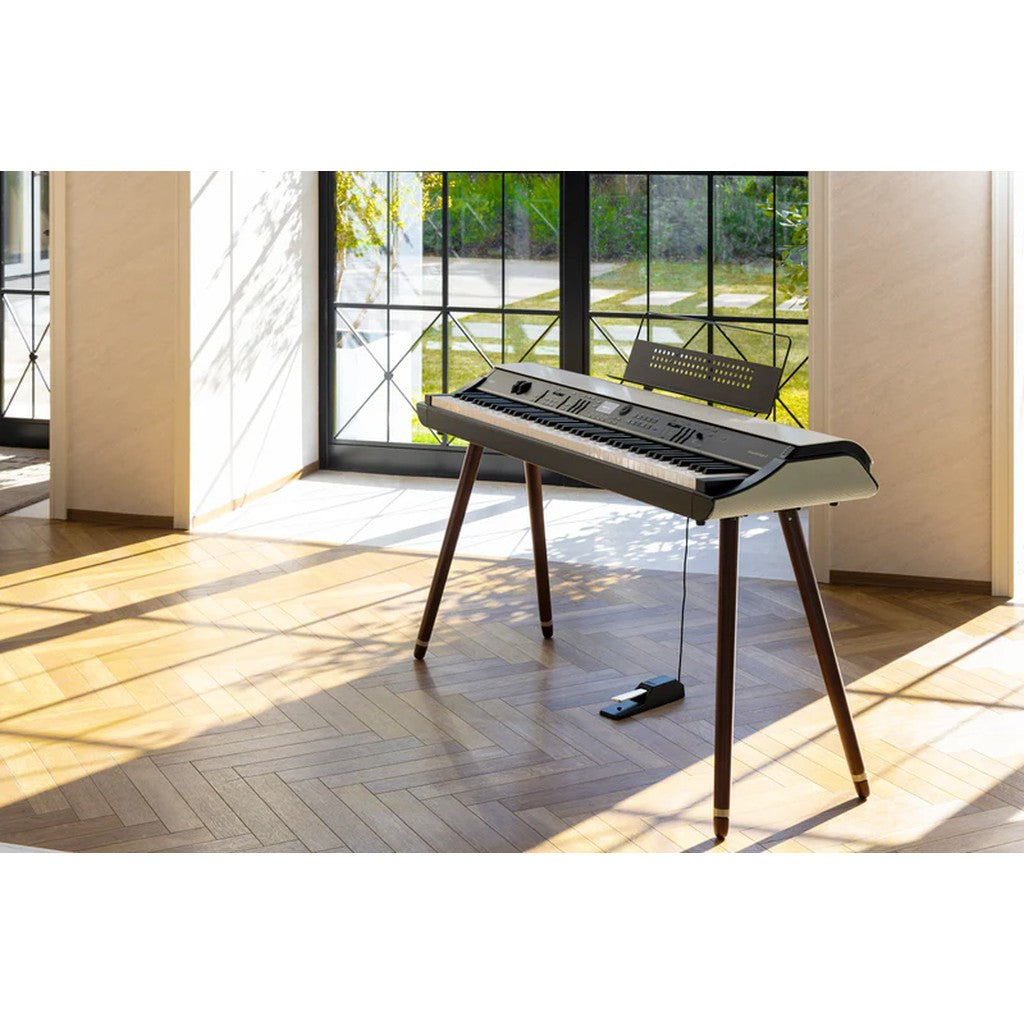

Korg builds the Grandstage X around Japanese-crafted RH3 keys, premium sound engines, balanced XLR outputs, MIDI, USB, SD card storage, and flexible pedal inputs. Nutube-powered Analog Tone adds tube-style warmth, while the included music stand and DS-1H damper pedal support professional stage and studio setups.

Korg Grandstage X Stage Piano Features

• Seven Sound Engines: SGX-2, EP-1, AL-1, CX-3, VOX Organ, FC-1, and HD-1 engines cover pianos, organs, synths, and PCM sounds.
• 700 Preloaded Sounds: A large onboard sound set supports performance-ready acoustic piano, electric piano, organ, synth, and layered textures.
• RH3 Weighted Keyboard: Real Weighted Hammer Action 3 keys provide a heavier lower register and lighter upper register for piano-style response.
• Nutube Analog Tone: Vacuum tube analog sound effects add warmth and character from a dedicated Analog Tone section.

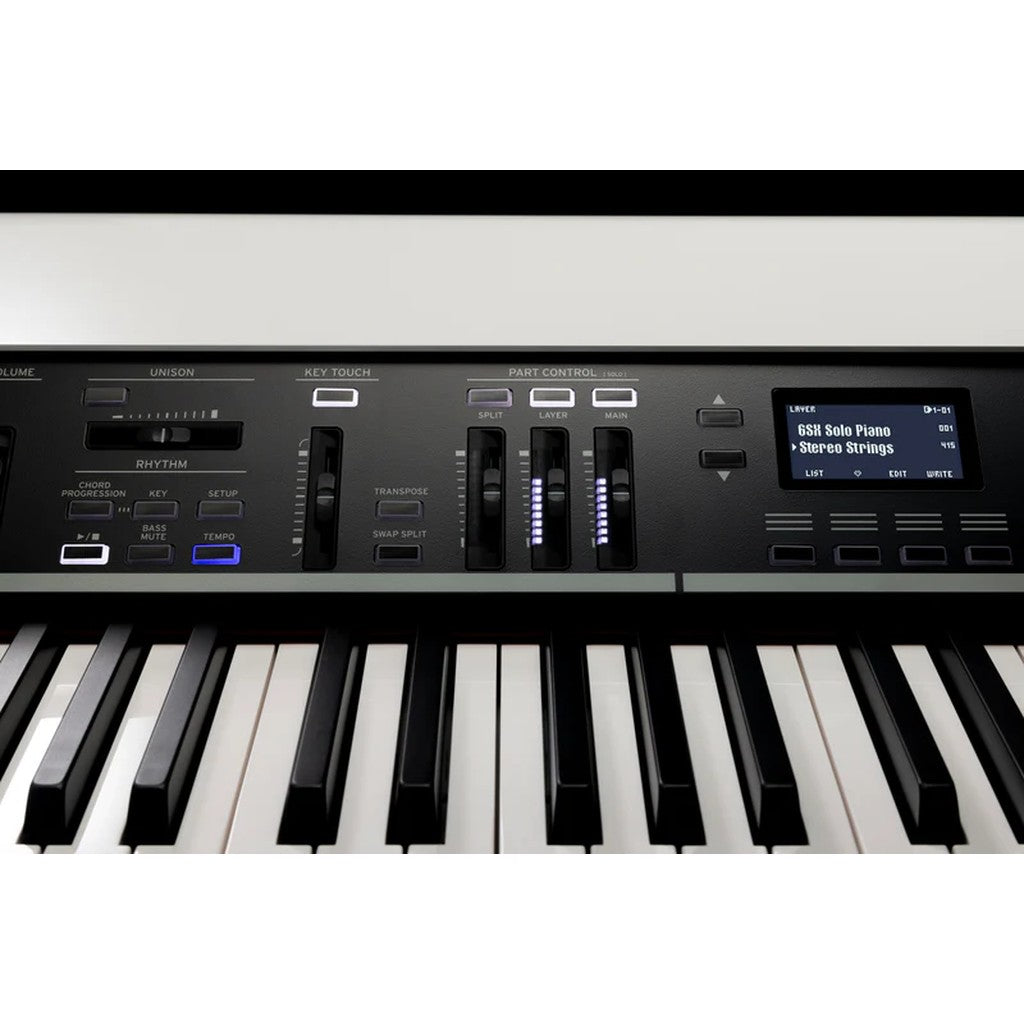

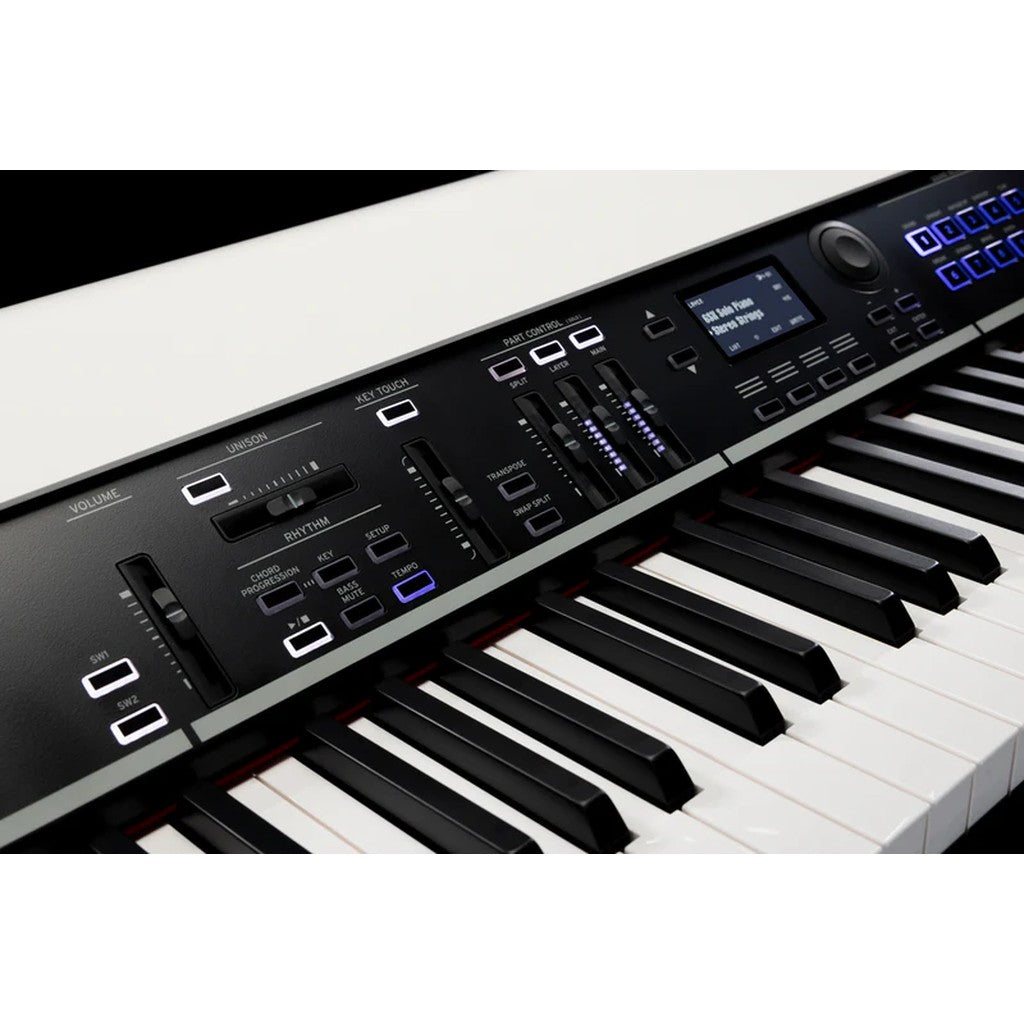

• Performance Control Layout: Main, layer, split, unison, key-touch, rhythm, EQ, reverb, and delay sections support fast hands-on control.
• Balanced Stage Outputs: XLR outputs with lift-ground switch give professional connectivity for live sound and recording systems.
• Rhythm and Chord Progression: Built-in rhythm controls add drums and bass that can follow chords or preset progressions.

Korg Grandstage X Technical Specifications

• Keyboard: RH3 Real Weighted Hammer Action 3 keyboard, A0-C8, velocity supported, aftertouch not supported
• Tone Generator: SGX-2 Acoustic Piano Sound Engine, EP-1 Electric Piano Sound Engine, AL-1 Analog Modeling Sound Engine, CX-3 Tonewheel Organ Sound Engine, VOX Organ Transistor Organ Sound Engine, FC-1 Transistor Organ Sound Engine, HD-1 PCM Sound Engine
• Maximum Polyphony: 128 voices
• Preload PCM Storage Capacity: Approximately 25.5 GB; linear equivalent approximately 51 GB
• Number of Sounds: 700
• Favorites: 100, including 20 preloads
• Reverb Types: Hall, Stage, Room, Spring, Shimmer
• Delay Types: Delay, Mod Delay, Tape Echo
• Audio Input Effects: Dyna Compressor, Exciter/Enhancer, Isolator, Multi-Mode Filter, Mastering Limiter, Limiter, Graphic EQ, Modern Compressor
• EQ: 3-band equalizer with Low, Mid, and High controls
• Analog Tone: Vacuum tube analog sound effects with Nutube
• Part Control Section: Main button, Main slider, Layer button, Layer slider, Split button, Split slider
• Unison Section: Unison button and Unison slider
• Key Touch Section: Key Touch button and Key Touch slider
• Rhythm Section: Chord Progression button, Key button, Setup button, Play/Stop button, Bass Mute button, Tempo button
• Sound Select Section: 1 Grand through 10 Others buttons and Favorite button

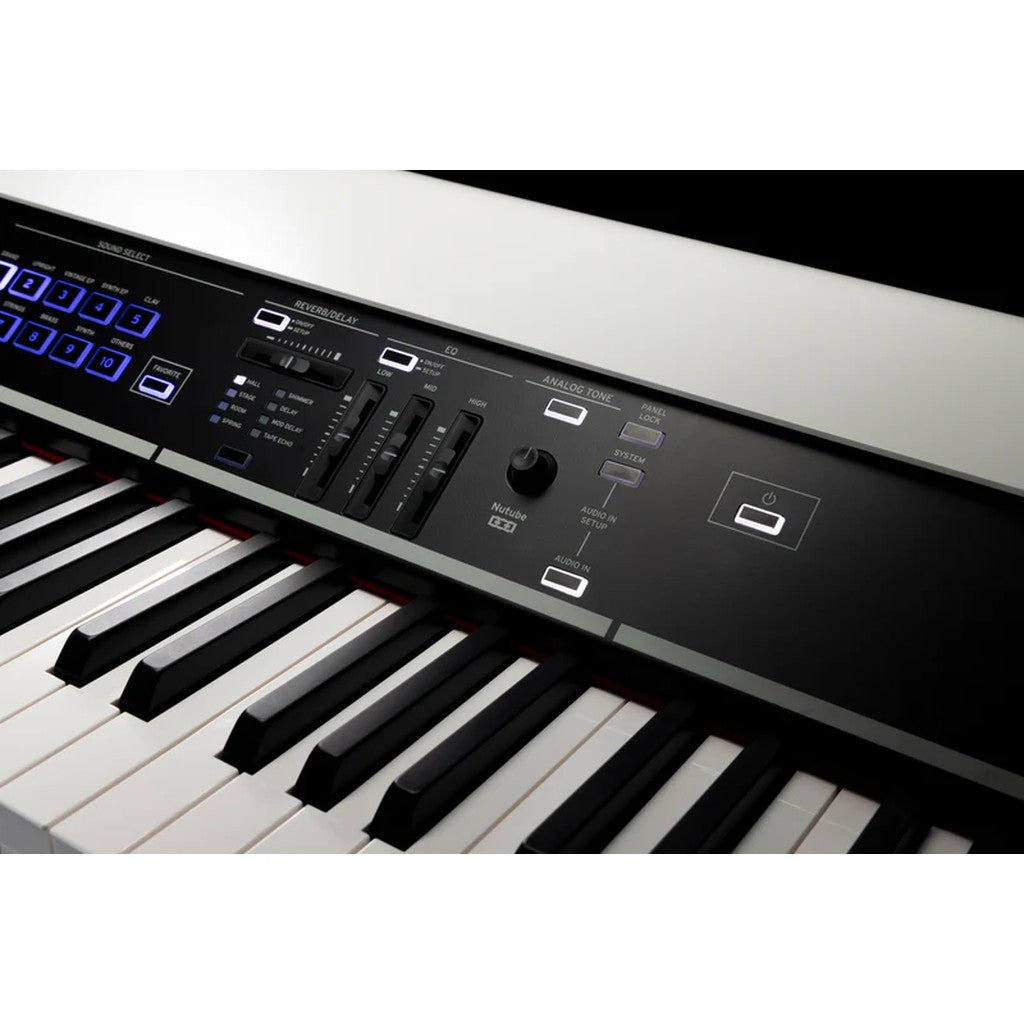

• Reverb/Delay Section: Reverb/Delay button, Type button, Depth slider
• Analog Tone Section: On/Off button and Depth knob
• Realtime Controllers: Pitch bend wheel, modulation wheel, SW1 button, SW2 button
• Frequency Response: 20 Hz-20 kHz, +/- 1.0 dB, 10k ohm load
• THD+N: 20 Hz-20 kHz, 0.005%, 10k ohm load
• S/N Ratio: 105 dB, 10k ohm load

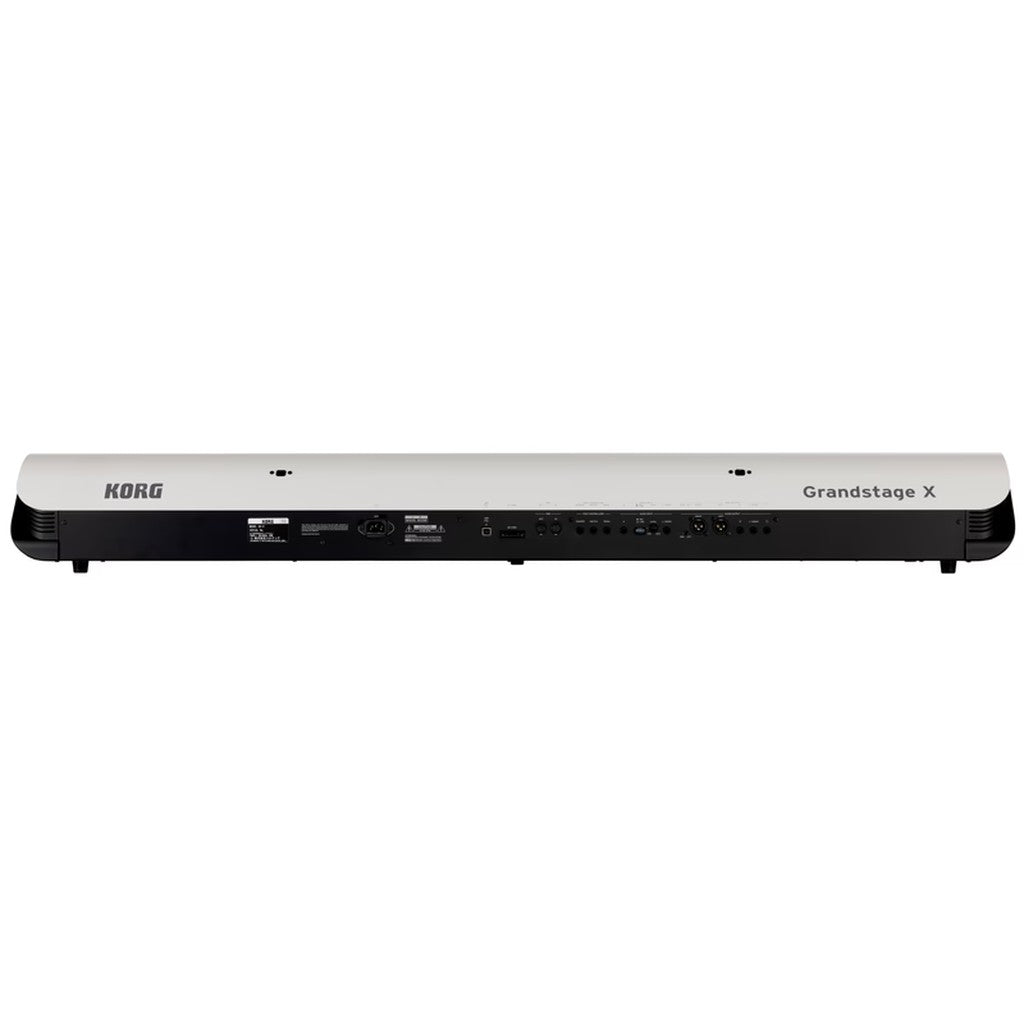

• XLR Audio Outputs: Left and Right XLR-3-32 balanced connectors with lift-ground switch
• XLR Output Impedance: 600 ohm
• XLR Maximum Level: +16 dBu
• XLR Load Impedance: 10k ohm
• Audio Outputs: L/Mono and R 1/4" TS phone jacks, unbalanced
• Audio Output Impedance: 1.1k ohm stereo output; 600 ohm L/Mono terminal mono output
• Audio Output Maximum Level: +16 dBu
• Audio Output Load Impedance: 10k ohm
• Audio Input: 1/4" TRS phone jack, balanced, with Mic/Line switch and Level knob
• Headphones: 1/4" stereo phone jack
• Headphone Output Impedance: 50 ohm
• Headphone Maximum Level: 150 mW + 150 mW at 32 ohm
• Control Inputs: Damper with half-damper support, Switch, Pedal
• MIDI: In and Out
• Card Slot: SD Card Slot
• USB: USB Type-B x 1
• Power Supply: AC power supply terminal
• Power Consumption: 20W
• Dimensions: 53.98" x 18.15" x 6.61", excluding music stand
• Weight: 55.12 lbs, excluding music stand

What's In the Box

• AC cord

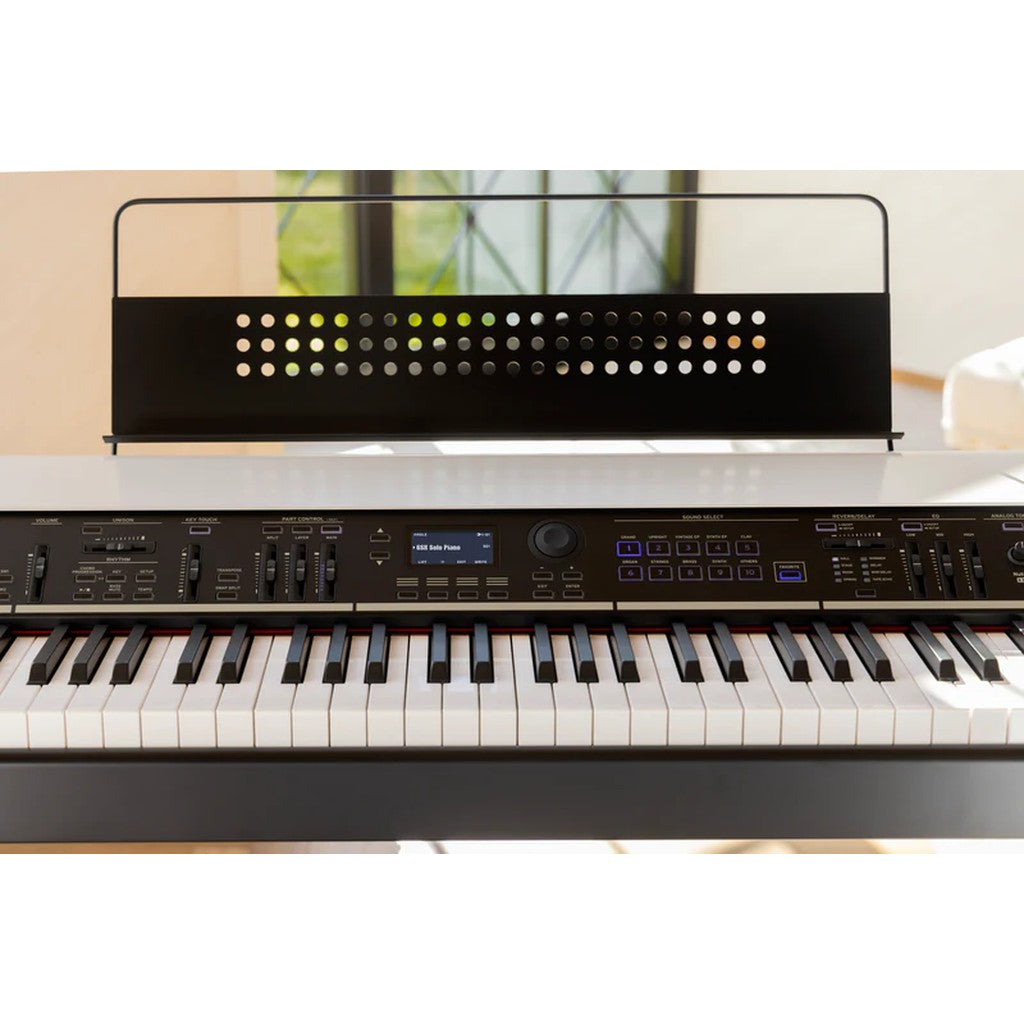

• Music stand

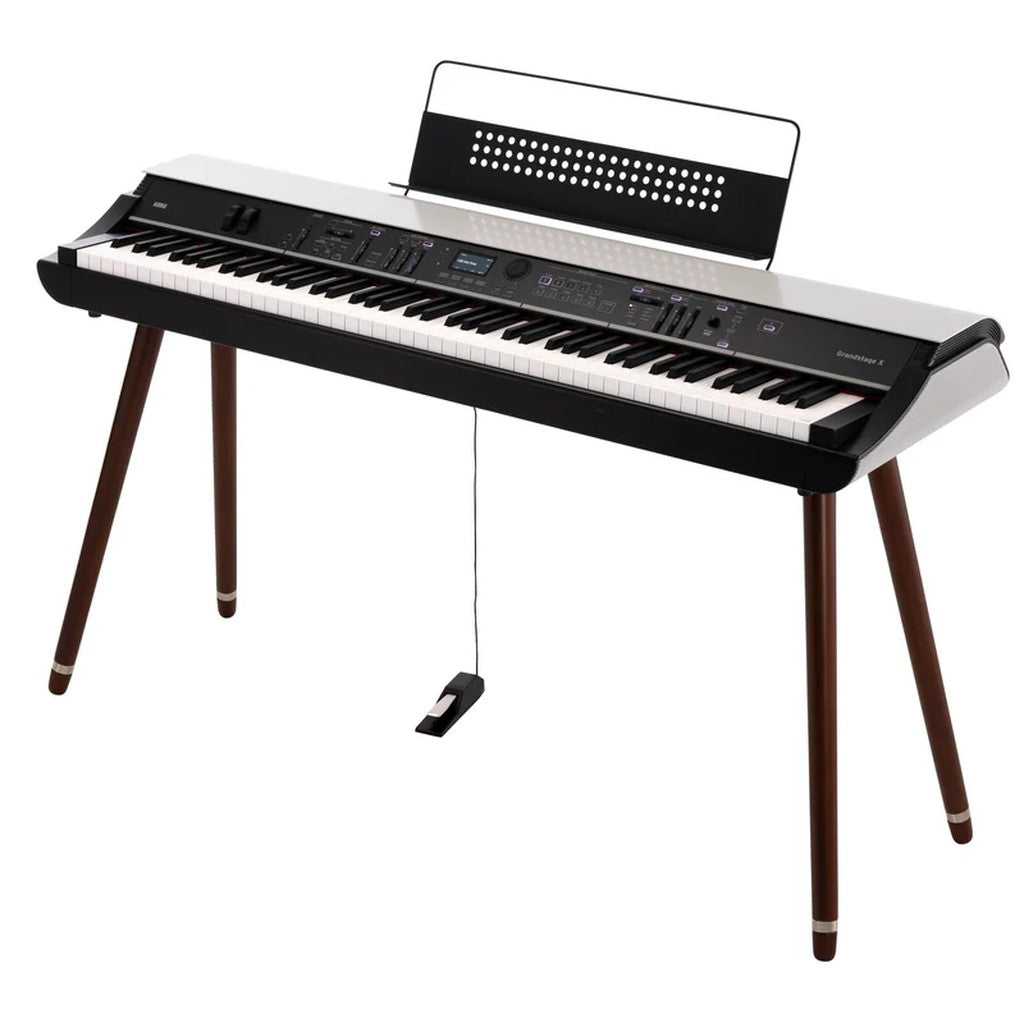

• DS-1H damper pedal
