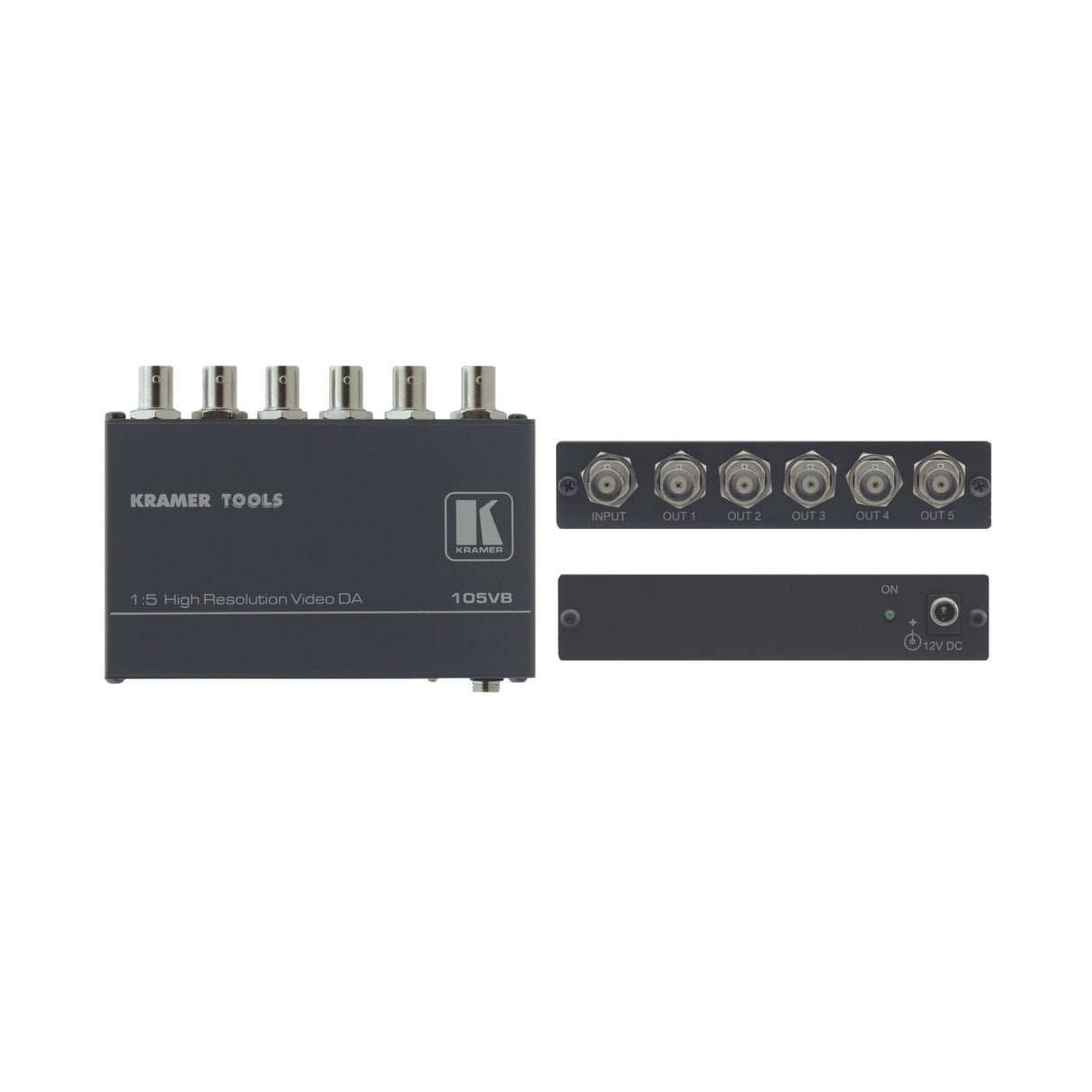

Kramer 105VB 1:5 High-Resolution Composite Video Distribution Amplifier

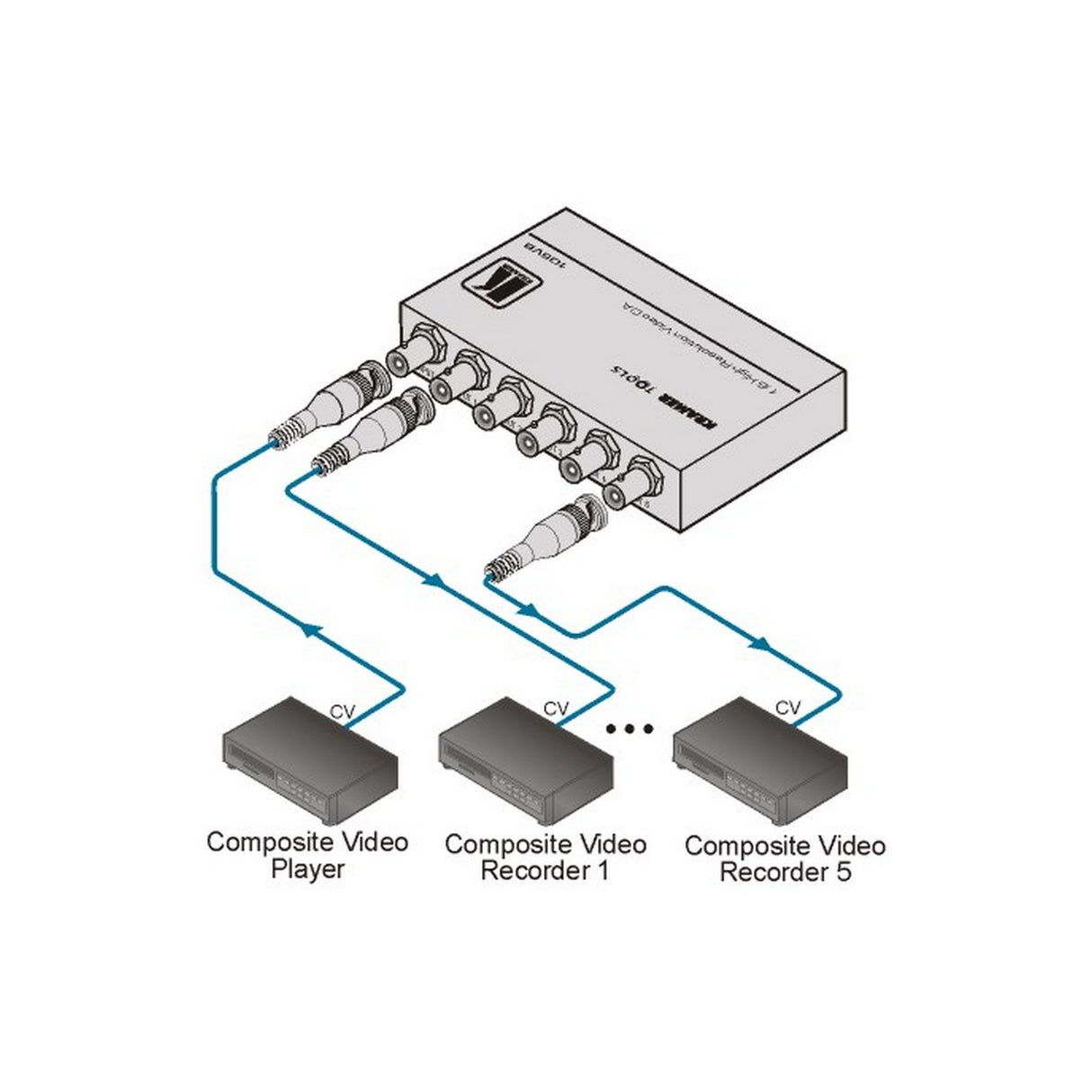

The Kramer 105VB is a high-performance distribution amplifier that takes a single composite video signal and reliably distributes it to five identical outputs. Designed for professional AV setups, it features a high 400 MHz bandwidth and low distortion, ensuring crisp and faithful signal replication across multiple displays.
Outfitted with BNC connectors and rear-level gain adjustment, the compact unit is ideal for side-by-side rack mounting using an optional RK‑3T adapter. Supplied with a 12 V DC power adapter and mounting bracket, it's perfect for environments like broadcast rooms, CCTV systems, and control centers.
Key Features
- Distribution Ratio: 1 input to 5 outputs
- Bandwidth: 400 MHz (-3 dB)
- Connectors: 1× BNC input, 5× BNC outputs
- Maximum Output: 2 Vpp
- Differential Gain/Phase: 0.1 % / 0.1°
- K‑Factor: <0.05 %
- Signal-to-Noise Ratio: 80 dB
- Gain Control: Rear-mounted trim, +6 dB max
- Coupling: AC
- Power: 12 V DC, 100 mA via supplied adapter
- Rack Mount: Up to 3 units in 1U with RK‑3T
Technical Specifications
- Voltage Input: 1 Vpp / 75 Ω on BNC
- Outputs: 5 × 1 Vpp / 75 Ω composite video on BNC
- Power Consumption: 12 V DC, 100 mA
- Product Weight: 0.5 lb (0.3 kg)
- Product Dimensions: 4.72″ × 2.81″ × 0.96″ (12 × 7.15 × 2.44 cm)
- Shipping Weight: 1.5 lb (0.7 kg)
- Shipping Dimensions: 9.13″ × 4.72″ × 3.50″ (23.2 × 12 × 8.9 cm)
What's Included
- 105VB distribution amplifier unit
- 12 V DC power adapter
- Mounting bracket
- Optional: RK‑3T rack adapter (sold separately)
