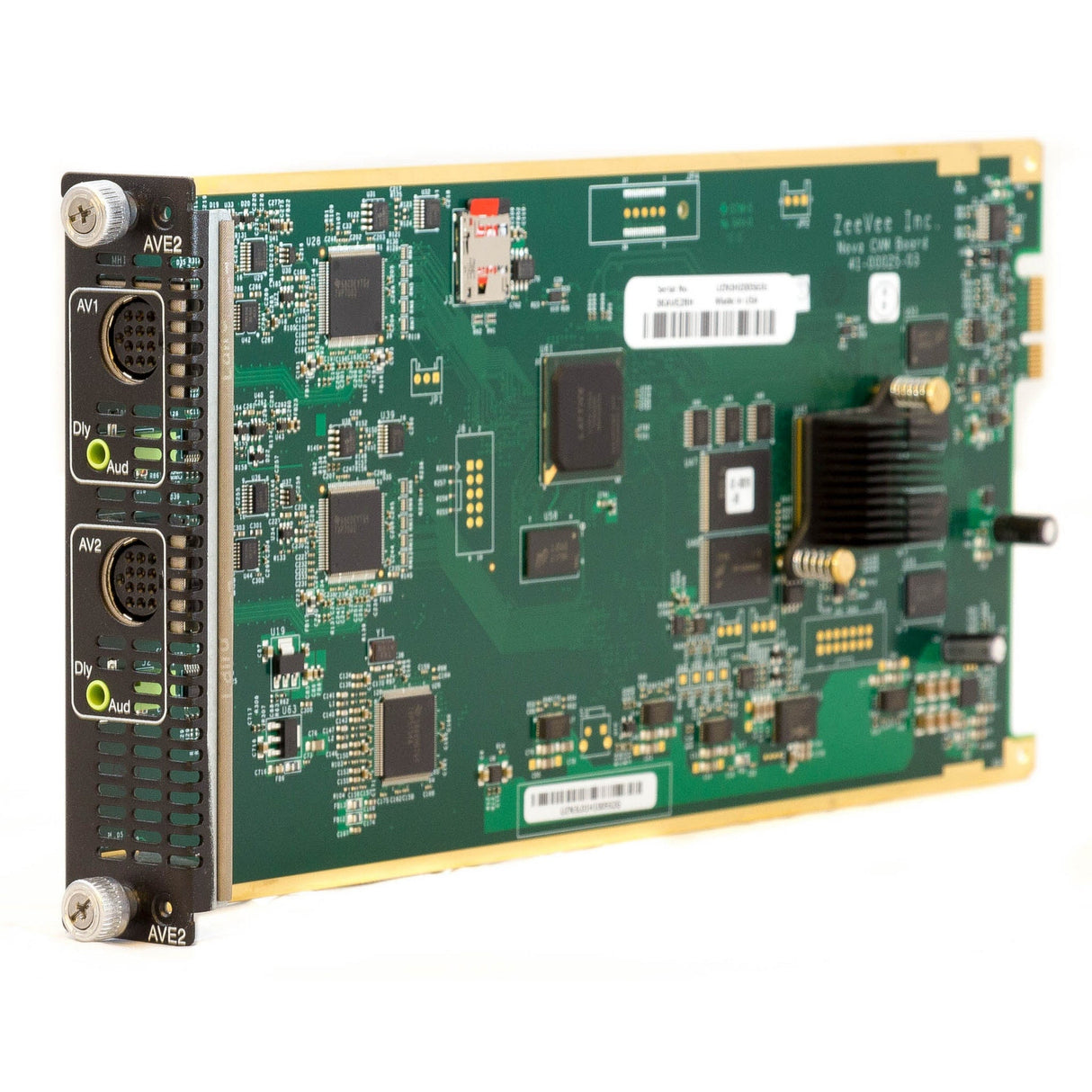

Kramer 3KHVE2i HDb3000 HDMI RF/IP Media Module Blade
This blade encodes two unencrypted HDMI sources (up to 1080p with embedded or analog audio) into MPEG-2 for simultaneous QAM/DVB-T/C RF modulation and IP streaming. Designed for hot-swappable use in the HDb3000 chassis, it supports closed captioning and includes independent analog audio delay matching.
Compact and rack-optimized, the module integrates front- and rear-mounted LCD/IP configuration with support via ZeeVee Maestro. It's ideal for HD video distribution in hospitality, enterprise, and broadcast headend applications.
Key Features
- 2 Ć HDMI inputs (up to 1080p) with embedded/analog audio
- Dual-path output: RF QAM/DVB-T/C and UDP/IP streaming
- Independent analog audio delay matching
- Closed-captioning support via composite override
- Delivers up to 24 HD channels per chassis
- Hot-swappable, 3āRU rack integration with redundant cooling
- Configuration via front-panel LCD or Zeppelin Maestro network GUI
- Wide-range AC supply: 100-240 VAC, IEC C14, 300 W chassis capacity
Technical Specifications
- Dimensions: 5ā³ Ć 0.85ā³ Ć 11ā³ (127 Ć 21 Ć 279 mm)
- Product Weight: 1.10 lb (0.50 kg)
- Operating Temperature: 32-113 Ā°F (0-45 Ā°C)
- Chassis Power: 100-240 VAC, 300 W IEC C14
- Cooling: Four hot-swappable N+1 fans, front inlet/rear exhaust
- RF Output: QAMā64/256 or DVBāT/C, 54-864 MHz range, 13-34 dBmV, MER >39 dB
- IP Output: 10/100 Mb Ethernet, DHCP/static IP
- Encoding: MPEGā2, ~18 Mb/s per channel, latency 200-400 ms
- Audio: Embedded HDMI, plus analog L/R with delay-matching
- CC Support: Closed captioning via composite input
What's Included
- 3KHVE2i module (pre-loaded firmware)
- Access to ZeeVee Maestro control software
