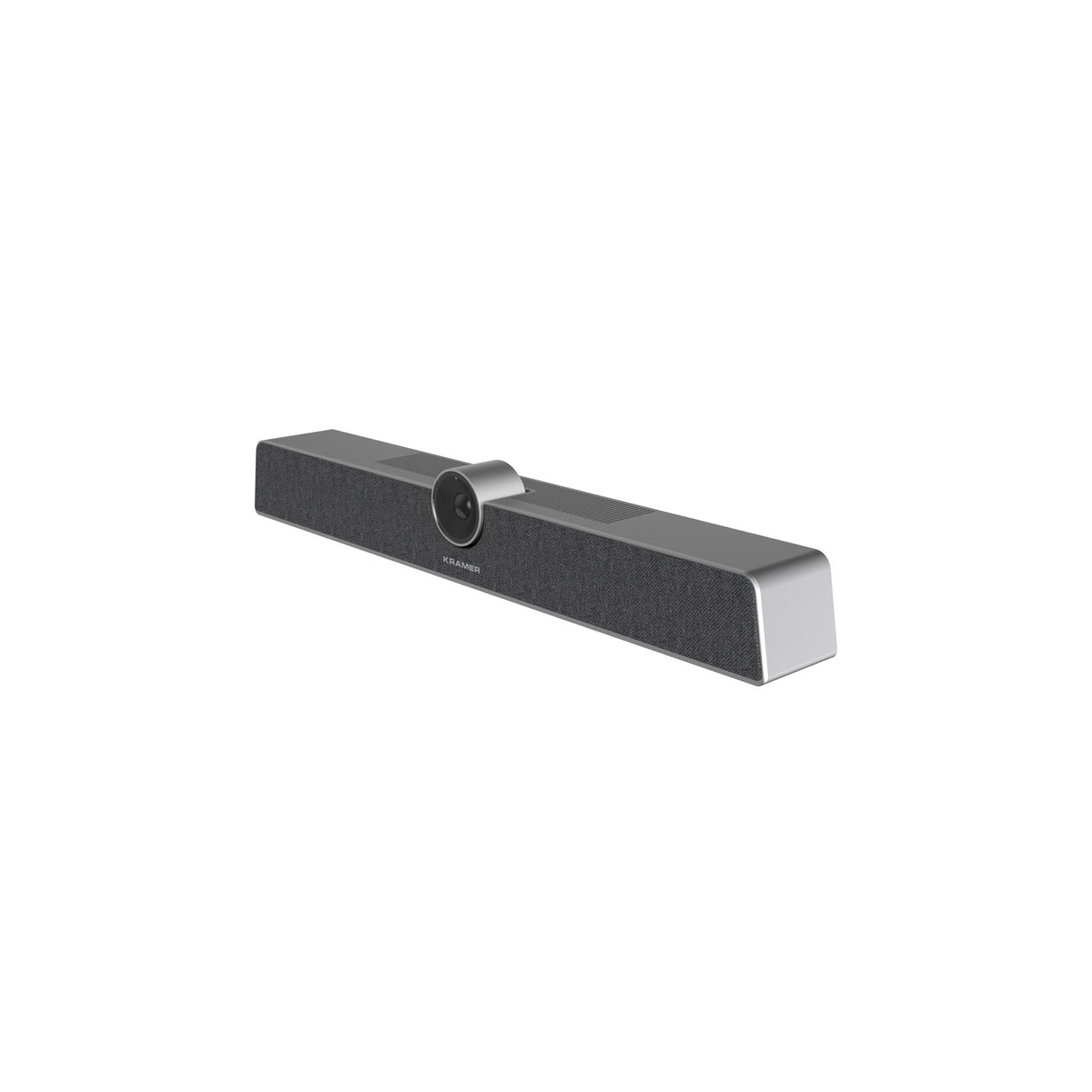

Kramer K-Bar All-In-One Video and Audio Communication Bar

Quickly start collaborating, with simplified, professional audio and video. With the optimum blend of microphones, speakers and video camera, all in a small and sleek device, the K-Bar delivers everything needed for hybrid interaction in small meeting spaces.

Key Features

• 12MP & 5X digital zoom
• Auto-framing
• 6-element Microphone and 8W Speakerphone
• Noise reduction & Automatic gain control

Technical Specifications

PORTS
1 USB-C 2.0
On a USB-C connector
AUX OUT
On a 3.5mm mini jack
CAMERA
Pixel
12M
Max. Field of View (FOV)
120 Degrees (D)
Adjustable Angle (Manual)
±15 Degrees (Up/Down)
Focus Mode
Fixed focus
Focus Distance
2m
Resolution and Frame Rate
H.264/MJPG: 3840x2160; 2560x1440; 1920x1080; 1280x720; 1024x576; 960x540; 800x600; 640x480; 640x360; 480x270; 352x288; 320x240
Resolution and Frame Rate
YUY2: 640x480; 640x360; 480x270; 352x288; 320x240
Output Format
MJPG/YUY2/H.264
SOUND REINFORCEMENT
Sound Channel 1.0
Sound Channel 1.0
Output Power 1x8W
Output Power 1x8W
MICROPHONE
Quantity
6
Voice Pickup Distance
Up to 8 meters
CONTROLS
Remote control
POWER
Consumption
12V DC, 1A max
Source
12V DC, 2A
Standby Power
≤0.5W
ENVIRONMENTAL CONDITIONS
Operating Temperature
0 Degrees to +40 Degrees C (32 Degrees to 104 Degrees F)
Storage Temperature
-20 Degrees to +60 Degrees C (-4 Degrees to 140 Degrees F)
Humidity
10% to 90%, RHL non-condensing
Altitude
Below 5000 meters
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Safety
CE, FCC
Environmental
RoHs, WEEE
ENCLOSURE
Type
Aluminum
ACCESSORIES
Included
1 USB-C cable, remote control, power cord and adapter, lens cover, wall bracket kit, screws set
PRODUCT WEIGHT
1.1kg (2.3lbs) approx.
SHIPPING DIMENSIONS
53.00cm x 16.50cm x 15.70cm (20.87” x 6.50” x 6.18”) W, D, H
SHIPPING WEIGHT
2.4kg (5.2lbs) approx.
PRODUCT DIMENSIONS
46.00cm x 9.70cm x 7.30cm (18.11” x 3.82” x 2.87”) W, D, H
