Kramer KT-208WM 8-Inch Wall Mount PoE Touch Panel
Kramer KT-208WM 8-Inch Wall Mount PoE Touch Panel
Free Shipping
Kramer KT-208WM 8-Inch Wall Mount PoE Touch Panel

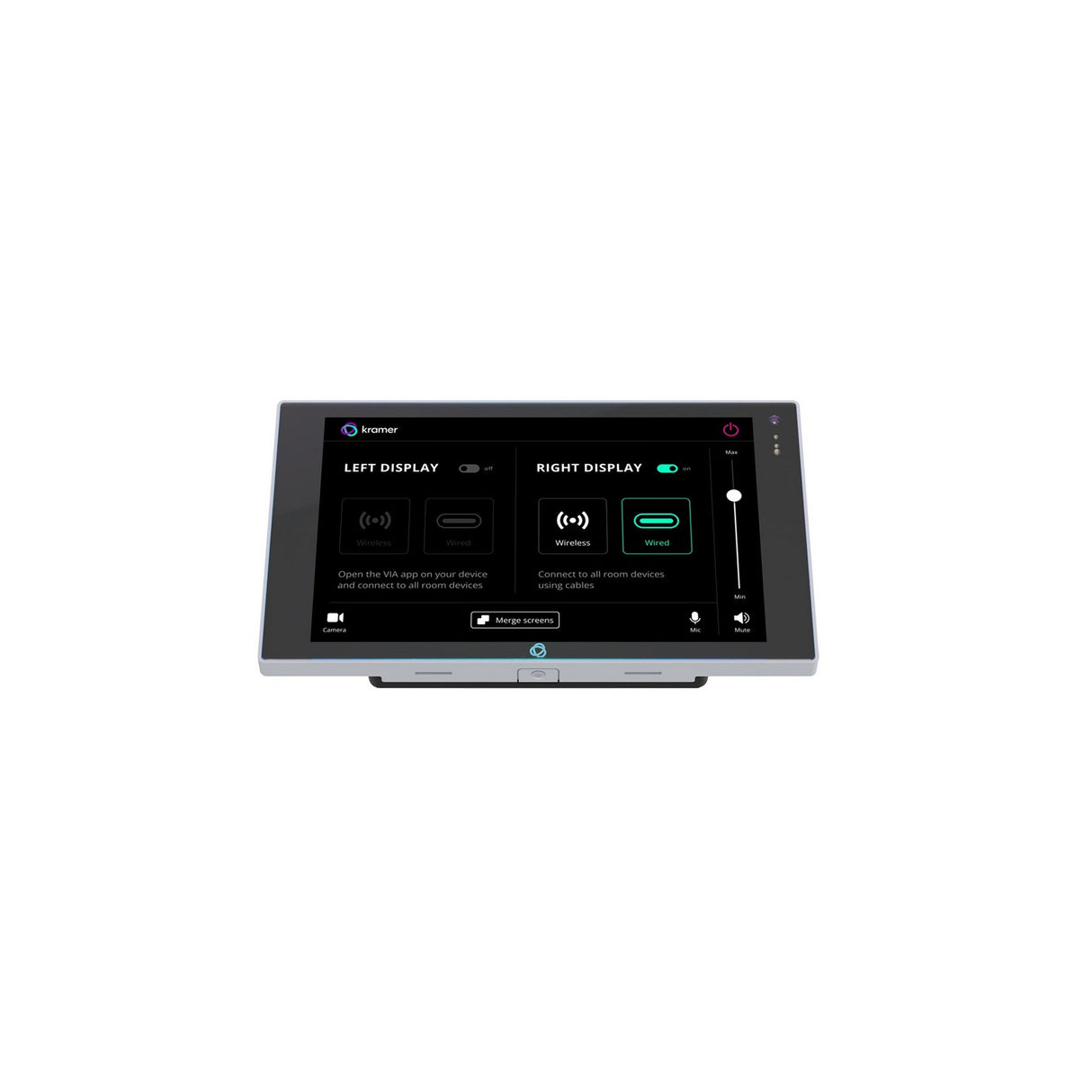

KT-208 is a new powerful, 8-inch, IPS, multi-touch, touch panel with 1280x800 resolution. Elegantly designed for decorative room integration, this portable touch panel can be deployed either on a tabletop or wall. KT-208, with the latest Android 11, supports wired PoE (Power over Ethernet) and advanced Wi-Fi connectivity options. The touch panel has a built-in speaker and camera and comes either with a tabletop or a wall mount. The touch panel is easy to assemble, using elegant wiring, secured mounting, reliable operation and flexible deployment. KT-208 is a touch panel that is ideal for any 24/7 Kramer-supported commercial AV or control application and features a user-friendly, fully customizable graphical user interface configured by Kramer software.
Key Features
- 8ā elegant, portable, high-quality touch panel
- Single Ethernet cable for connectivity & powering
- Advanced Wi-Fi connectivity options
- Flexible mounting options
Technical Specifications
PORTS
1 Ethernet
On an RJ-45 connector with PoE 802.3at
1 USB
On a USB type C (ADB) connector
GENERAL
CPU Performance
ARM Quad-core Cortex-A53 up to 1.8GHz (64 bit)
System Memory
4GB LPDDR4
Internal Storage Memory
32GB eMMC
Touch Panel Type
10.1-point capacitive multi-touch type
Wireless Communication
Wi-Fi 6, 802.11 a/b/g/n/ax/ax+BT 5.0
Ethernet
10/100/1000 Mbps LAN
Display Screen
5 points, multi-touch (PCAP)
Display Size
8ā (16:10 diagonal), 1280 RGB (H) x 800(V) pixels
Wall Mounting Ready
Dedicated bracket for easy mounting
Contrast Ratio
350cd/m2 brightness, 1000:1
Back-light
LED Side-light type
AUDIO
Speaker Unit
Built-in, 2x 1W
Microphone
2, Built-in
Audio Codecs
MPEG/OGG/AAC
VIDEO
Camera
5Mp FF
Video Format
H.264 / H.265, VC-1, MPEG-4, VP9/VP8
Image Codecs
JPEG/BMP/GIF/PNG
POWER
PoE
Power over Ethernet 802.3af
Source
12V/2A DC adapter (optional)
USER INTERFACE
Controls
Volume, menu, and power buttons
Indicators
LED sidebars to indicate room status (requires 3rd party integration)
ACCESSORIES
Included
2 LED side bars, table mount for KT-208 or on-wall mounting bracket & panel mounting bracket for KT-208WM, installation screws
ENVIRONMENTAL CONDITIONS
Operating Temperature & Humidity
0 Degrees to +40 Degrees C (32 Degrees to 104 Degrees F), 5% to 85%
Storage Temperature & Humidity
-20 Degrees to +60 Degrees C (-4 Degrees to 140 Degrees F), 5% to 90%
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Safety
CE, FCC, UL, UKCA
Environmental
RoHs, WEEE
PHYSICAL
Product Dimensions
21.2x2.5x12.7 (8.3ā x 1ā x 5ā) W, D, H
Package Dimensions
29cm x 20.6cm x 16.4cm (11.4ā x 8.1ā x 6.5ā) W, D, H
Product Weight
0.48kg (1.1lbs) approx
KT-208 Package Weight
1.35kg (3lbs) approx
KT-208WM Package Weight
1kg (2.2lbs) approx
PRODUCT DIMENSIONS
PRODUCT WEIGHT
0.5kg (1.1lbs) approx.
SHIPPING DIMENSIONS
29.00cm x 20.60cm x 16.40cm (11.42ā x 8.11ā x 6.46ā) W, D, H
SHIPPING WEIGHT
1.0kg (2.2lbs) approx.
