Kramer VM-10H2 4K60 2.2 HDMI 2.0 Distribution Amplifier

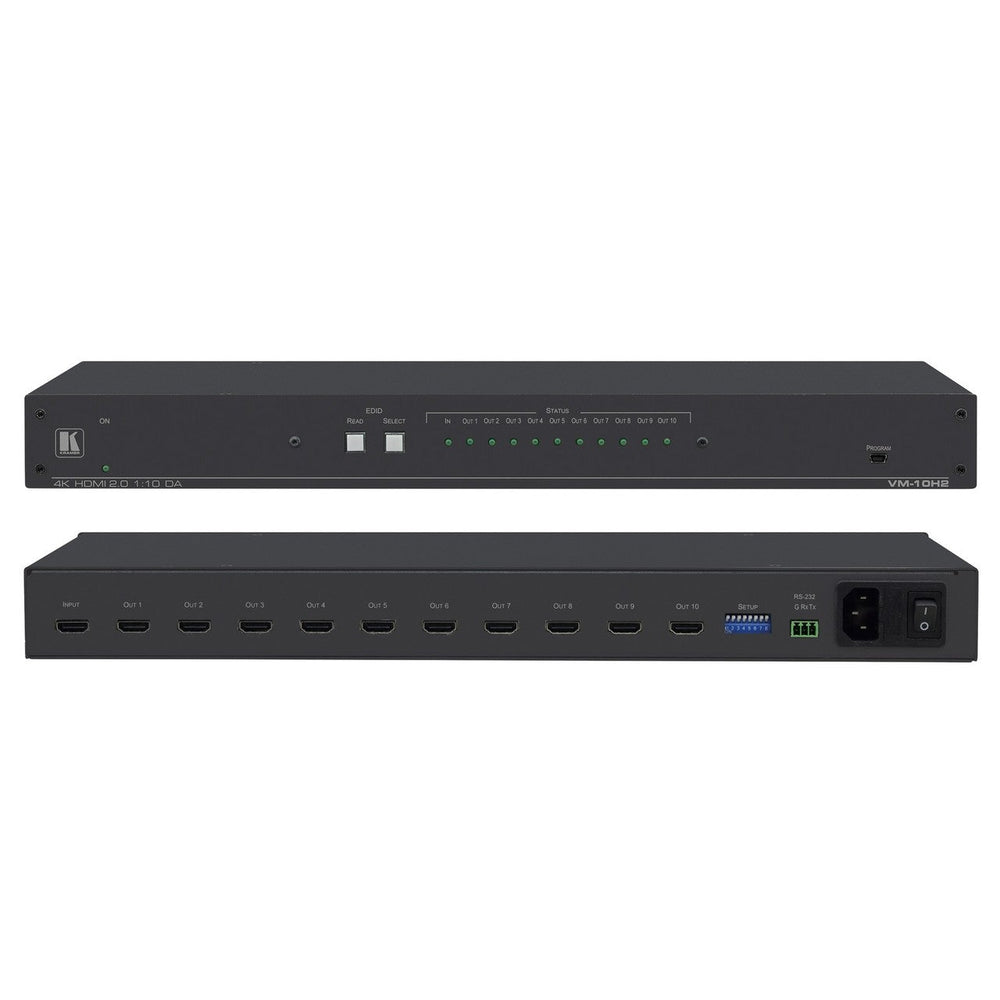

The VM?10H2 is a 1:10 distribution amplifier for up to 4K@60Hz (4:4:4) HDMI 2.0 signals, complying with HDCP 2.2 content protection standard. The unit takes one HDMI input, equalizes and reclocks the signal, and distributes it to ten identical outputs.
Key Features
- 1:10 HDMI distributor
- Video Resolution Up to 4K@60Hz (4:4:4)
- Bandwidth Up to 17.82Gbps
- Compliance HDMI 2.0, HDCP 2.2
- Size Standard 19" (1U). Rack "ears" included.
- Audio E
Technical Specifications
INPUT
1 HDMI on HDMI connector
OUTPUTS
10 HDMI on HDMI connectors
VIDEO
Up to 17.82Gbps bandwidth (5.94Gbps per graphic channel)
Up to 4K@60Hz (4:4:4) resolution
HDMI 2.0 and HDCP 2.2 signal compliance
CONTROLS
EDID SELECT and READ buttons, DIP switches
INDICATION LEDS
OUTPUTS 1 to 10 and ACTIVE input LED
POWER SOURCE
100-240V AC, 50/60Hz 28VA
POWER CONSUMPTION
100-240V AC, 50/60Hz 26VA
ENCLOSURE
Full 19" 1U rack size, Aluminium type
COOLING
Fan ventilation
PRODUCT DIMENSION
19" x 7.20 x 1U (43.6cm x 18.30cm 4.36cm) W, D, H
PRODUCT WEIGHT
1.8kg (3.9lbs) approx
SHIPPING DIMENSION
55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H
SHIPPING WEIGHT
2.8kg (6.1lbs) approx
