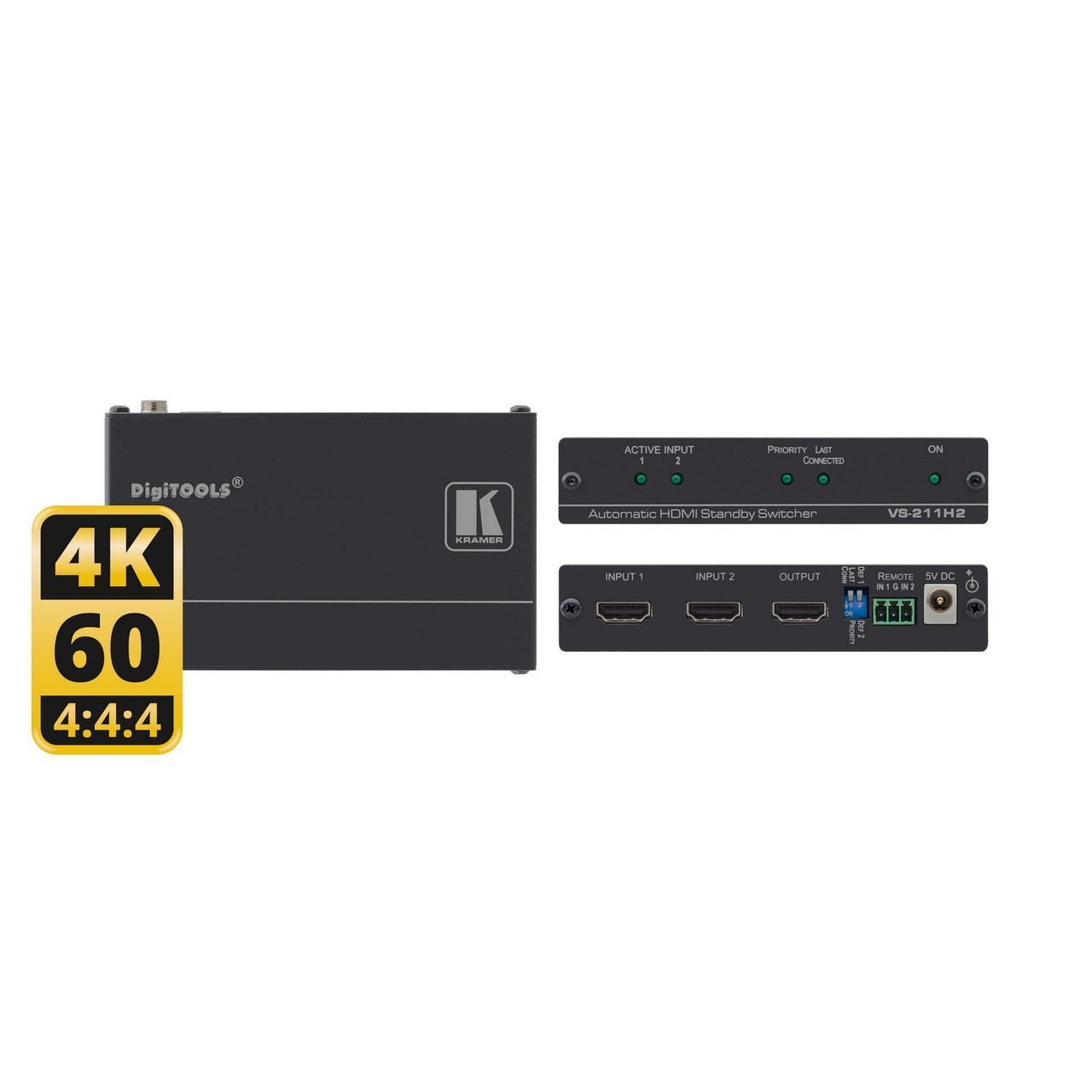

Kramer VS-211H2 2 x 1 4K60 HDCP 2.2 HDMI 2.0 Auto Standby Switcher
The VS?211H2 is a high-performance automatic switcher for 4K@60Hz (4:4:4) HDCP 2.2 HDMI 2.0 video signals. Offering priority and last?connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.
Key Features
- Max. Data Rate - 17.82Gbps (5.94Gbps per data channel)
- Max. Resolution - 4K@60Hz (4:4:4)
- Kramer Equalization and reKlocking Technology
- HDTV Compatible
- HDMI 2.0 & HDCP 2.2 Compliant
- 3D PassThough
Technical Specifications
INPUTS
2 HDMI connectors
OUTPUTS
1 HDMI connector
MAX. DATA RATE
17.82GBPS (5.94Gbps per graphic channel)
MAX. RESOLUTION
4K@60 UHD (4:4:4)
COMPLIANCE WITH HDMI STANDARD
HDCP and HDMI
CONTROLS
Status/priority DIPswitches, contact closure remote control
OPERATING TEMPERATURE
0Ā° to +40Ā°C (32Ā° to 104Ā°F)
STORAGE TEMPERATURE
-40Ā° to +70Ā°C (-40Ā° to 158Ā°F)
HUMIDITY
10% to 90%, RHL noncondensing
POWER CONSUMPTION
5V DC, 400mA
INCLUDED ACCESSORIES
Power supply 5.2V DC/4A desktop
OPTIONS
RK-3T 19ā rack adapter
PRODUCT DIMENSION
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.2kg (0.4lbs) approx
SHIPPING DIMENSION
15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT
0.6kg (1.4lbs) approx
