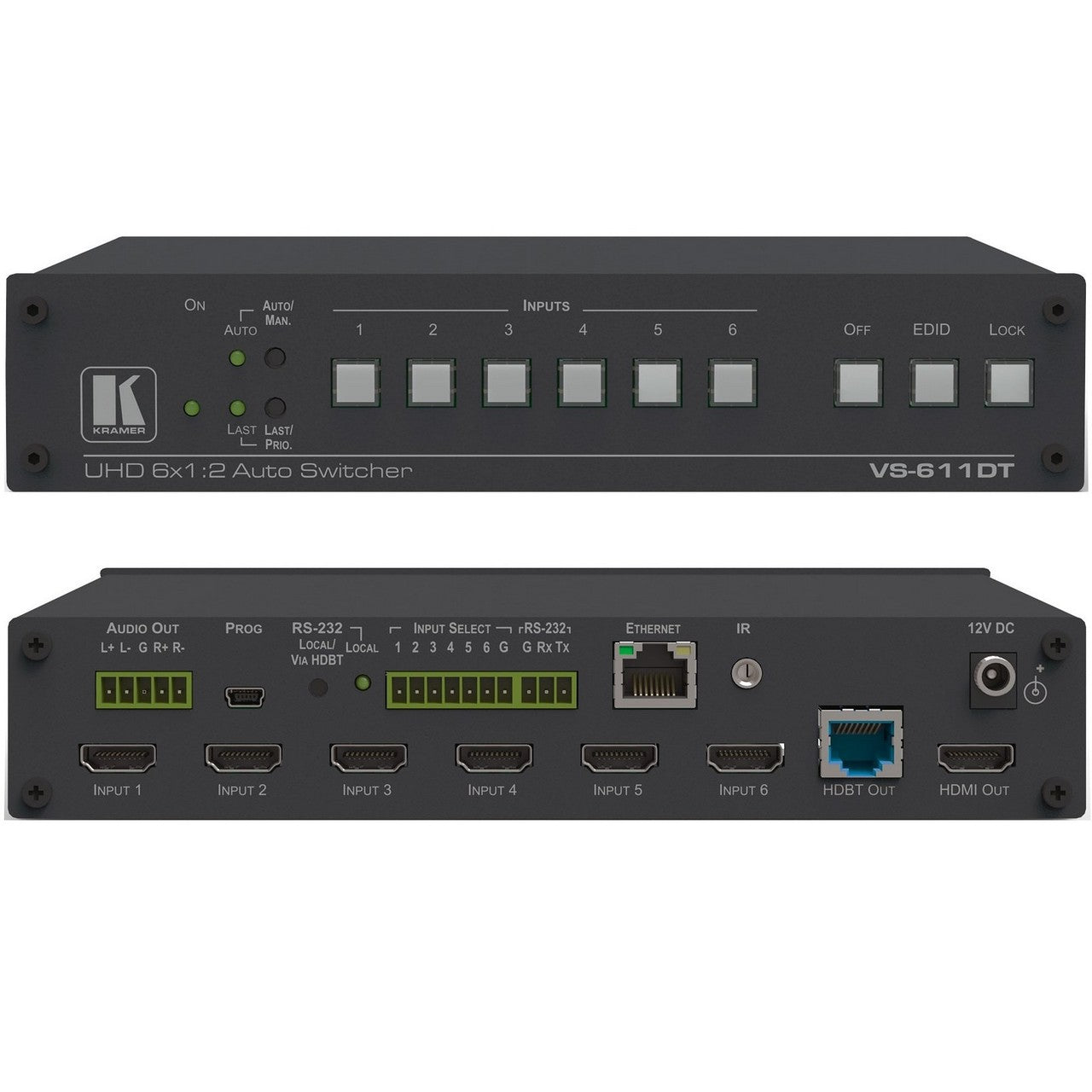

Kramer VS-611DT 4K60 HDMI HDBaseT PoE Auto Switcher

VS-611DT is a high-performance automatic switcher for HDMI video signals with resolution up to 4K@60Hz (4:2:0). With six HDMI inputs, the unit can automatically or manually switch to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher-priority video signal is introduced. The output signal is distributed to HDBaseT and HDMI 4K@60Hz (4:2:0) outputs.

Key Features

• Max. Data Rate - 8.91Gbps (2.97Gbps per graphic channel).
• Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
• HDTV Compatible.
• HDCP 1.4 and HDMI 1.4 Compliant.
• HDMI Support - Deep Color, Ethernet, ARC, 7.1 PCM.
• Stepin Master Support.
• Automatic Input Detection & Selection.
• AutoPower Off - When no HDMI input for 30 seconds (selectable).
• HDCP On/Off Switching.
• EDID Configuration Options.
• Selectable Switching - Manual or fast autoswitching according to last connected or preset priority.
• Full HDBaseT Certification - Including bidirectional RS-232, Ethernet, IR and POE.
• HDBaseT Extended Reach - Up to 100m@ 4K60 (4:2:0).
• POE Source for HDBaseT Receivers.
• Contact Closure - For remote manual switching override.
• HDMI ARC DeEmbedding - From output to balanced stereo audio line, uncompressed.
• Firmware Upgrade - Over miniUSB, RS-232 or RJ-45 Web page.
• Varied Control Options - Front panel keyboard, HDBaseT Ethernet, RS-232 local and over HDBaseT, IR.
• Builtin Web Server.
• Software Support - For Protocol 3000, KRouter Plus, EDID Designer, KUpload.

Technical Specifications

INPUTS
6 HDMI connectors, 1 IR on a 3.5mm minijack
OUTPUTS
1 HDMI connector, 1 HDBaseT on an RJ-45 connector, 1 balanced stereo audio on a 5pin terminal block
PORTS
1 Ethernet on an RJ-45 connector, 1 RS-232 connector on a 3pin terminal block, 6 contact closures on a 7pin terminal block,1 USB miniA connector for firmware upgrading
MAX. DATA RATE
8.91Gbps (2.97Gbps per graphic channel) with 4K@60Hz (4:2:0) support
COMPLIANCE WITH HDMI STANDARD
Deep Color, Ethernet, ARC, up to 7.1 Audio Channels, CEC
OUTPUT RESOLUTIONS
Up to UXGA, 4K x 2K, 4K @60 4:2:0
CONTROL
Local: front panel keyboard, contact closure, HDBaseT
local and over HDBaseT: RS-232, Ethernet, IR
SOFTWARE SUPPORT
Protocol 3000, K Router Plus, EDID Designer, KUpload
OPERATING TEMPERATURE
0 deg to +40 deg C (32 deg to 104 deg F)
STORAGE TEMPERATURE
-40 deg to +70 deg C (-40 deg to 158 deg F)
HUMIDITY
10% to 90%, RHL noncondensing
POWER CONSUMPTION
12V DC, 750mA
INCLUDED ACCESSORIES
Power cord, rack “ears”, IR remote control
OPTIONS
RK-1 19” rack adapter
PRODUCT DIMENSION
21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT
1.0kg (2.1lbs) approx
