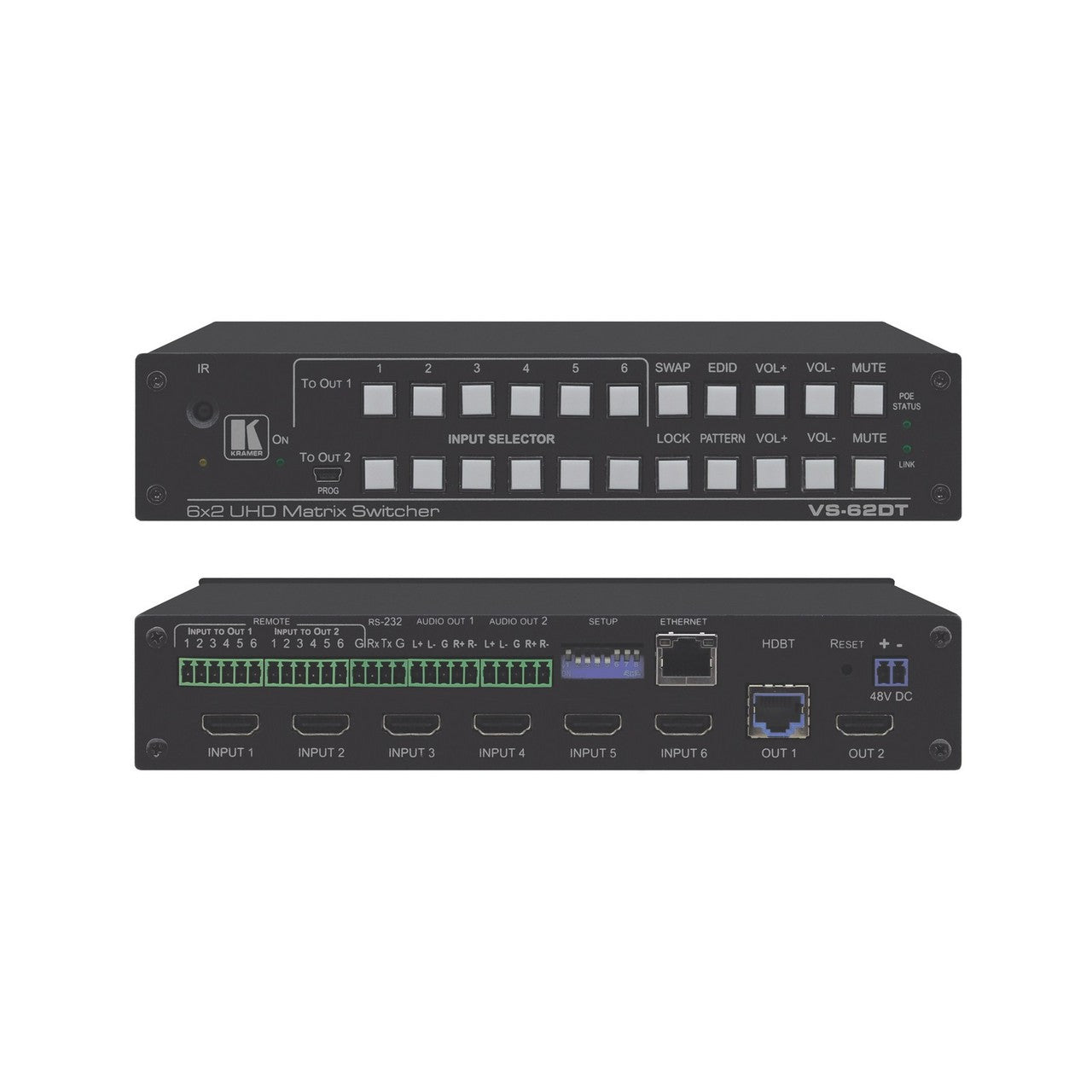

Kramer VS-62DT 6 x 2 HDMI HDBaseT PoE Matrix Switcher
Kramer VS-62DT 6 x 2 HDMI HDBaseT PoE Matrix Switcher
Free Shipping
Kramer VS-62DT 6 x 2 HDMI HDBaseT PoE Matrix Switcher
The VS?62DT is a 6x2 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher with HDMI and HDBaseT output transmitters that provide long?reach video and audio transmission. It supports resolutions of up to 4K@60Hz (4:2:0) and WUXGA. The matrix is a PoE provider that provides power over Ethernet to compatible PoE receivers.
Key Features
- Max. Data Rate Up to 8.91Gbps (2.97Gbps per graphics channel).
- Max. Resolution Maximum resolution of up to 4K@60Hz (4:2:0).
- HDCP 1.4 Support.
- HDMI 1.4 Support - 3D, Deep Color, x.v.Color, Lip Sync, DolbyĀ® TrueHD,
- Dolby Digital Plus, DTSHDĀ®, and 7.1 multichannel audio.
- Routing Six HDMI inputs can be routed to an HDMI and HDBaseT output.
- PoweroverEthernet Supply of PoE to compatible receivers.
- EDID Capture Copies and stores the EDID from a display device per input.
- Programmable Stepin Functionality When used together with compatible stepin devices, such as the SIDX3N and DIP-30 (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
- True Video Clock Detection.
- Advanced Auto AV Switching Last connected and priority switching modes
Technical Specifications
INPUTS
6 HDMI connectors
OUTPUTS
1 HDMI connector, 1 HDBT on an RJ-45 connector
PORTS
1 Ethernet on an RJ-45 connector, 12 remote selection contactclosure switches on 13 terminal block pins, 1 serial port on a 3pin terminal block, 1 program port on a mini USB
ANALOG AUDIO
2 balanced stereo audio on 5pin terminal blocks
BANDWIDTH
Up to 8.91Gbps data rate (2.97Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD
HDMI 1.4 and HDCP 1.4
RESOLUTION
Up to 4K@60Hz UHD (4:2:0)
SUPPORTED BAUD RATES
9600, 115200bps
POWER CONSUMPTION
48V DC 360mA
48V DC, 360mA
CONTROLS
Front panel buttons, infrared remote control transmitter, RS 232, Ethernet, remote input selection switches and LEDS, builtin Web browser
OPERATING TEMPERATURE
0Ā° to +40Ā°C (32Ā° to 104Ā°F)
LED INDICATORS
IR active red, ON green
STORAGE TEMPERATURE
-40Ā° to +70Ā°C (-40Ā° to 158Ā°F)
HUMIDITY
10% to 90%, RHL noncondensing
INCLUDED ACCESSORIES
Power supply, IR remote control
OPTIONS
RK-1 19ā rack adapter
PRODUCT DIMENSION
21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT
1.0kg (2.3lbs) approx
SHIPPING DIMENSION
35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT
1.7kg (3.7lbs) approx
