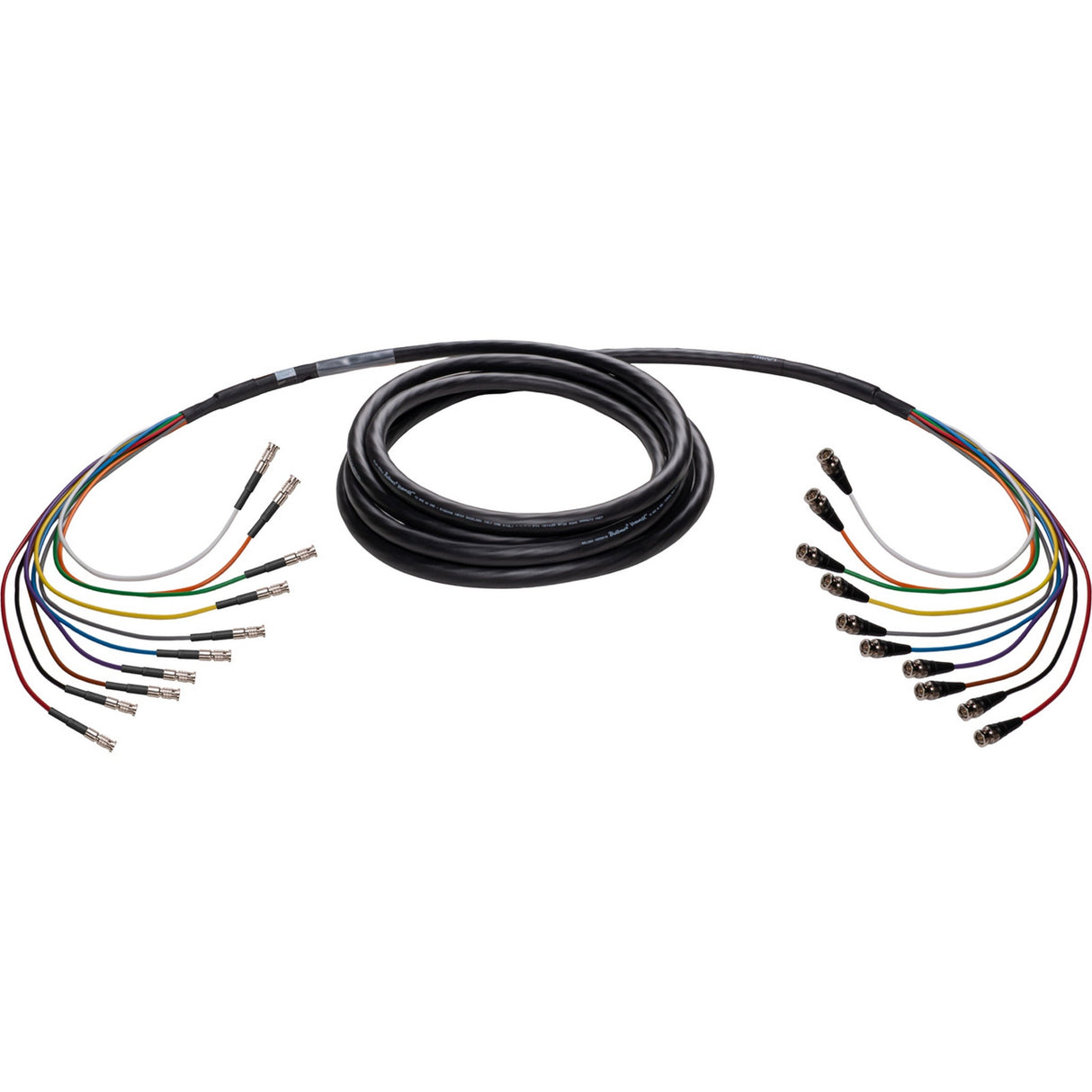

Laird 4855R10-BMB Mini RG-59 BNC Male to HD-BNC Male 12G-SDI/4K UHD Belden 10-Channel Snake Cable - 3 Feet
Laird Digital Cinema | SKU: LDC-4855R10BMB003
Authorized Dealer
Loading...
$32195
Free Shipping
Unit price
/
Unavailable
Estimated Shipping Widget will be displayed here!
Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability.
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
Laird 4855R10-BMB Mini RG-59 BNC Male to HD-BNC Male 12G-SDI/4K UHD Belden 10-Channel Snake Cable
The Laird 4855R10-D-B series is a professional 10-channel 12G-SDI video snake cable built using Belden 4855R miniature RG-59 coax and high-quality Amphenol RF connectors. Designed for UHD and 4K signal transport, this compact DIN 1.0/2.3 to BNC snake delivers reliable performance in studio, broadcast, and live event environments.
Each assembly is engineered for clean signal transmission with low return loss up to 12 GHz. Laird certifies a maximum 12G-SDI transmission distance of 117 feet to ensure 100 percent signal integrity without CRC errors, even though the cable may function at longer distances under ideal conditions.
Key Features
- Belden 4855R mini RG-59: Riser rated miniature coax design.
- Amphenol RF connectors: Professional termination for consistent 12G-SDI performance.
- Space-saving 10-channel snake: Simplifies multi-channel routing and reduces cable clutter.
- 12G-SDI rated channels: Each channel supports 12G-SDI workflows for UHD and 4K.
- Certified transmission distance: Laird certifies up to 117 ft for 12G-SDI (ST 2082) without CRC errors.
- Flexible for field or studio: Designed for easy handling and portability.
Specifications
- Cable model: Belden 4855R
- RG type: Mini RG-59
- Channels: 10
- Conductor AWG: 23
- Conductor stranding: Solid
- Conductor nominal diameter: 0.023 inches (0.58 mm)
- Conductor material: Silvered copper
- Insulation nominal diameter: 0.102 inches (2.59 mm)
- Insulation material: Polyethylene foam
- Inner shield type: Tape and braid
- Inner shield material and coverage: Tri-laminate (aluminum plus poly plus aluminum) 100 percent; tinned copper braid 95 percent
- Inner jacket nominal diameter: 0.159 inches (4.03 mm)
- Inner jacket material: Polyvinyl chloride
- Outer jacket nominal diameter: 0.786 inches (19.96 mm)
- Outer jacket material: Polyvinyl chloride
- Return loss: 23 dB (5 to 1600 MHz); 21 dB (1600 to 4500 MHz); 15 dB (4500 to 12000 MHz)
- Nominal conductor DCR: 19.7 ohm per 1000 ft
- Nominal inner shield DCR: 3.8 ohm per 1000 ft
- Nominal capacitance conductor to shield: 16.3 pF per ft
- Nominal characteristic impedance: 75 ohm
- Nominal velocity of propagation: 82 percent
- UL voltage rating: 300 V RMS (CMR)
- Operating temperature: -22 F to 167 F (-30 C to 75 C)
- Minimum bend radius: 7.9 inches (200 mm)
- Maximum pull tension: 330 lb
- Connector type: DIN 1.0/2.3 to BNC
- Certified 12G-SDI maximum distance: 117 ft
- Warranty: Limited lifetime
