Laird 4855R10-D-MB Mini RG-59 DIN 1.0/2.3 Male to HD-BNC Male 12G-SDI/4K UHD Belden 10-Channel Snake Cable - 3 Feet
Laird Digital Cinema | SKU: LDC-4855R10DMB003
Authorized Dealer
Loading...
$29295
Free Shipping
Unit price
/
Unavailable
Estimated Shipping Widget will be displayed here!
Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability.
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

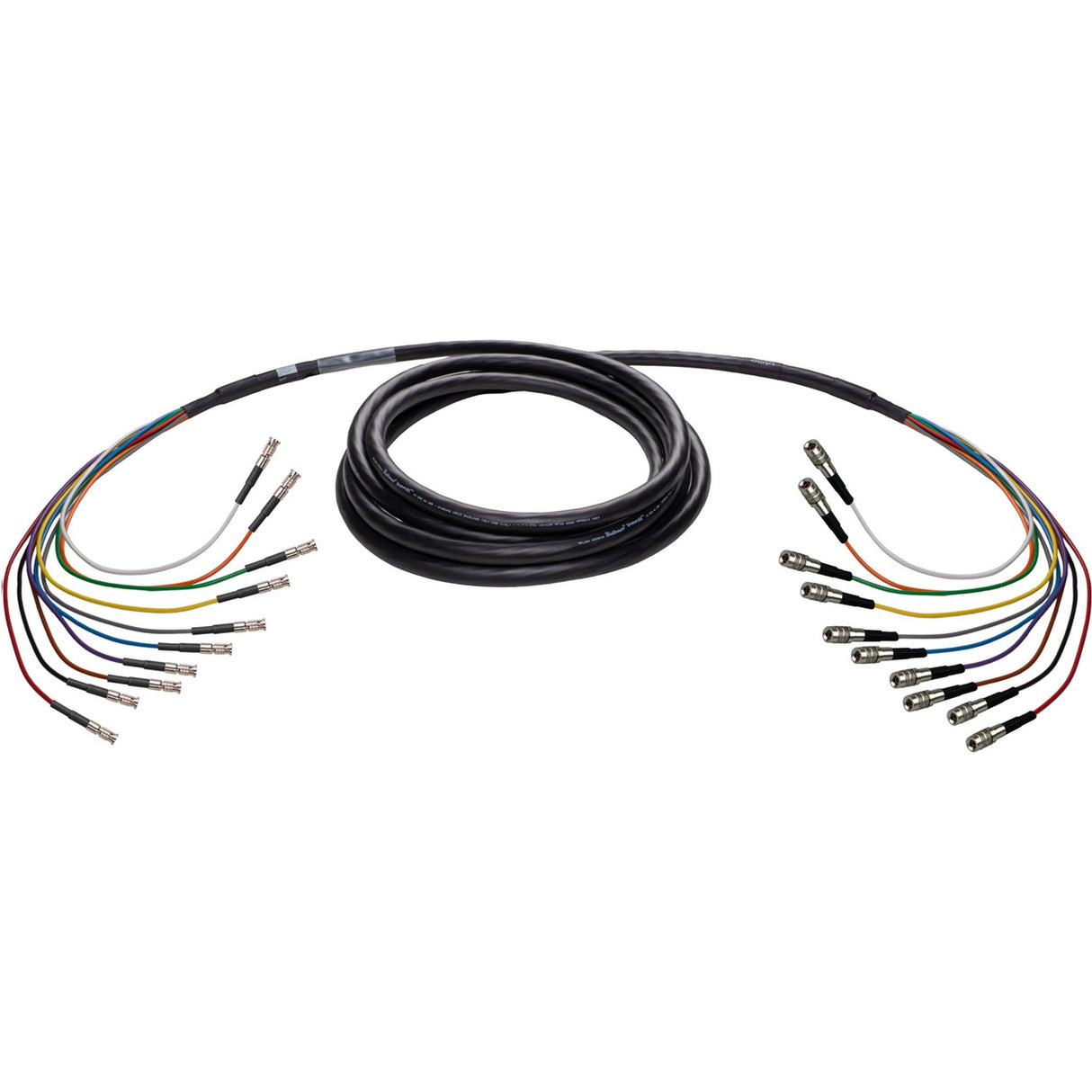

Laird 4855R10-D-MB Mini RG-59 DIN 1.0/2.3 Male to HD-BNC Male 12G-SDI/4K UHD Belden 10-Channel Snake Cable
Product Overview
The Laird 4855R10-D-MB is a professional 10-channel 12G-SDI and 4K UHD DIN snake cable assembly built using Belden 4855R mini RG-59 coaxial cable. It is terminated with DIN 1.0/2.3 male connectors to HD-BNC male connectors, providing a secure and space-efficient interconnect solution for modern UHD video systems.
Laird certifies this cable to operate at a maximum transmission distance of 117 ft for 12G-SDI. While Belden may list distances up to 149 ft, Laird’s transmission standard requires signal integrity to remain fully functional without any CRC errors.
Key Features
- 10-channel snake design: Space-saving multi-channel cable assembly.
- 12G-SDI rated channels: Each channel supports 12G-SDI and 4K UHD signals.
- Connector configuration: DIN 1.0/2.3 male to HD-BNC male.
- High-quality construction: Belden riser-rated 4855R cable with high-quality DIN and Amphenol RF connectors.
- Flexible cable: Suitable for studio or field applications.
- Easy handling: Designed for clean routing and portability.
Technical Specifications
- Cable type: Belden 4855R
- RG type: Mini RG-59
- Conductor AWG: 23
- Conductor stranding: Solid
- Conductor nominal diameter: 0.023 in (0.58 mm)
- Conductor material: Silvered copper
- Insulation nominal diameter: 0.102 in (2.59 mm)
- Insulation material: Polyethylene foam
- Inner shield type: Layer 1 tape, Layer 2 braid
- Inner shield material coverage: Layer 1 tri-laminate (aluminum plus polyester plus aluminum) 100%, Layer 2 tinned copper 95%
- Inner jacket nominal diameter: 0.159 in (4.03 mm)
- Inner jacket material: Polyvinyl chloride
- Outer jacket nominal diameter: 0.786 in (19.96 mm)
- Outer jacket material: Polyvinyl chloride
- Return loss: 5 to 1600 MHz 23 dB, 1600 to 4500 MHz 21 dB, 4500 to 12000 MHz 15 dB
- Nominal conductor DCR: 19.7 Ohm per 1000 ft (64.6 Ohm per km)
- Nominal inner shield DCR: 3.8 Ohm per 1000 ft (12 Ohm per km)
- Nominal capacitance conductor to shield: 16.3 pF per ft (53.5 pF per m)
- Nominal characteristic impedance: 75 Ohm
- Nominal velocity of propagation: 82%
- UL voltage rating: 300 V RMS (CMR)
- Operating temperature: -22 F to 167 F (-30 C to 75 C)
- Minimum bend radius: 7.9 in (200 mm)
- Maximum pull tension: 330 lb
- Connector frequency (max): 12 GHz
- Connector impedance: 75 Ohm
- Connector body finish: Nickel
- Connector body material: Brass
- Connector contact finish: Gold
- Connector insulator material: PTFE
- DIN connector nominal impedance: 75 Ohm
- DIN connector frequency range: 0 to 12 GHz
- DIN connector insulator resistance: 1000 MOhm
- Warranty: Limited lifetime
