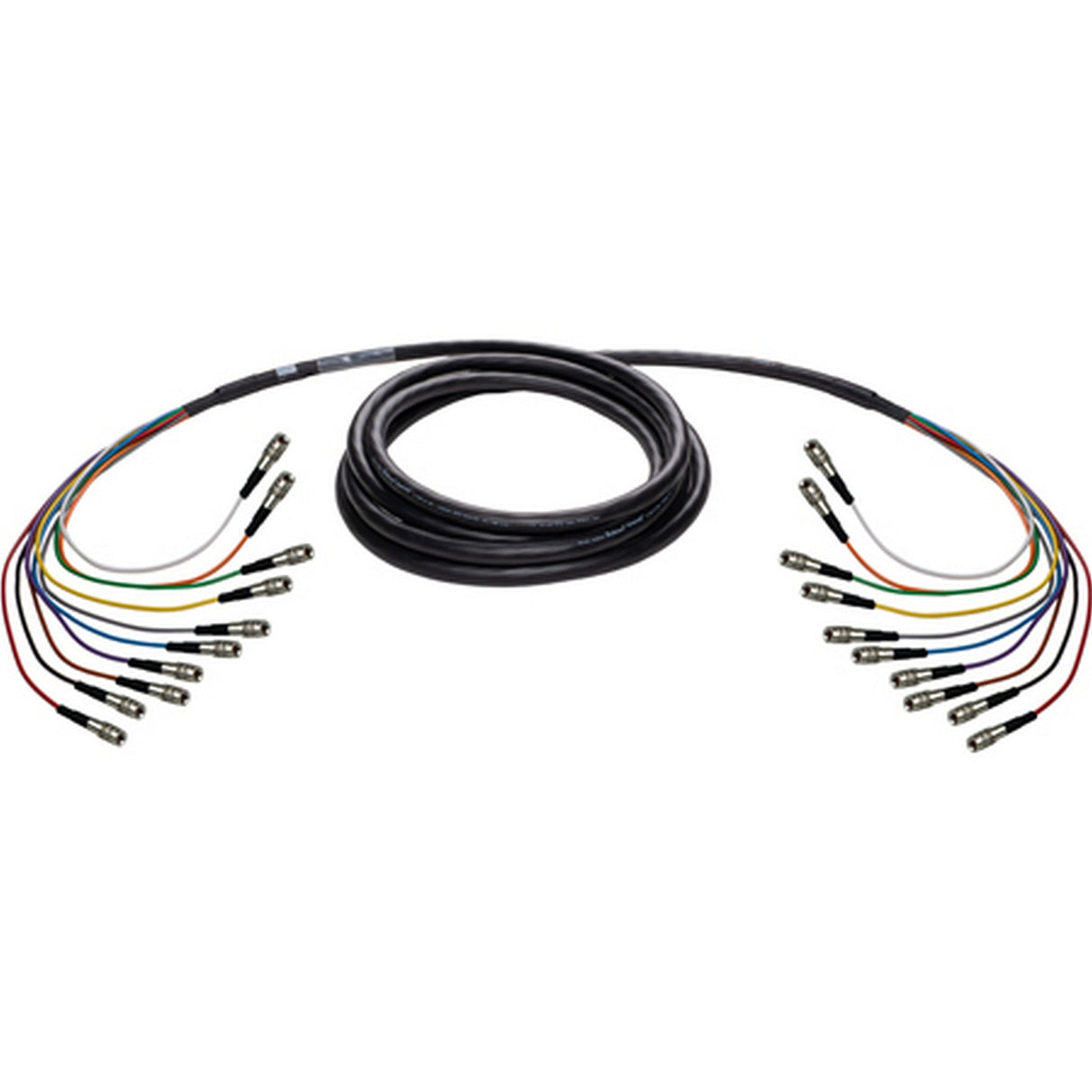

Laird 4855R10-DIN Mini RG-59 DIN Male 12G-SDI/4K UHD Belden 10-Channel Snake Cable - 3 Feet
Free Shipping
Estimated Shipping Widget will be displayed here!
Condition: New
Description
Laird 4855R10-DIN Mini RG-59 DIN Male 12G-SDI/4K UHD Belden 10-Channel Snake Cable
The Laird 4855R10-DIN is a professional 10-channel video snake cable designed for transporting 12G-SDI and 4K UHD signals in broadcast, studio, and live production environments. Built using Belden 4855R miniature RG-59 coaxial cable, it provides a compact and organized solution for routing multiple SDI signals in a single assembly.
This cable is engineered to deliver clean and reliable signal transmission with low return loss up to 12 GHz. It is certified by Laird for a maximum 12G-SDI transmission distance of 117 feet to ensure full signal integrity without CRC errors.
With its durable construction and high-quality DIN 1.0/2.3 connectors, the 4855R10-DIN is well suited for permanent installations and portable field applications. It is ideal for use with video switchers, cameras, routers, and other professional SDI equipment.
Key Features
- 10-channel snake design: Consolidates multiple SDI runs into a single cable.
- Belden 4855R mini RG-59: Riser rated cable optimized for UHD signal transport.
- 12G-SDI support: Each channel is rated for 12G-SDI operation.
- High bandwidth performance: Low return loss up to 12 GHz.
- Professional connectors: DIN 1.0/2.3 male connectors for secure signal connections.
Technical Specifications
- Cable type: Belden 4855R
- RG type: Mini RG-59
- Number of channels: 10
- Conductor AWG: 23
- Conductor stranding: Solid
- Conductor material: Silvered copper
- Insulation material: Polyethylene foam
- Characteristic impedance: 75 ohm
- Velocity of propagation: 82 percent
- Return loss: 23 dB at 5 to 1600 MHz, 21 dB at 1600 to 4500 MHz, 15 dB at 4500 to 12000 MHz
- UL rating: 300 V RMS CMR
- Operating temperature: -22 F to 167 F
- Minimum bend radius: 7.9 inches
- Maximum pull tension: 330 lb
- DIN connector impedance: 75 ohm
- DIN connector frequency range: 0 to 12 GHz
