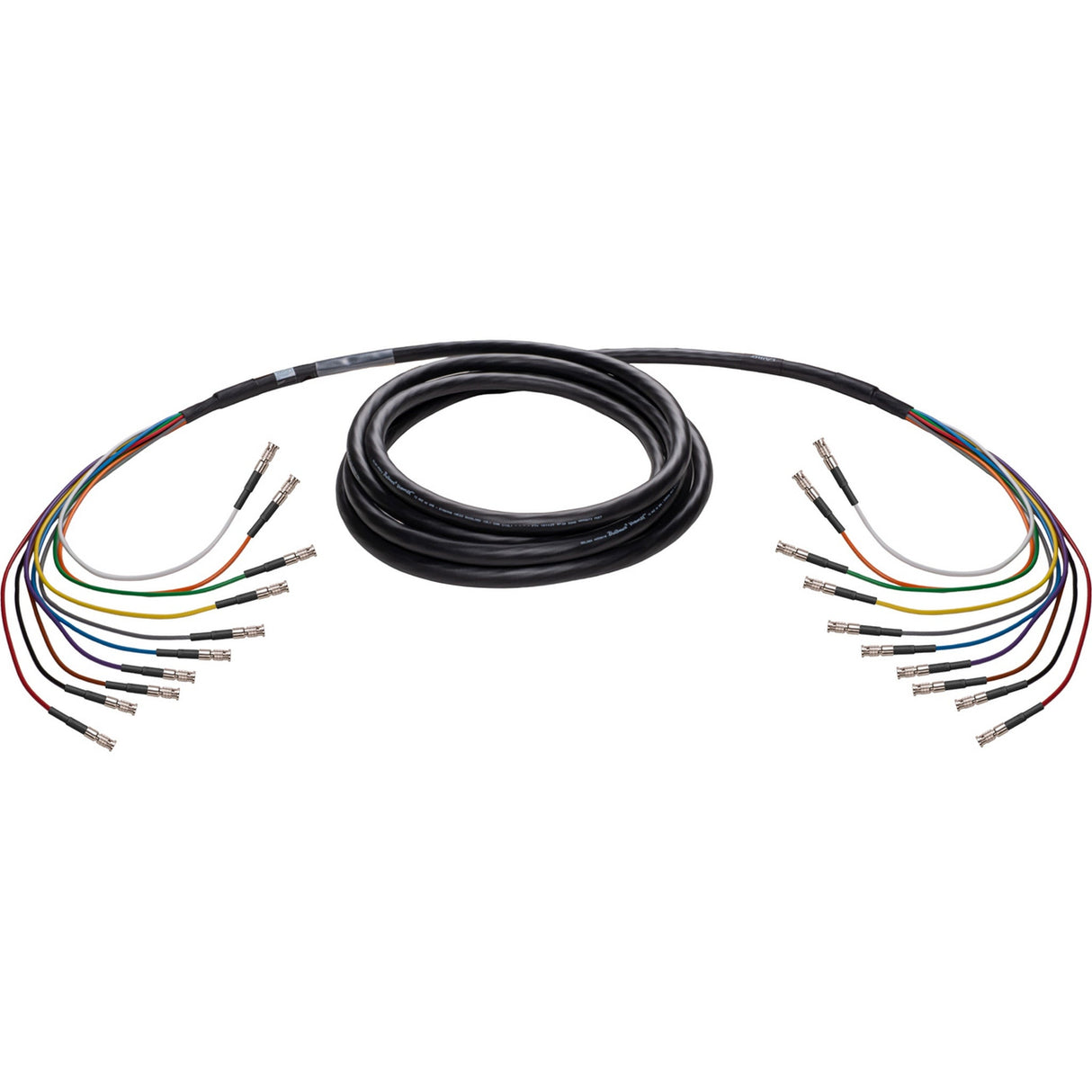

Laird 4855R10-MBMB Mini RG-59 HD-BNC Male 12G-SDI/4K UHD Belden 10-Channel Snake Cable
Product Overview
The Laird 4855R10-MBMB is a professional 10-channel 12G-SDI and 4K UHD snake cable assembly built with Belden 4855R mini RG-59 coaxial cable and terminated with HD-BNC male connectors on both ends. It is engineered to support high-bandwidth UHD video signals up to 12 GHz for demanding broadcast, studio, and live event environments.
Laird certifies this cable to operate at a maximum transmission distance of 117 ft for 12G-SDI. While Belden may list distances up to 149 ft, Laird’s transmission standard requires signal integrity to remain fully functional without any CRC errors.
Key Features
- 10-channel snake design: Space-saving multi-channel cable assembly.
- 12G-SDI rated channels: Each channel supports 12G-SDI and 4K UHD signals.
- Connector configuration: HD-BNC male to HD-BNC male.
- High-quality construction: Belden riser-rated 4855R cable with Amphenol RF HD-BNC connectors.
- Flexible cable: Suitable for studio or field applications.
- Easy handling: Designed for clean routing and portability.
Technical Specifications
- Cable type: Belden 4855R
- RG type: Mini RG-59
- Conductor AWG: 23
- Conductor stranding: Solid
- Conductor nominal diameter: 0.023 in (0.58 mm)
- Conductor material: Silvered copper
- Insulation nominal diameter: 0.102 in (2.59 mm)
- Insulation material: Polyethylene foam
- Inner shield type: Layer 1 tape, Layer 2 braid
- Inner shield material coverage: Layer 1 tri-laminate (aluminum plus polyester plus aluminum) 100%, Layer 2 tinned copper 95%
- Inner jacket nominal diameter: 0.159 in (4.03 mm)
- Inner jacket material: Polyvinyl chloride
- Outer jacket nominal diameter: 0.786 in (19.96 mm)
- Outer jacket material: Polyvinyl chloride
- Return loss: 5 to 1600 MHz 23 dB, 1600 to 4500 MHz 21 dB, 4500 to 12000 MHz 15 dB
- Nominal conductor DCR: 19.7 Ohm per 1000 ft (64.6 Ohm per km)
- Nominal inner shield DCR: 3.8 Ohm per 1000 ft (12 Ohm per km)
- Nominal capacitance conductor to shield: 16.3 pF per ft (53.5 pF per m)
- Nominal characteristic impedance: 75 Ohm
- Nominal velocity of propagation: 82%
- UL voltage rating: 300 V RMS (CMR)
- Operating temperature: -22 F to 167 F (-30 C to 75 C)
- Minimum bend radius: 7.9 in (200 mm)
- Maximum pull tension: 330 lb
- Connector frequency (max): 12 GHz
- Connector impedance: 75 Ohm
- Connector body finish: Nickel
- Connector body material: Brass
- Connector contact finish: Gold
- Connector insulator material: PTFE
- Warranty: Limited lifetime
