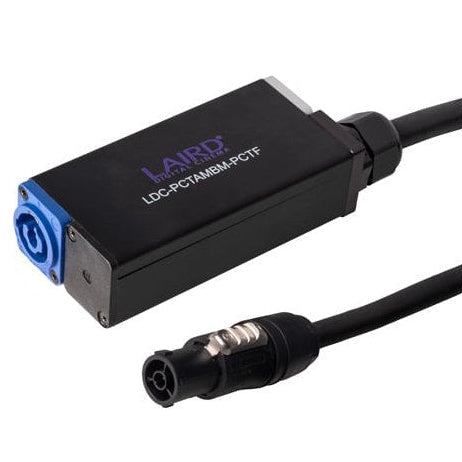

Laird LDC-PCTAMBM-PCTF Power Distribution Box
The Laird LDC-PCTAMBM-PCTF Power Distribution Box splits power from a Neutrik powerCON Type A input to one powerCON Type B output and one powerCON TRUE1 female output. It gives production crews a compact, rugged way to distribute AC power across compatible audio, lighting, and video equipment.
Designed for professional audio, lighting rigging, live events, and production environments, this powerCON distribution box helps simplify cable runs where multiple compatible devices need secure AC connectivity. It is a strong fit for buyers searching for a powerCON splitter for live events, a rugged stage power distribution box, or a Neutrik powerCON adapter box for AV production.
The aluminum enclosure, Laird PWR-12/3-TP cable, and high-quality Neutrik connectors support dependable use in demanding workflows. TRUE1 connectivity is suited for harsh, heavy-duty productions requiring environmentally sealed connectors, while feed-through connector design supports daisy chaining multiple units for mission-critical setups.
Neutrik powerCON Type A to Type B and TRUE1 Connectivity
- PowerCON Type A Input: Accepts power through one Neutrik powerCON Type A connector.
- Dual Output Design: Routes power to one Neutrik powerCON Type B output and one powerCON TRUE1 female output.
- TRUE1 Connector Support: Provides a reliable connector option for harsh and heavy-duty production environments.
- Feed-Through Design: Allows compatible units to be daisy chained for redundant power distribution workflows.
- Rugged Enclosure: Uses a durable aluminum box for professional stage, studio, and event applications.
- Flexible Power Cable: Includes Laird PWR-12/3-TP rugged power cable for demanding production use.
- Professional Connector Hardware: Uses high-quality Neutrik powerCON connectors for secure AC connection points.
Laird PWR-12/3-TP Cable and Connector Specifications
- Product Type: Power distribution splitter box
- Model: LDC-PCTAMBM-PCTF
- Input: 1 x Neutrik powerCON Type A
- Output 1: 1 x Neutrik powerCON Type B
- Output 2: 1 x Neutrik powerCON TRUE1 Female
- Box Dimensions: 4" x 2.04" x 1.24"
- Weight: 0.9153 lbs
- Cable Type: SJOOW
- Conductors: 3 x 12 AWG
- Cable Current Carrying Capacity: 25A
- Nominal Outer Diameter: 0.42" to 0.47"
- Outer Jacket: Black rubber CPE
- Cable Insulation: Rubber EPR
- Connector Contact Resistance: ≤2mΩ
- Connector Dielectric Strength: 4kVDC / 2.8kVAC
- Connector Rated Amperage: 20A
- Connector Rated Voltage: 250VAC
- Warranty: Limited lifetime
