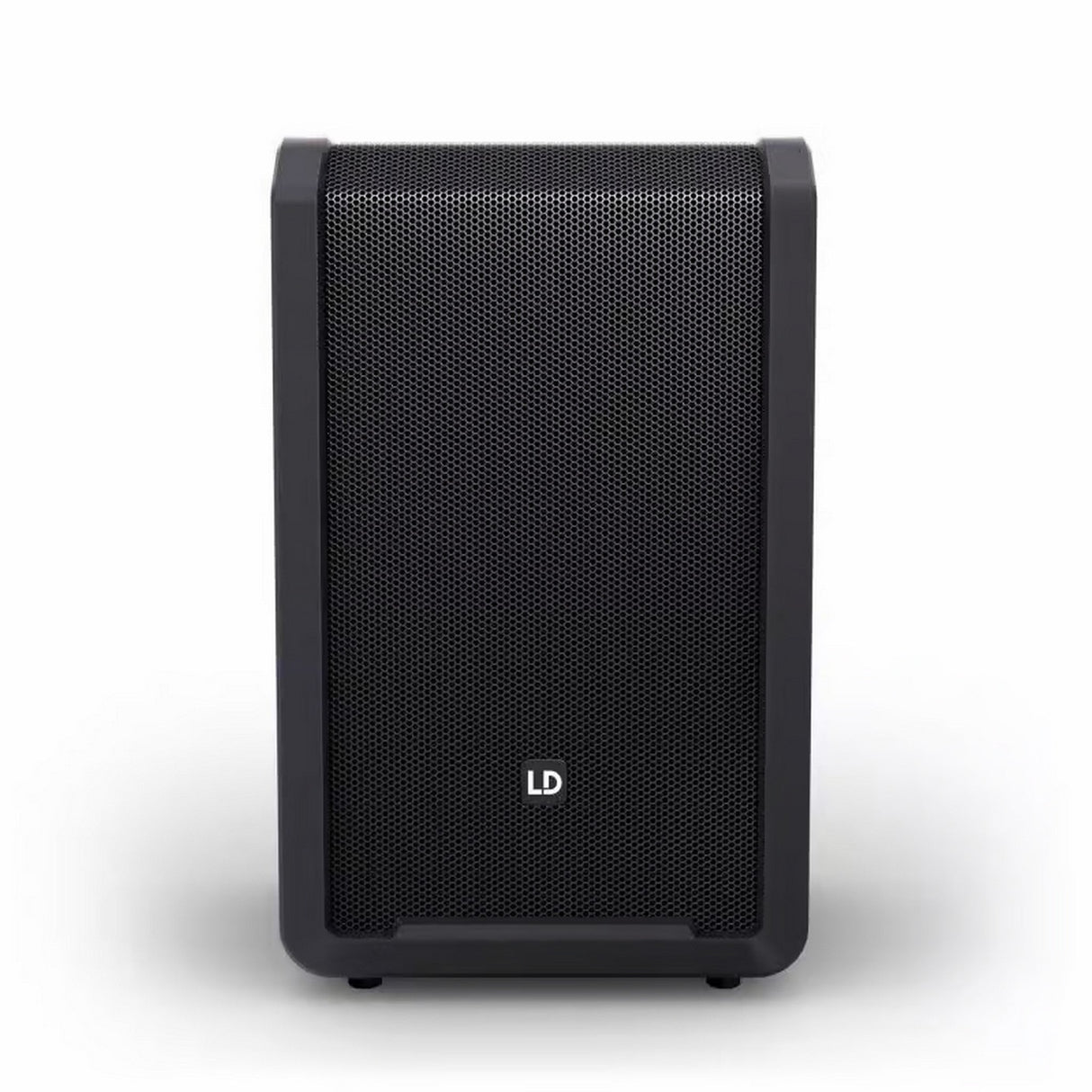

LD Systems ANNY 12 Battery-Powered Bluetooth PA System, 12-Inch

LD Systems ANNY 12 12" Battery-Powered Bluetooth PA System

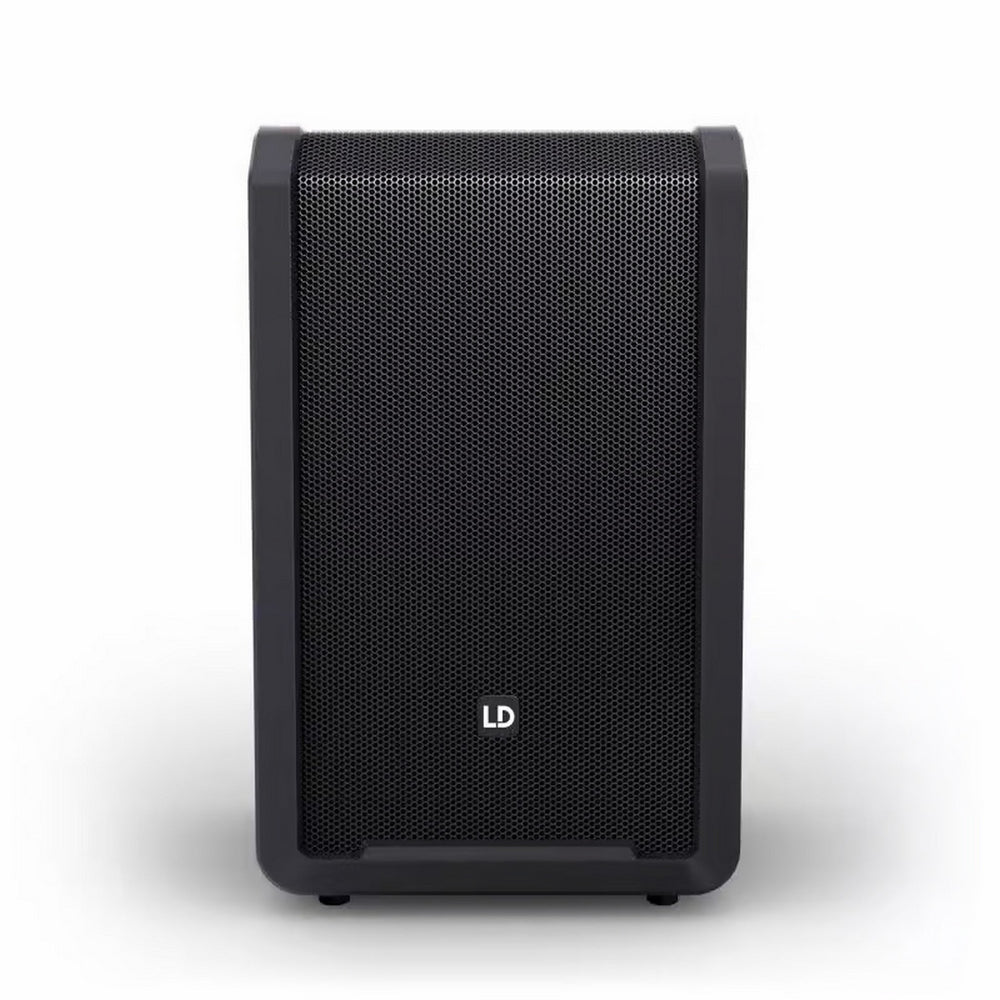

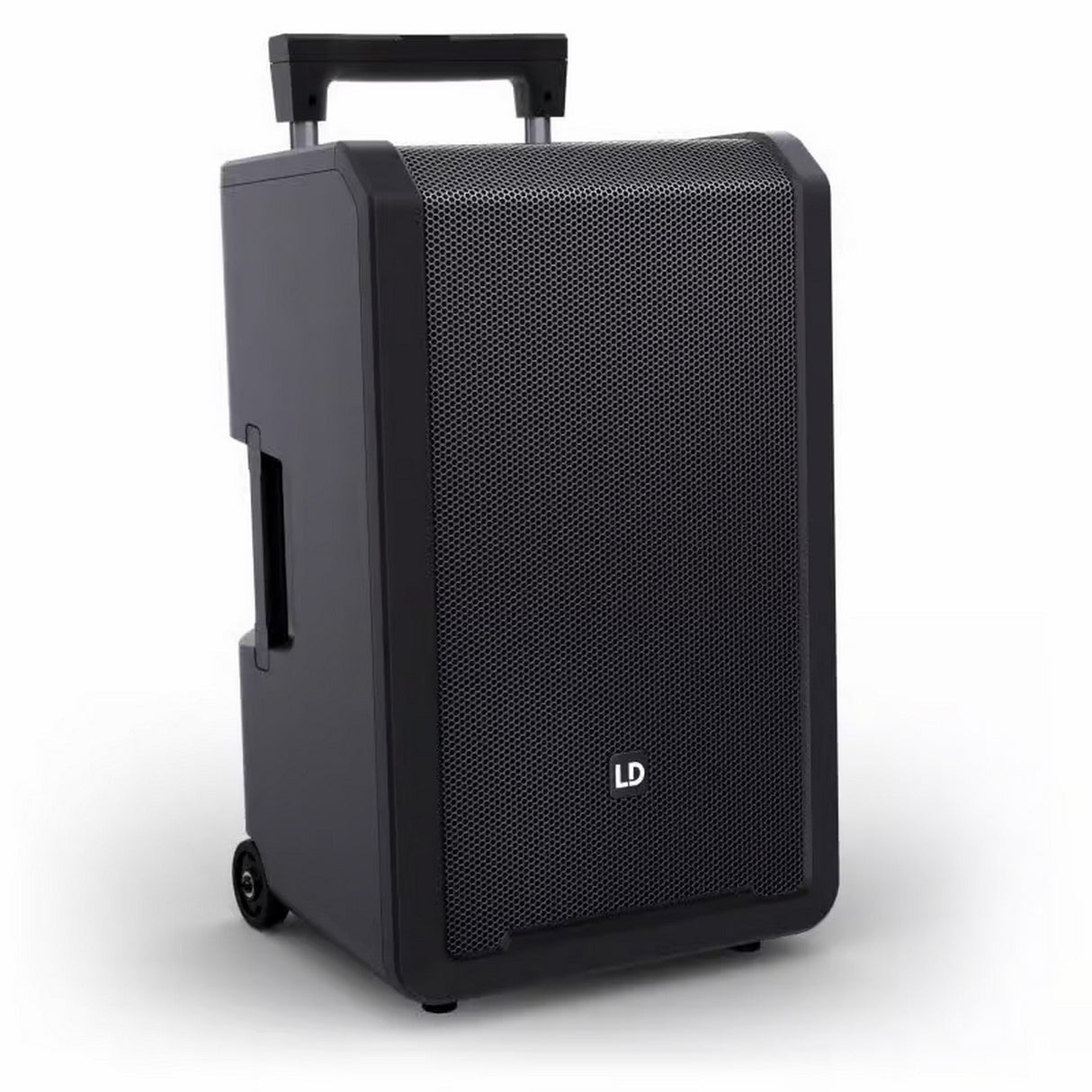

The LD Systems ANNY 12 12" Battery-Powered Bluetooth PA System combines a 185W RMS Class D amplifier, 12" woofer, 1" compression driver, and integrated 6-channel mixer in a portable active enclosure. It delivers up to 122 dB peak SPL with a 40 Hz to 20 kHz frequency response for music, speech, live performance, and mobile event sound.

Built for performers, presenters, schools, sports events, parties, markets, and mobile production, the ANNY 12 runs for up to 50 hours in ECO mode or approximately five hours at maximum volume in MUSIC mode. Four exchangeable lithium-ion batteries support hot swapping, allowing batteries to be replaced during operation while at least one charged battery remains installed.

The onboard mixer provides microphone and line connectivity, Bluetooth 5.0 streaming, 3-band EQ, reverb, delay, and five application presets. Two optional wireless receiver-module slots expand the system for compatible ANNY microphones. Wheels, a telescopic handle, speaker-stand mounting, USB-C device charging, and True Wireless Stereo make the LDS-ANNY12US a flexible portable PA solution.

Key Features

• 215W Peak Output: Delivers 185W RMS through a Class D amplifier with up to 122 dB peak SPL.
• Integrated 6-Channel Mixer: Handles microphones, line sources, stereo playback, Bluetooth audio, and optional wireless microphone modules.
• Extended Battery Operation: Provides up to 50 hours in ECO mode or five hours at maximum volume in MUSIC mode.

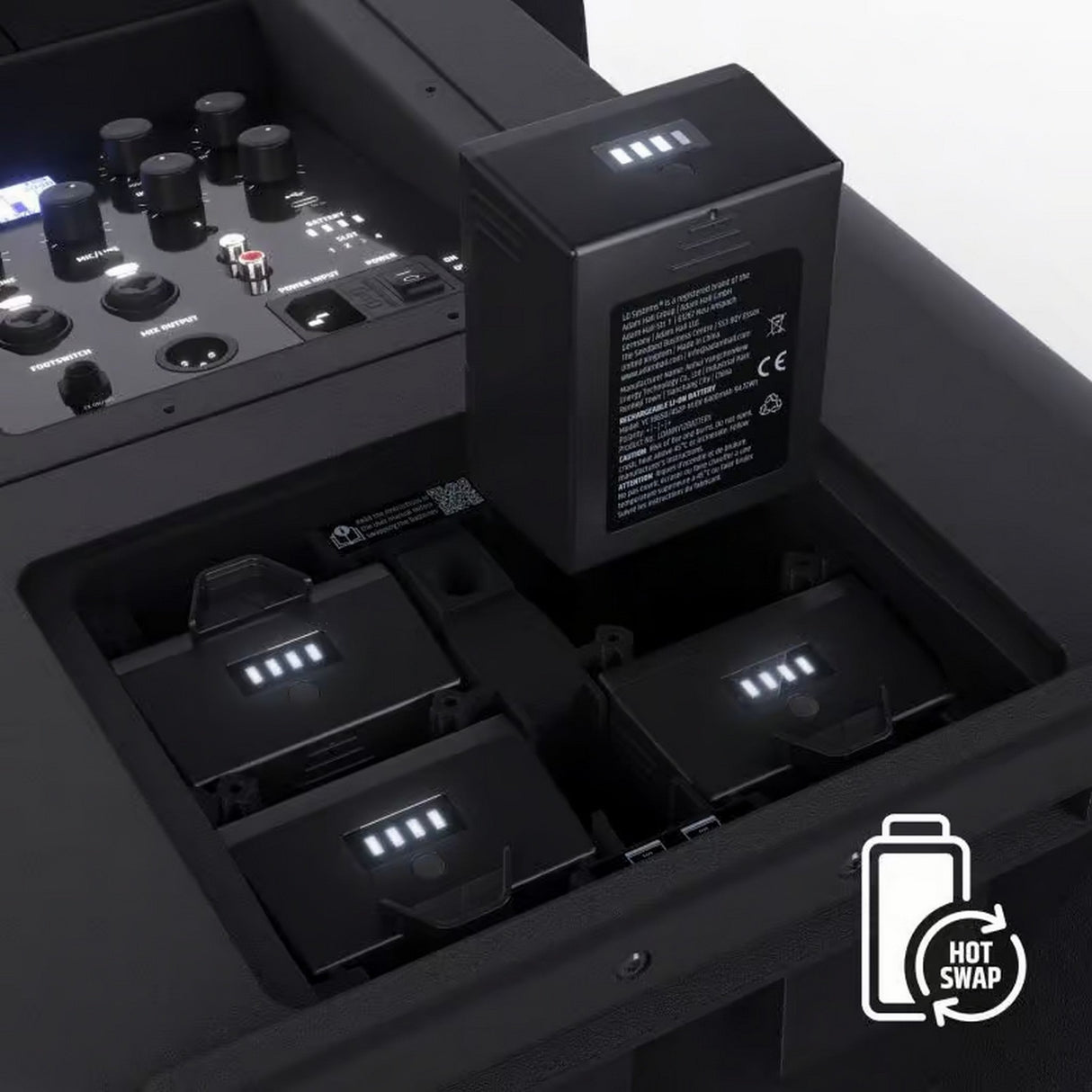

• Hot-Swappable Batteries: Four exchangeable lithium-ion batteries support continuous operation when charged replacements are available.
• DynX DSP Gen. 2: Provides digital signal processing with 3-band EQ, delay, application presets, and system optimization.
• Bluetooth 5.0: Supports SBC and AAC codecs plus True Wireless Stereo pairing between two ANNY 12 systems.
• Expandable Wireless Capability: Two receiver-module slots accept compatible ANNY wireless microphone receivers sold separately.

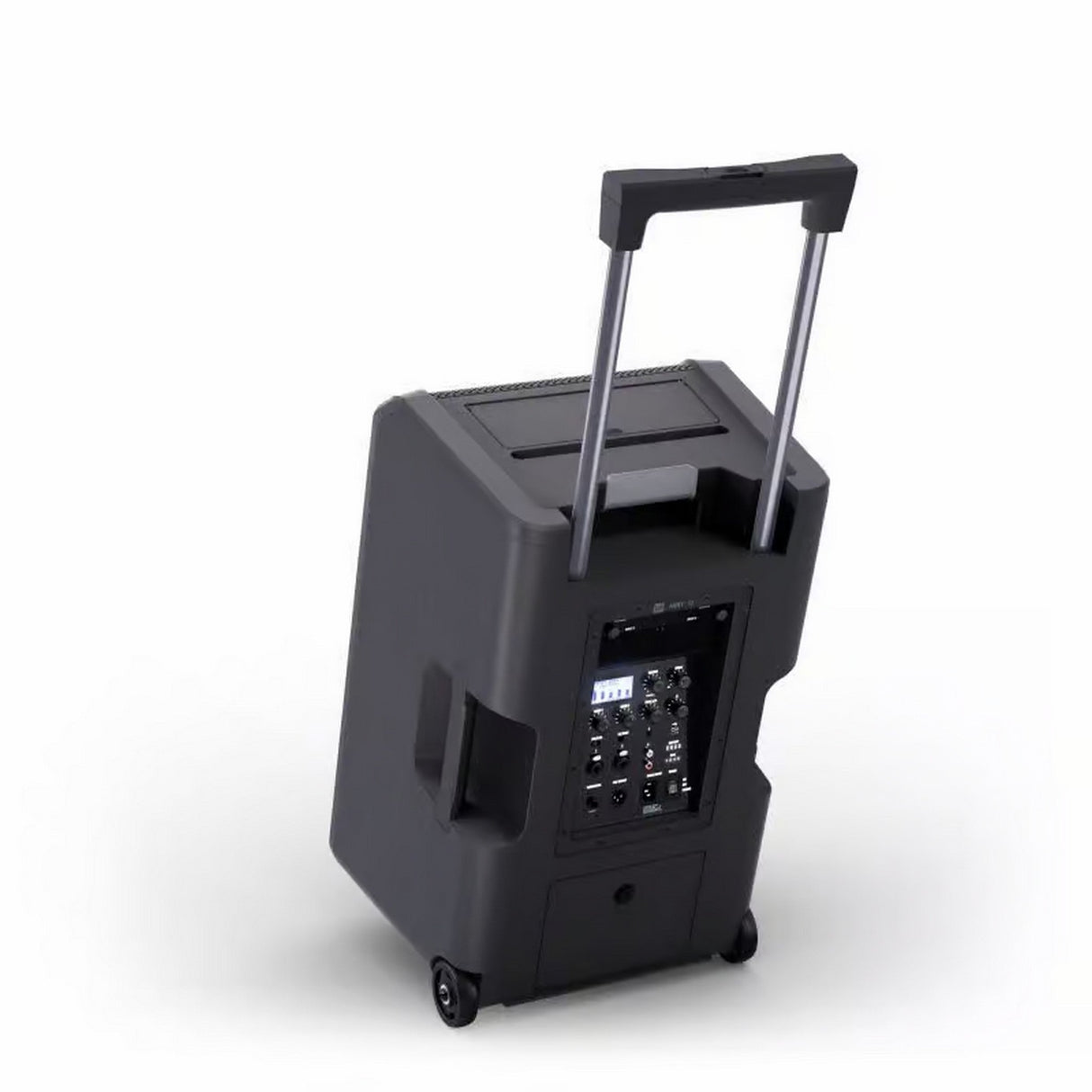

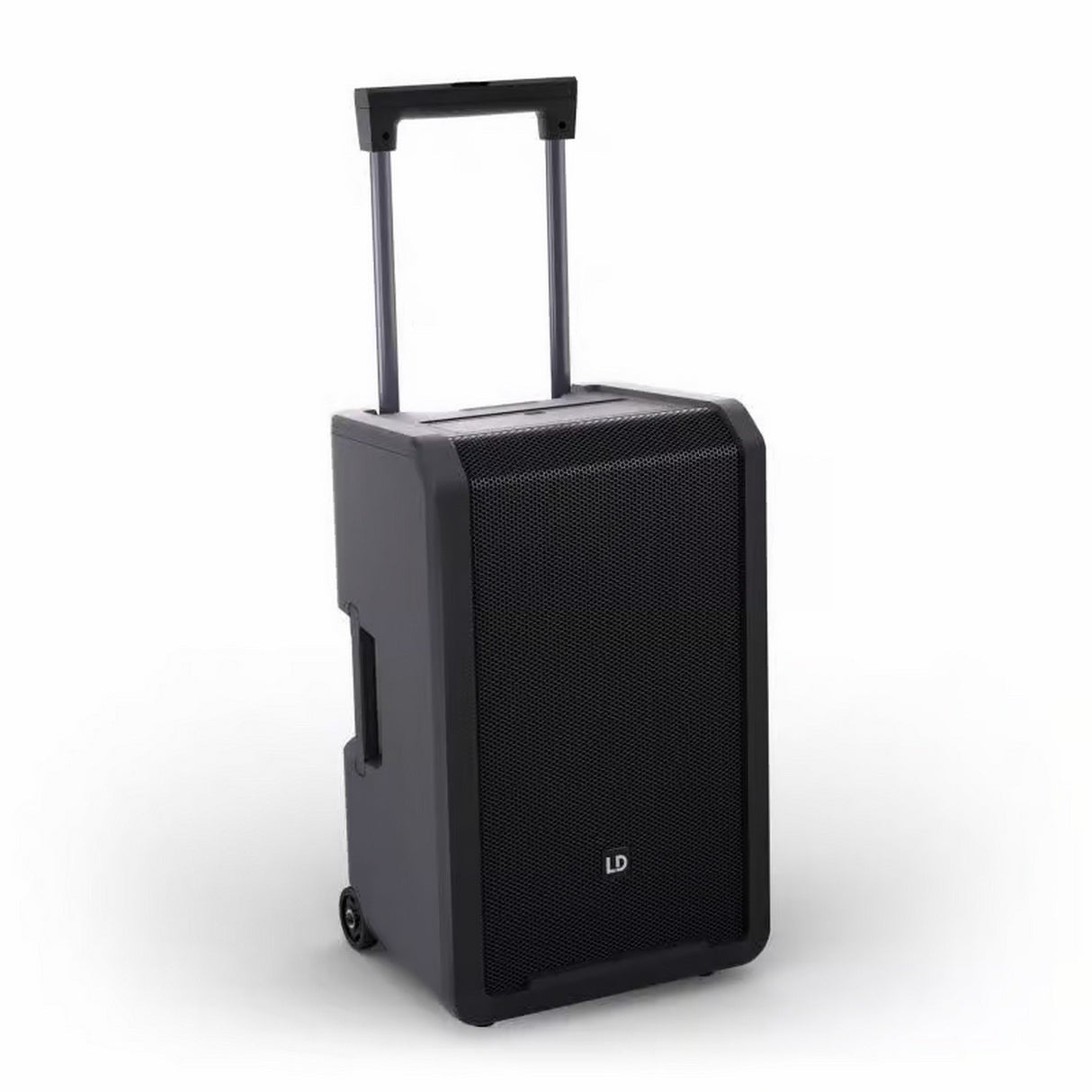

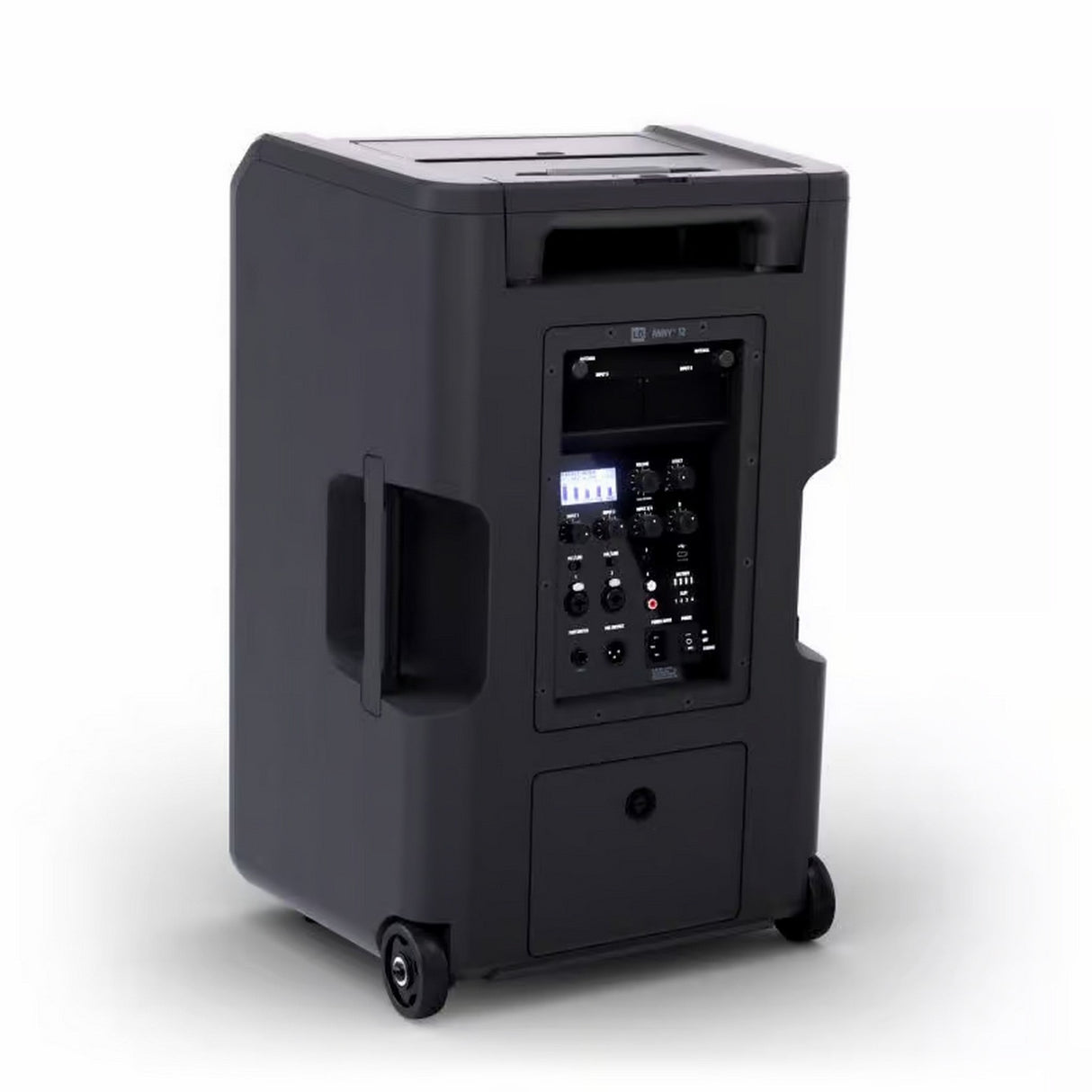

• Portable Trolley Design: Integrated wheels, three handles, and an extendable telescopic handle simplify mobile deployment.

Technical Specifications

General

• Brand: LD Systems
• Model: ANNY 12
• US Product Number: LDS-ANNY12US
• Manufacturer Item Number: LDANNY12
• Series: ANNY
• Product Type: Portable Battery-Powered Bluetooth PA System with Mixer
• Operating Type: Active
• Color: Black
• EAN: 4069724003502
• Manufacturer Warranty: 24 months

Amplification and Acoustic Performance

• Peak Output Power: 215W
• RMS Output Power: 185W
• Amplifier Class: Class D
• Maximum Peak SPL: 122 dB
• Maximum Average SPL: 116 dB
• Frequency Response: 40 Hz to 20 kHz
• Speaker Configuration: 2-way
• Crossover Frequency: 1600 Hz
• Coverage: 90° horizontal x 50° vertical
• Protection: Short-circuit and overheating protection

Drivers

• Woofer: 12"
• Woofer Magnet: Neodymium
• Woofer Voice Coil: 2"
• High-Frequency Driver: 1"
• High-Frequency Design: Compression driver with constant-directivity horn
• High-Frequency Magnet: Ferrite
• High-Frequency Voice Coil: 1.4"

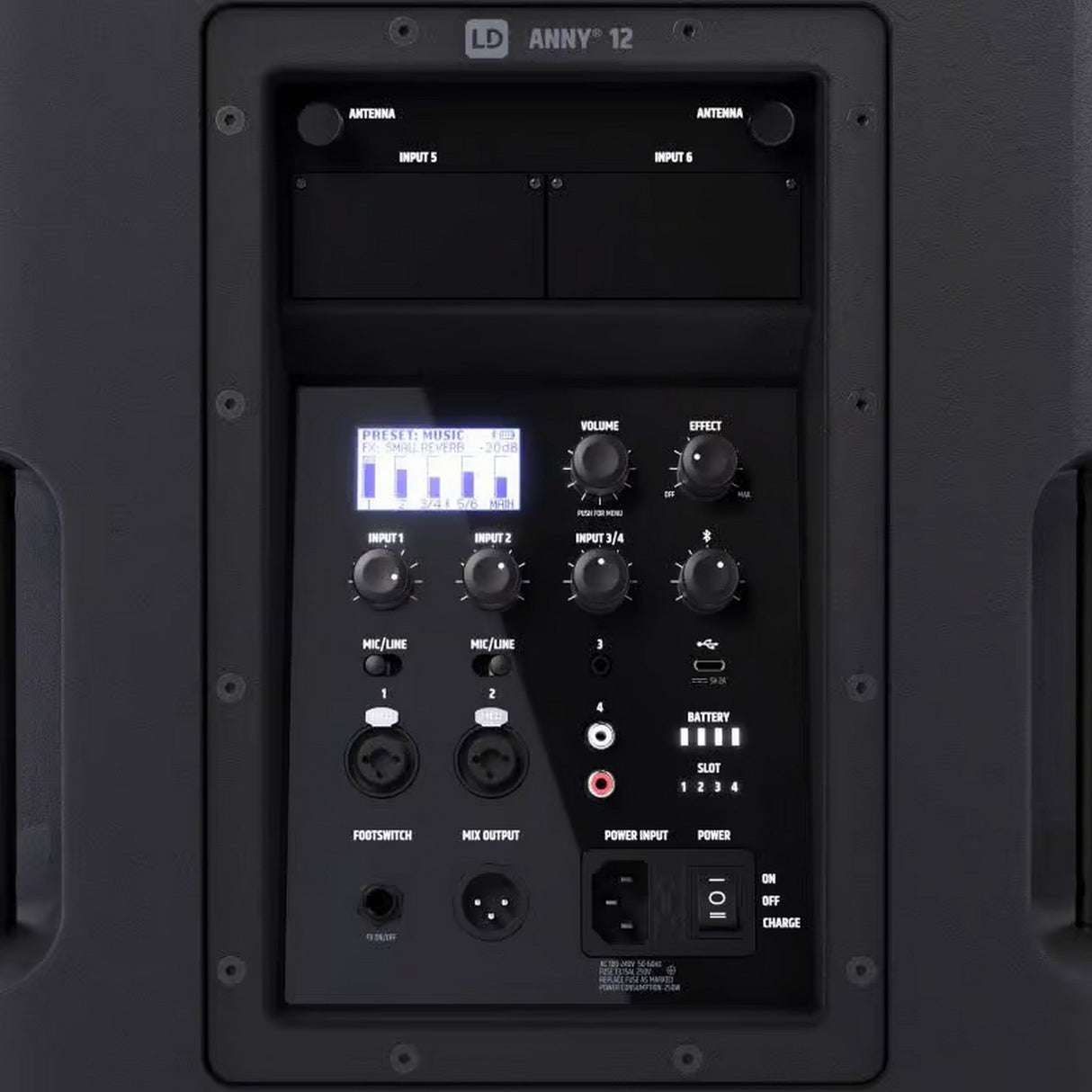

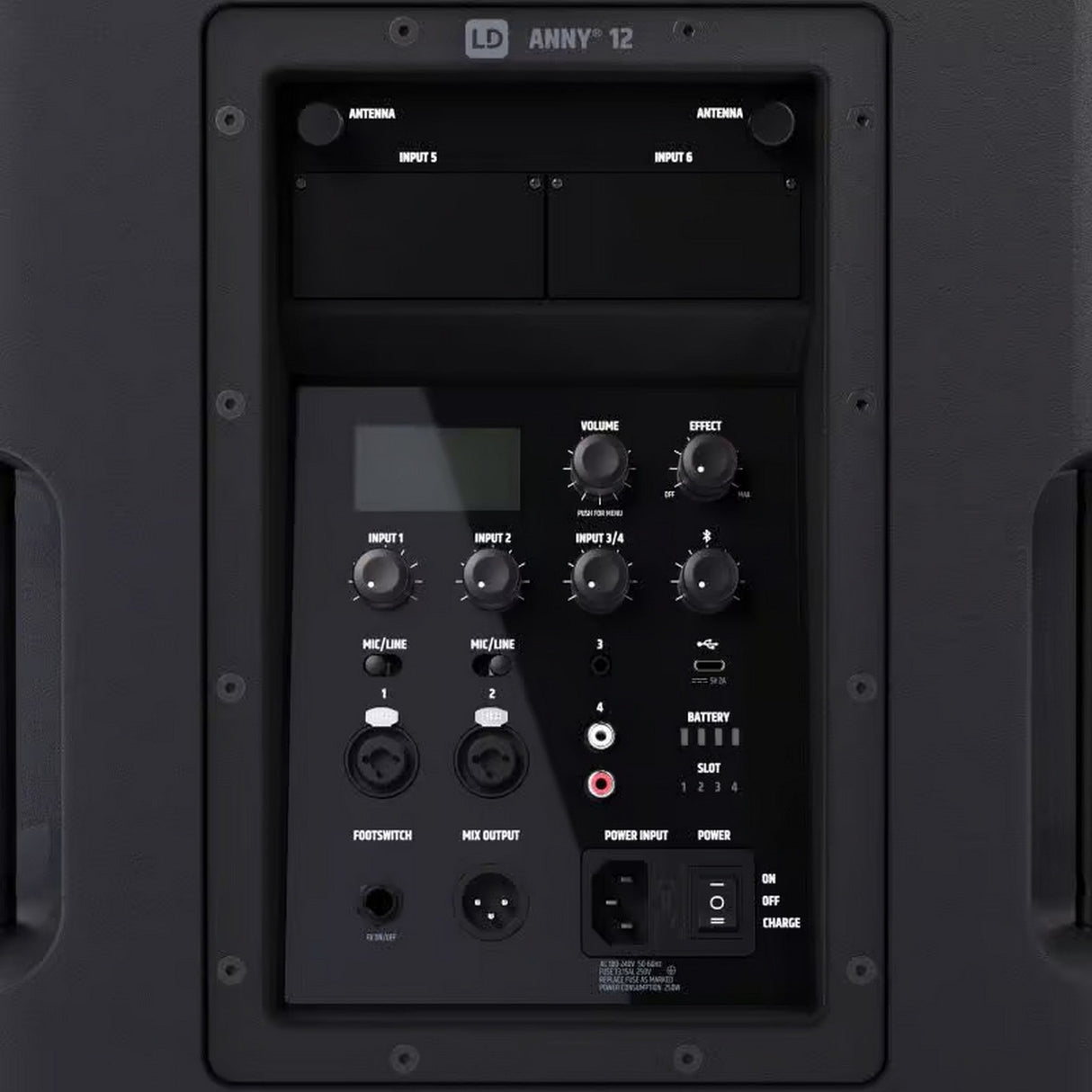

Mixer and Signal Processing

• Mixer: Integrated 6-channel mixer
• Number of Inputs: 5
• Microphone/Line Inputs: 2 combo inputs
• Stereo Input: 3.5 mm AUX or RCA
• Number of Outputs: 1
• Output: 3-pin XLR male
• EQ: 3-band High, Mid, Low
• Effects: Reverb and delay
• Application Presets: MUSIC, LIVE, VOCAL, ECO, FLAT
• DSP: DynX DSP Gen. 2
• Priority Function: Microphone priority with automatic music ducking
• Footswitch Input: Supports hands-free effect control with a compatible external footswitch
• Wireless Expansion: 2 receiver-module slots for compatible ANNY wireless microphone systems

Bluetooth and Device Connectivity

• Bluetooth Version: Bluetooth 5.0
• Bluetooth Range: Up to 32.8 ft, Class 2
• Bluetooth Codecs: SBC, AAC
• True Wireless Stereo: Yes, with two ANNY 12 systems
• Bluetooth Receiver Mode: Yes
• USB-C: Device charging for compatible smartphones and tablets
• Device Holder: Integrated tablet or smartphone holder

Battery

• Battery Technology: Lithium-ion
• Battery Configuration: 4 x 6700 mAh
• Battery Operating Voltage: 14.8V
• Exchangeable Batteries: Yes
• Hot-Swap Support: Yes
• Battery Runtime: Up to 5 hours in MUSIC mode at maximum volume; up to 50 hours in ECO mode
• Full Charging Time: 3 hours
• 80% Charging Time: 2 hours

AC Power

• Operating Voltage: 100-240V AC, 50-60Hz
• Power Supply: Switched-mode power supply
• Rated Power: 250W
• Power Connector: IEC C14
• Mains Fuse: T3.15AL/250V

Enclosure and Mounting

• Enclosure Design: Bass reflex
• Cabinet Material: ABS
• Front Grille Material: Aluminum
• Number of Handles: 3

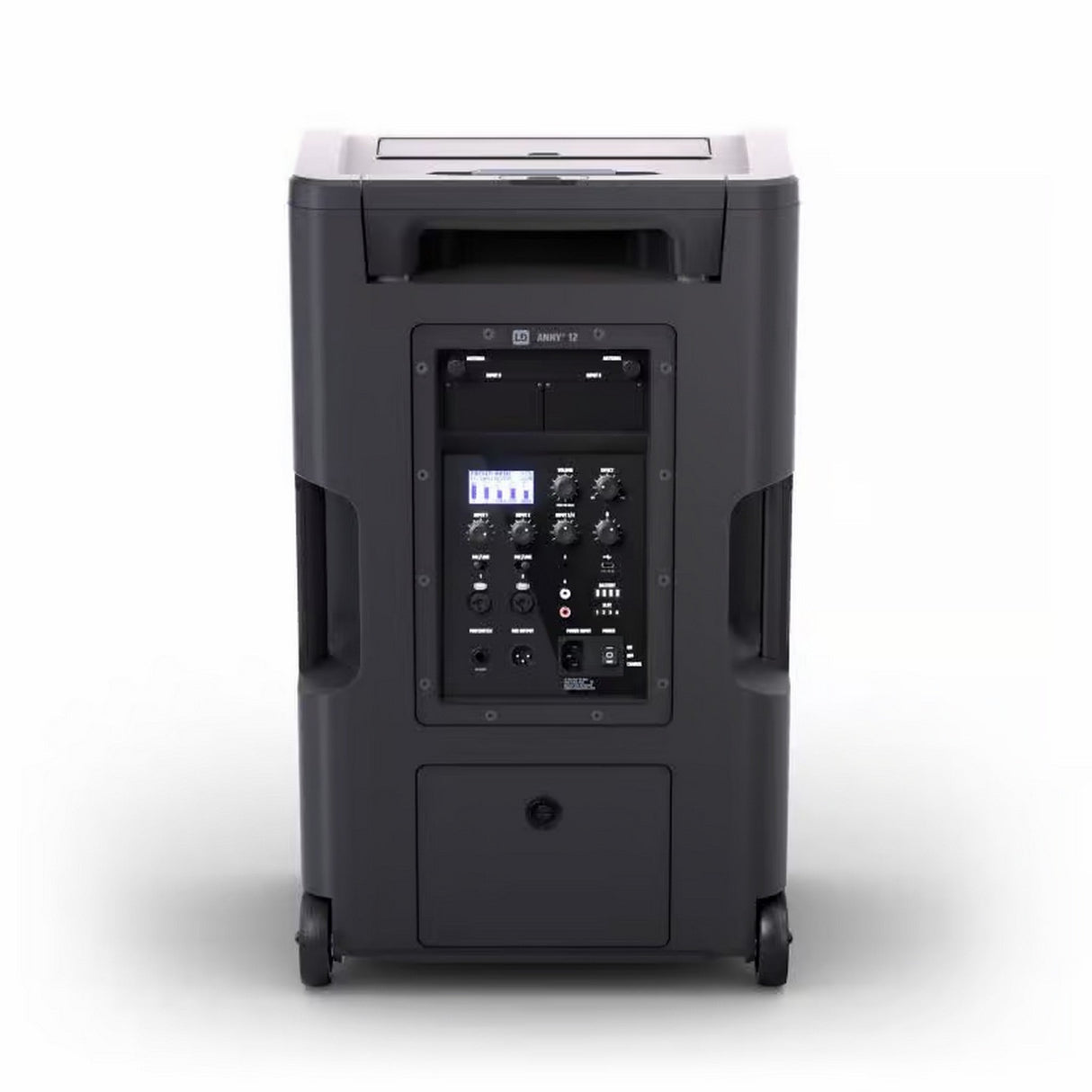

• Transport: Integrated wheels and telescopic handle
• Speaker Stand Mount: 1.4" flange with 0° and 5° positions

Environmental and Physical Specifications

• Operating Temperature: 32°F to 104°F
• Maximum Relative Humidity: 80%, non-condensing
• Dimensions: 15.9" W x 25.8" H x 13.4" D
• Weight: 46.2 lb

What's In the Box

• LD Systems ANNY 12 Portable Battery-Powered PA System
• Mains Cable
