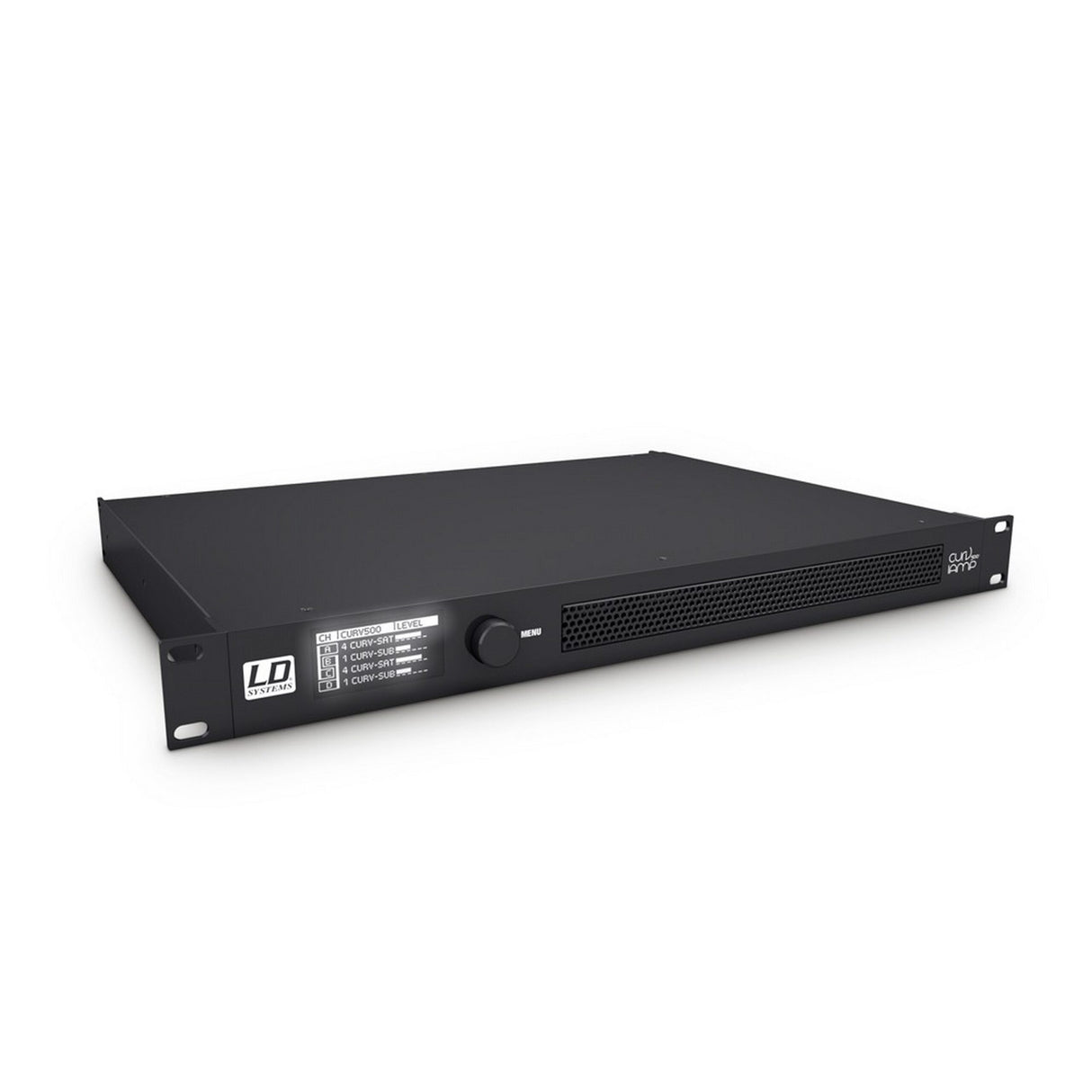

LD Systems CURV 500 I AMP 4-Channel Class D Installation Amplifier
LD Systems CURV 500 I AMP 4-Channel Class D Installation Amplifier
Description
Description
LD Systems CURV 500 I AMP 4-Channel Class D Installation Amplifier
Purpose-designed for CURV 500 installations the iAMP is a low-profile 4-channel Class D rackmount amplifier with high-efficiency switch mode power supply and 10 Hz - 22 kHz frequency response. Sporting DSP control with presets for various satellite and subwoofer configurations, delay and parametric EQ each channel delivers 240 watts RMS at 4 ohms with less than 0.01% THD. Operating the iAMP is simple and intuitive with just a single push encoder and easily readable high-contrast OLED display. It features a soft start circuit, DC, overcurrent, thermal and short circuit protection plus a temperature controlled low- noise fan. Input is on balanced XLR and terminal block connectors. The iAMP is capable of driving up to six CURV 500 satellIt's or one CURV500ISUB subwoofer per channel providing terminal block and speakON-compatible output connectors.
Key Features
- 4 channels with DSP control
- Purpose-designed for CURV 500 installations
- Low-profile 1U 19" rackmount construction
- Drives up to six CURV 500 satellIt's or one CURV 500 ISUB subwoofer per channel
- Single push encoder operation
- High-contrast OLED display
- Temperature controlled low-noise fan
- High-efficiency switch mode power supply
- Only 6.8 kg
Technical Specifications
Product type
Power Amplifiers
Type
Installation Power Amplifiers
Rated ouput power (1kHz @ 2,7 Ohms)
4 x 240 W
Rated ouput power (1kHz @ 4 Ohms)
4 x 240 W
Rated ouput power (1kHz @ 8 Ohms)
4 x 120 W
Rated ouput power (1kHz @ 16 Ohms)
4 x 60 W
Output circuitry
Class D
Frequency response
10 - 22000 Hz
Total Harmonic Distortion (THD)
< 0,01 %
Protection circuits
DC , over-current , short circuit , soft start , thermal overload
Controls
Push encoder
Indicators
OLED Display
Line inputs
4
Line input connectors
terminal block , XLR
Loudspeaker outputs
4
Speaker output connections
Speakon compatible , terminal block
Cooling
temperature controlled low-noise fan, noiseless in idle mode
Operating voltage
Switching power supply
Power consumption@ full load
1100W
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz , Switch mode power supply with power factor correction (PFC)
Width
482 mm
Height
44 mm
Depth
420 mm
Weight
6,8 kg
