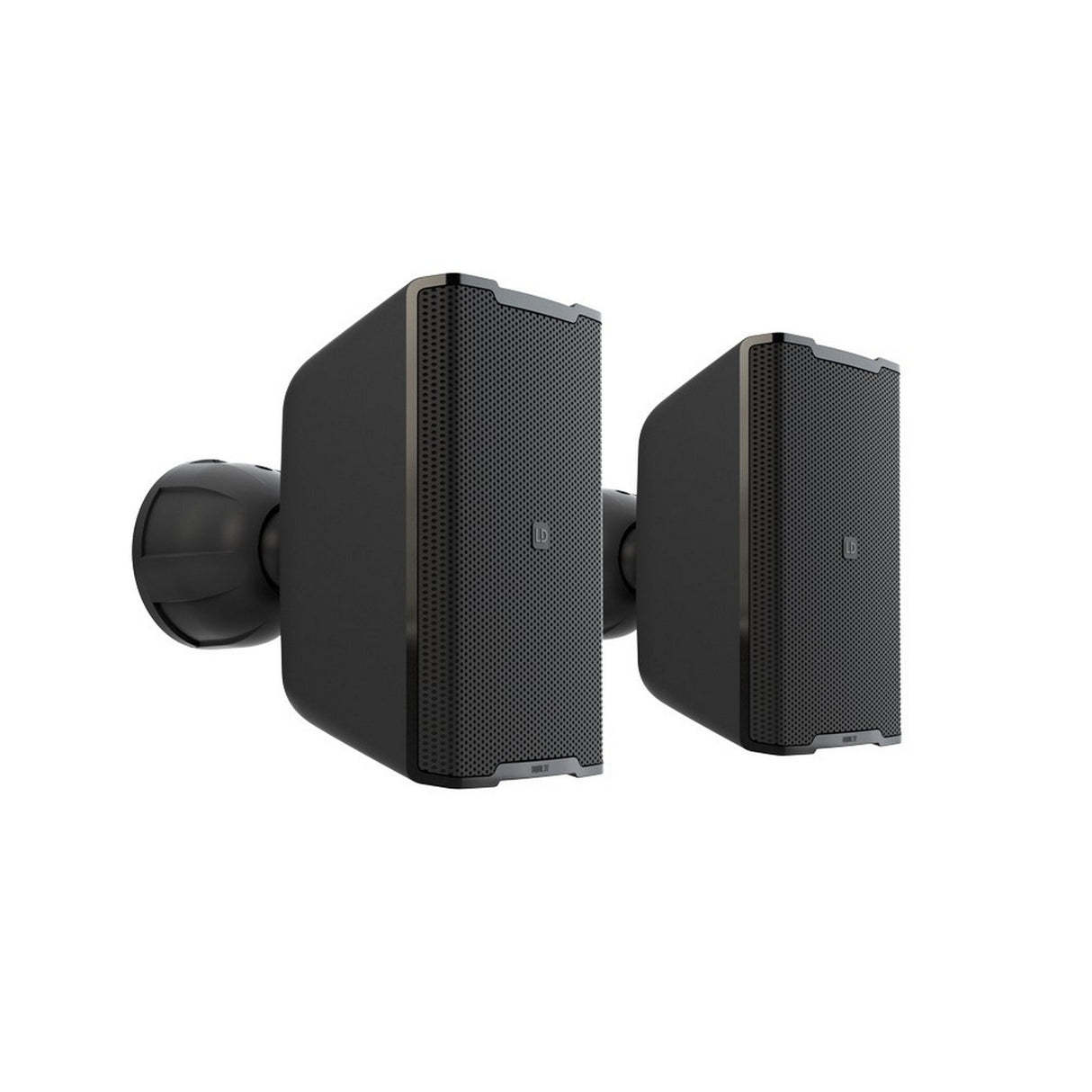

LD Systems DQOR 3 T B 3 Inch Two-way Passive Indoor/Outdoor Installation Loudspeaker, Pair, Black

Encourage your customers and guests to linger for longer with great sound. Thanks to their wide coverage angle and balanced sound, DQOR loudspeakers provide an inviting ambience. Whether indoors or outdoors, with its elegant, dynamic design in black or white, the 2-way speaker fits harmoniously into any installation. Thanks to the clever slide-and-lock wall mount with concealed integrated connections, there is no need for unsightly cables. To maintain an elegant and smart look on the long term, the front grille is made of corrosion-resistant aluminum. No restrictions! With a tilt angle of up to 27 and a 45 horizontal swivel angle, DQOR loudspeakers offer flexible positioning to meet your needs.

Key Features

• For indoor and outdoor use, IP65 (DQOR 3) and IP55 (DQOR 5 & 8) certified
• Corrosion-resistant aluminum front grille
• Elegant, dynamic design to suit any environment
• Available in black or white
• Slide-and-lock wall mount with concealed integrated connections
• Superb, balanced sound thanks to a 2-way system
• Weather treated paper cone woofer and FerroFluid-cooled titanium high frequency driver
• Wide coverage angle (120 horizontal, 80 vertical)
• BEM-optimized waveguide for balanced sound
• 3”, 5” and 8” variants available

Technical Specifications

Product type
PA loudspeaker
Type
Passive
Low/mid driver dimensions
3”
Woofer size
76.2 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil
1”
Woofer voice coil (mm)
25.4 mm
Horn
BEM optimized CD Waveguide
HF driver dimensions
1”
HF driver size
25.4 mm
HF driver magnet
Neodymium
HF driver brand
Custom-made
HF driver voice coil
1”
HF driver voice coil
25.4 mm
Dispersion (H x V)
120 x 80 (-6 dB)
Load rating (RMS)
30 W
Peak power
60 W (>200Hz)
Frequency response
85 - 20000 Hz (-10dB)
Crossover frequency
2200 Hz
SPL (1W/1m)
80 dB
Max. SPL
98 dB
Impedance
16 Ohm(s)
Input selector switch
70 V - 100 V - 16 Ohms
100V transformer power (Taps)
30 - 6 - 3 - 1.5W
70V transformer power (Taps)
30 - 6 - 3 - 1.5W
Speaker input connections
4-pole Terminal Block. Pitch 5.08mm
Cabinet material
ABS plastic
Protection class IP
65
Cabinet color
Black (RAL 9005)
Width
114.6 mm
Height
180 mm
Depth
180.8 mm
Accessories (included)
Allen Key for the safety screw, Bracket for surface mount
Optional accessories
LDDQORWMC (rubber cover set for wall mount bracket)
Weight
2,1 kg
