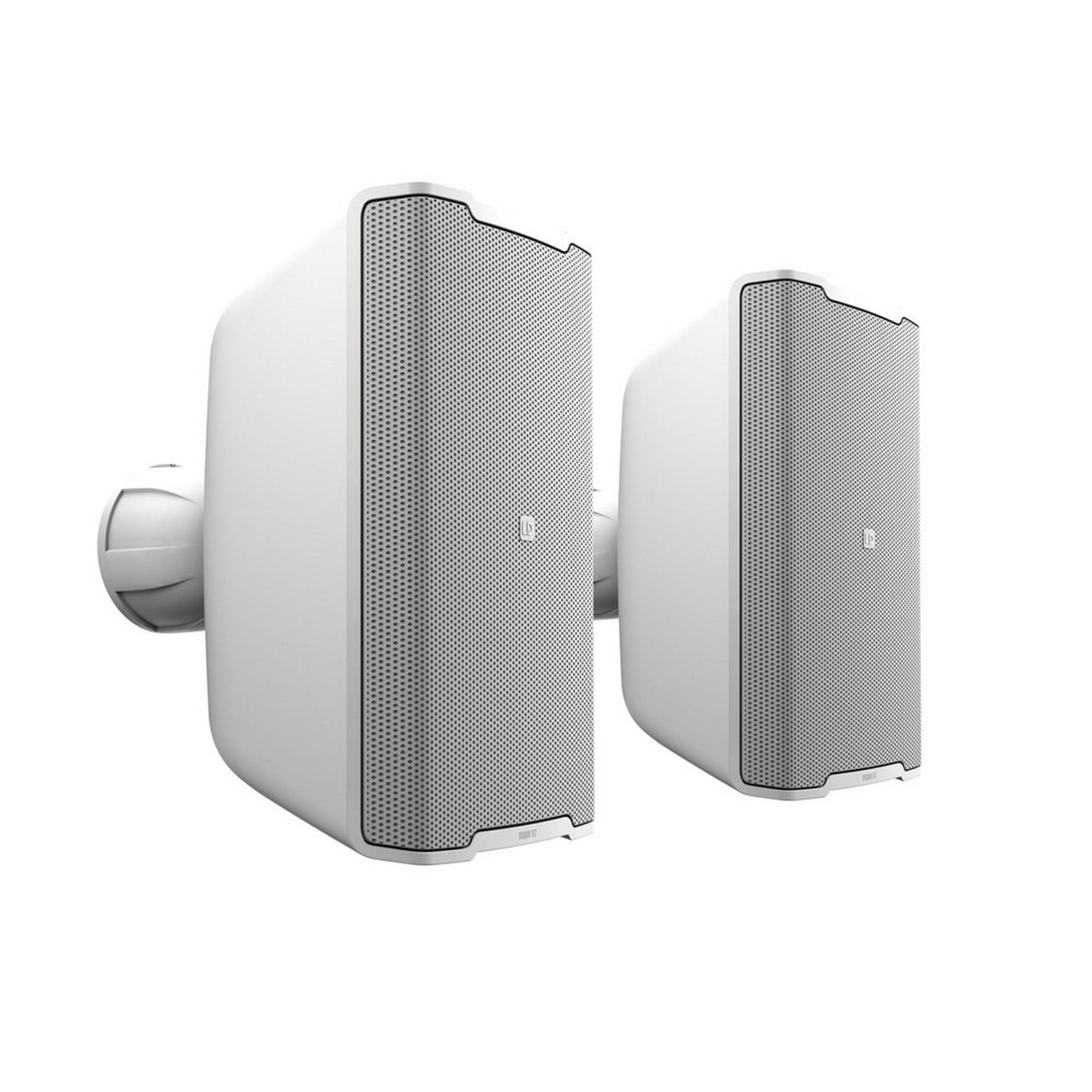

LD Systems DQOR 5 T W 5 Inch Two-Way Passive Indoor/Outdoor Installation Loudspeaker, Pair, White
Encourage your customers and guests to linger for longer with great sound. Thanks to their wide coverage angle and balanced sound, DQOR loudspeakers provide an inviting ambience. Whether indoors or outdoors, with its elegant, dynamic design in black or white, the 2-way speaker fits harmoniously into any installation. Thanks to the clever slide-and-lock wall mount with concealed integrated connections, there is no need for unsightly cables. To maintain an elegant and smart look on the long term, the front grille is made of corrosion-resistant aluminum.
Key Features
- For indoor and outdoor use, IP65 (DQOR 3) and IP55 (DQOR 5 & 8) certified
- Corrosion-resistant aluminum front grille
- Elegant, dynamic design to suit any environment
- Available in black or white
- Slide-and-lock wall mount with concealed integrated connections
- Superb, balanced sound thanks to a 2-way system
- Weather treated paper cone woofer and FerroFluid-cooled titanium high frequency driver
- Wide coverage angle (120 horizontal, 80 vertical)
- BEM-optimized waveguide for balanced sound
- 3”, 5” and 8” variants available
Technical Specifications
Product type
PA loudspeaker
Type
Passive
Low/mid driver dimensions
5”
Woofer size
132 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil
1”
Woofer voice coil (mm)
25.4 mm
Horn
BEM optimized CD Waveguide
HF driver dimensions
1”
HF driver size
25.4 mm
HF driver magnet
Neodymium
HF driver brand
Custom-made
HF driver voice coil
1”
HF driver voice coil
25.4 mm
Dispersion (H x V)
120 x 80 (-6 dB)
Load rating (RMS)
70 W
Peak power
140 W (>100Hz)
Frequency response
74 - 20000 Hz (-10dB)
Crossover frequency
1900 Hz
SPL (1W/1m)
84 dB
Max. SPL
105 dB
Impedance
16 Ohm(s)
Input selector switch
70 V - 100 V - 16 Ohms
100V transformer power (Taps)
70 - 30 - 15 - 7,5 - 3W
70V transformer power (Taps)
70 - 30 - 15 - 7,5 - 3W
Speaker input connections
4-pole Terminal Block. Pitch 5.08mm
Cabinet material
ABS plastic
Protection class IP
55
Cabinet color
White (RAL9010)
Width
156.7 mm
Height
253.8 mm
Depth
215.3 mm
Accessories (included)
Allen Key for the safety screw, Bracket for surface mount
Optional accessories
LDDQORWMC (rubber cover set for wall mount bracket)
Weight
3,9 kg
