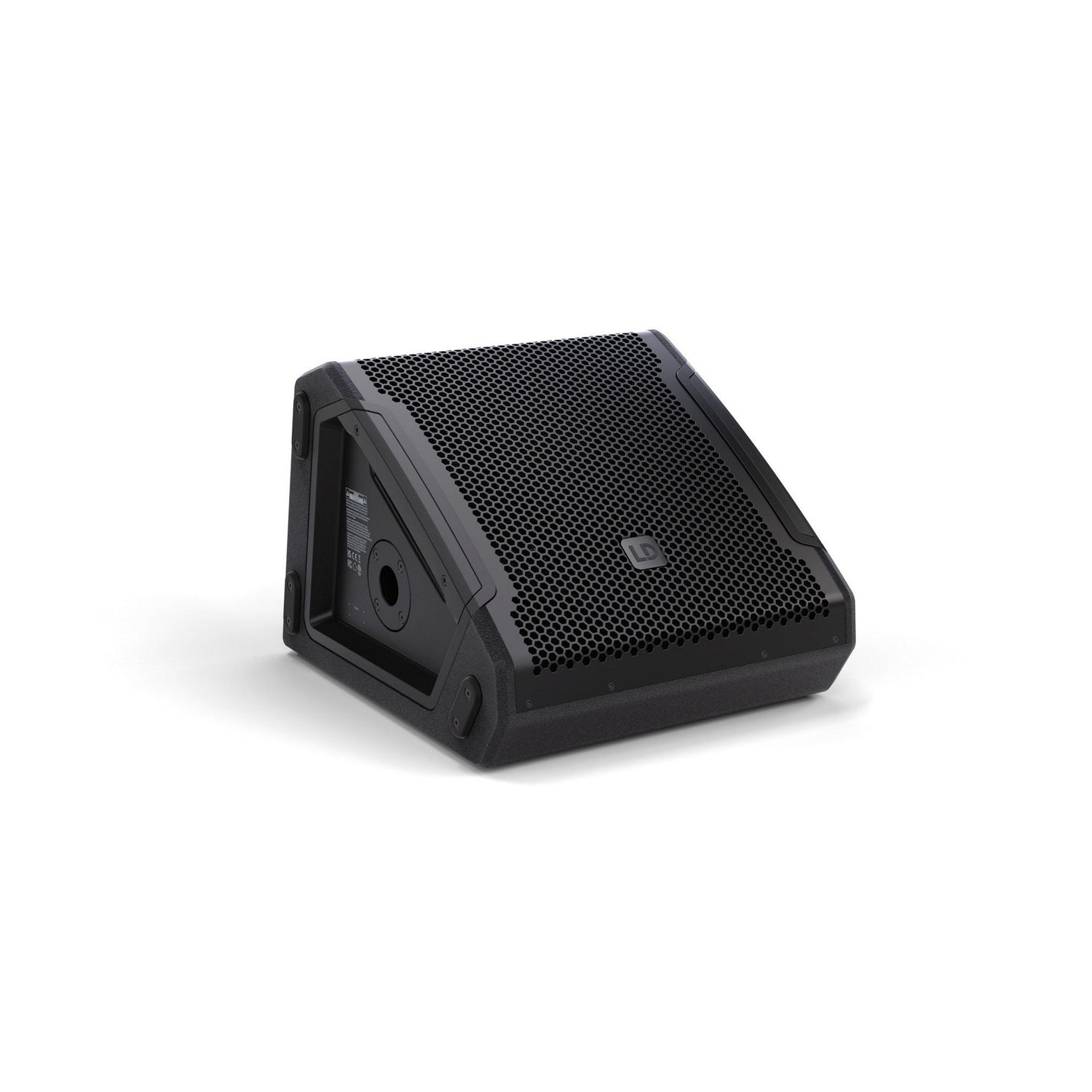

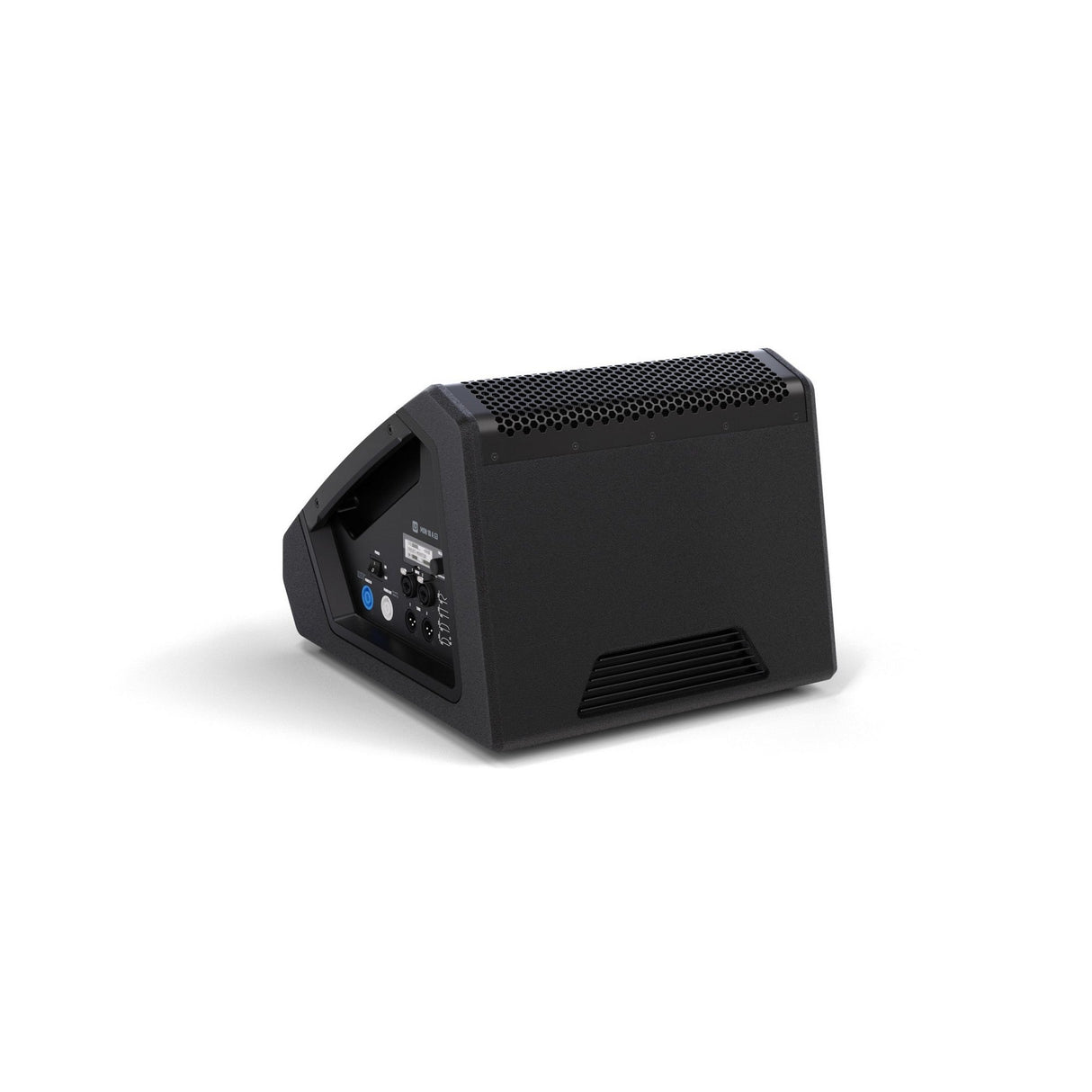

LD Systems MON 10 A G3 10-Inch Powered Coaxial Stage Monitor - Black

LD Systems MON 10 A G3 10-Inch Powered Coaxial Stage Monitor

The LD Systems MON 10 A G3 is an innovative 10-inch powered coaxial stage monitor that brings high-end performance within reach of all musicians and event engineers. Designed with advanced technology and premium materials, this stage monitor ensures exceptional audio quality and robust build. The MON G3 Series integrates sophisticated coaxial loudspeakers with an integrated 50° x 90° CD horn, delivering true point-source audio even at short listening distances.

Despite its compact size, the MON 10 A G3 packs enough sound pressure to hold its own in loud band settings. Its ideal dispersion geometry of 50° x 90° for monitor use and 90° x 50° for FOH use makes it an adaptable solution for various applications. The elegant LD Systems design not only enhances its visual appeal but also complements its functional features, ensuring durability and reliability.

This stage monitor includes a Class-D power amplifier with 300 W RMS/1200 W peak power output and is equipped with a range of professional features that make it suitable for both stage and front-of-house applications. The MON 10 A G3 is durable and user-friendly, making it an excellent choice for musicians, DJs, and sound engineers looking for a high-performance, versatile solutions without breaking the bank.

Key Features

• Compact high-performance stage monitor with top-of-the-range technologies
• Class-D power amplifier with 300 W RMS/1200 W peak and 126 dB max. SPL
• Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
• 10" woofer with 2.5" voice coil
• Optimised, practical radiation pattern due to 50° x 90° CD horn
• DynX® DSP (Gen.2) for distortion-free sound even at maximum volume

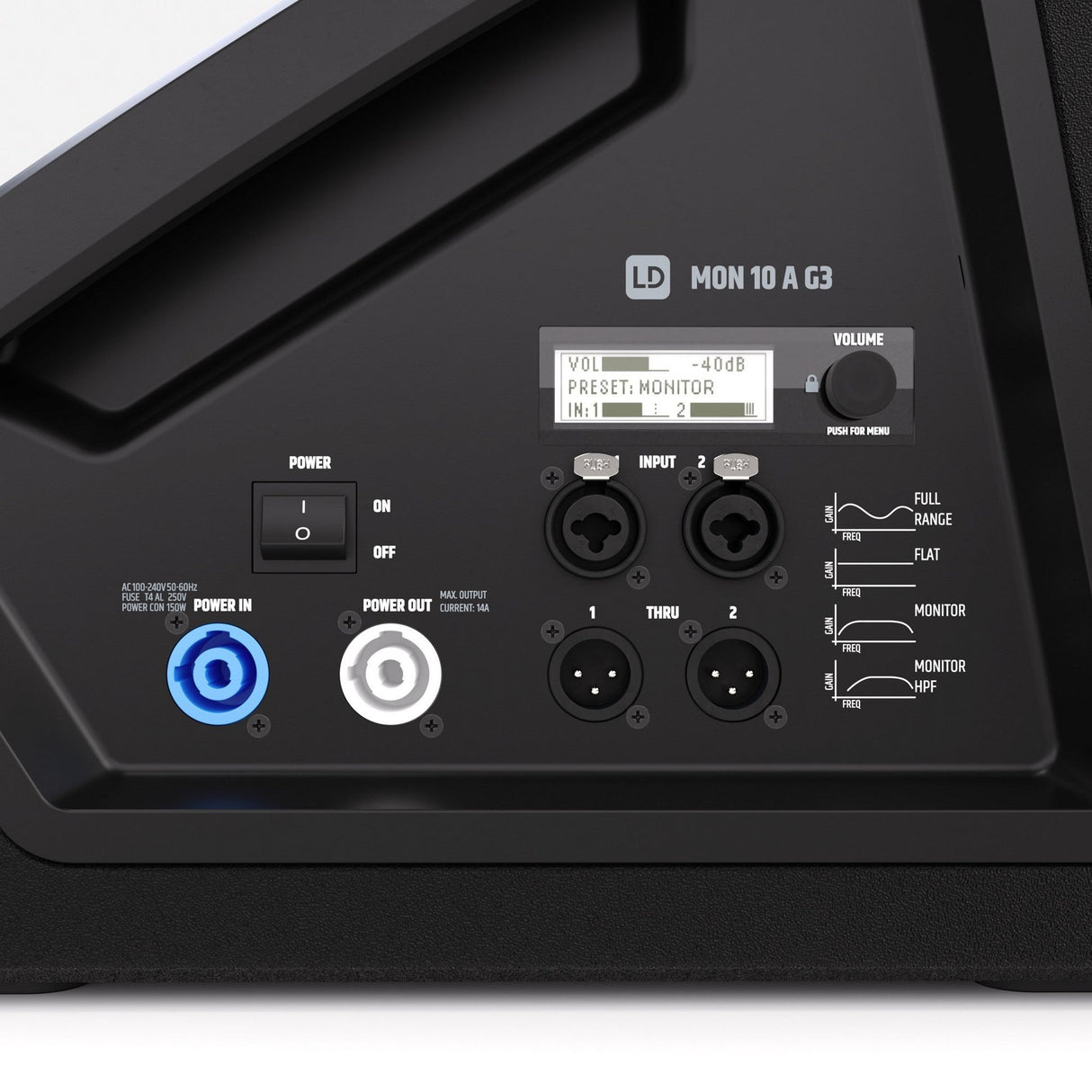

• 3-band EQ, Notch filter, 4 application presets and delay function

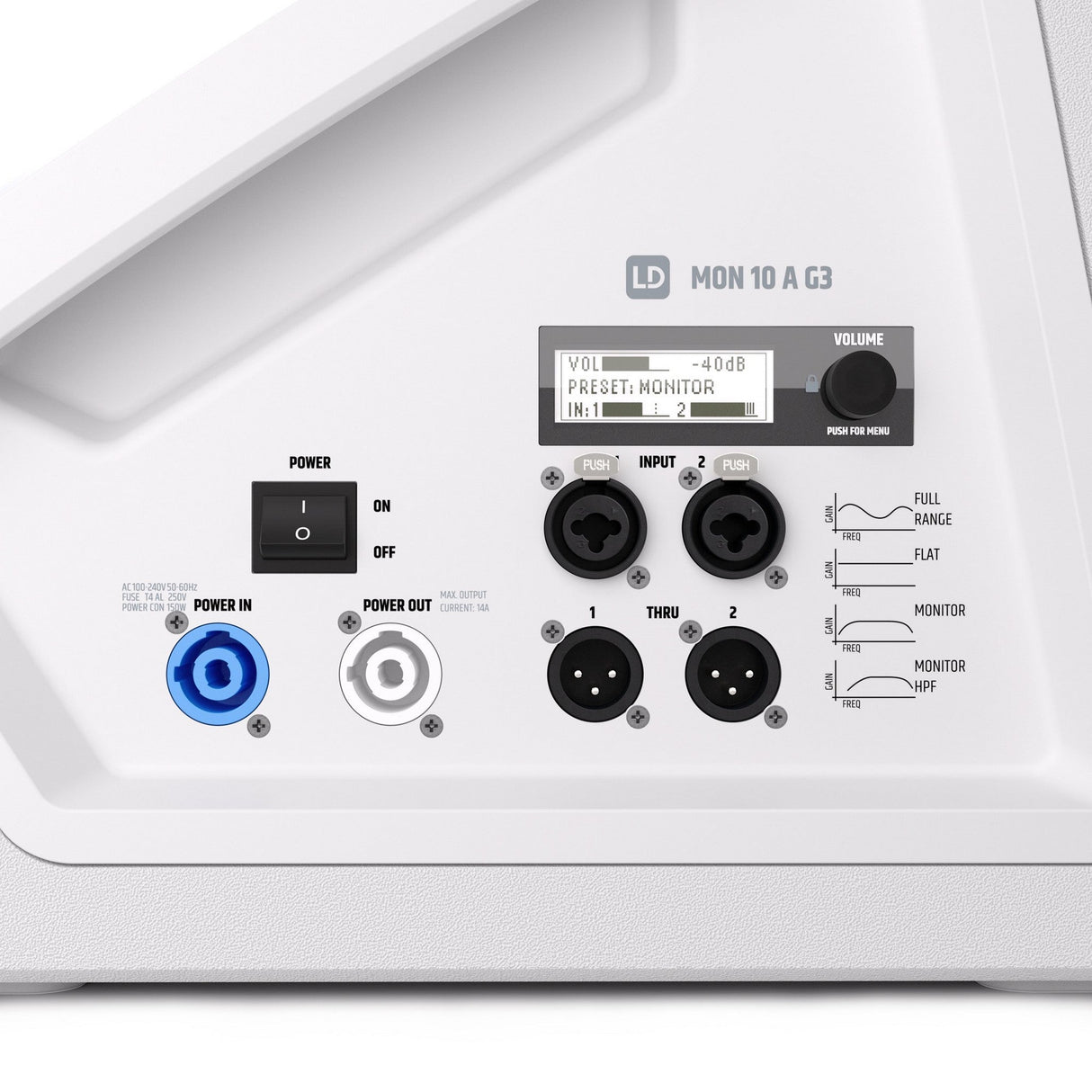

• PowerCON compatible loop-through professional power connection
• 35 mm speaker stand flange for FOH applications
• Durable Polyurea coating and heavy-duty front grille

Specifications

• Product type: Stage monitors
• Type: Powered
• Color: Black
• System output (RMS): 300 W
• System output (Peak): 1200 W
• Max. SPL Average (Sine burst): 118 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
• Max. SPL Peak (Sine burst): 126 dB (fullspace @1m, 10% THD)
• Freq. response (-3 dB): 72 - 18000 Hz
• Freq. response (-10 dB): 58 - 20000 Hz
• Crossover Freq.: 1700 Hz
• Monitor angle: 33°
• Dispersion (H x V): 50° x 90°
• Width: 380 mm
• Depth: 426 mm
• Height: 305 mm
• Features: 3-band EQ (High, Mid, Low), Delay line, Notch filter
• Weight: 15,21 kg

Package Contents

• LD Systems MON 10 A G3 10-Inch Powered Coaxial Stage Monitor
