LD Systems MON 12 A G3 12-Inch Powered Coaxial Stage Monitor - Black

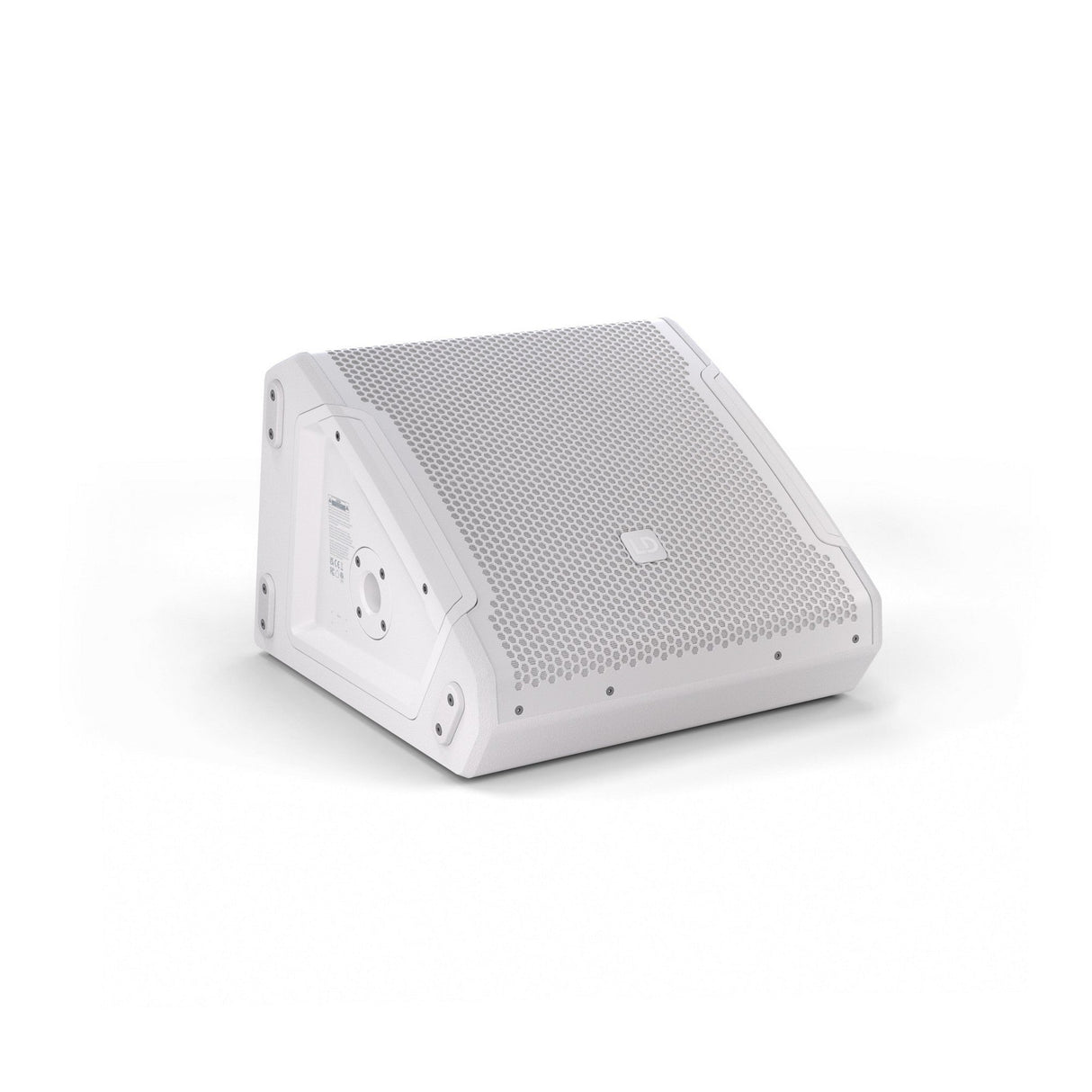

LD Systems MON 12 A G3 12-Inch Powered Coaxial Stage Monitor

The MON 12 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

For decades, 12"/1" stage monitors have been the golden mean when it comes to sonority, sound pressure and portability. With coaxial design, smart electronics and a professional look, the MON 12 A G3 brings this concept into the "modern age". The ideal dispersion geometry of 50° x 90° for monitor use or 90° x 50° for FOH use make it a multi-talent that offers the right solution for a wealth of different tasks.

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

DYNX DSP (GEN. 2)
The latest generation of LD Systems’ proprietary DynX DSP guarantees a dynamic, high-resolution sound image across the entire frequency response.

4 SOUND PRESETS & 3-BAND EQ
The four intuitively operated sound presets and the 3-band EQ enable quick, user-friendly sound adjustment

TUNABLE NOTCH FILTER
With the tunable notch filter, feedback frequencies can be quickly eliminated.

DELAY LINE FUNCTION
The delay line function allows you to compensate for distances of up to 10 m / 33 ft. This is very useful when operating multiple loudspeakers in FOH mode, for example at a town festival.

HIGH-EFFICIENCY POWER AMPLIFIER
The highly effi cient Class D power amp delivers 300 watts RMS. The peak power of 1200 watts, which can be called up at short notice, guarantees a dynamic, assertive sound image.

PROFESSIONAL CONNECTORS
Our engineering team put great care in creating an intuitive user-panel with just the controls and inputs you really need.

EASY DAISY CHAINING
The next monitor can be supplied with power via a second PowerCon compatible connection. Thanks to the two XLR outputs, you can also daisy chain the audio signal to a neighbouring stage monitor.

Key Features

• Compact high-performance stage monitor with top-of-the-range technologies
• Class-D power amplifier with 300 W RMS/1200 W peak and 127 dB max. SPL
• Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
• 12" woofer with 2.5" voice coil
• Optimised, practical radiation pattern due to 50° x 90° CD horn
• DynX® DSP (Gen.2) for distortion-free sound even at maximum volume
• 3-band EQ, Notch filter, 4 application presets and delay function
• PowerCON compatible loop-through professional power connection
• 35 mm speaker stand flange for FOH applications
• Durable Polyurea coating and heavy-duty front grille

Technical Specifications

Product type
Stage monitors
Type
Powered
Color
Black
System output (RMS)
300 W
System output (Peak)
1200 W
Max. SPL Average (Sine burst)
120 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
Max. SPL Peak (Sine burst)
127 dB (fullspace @1m, 10% THD)
Frequency response (-3 dB)
68 - 18000 HZ
Frequency response (-10 dB)
55 - 20000 Hz
Crossover frequency
1400 Hz
Monitor angle
33°
Dispersion (H x V)
50° x 90°
Width
425 mm
Depth
453 mm
Height
315 mm
Features
3-band EQ (High, Mid, Low), Delay line, Notch filter
Weight
17,4 kg
