LD Systems  |  SKU: LDSYS-LDSMON121AG2

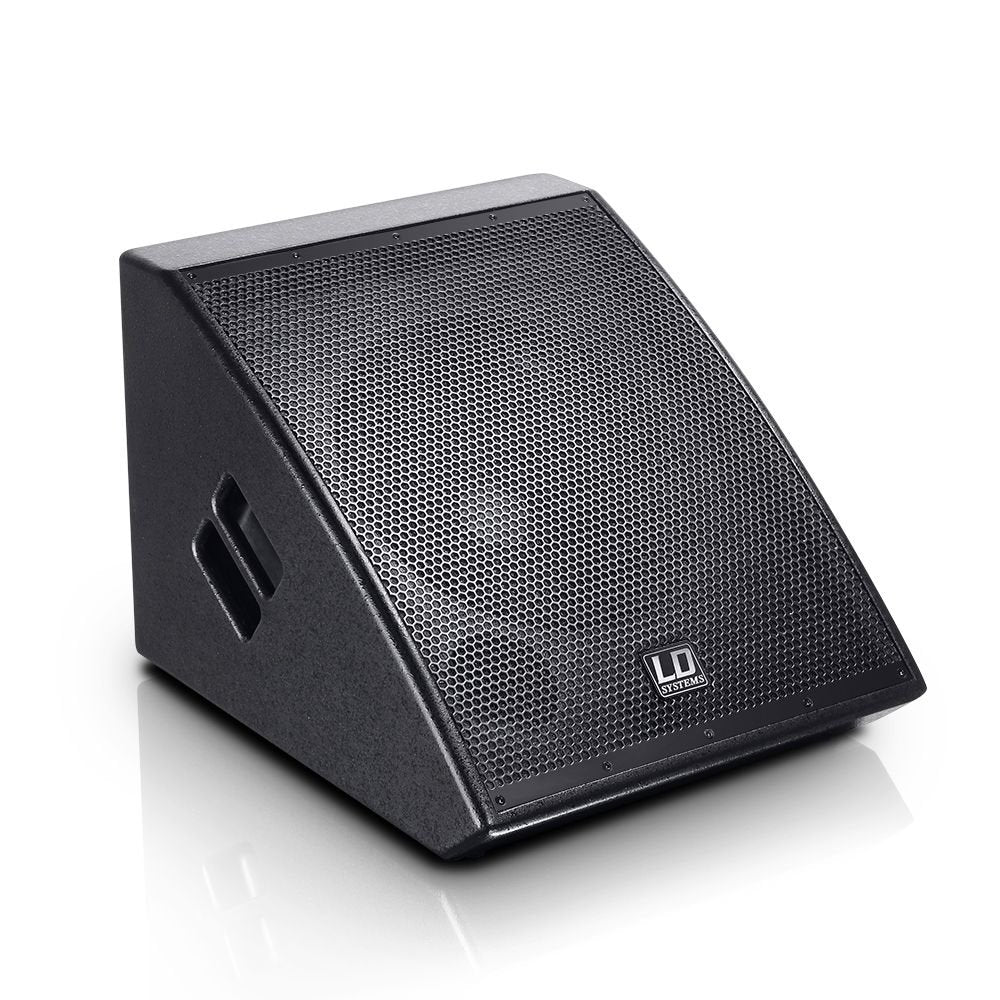

LD Systems MON 121 A G2 12 Inch Active Stage Monitor

$59999
Shipping calculated at checkout.

Condition: New



Description

LD Systems MON 121 A G2 12 Inch Active Stage Monitor

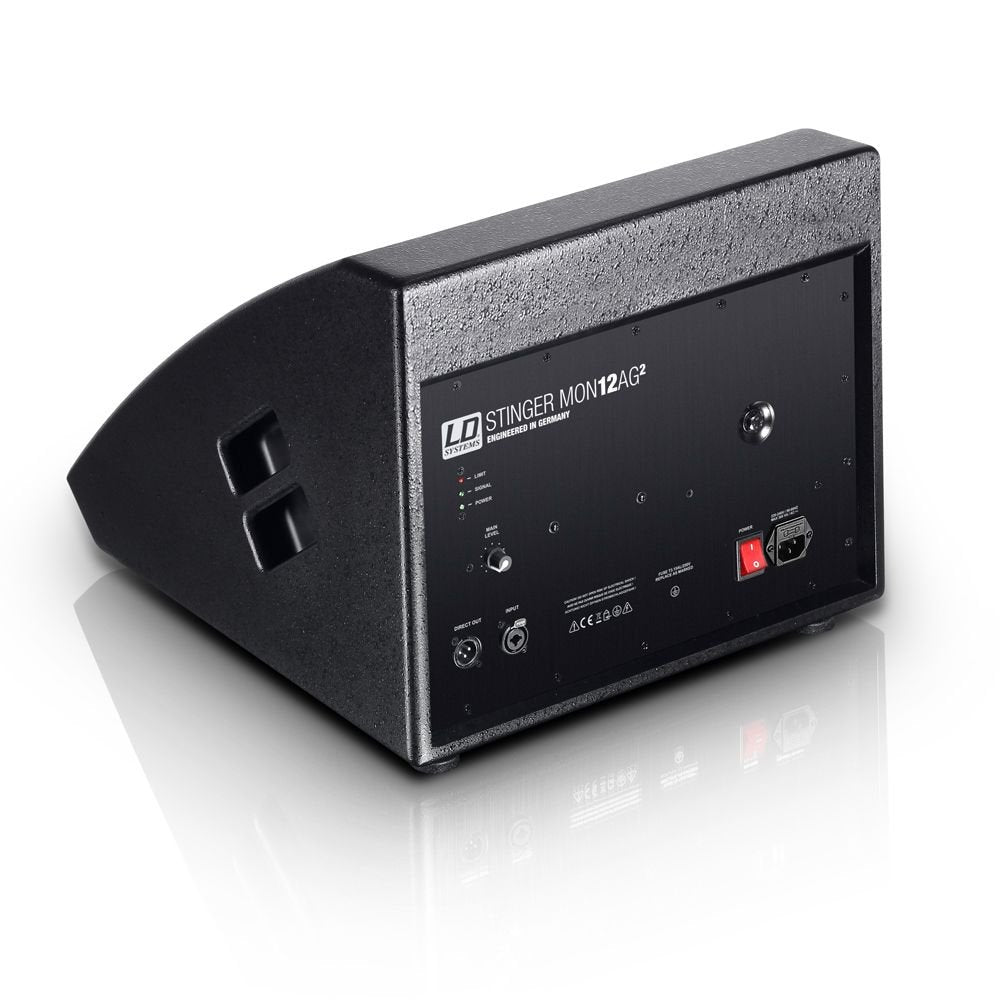

LD Systems Stinger MON121AG2 The LD Stinger MON121AG2 is a compact active stage monitor for all mobile applications. The specially developed 12" coaxial speaker with an integral 1" HF driver and powerful ferrite magnets stands out because of a precisely symmetrical dispersion over 75 x 75 and attains a maximum sound-level pressure of 124dB with maximum resistance to feedback. It is driven by a Class AB power amplifier with a power output of 1000W Peak. The frequency response curve is 80Hz - 20kHz. Dependable operation of the LD MON121AG2 is ensured by a limiter that prevents overloading of the speaker and a protection circuit that guards against short-circuiting. The input is a XLR-jack combo socket, an XLR output permits looping through of the signal. Other connector panel features include a volume control, IEC power socket, LED indicators of various colours for power, signal, and the limiter function. The elegant looking bass-reflex enclosure of the LD MON121AG2 is made of 15mm-thick multiplex finished with a durable coating. A sturdy metal grille guards against speaker damage, and ergonomically milled handles make transport easier. The monitor angle is 35.

Technical Specifications

Product type
PA loudspeaker
Type
Powered
Low/mid driver dimensions
12”
Woofer size
304 mm
Woofer type
coaxial loudspeaker
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil
2”
Woofer voice coil (mm)
50.8 mm
HF driver dimensions
1”
HF Driver Size
25.4 mm
HF driver magnet
Ferrite
HF driver brand
Custom-made
HF driver voice coil
1”
HF Driver Voice Coil
25.4 mm
Amplifier
Class A/B
Dispersion (H x V)
75 x 75
RMS
250 W
Peak power
1000 W
Frequency response
80 - 20000 Hz
Crossover frequency
2200 Hz
SPL (1W/1m)
100 dB
Max. SPL (continuous)
116 dB
Max. SPL (peak)
124 dB
Protection circuits
limiter , short circuit
Controls
On / Off , volume
Indicators
Limit , Power , Signal
Line Inputs
1
Line input connectors
6.3 mm jack , XLR
Line Outputs
1
Line output connectors
XLR
Operating voltage
transformer
Operating voltage
230 V AC / 50-60 Hz
Cabinet material
15 mm Plywood
Cabinet construction
Bass Reflex
Monitor angle
35
Width
440 mm
Depth
360 mm
Height
514 mm
Weight
17,8 kg
Features
ergonomically shaped insert handles
