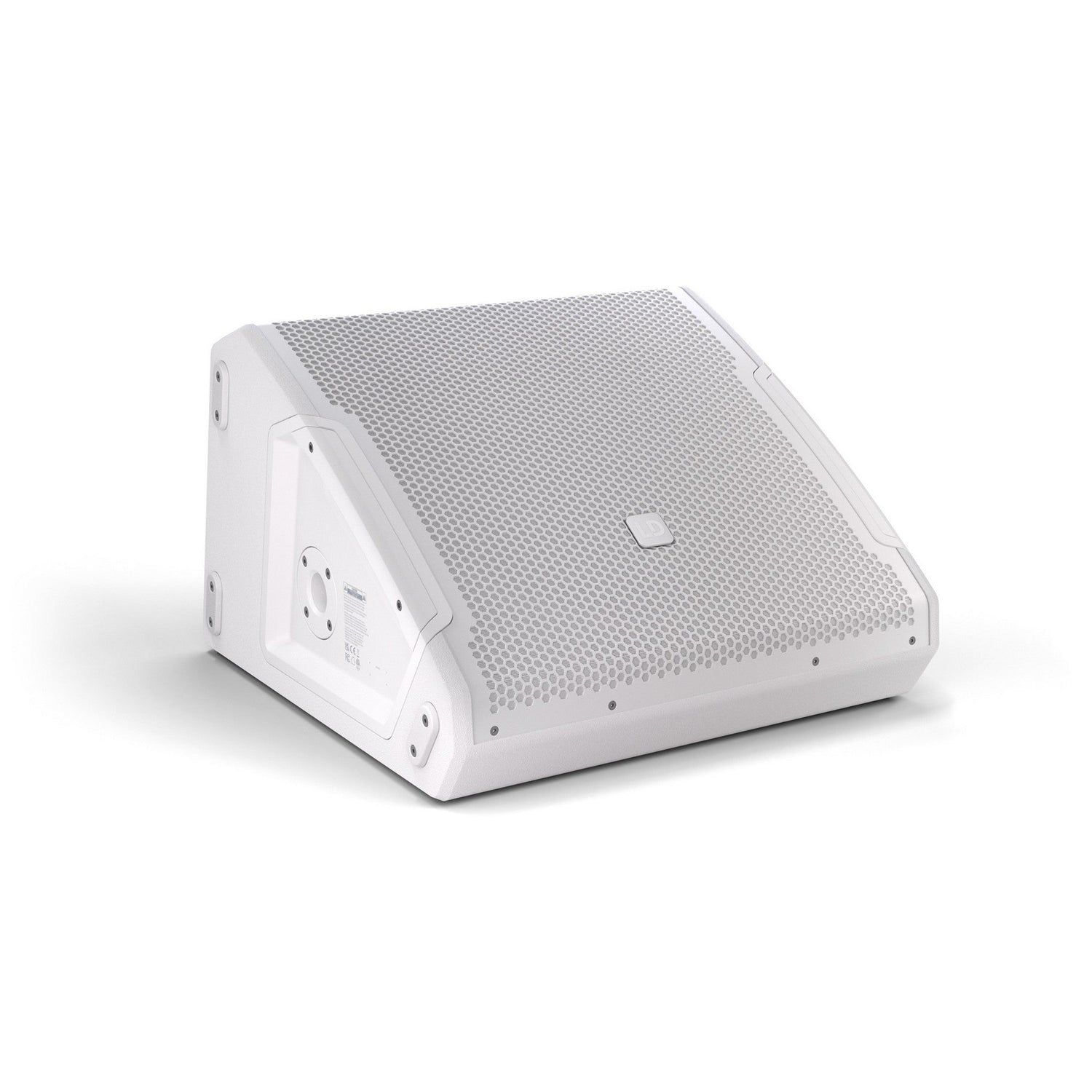

LD Systems MON 15 A G3 15-Inch Powered Coaxial Stage Monitor - White

LD Systems MON 15 A G3 15-Inch Powered Coaxial Stage Monitor

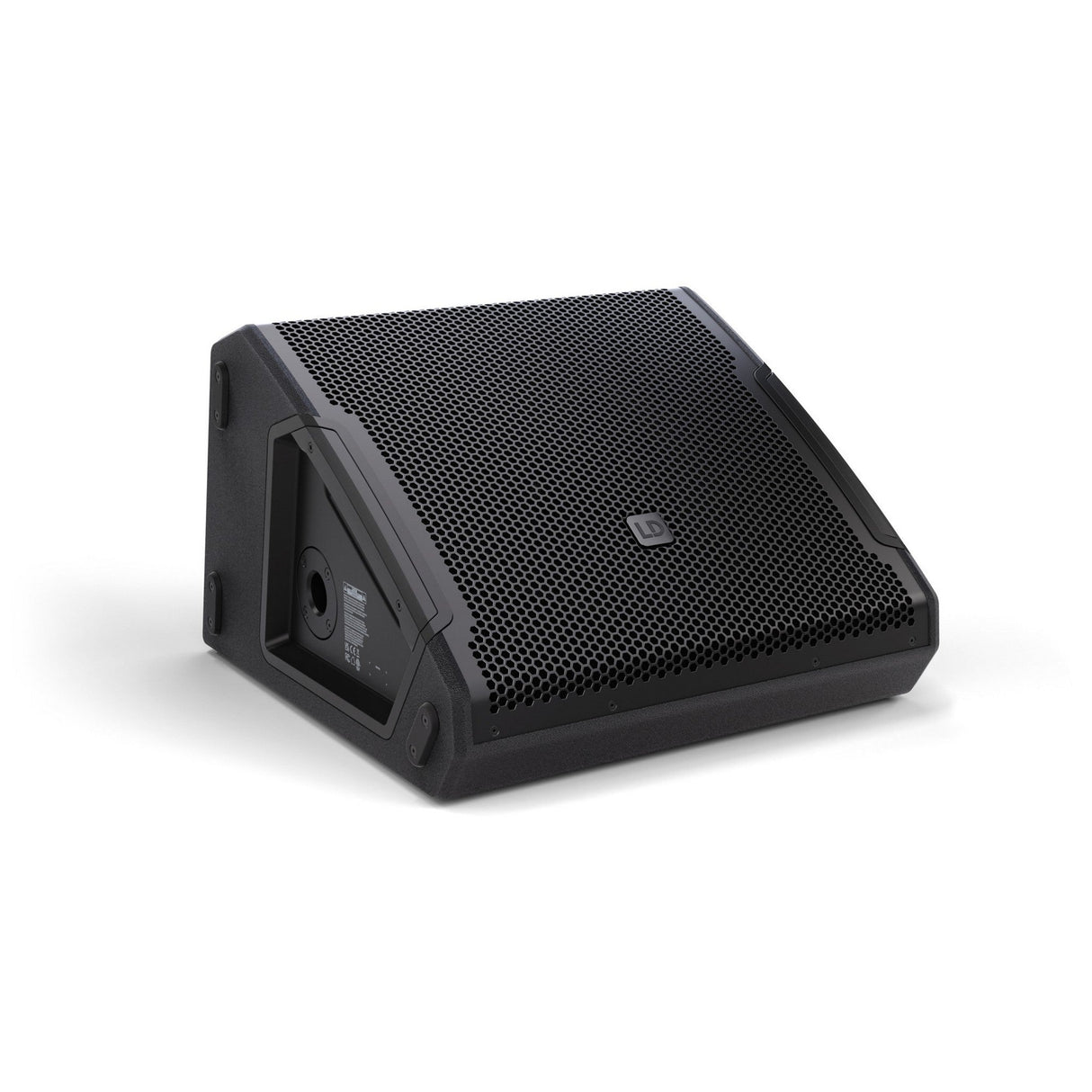

The LD Systems MON 15 A G3 is a 15-inch powered coaxial stage monitor that is part of an entirely newly developed family of high-performance monitors. The MON G3 Series is designed to incorporate advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality accessible to everyone. Features include advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and outstanding audio characteristics even at short listening distances. The series offers a high level of robustness, a comprehensive set of features, and the elegant LD Systems design.

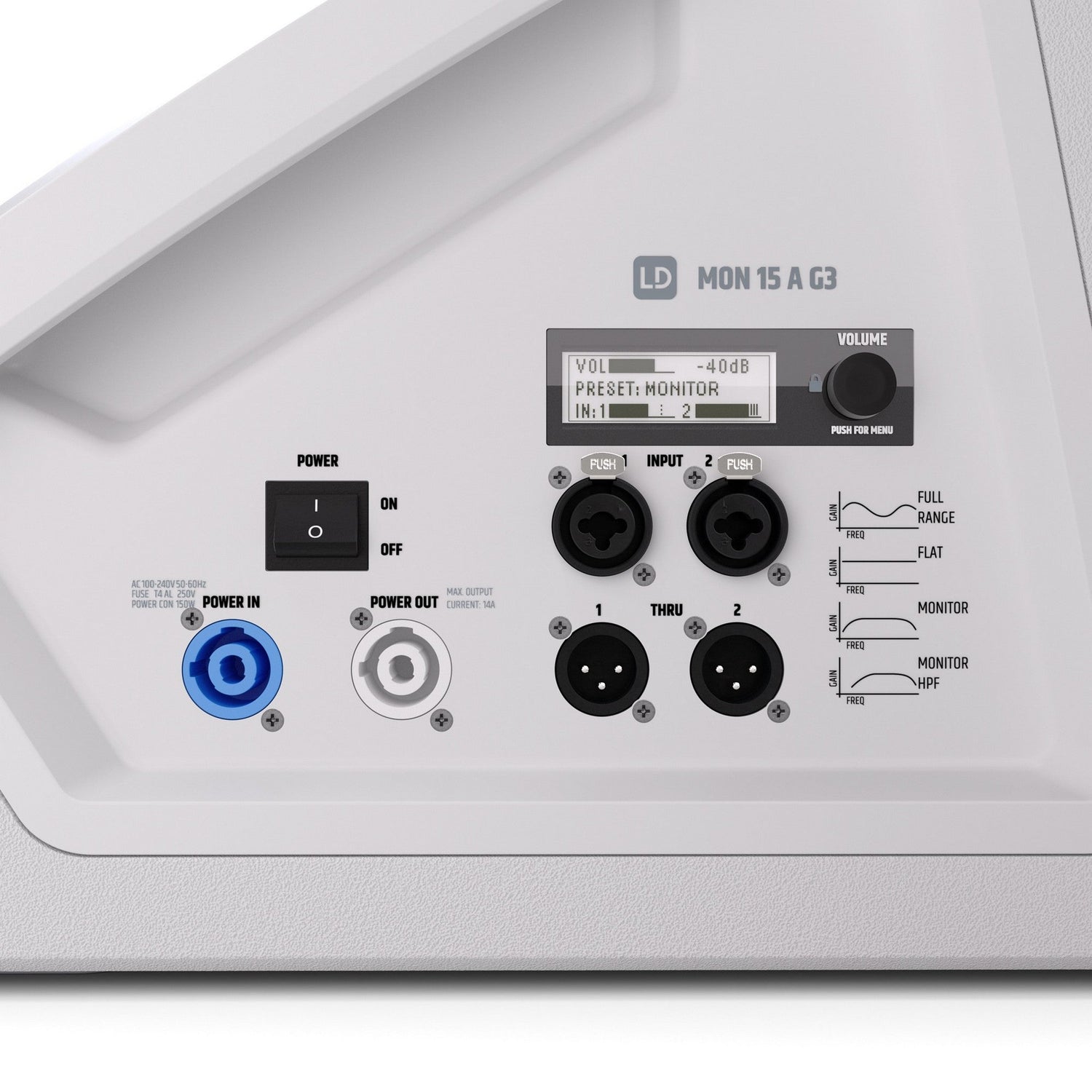

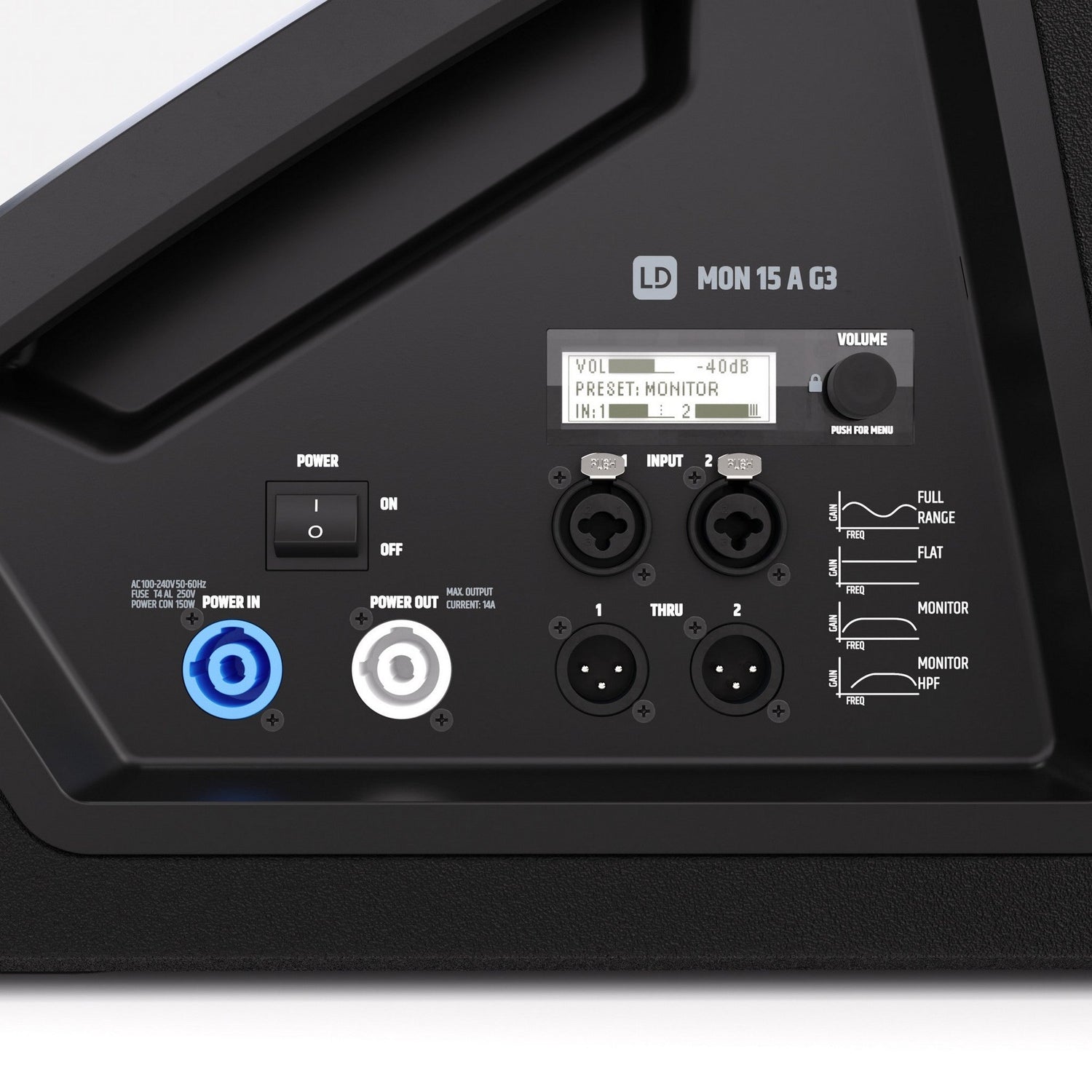

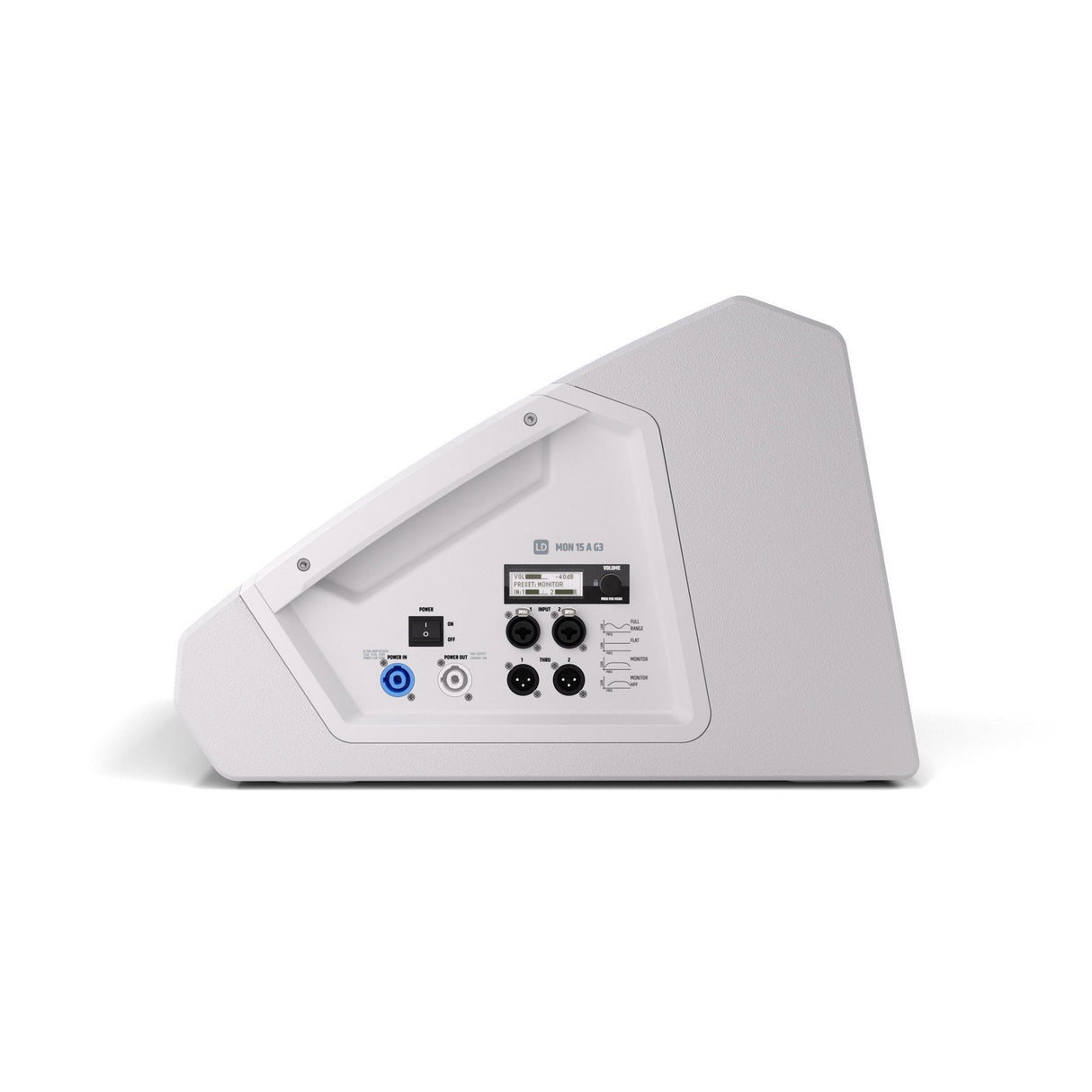

With a maximum sound pressure level of 129 dB and superior bass reproduction, the MON 15 A G3 is the optimal choice for loud band stages, drum fills, or as a stand-alone compact front PA without the need for an additional subwoofer. Despite its impressive performance, the monitor is unusually compact and elegant, blending harmoniously into the stage set. The signal (XLR/jack combo) and power connection (PowerCON compatible) can be looped through, allowing for tidy cabling in multi-monitor setups or distributed sound reinforcement.

The latest generation of LD Systems’ proprietary DynX DSP guarantees a dynamic, high-resolution sound image across the entire freq. response. Four intuitively operated sound presets and a 3-band EQ enable quick, user-friendly sound adjustment. Additionally, the tunable notch filter makes it easy to eliminate feedback freq., and the delay line function compensates for distances of up to 10 meters, making it useful for operating multiple loudspeakers in FOH mode.

Key Features

• Compact high-performance stage monitor with top-of-the-range technologies
• Class-D power amplifier with 300 W RMS/1200 W peak and 129 dB max. SPL
• Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
• 15" woofer with 3" voice coil
• Optimised, practical radiation pattern due to 50° x 90° CD horn
• DynX DSP (Gen.2) for distortion-free sound even at maximum volume
• 3-band EQ, Notch filter, 4 application presets and delay function
• PowerCON compatible loop-through professional power connection
• 35 mm speaker stand flange for FOH applications
• Durable Polyurea coating and heavy-duty front grille

Specifications

• Product type: Stage monitors
• Type: Powered
• Color: Black
• System output (RMS): 300 W
• System output (Peak): 1200 W
• Max. SPL Average (Sine burst): 122 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
• Max. SPL Peak (Sine burst): 129 dB (fullspace @1m, 10% THD)
• Freq. response (-3 dB): 58 - 18000 HZ
• Freq. response (-10 dB): 48 - 20000 Hz
• Crossover freq.: 1300 Hz
• Monitor angle: 33°
• Dispersion (H x V): 50° x 90°
• Width: 505 mm
• Depth: 517 mm
• Height: 340 mm
• Features: 3-band EQ (High, Mid, Low), Delay line, Notch filter
• Weight: 23.15 kg

Package Contents

• LD Systems MON 15 A G3 15-Inch Powered Coaxial Stage Monitor
• Power Cable
• User Manual
