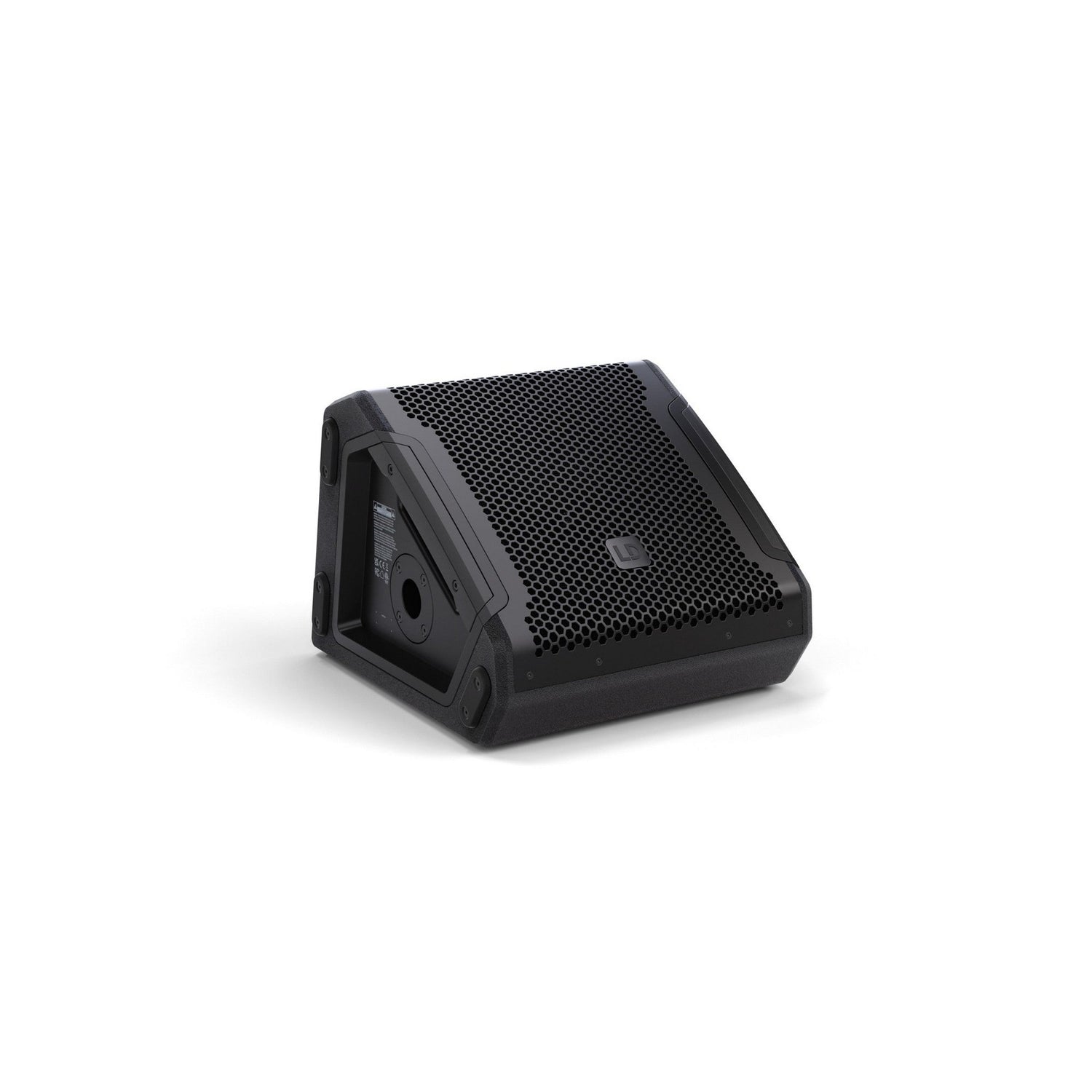

LD Systems MON 8 A G3 8-Inch Powered Coaxial Stage Monitor - Black

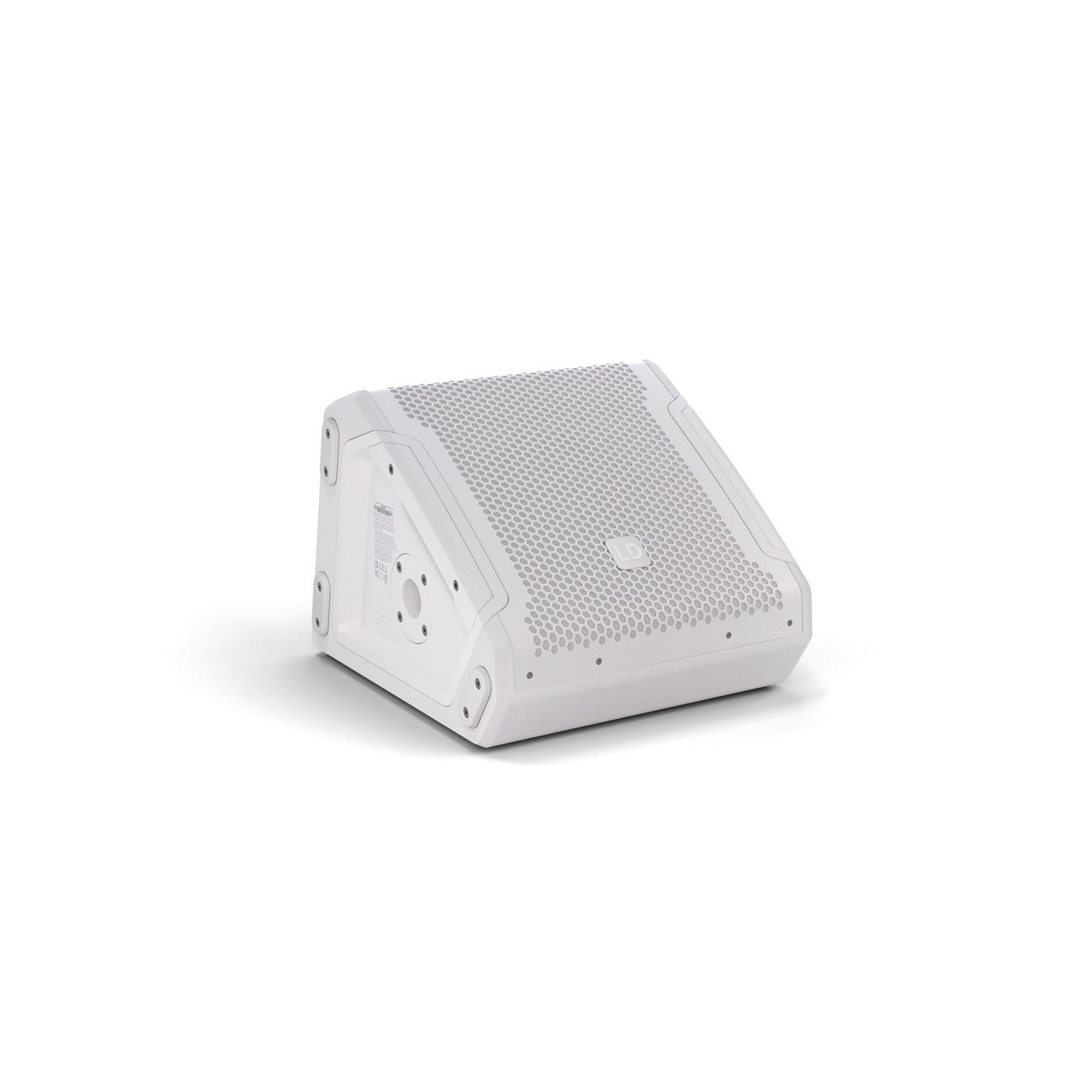

LD Systems MON 8 A G3 8-Inch Powered Coaxial Stage Monitor

The LD Systems MON 8 A G3 8-Inch Powered Coaxial Stage Monitor is an essential addition to any stage setup. This compact yet powerful monitor is designed for high performance, integrating advanced technology and premium materials to provide top-tier audio quality. The MON G3 Series, to which this monitor belongs, is known for delivering exceptional audio characteristics often found in professional-grade monitors. With its advanced coaxial loudspeakers featuring an integrated 50° x 90° CD horn, it ensures a true point source, offering outstanding sound even at short listening distances.

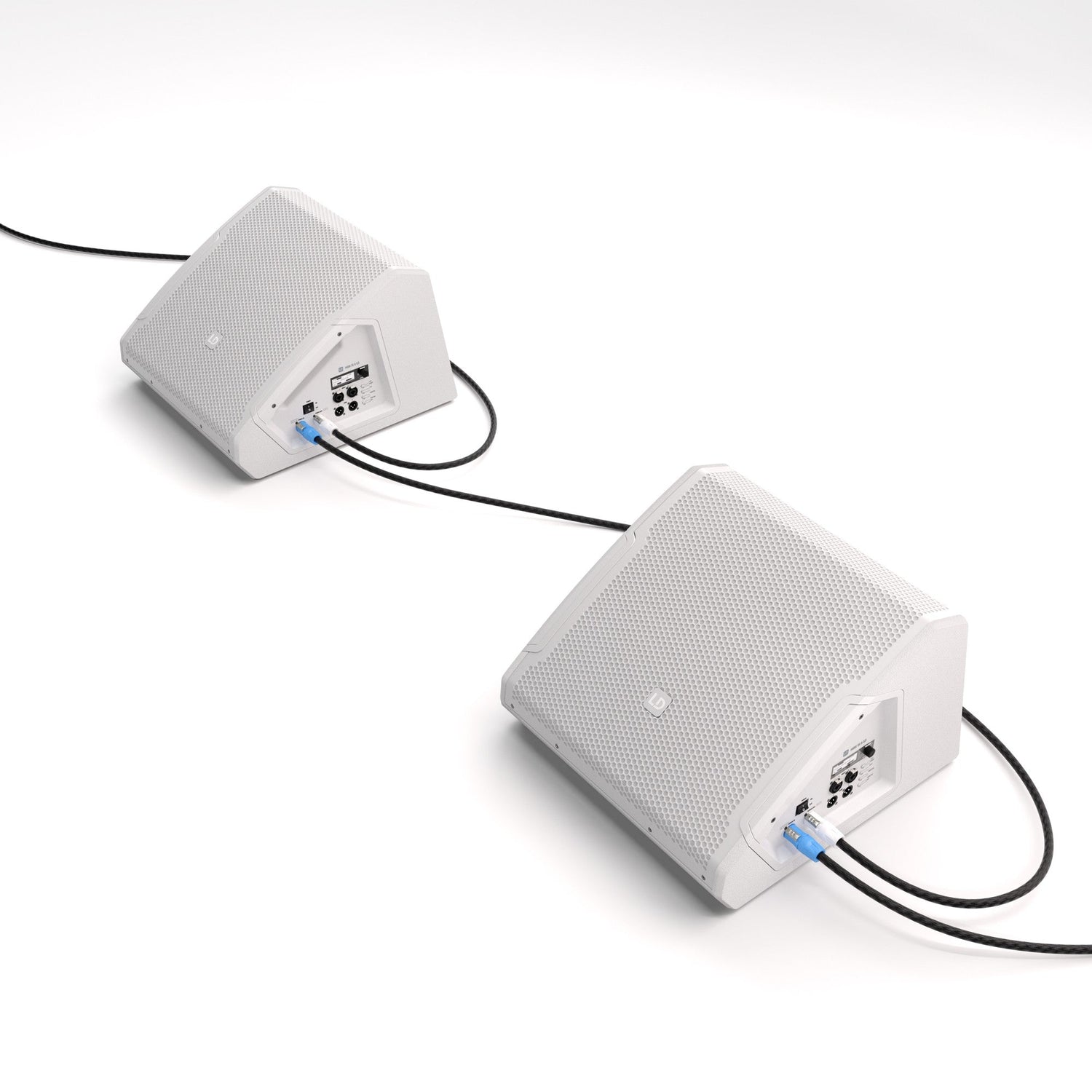

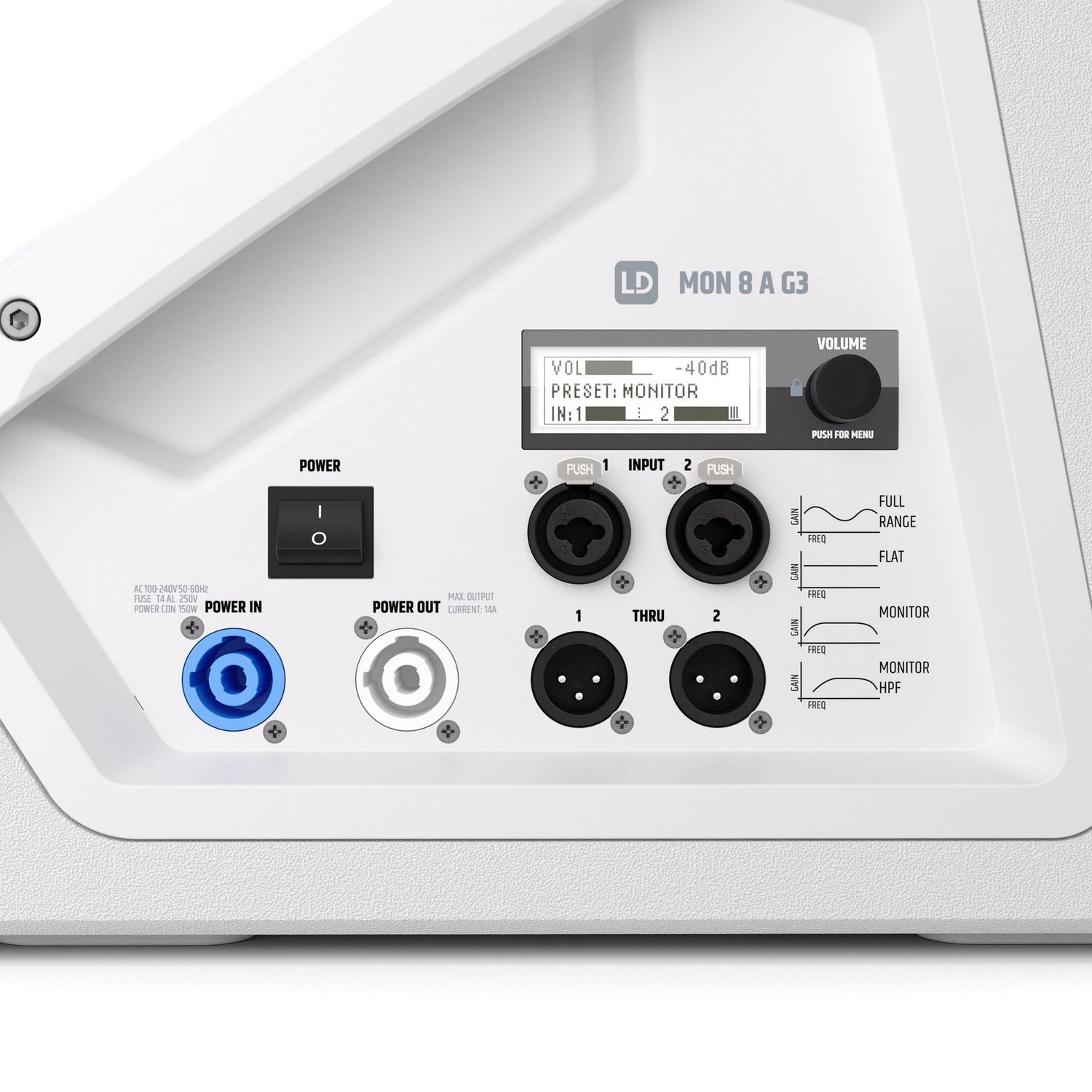

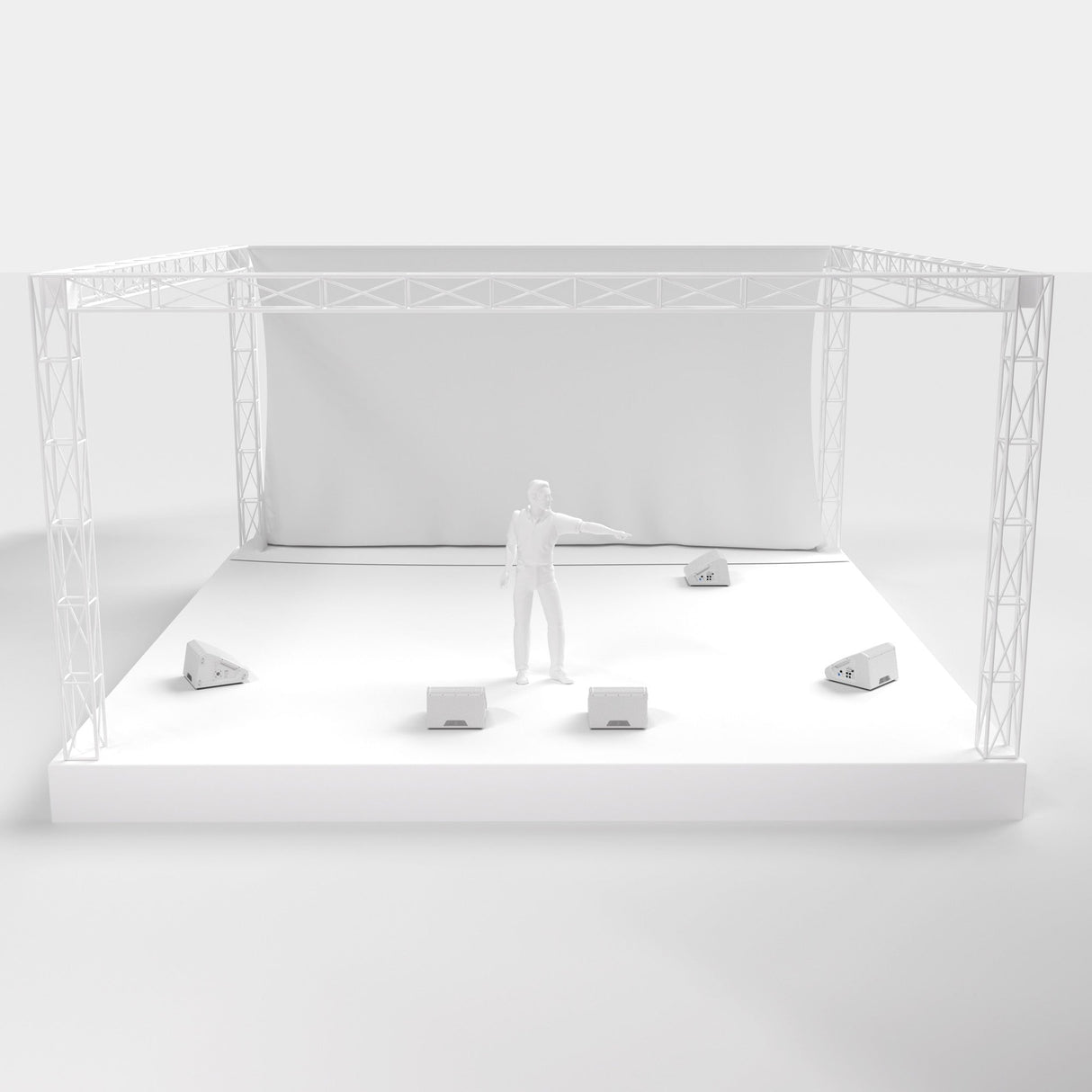

As the smallest member of the newly developed stage monitor family, the MON 8 A G3 is incredibly versatile. It can be used as a stage monitor, in a DJ setup, or even on a speaker stand as a Front of House (FOH) speaker. Additionally, it can function as a satellite in 2.1 systems or as a delay line speaker. Its frequency response extends down to 59 Hz, which is remarkably low for a monitor of this size, ensuring a full-range sound experience. Both signal (XLR/jack combo) and power connection (PowerCON compatible) can be looped through for an elegant and tidy cabling solution in multi-monitor setups or distributed sound reinforcement systems.

The MON 8 A G3 features the latest generation of LD Systems’ proprietary DynX DSP technology, guaranteeing a dynamic, high-resolution sound across the entire Freq. response. The intuitive sound presets and 3-band EQ offer quick and user-friendly sound adjustments, while the tunable notch filter allows for the quick elimination of feedback frequencies. With its delay line function, you can compensate for distances up to 10 meters/33 feet, a valuable feature when using multiple loudspeakers in FOH mode.

Key Features

• Compact high-performance stage monitor with top-of-the-range technologies
• Class-D power amplifier with 300W RMS/1200W peak and 121 dB max. SPL

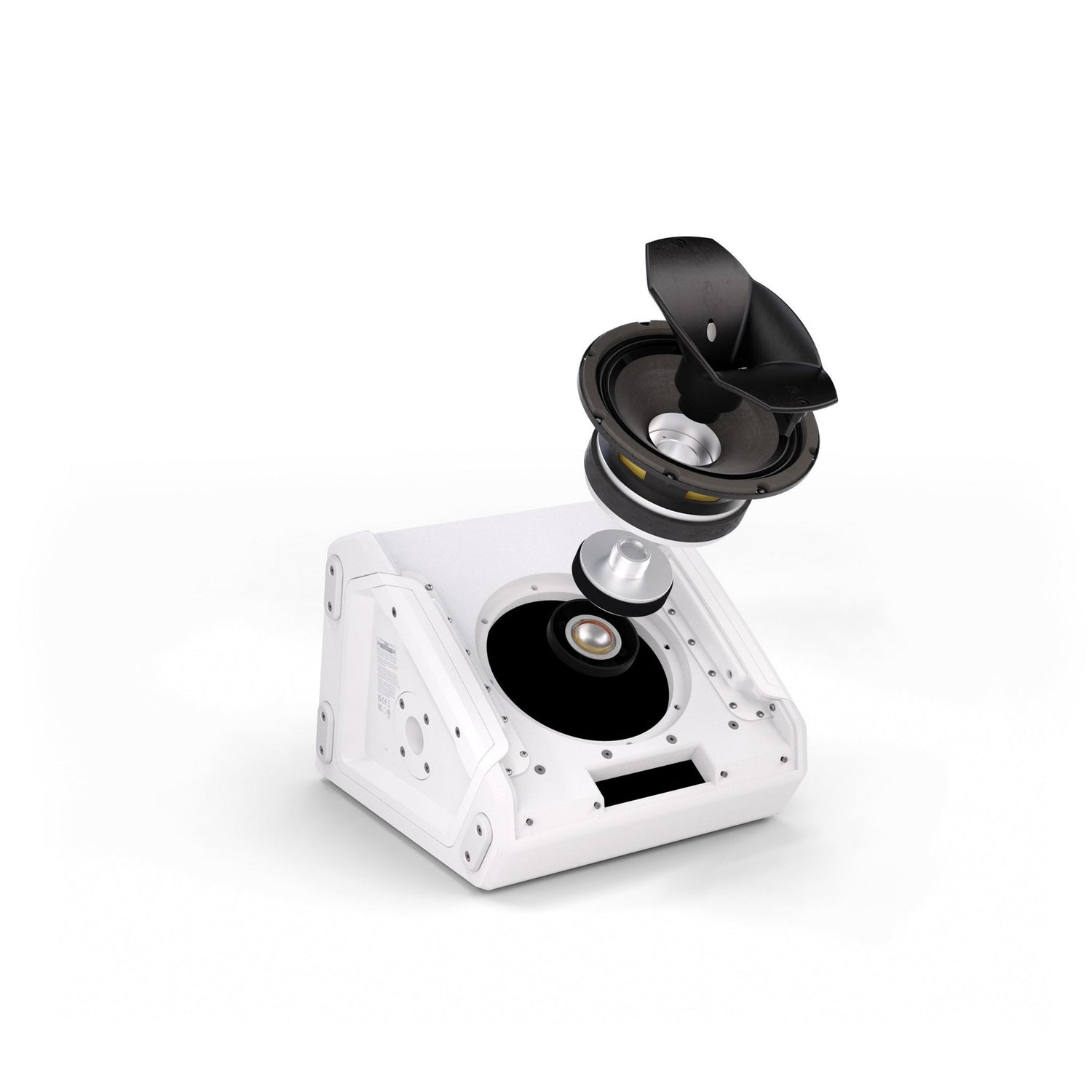

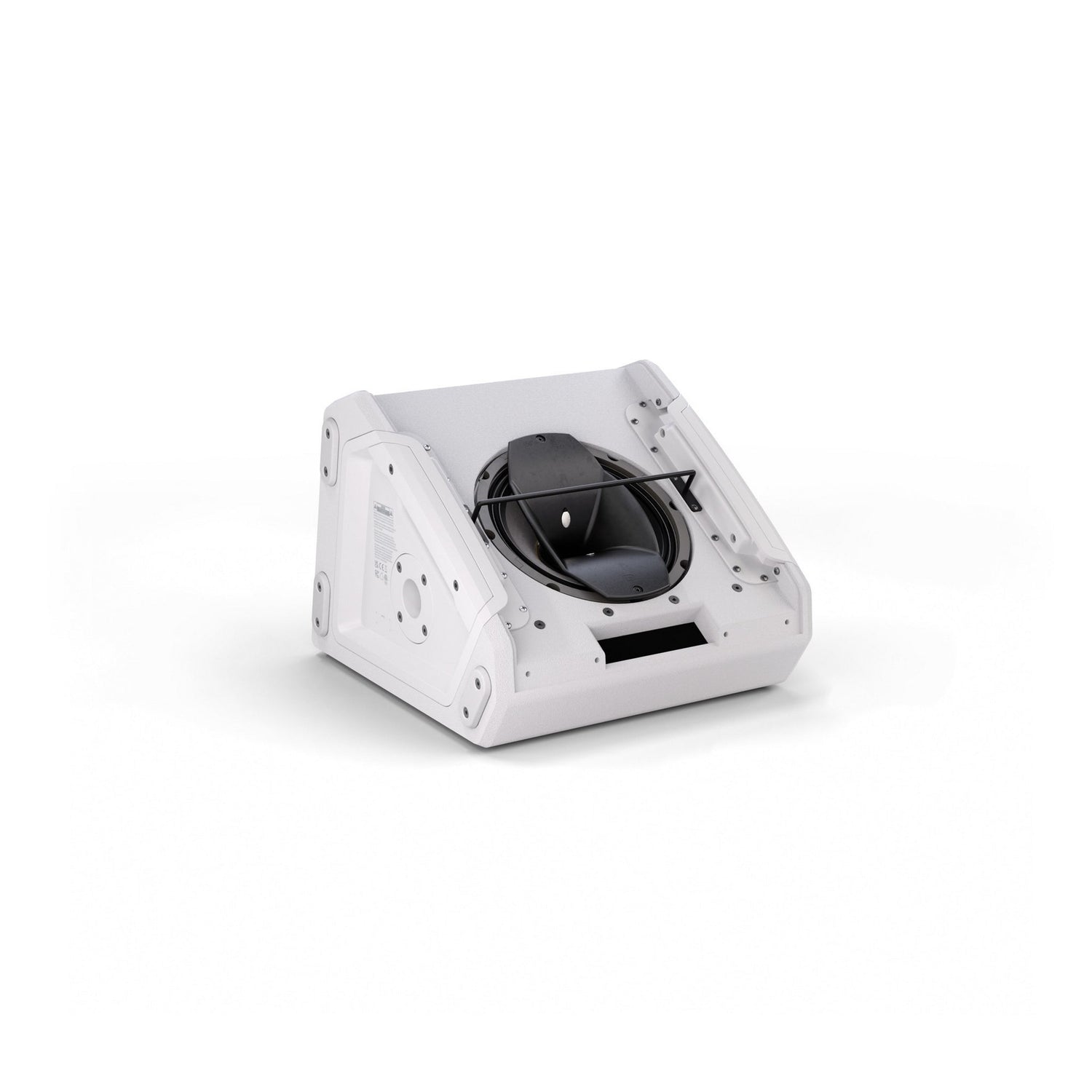

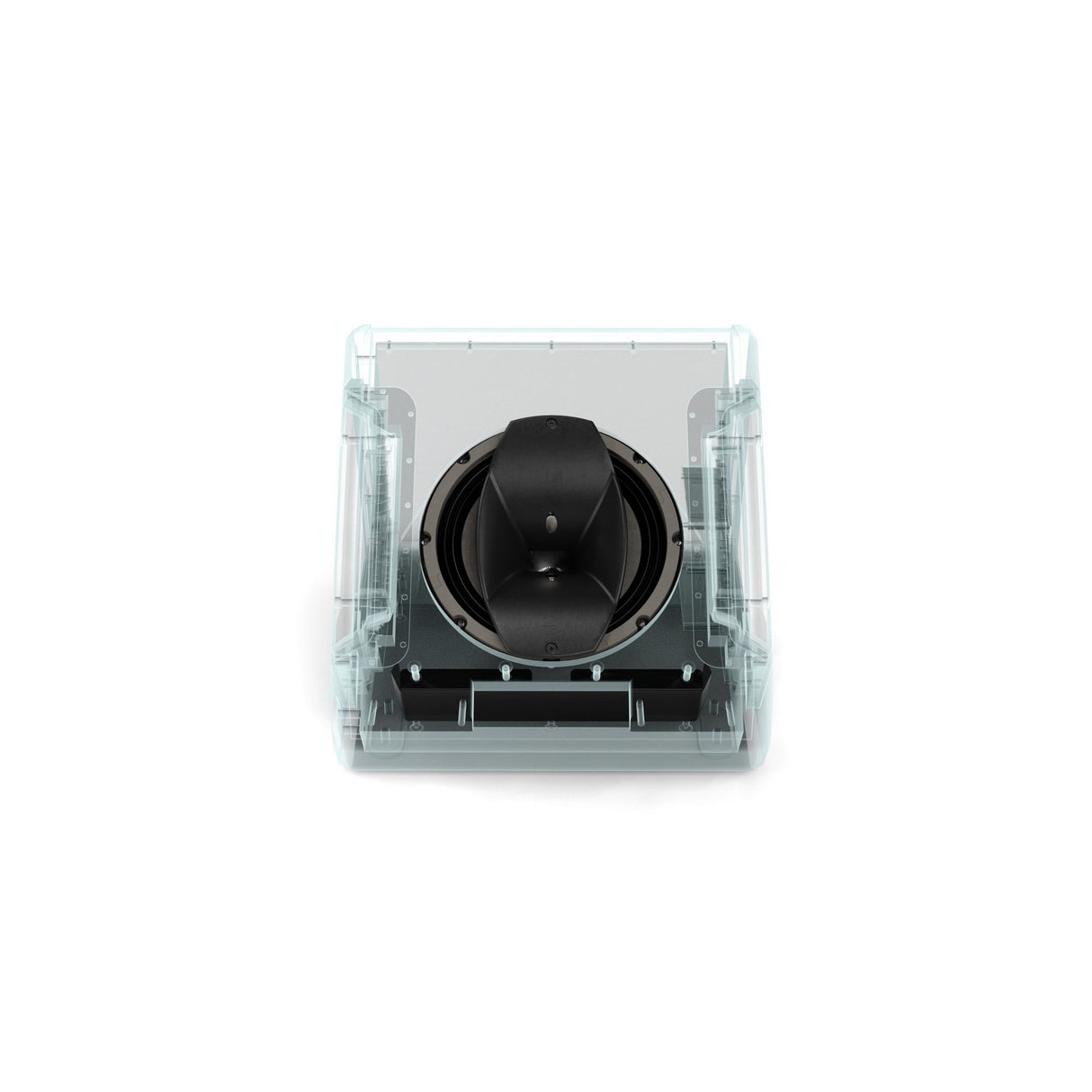

• Coaxial design for true point source with a 1.75-inch titanium-diaphragm HF driver
• 8-inch woofer with 2.5-inch voice coil
• Optimized, practical radiation pattern due to 50° x 90° CD horn
• DynX DSP (Gen.2) for distortion-free sound even at maximum volume
• 3-band EQ, Notch filter, 4 application presets, and delay function

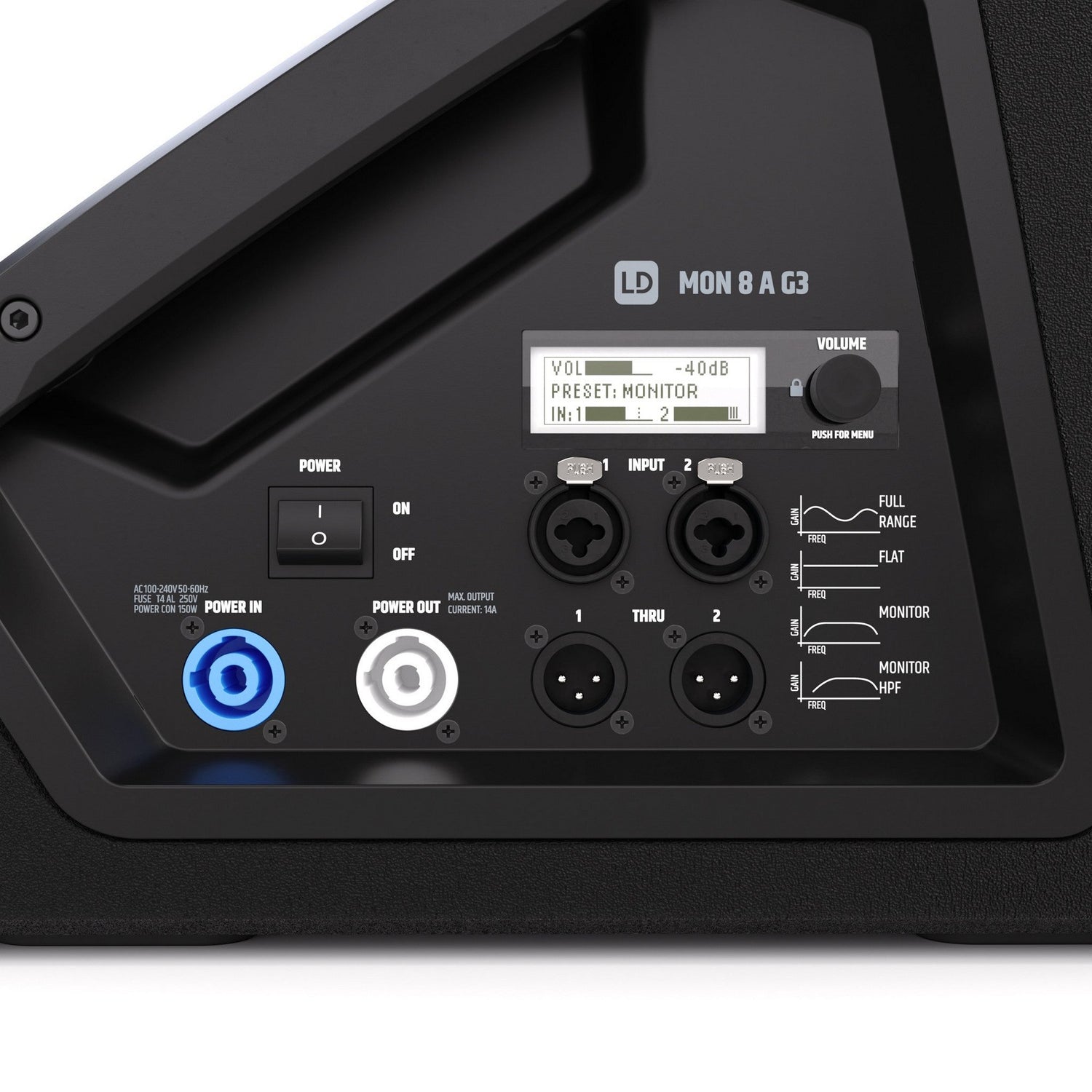

• PowerCON compatible loop-through professional power connection

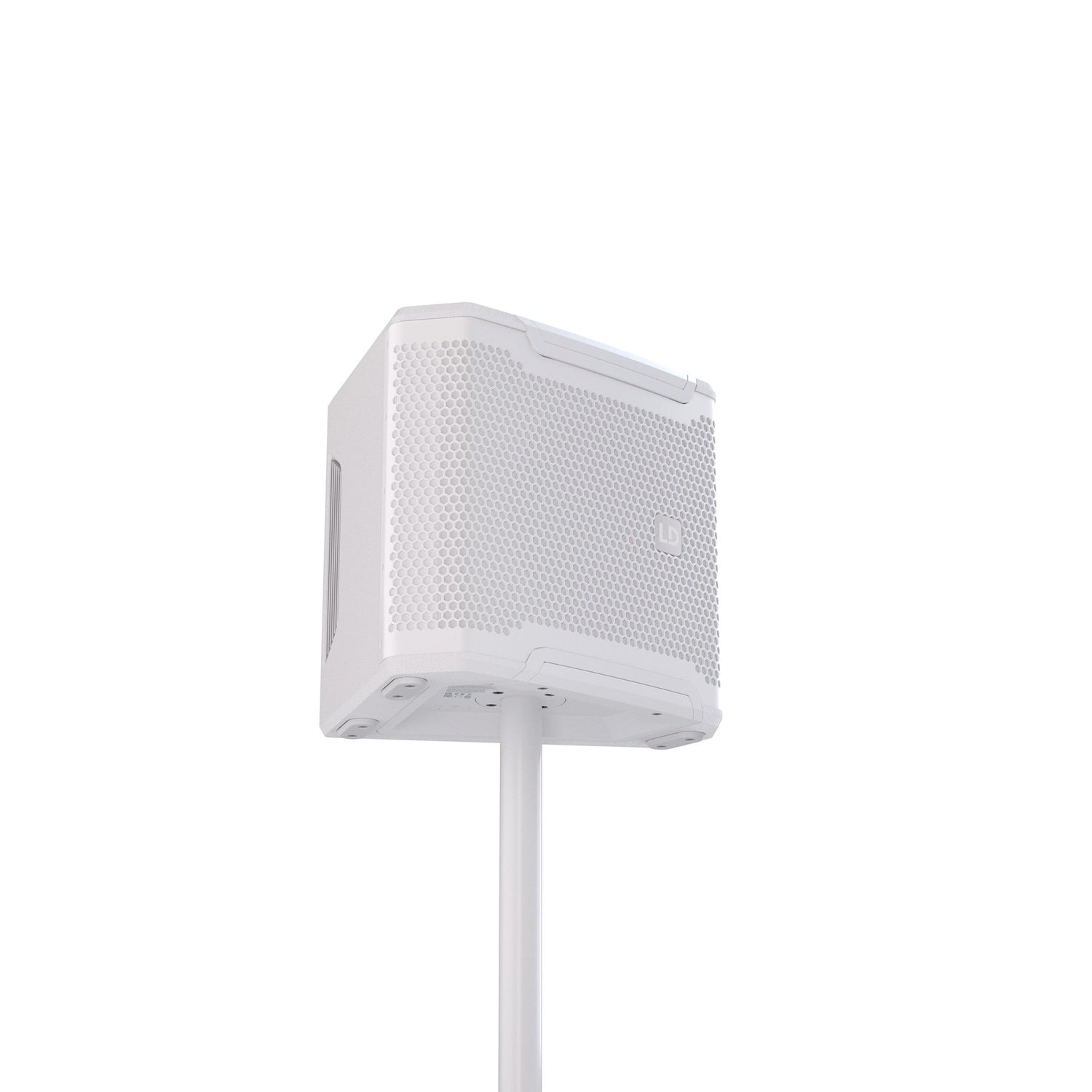

• 35 mm speaker stand flange for FOH applications
• Durable Polyurea coating and heavy-duty front grille

Specifications

• Product type: Stage monitors
• Type: Powered
• Color: Black, White
• System output (RMS): 300W
• System output (Peak): 1200W
• Max. SPL Average (Sine burst): 116 dB (100Hz - 12 kHz, full-space @1m, 10% THD)
• Max. SPL Peak (Sine burst): 121 dB (full-space @1m, 10% THD)
• Freq. response (-3 dB): 68 Hz - 18000 Hz
• Freq. response (-10 dB): 59 Hz - 20000 Hz
• Crossover freq.: 2500 Hz
• Monitor angle: 33°
• Dispersion (H x V): 50° x 90°
• Width: 340 mm
• Depth: 368 mm
• Height: 278 mm
• Features: 3-band EQ (High, Mid, Low), 4 application presets, delay line, notch filter
• Weight: 13.2 kg

Package Contents

• LD Systems MON 8 A G3 8-Inch Powered Coaxial Stage Monitor
• User Manual
