Condition: New
Description
Leader LV5600 Hybrid-Type Waveform Monitor and Rasterizer, Mainframe Only

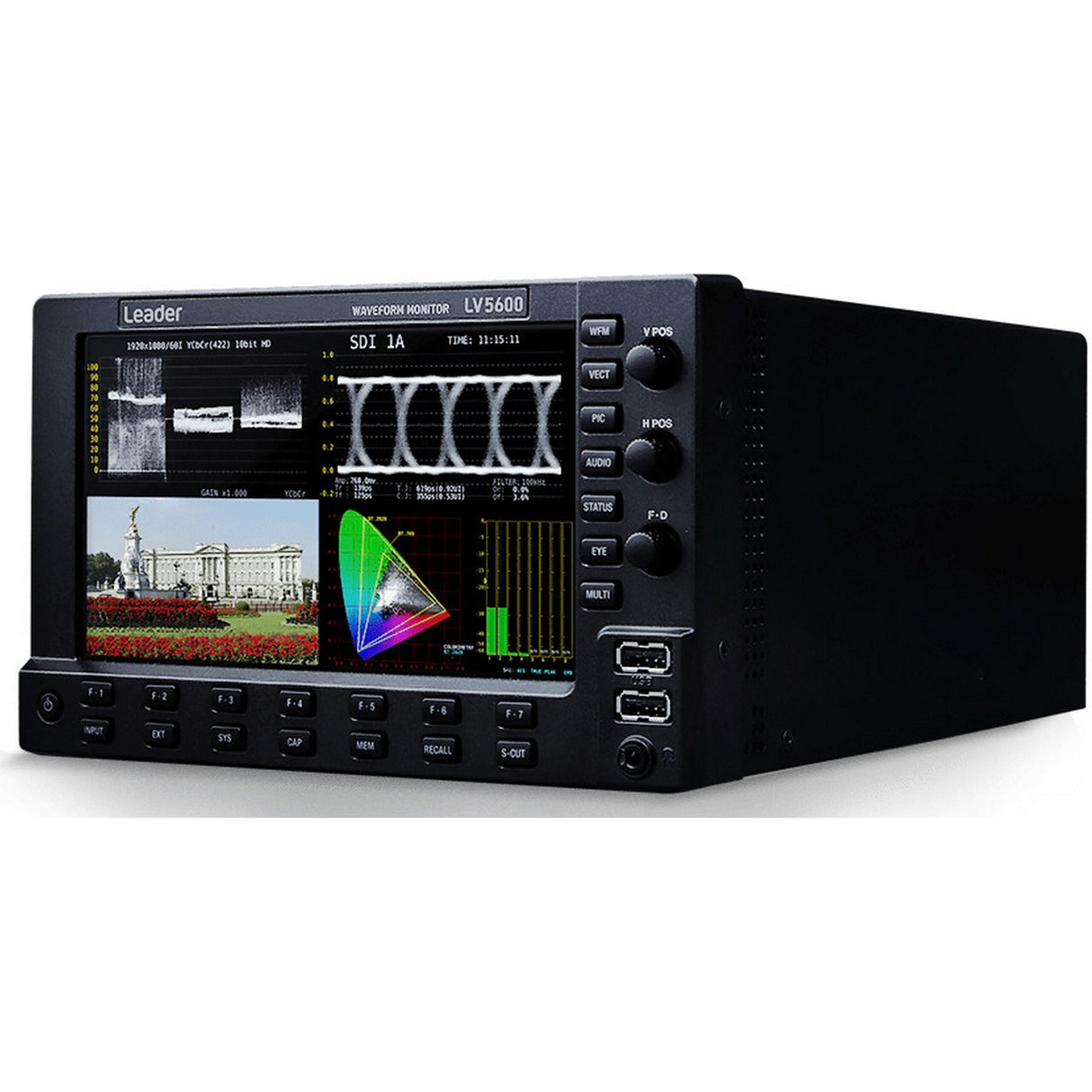

The Leader LV5600 is a hybrid-type waveform monitor and rasterizer compatible with 4K/HD/SD-SDI signal and HD/SD IP signal. The LV5600 is a waveform monitor with a 7-inch touch screen display in a compact 3 U enclosure with built-in AC power supply. Selection of necessary input signals and functions from various options, and customization to the specification that fits your purpose are possible.
Please note! Each unit must be configured with at least one of the following options: SER01, SER02, SER05, SER06.
It is strongly suggested that you consider all the options you may need right now or in the future and have them installed during the initial build. Upgrades are possible but would require the unit to be sent back to the manufacturer and is not considered optimal. ALL PHYSICAL INPUTS SHOULD BE ORDERED AT THE TIME OF INITIAL PURCHASE.
The basic mainframe comes with 2 (two) Loop-Thru external reference BNC connectors, an RJ45 Ethernet port, a 15 pin D-sub connector for external remote control, an SDI and HDMI output port and a 3 prong IEC connector for AC power. A 3 prong IEC cable is included with the unit.
All rear images are for reference only! There are NO installed Inputs unless ordered as an option.
Key Features
- Supports various signal inputs - It'supports SD-SDI, HD-SDI, 3G-SDI, 12G-SDI single link, 3G-SDI dual link and quad link, HD-SDI quad link, IP (video over IP)
- Excellent operability - The LV5600 adopts a 7-inch full HD panel with a touch panel function
- Eye pattern display - From SD-SDI to 12G-SDI In the physical layer measurement of the SDI signal some eye pattern display, jitter display is possible
- Customizable layout - Various items such as video signal waveforms, vector waveforms, and pictures of input signals can be laid out in any position with your favorite size
- SDI signal generation function - SDI signal generation function can handle from HD-SDI to 12G-SDI
- HDR - The HDR signal level monitoring and the level management at the assumed luminance (cd /m2) in a display considering OOTF are possible
- Focus Assist - We developed a new focus detection algorithm based on nonlinear super-resolution technology; accordingly, the focus with high sensitivity can be detected even with low-contrast images, which were conventionally difficult to detect
