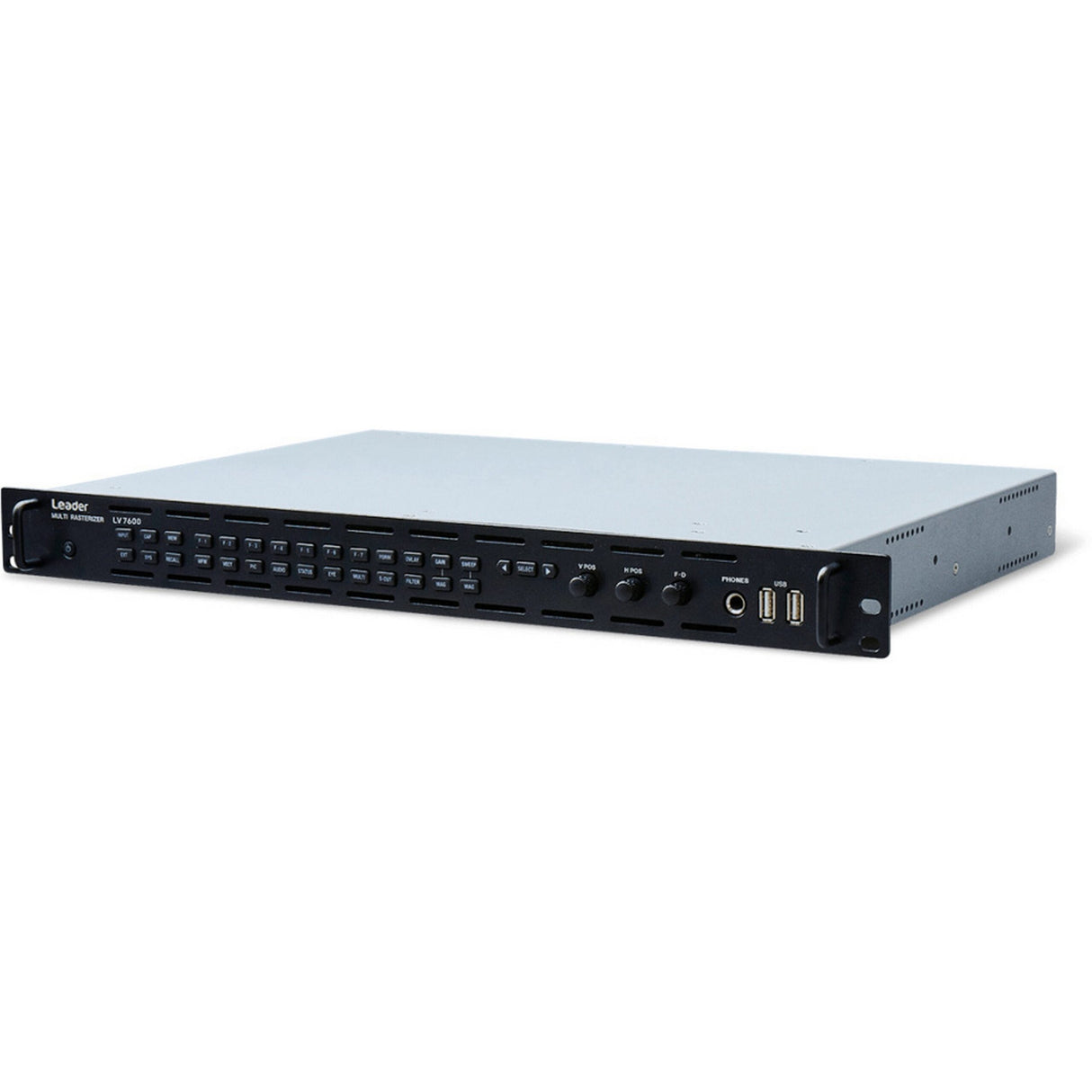

Leader LV7600 Hybrid-Type Waveform Monitor and Rasterizer, Mainframe Only

Leader LV7600 Hybrid-Type Waveform Monitor and Rasterizer, Mainframe Only

The Leader LV7600 is a hybrid-type waveform monitor and rasterizer compatible with 4K/HD/SD-SDI signal and HD/SD IP signal. The LV7600 is a rasterizer with the same function as the LV5600 in a 1U full rack enclosure. Selection of necessary input signals and functions from various options, and customization to the specification that fits your purpose are possible.

SDI signals up to 12G-SDI and IP (video over IP) signals can be observed/monitored. Audio signals can correspond to SDI embedded Audio, Audio multiplexed to IP, external input AES/EBU, analog Audio.

The IP signal corresponds to the video signal of the 2K video format at SMPTE ST 2022-6 (non-compression) and SMPTE 2110-20 (non-compression). In 2K video format, up to 2 channels can be received with one 10 Gbit Ethernet cable.

With the front panel equipped with key buttons and knobs that follow the operability of conventional models, operation with a USB mouse is also possible. In addition, the LV5600 adopts a 7-inch full HD panel with a touch panel function, and the LV7600 can be operated and set intuitively by touch operation by connecting an external LCD adopted touch panel with a USB cable. * It does not guarantee the operation with the external LCD monitor adopted by all touch panels.

Various video signals include video signal waveform display, vector display, picture display 5 BAR display, CIE chromaticity diagram display, etc. In addition to the various displays, freeze error, Black error, gamut error detection Functions etc. Quality control (QoE) of video signals Features are equipped.

Key Features

• It'supports SD-SDI, HD-SDI, 3G-SDI, 12G-SDI single link, 3G-SDI dual link and quad link, HD-SDI quad link, IP (video over IP).
• Eye pattern display from SD-SDI to 12G-SDI
• Various items such as video signal waveforms, vector waveforms, and pictures of input signals can be laid out in any position with your favorite size.
• SDI signal generation function
• SDI signal generation function can handle from HD-SDI to 12G-SDI.
• The HDR signal level monitoring and the level management at the assumed luminance (cd /m2) in a display considering OOTF are possible.
• Leader developed a new focus detection algorithm based on nonlinear super-resolution technology; accordingly, the focus with high sensitivity can be detected even with low-contrast images, which were conventionally difficult to detect.

Technical Specifications

External synchronize input terminal
Input
terminal BNC terminal
Number of input terminals
1 line 2 terminals
Input
impedance 15 kΩ Passive loop through
Input
return loss 30 dB or more (50 kHz to 30 MHz, 75 Ω termination)
Maximum input voltage
± 5 V (DC + peak AC)
Input signal
Ternary synchronization signal or NTSC/PAL black burst signal, 10 Field ID correspondence
Function
SDI reference signal input for video signal waveform display and phase difference display, Waveform display of external synchronization signal
Headphone output terminal
Output terminal
Standard jack 1 terminal (stereo)
Output signal
On the screen of the displayed audio signal, arbitrary 2 ch (Downmixed Lt, Rt is also acceptable)
SDI output terminal
Function Output screen for SDI monitor
Output terminal BNC terminal
Number of output terminals
1
Output signal
Output liquid crystal display screen is output with HD, 3G-A, 3G-B-DL.
1920x1080 60, 59.94, 50 I/P, YCBCR 4:2:2 (10 bits)
TMDS output terminal
Function The displayed screen is output for HDMI monitor.
Output terminal HDMI terminal
Number of output terminals 1
Signal format Single Link T.M.D.S
DDC function Not supported
HOT PLUG detection function Not supported
Output signal Output liquid crystal display screen is output.
1920x1080 60 P, 59.94 P, 50 P
Control terminal
USB terminal
Terminal shape
Standard A
Number of terminals
2
Standard USB 2.0
Compatible device
USB memory, USB mouse, touch panel type monitor
For Ethernet terminal control
Approved standard IEEE802.3
Supported protocols
TELNET, FTP, SNMP, HTTP, SNTP
Input/output terminals
RJ-45
Function Remote operation with an external PC or remote controller, File transfer, get status information
Types 10Base-T, 100Base-TX, 1000Base-T
Remote terminal
Terminal
shape D Sub 15 pins (female)
Number of terminals
1
Control signal
LV- TTL level (LOW active)
Function
Preset recall, input signal switching, alarm output, tally
Alarm output
When a format alarm, various errors, fan abnormality, or internal temperature occurs
Dimensions
16.77-inch x 1.73-inch x 11.81-inch (426 (W)x44 (H)x300 (D) mm)
