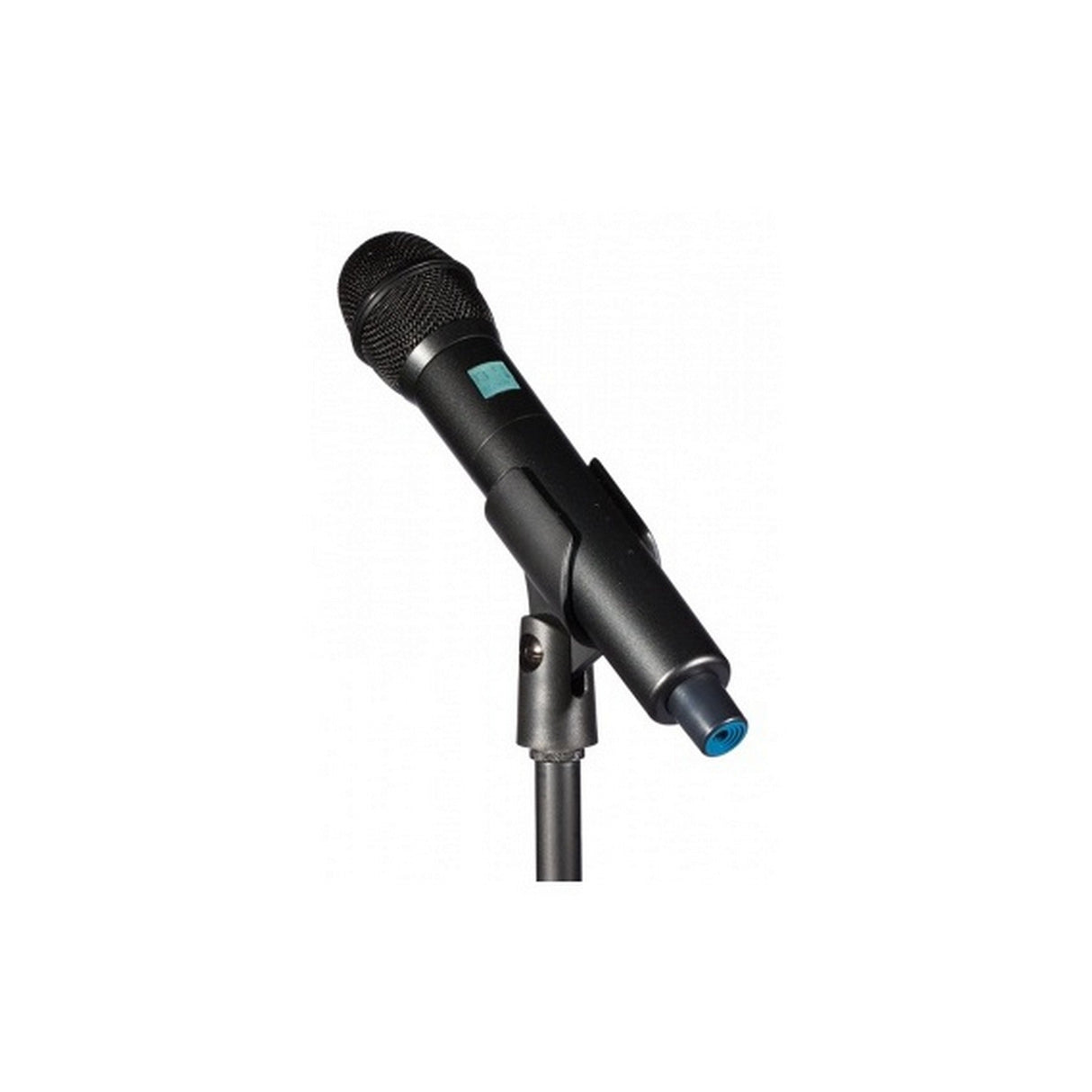

Lectrosonics HHa Handheld Transmitter Shown, A1 470.100 - 537.575 MHz

The HHa Digital Hybrid Wireless handheld transmitter represents an elegant solution for a variety of wireless microphone applications including live performance, broadcast, AV rental and houses of worship. The HHa incorporates many advanced features to provide high-quality speech and vocal reinforcement. Along with providing peerless audio quality with wide frequency response and dynamic range in 400 Series and Nu Hybrid Modes, the technology used in the HHa includes compatibility modes for Lectrosonics 200 Series, 100 Series, Mode 3, IFB receivers and some systems from other top manufacturers. Newer Digital Hybrid transmitters only have NUHYB, IFB and Mode 3

Key Features

• Up to 76 MHz tuning range in 25 or 100 kHz steps (bands A1, B1)
• 941 band offers 695 frequencies over 19 MHz tuning range with 25 kHz steps
• Digital Hybrid Wireless® Technology
• Standard thread-on capsules
• Membrane switch and LCD interface
• AA battery power
• Selectable RF power at 10 (export only), 25, 50 (export only) and 100 mW
• Talkback feature
• IR (Infrared) Port for fast setup
• Capsule sold separately

Technical Specifications

Operating Frequencies
Band A1
470.100 - 537.575
Band B1
537.600 - 607.950
Compatibility Modes
Nu Hybrid, IFB, Mode 3
RF Power output
Selectable 50 or 100 mW
Pilot tone
25 to 32 kHz
Frequency stability
± 0.002%
Spurious radiation
Compliant with ETSI EN 300 422-1
Operating temperature range
-20° C to +50° C
Input compressor
Dual envelope compressor, >30 dB range
Gain control range
45 dB; semi-log menu-driven control; 1 dB steps
Modulation indicators
Dual bicolor LEDs indicate modulation of -20, -10, 0 and +10 dB referenced to full modulation, LCD bar-graph indicator
Frequency response
40 Hz to 20 kHz (+/- 1dB)
Low frequency roll-off
-3 dB @35, 50 and 70 Hz; selectable; 12 dB/octave (varies slightly with selection)
External Programmable
Mute/talkback button
Internal control panel
Power, Side Button Setup, MENU/SEL, BACK and Up/Down arrow buttons for menu item
Battery
2x AA with polarity protection and battery ejector
Battery life
At 100mW
5.5 hours (Duracell Ultra alkaline) (The HH transmits battery status to Lectrosonics Digital Hybrid Wireless® receivers.)
Capsule Interface
1.25” opening and 28 thread pitch
Power available
5V, 25 mA max
Input impedance
1000 Ohms
Weight
12.1 oz. (343.029 grams) with batteries and HHC capsule
Dimensions
9.5” long x 1.97” diameter at largest point
241.3 long x 50.038 mm diameter at largest point
Emission Designator
A1 39K7F3E
B1 57K9F3E
Included Accessories
1 - CCHH Zippered pouch
1 - 13585 mic clip
1 - P1298 anti-roll sleeve
2 - AA Batteries

Interchangeable Capsules
Lectrosonics offers the HHC cardioid condenser capsule. Thread-on capsules from other manufacturers using a 1.25” opening and 28 thread pitch can also be used, including those from manufacturers such as EV, Shure®, Heil SoundTM, Telefunken® and others.*

The following capsules are known to fit properly and have the correct current draw/audio connections to work with the HH:

Lectrosonics
HHC cardioid condenser element
HHVMC cardioid condenser element with VariMic™ tone controls

Shure®
RPW110 capsule head with PG58 silver dynamic element
RPW112 capsule head with SM58 silver dynamic element
RPW114 capsule head with SM86 silver condenser element
RPW116 capsule head with SM87A black condenser element
RPW118 capsule head with Beta 58A dynamic element
RPW120 capsule head with Beta 87A silver condenser element
RPW122 capsule head with Beta 87C silver condenser element
RPW124 capsule head with VP68 black omni condenser element
RPW170 capsule head with KSM8 silver Dualdyne cardioid dynamic
RPW174 capsule head with KSM8 black Dualdyne cardioid dynamic
RPW180 capsule head with KSM9 champagne switchable cardioid/supercardioid condenser
RPW184 capsule head with KSM9 black switchable cardioid/supercardioid condenser
RPW182 capsule head with KSM9HS champagne switchable wide cardioid/hypercardioid condenser
RPW186 capsule head with KSM9HS black switchable wide cardioid/hypercardioid condenser

EV®
RC2-767 - Supercardioid dynamic N/D767a
RC2-967 - Supercardioid dynamic N/D967
RC2-PL80a - Supercardioid dynamic PL80a
RC2-410 - Cardioid condenser RE410
RC2-510 - Supercardioid Condenser RE510
ND76-RC3 - Wireless head with ND76 dynamic cardioid capsule
ND86-RC3 - Wireless head with ND86 dynamic supercardioid capsule
ND96-RC3 - Wireless head with ND96 dynamic supercardioid capsule
RE420-RC3 - Wireless head with RE420 condenser cardioid capsule
RE520-RC3 - Wireless head with RE520 condenser supercardioid capsule

Heil Sound™
RC35

Earthworks®
WL40V - cardioid condenser element

Audix®
(all Audix capsules require a Sound Tools audix2shure adapter)T363-CA capsule assembly with OM3 dynamic element)
T365-CA capsule assembly with OM5 dynamic element
T366-CA capsule assembly with OM6 dynamic element
T367-CA capsule assembly with OM7 dynamic element

DPA®
d:facto II

Neumann®
(all Neumann capsules require an adapter - see below)
KK104-S cardioid condenser element (requires Ambient HHA adapter set at 15V)
KK105-HD supercardioid condenser element (requires Ambient HHA adapter set at 15V)
KK105-S supercardoid condenser element (requires Ambient HHA adapter set at 15V
KK204 cardioid condenser element (requires Lectrosonics HH2SEN adapter)
KK205 supercardioid condenser element (requires Lectrosonics HH2SEN adapter)

Sennheiser®
(all Sennheiser capsules require an adapter - see below)
MD5235 dynamic cardioid element (requires Ambient HHA adapter)
ME5002 omni condenser element (requires Ambient HHA adapter set at 7V)
ME5004 cardioid condenser element (requires Ambient HHA adapter set at 7V)
E5005 supercardioid condenser element (requires Ambient HHA adapter set at 7V)
ME5005-E supercardioid condenser element optimized for live sound applications (requires Ambient HHA adapter set at 7V)
ME5009 wide cardioid condenser element (requires Ambient HHA adapter set at 7V)
MMD835-1 cardioid dynamic element (requires Lectrosonics HH2SEN adapter)
MMD845-1 supercardioid dynamic element (requires Lectrosonics HH2SEN adapter)
MME865-1 supercardioid condenser element (requires Lectrosonics HH2SEN adapter)
MMD935-1 cardioid dynamic element (requires Lectrosonics HH2SEN adapter)
MMD945-1 supercardioid dynamic element (requires Lectrosonics HH2SEN adapter)
MME965-1 dual pattern condenser element (requires Lectrosonics HH2SEN adapter)

Telefunken®
M80 WH
M81 WH
