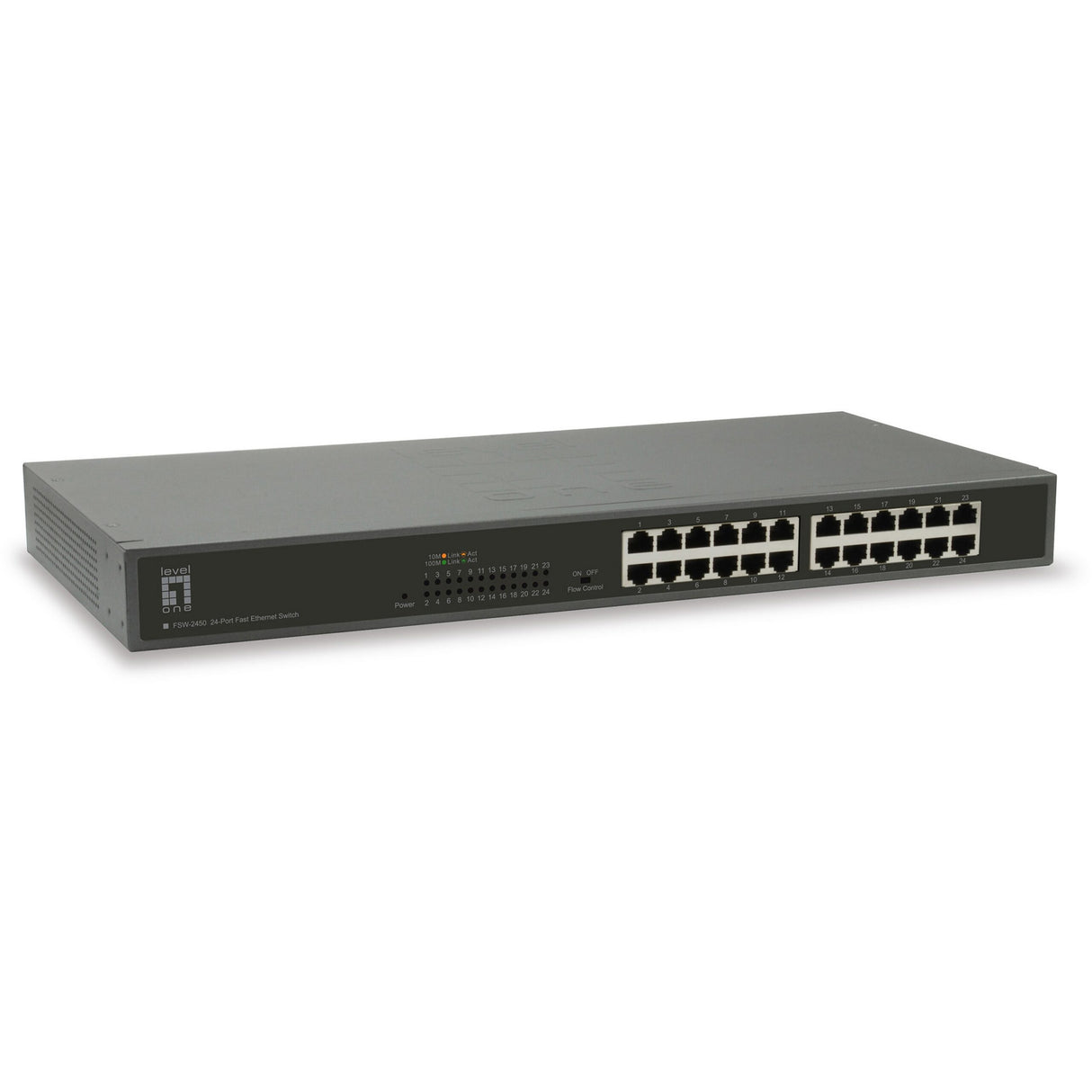

LevelOne FSW-2450 24-Port Fast Ethernet Switch
LevelOne FSW-2450 24-Port Fast Ethernet Switch
LevelOne FSW-2450 24-Port Fast Ethernet Switch
The LevelOne FSW-2450 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices.
Key Features
- Provides flexibility of 24 x 10/100BASE-TX ports
- 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
- Supports 8K MAC address auto-learning and auto-aging
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 19-inch metal housing
Technical Specifications
Standards
IEEE802.3(10BASE-T)
IEEE802.3u(100BASE-T)
IEEE802.3az Energy Efficient Ethernet
Buffer Memory
2MB
Port
24 x 10/100BASE-TX RJ45 ports
Indicator
Power, LINK/ACT
Transmission Method
Store- froward
Power Input
100-240V/AC?50-60Hz
Power Consumption
6.6W
Backplane (Gbps)
4.8Gbps
MAC Address Table
8K
Power Saving
YES
Operating Temp
32 to 122F (0 to 50C)
Storage Temp
-40 to 158F (-40 to 70C)
Humidity
Operating: 10 to 90% Storage: 5 to 95% (non-condensing)
General
24 x 10/100BASE-TX RJ45 ports
Packet Forwarding Rate
14880pps
Jumbo Frame (K)
2KB
Dimensions (WxDxH)
17.36 x 8.19 x 1.73" (441 x 208 x 44mm)
Approval and Compliance
EMI/EMS: CE/FCC
Item Includes
x1 FSW-2450
x1 Power Cord
x1 19" Rack Mount Kit
