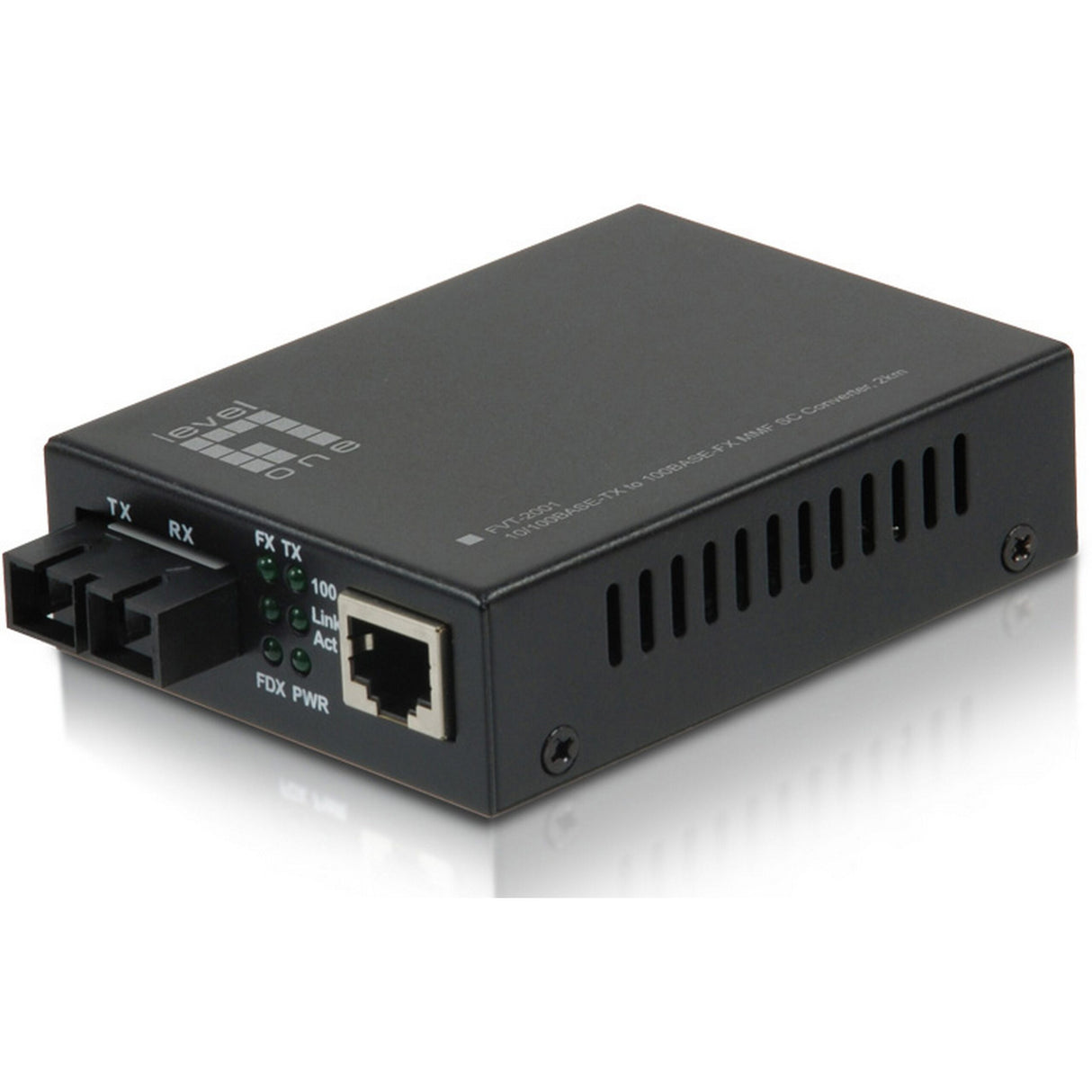

LevelOne FVT-2001 RJ45 to SC Fast Ethernet Media Converter

The LevelOne FVT-2001 MMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in multi-mode with fibre-optic cabling, this can extend a network range up to 2km.

Key Features

• Transfers data from 10/100Base-TX copper to fiber interfaces
• Multi-mode fiber with SC connector for transmission of up to 2km
• Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology
• IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
• Dip switches for customized configuration
• Supports low-time lag transmission
• Supports the transmission of extra-long packets up to 1.6KB
• -10C to 55C operating temperature range

Technical Specifications

Standards & Protocols
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3x Flow Control (full-duplex flow control)
Port
1x 100Base-FX Multi-mode duplex SC
Fiber cable
50/125um, 62.5/125um
1x 10/100Base-TX RJ-45 Port, auto MDI/MDI-X and Auto-Negotiation
Indicator
PWR, TX (FDX, 100, Link/Act), FX (100, Link/Act)
Wavelength (nm)
1310nm
Transmission Method
Store and forward (Default)
Power Input
DC 5V/1A
Operating Temp
-40 to 167F (-40 to 75C)
Storage Temp
14 to 131F (-10 to 55C)
Humidity
5 to 90% (non-condensing)
Mount
Desk, chassis mounted
DIP Switch 1
LFP function
DIP Switch 2
Transmission Mode
DIP Switch 3
Auto/Force the UTP port work mode
DIP Switch 4
10/100M for UTP port
DIP Switch 5
Full/Half Duplex mode for UTP port
DIP Switch 6
Normally close
Operating Distance
2KM
Dimensions (WxDxH)
2.79 x 3.70 x 1.02" (71 x 94 x 26mm)
Weight
0.92Lbs (420g)
MTBF
100,000 hours
Approval and Compliance
EMI/EMS: FCC, CE, RoHS
Item Includes
x1 FVT-2001
x1 Power Adapter
x1 Quick Installation Guide
