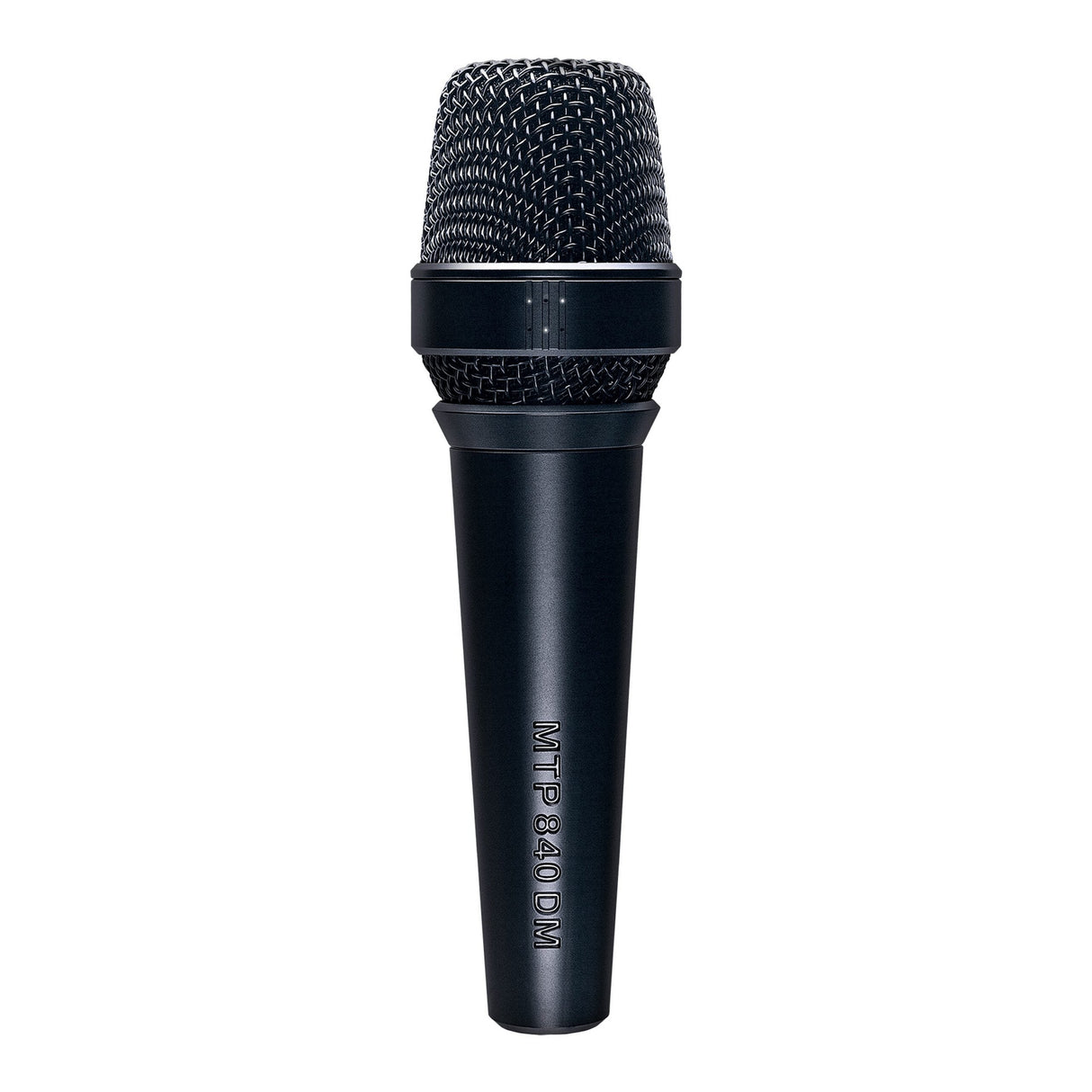

Lewitt MTP 840 DM Handheld Dynamic Supercardioid Vocal Microphone for Stage and Studio

Lewitt | SKU: LEW-MTP840DM
$26900

Free Shipping

Estimated Shipping Widget will be displayed here!

Condition: New


Lewitt MTP 840 DM Handheld Dynamic Supercardioid Vocal Microphone for Stage and Studio

Versatility and durability, plus optimal suitability for punishing touring conditions with no compromises on sound: this is what the MTP 840 DM stands for. Its excellent transient response, refined electronics, and superior capsule design make the MTP 840 DM a unique tool for onstage use. Innovatively designed circuitry and the highest-quality components make for exceptionally low self-noise and a maximum of dynamic range when in Active Mode, and the frequency curve, - which is specially tailored for vocal recordings - provides the ultimate in sound quality. A three-step low-cut filter directly influences the proximity effect, permitting adaptation of the mic to individual preferences. The built-in three-position switchable amplifier, is specially adapted to the MTP 840 DM’s components, allowing lossless recording of even far-off sources. A supercardioid polar pattern provides maximum protection against feedback, and the flexibly suspended capsule reduces structure-borne noise to a minimum. The MTP 840 DM transports the artist’s voice in a powerful way, lending it the necessary presence without falsifying its individual character.

Technical Specifications

Type
Dynamic, moving coil
Acoustical operating principle
Pressure gradient transducer
Polar pattern
Supercardioid
Frequency range
40 ... 18,000 Hz
Sensitivity
3.5 mV/Pa, -49 dBV/Pa
Signal / noise ratio
75 dB (A)
Equivalent noise level
19 dB (A)
Dynamic range, passive mode
135 dB
Dynamic range, active mode
121 dB, 0 dB gain
115 dB, 6 dB gain
109 dB, 12 dB gain
Gain settings, active mode
0 dB, 6 dB, 12 dB
Low-cut filter
linear
150 Hz (12 dB/oct)
250 Hz (12 dB/oct)
Internal impedance
600 OHM
Rated load impedance
1,000 OHM
Supply voltage
48 V +/- 4 V
Current consumption
5.5 mA
Connector
Gold plated 3-pin XLR
Microphone dimensions
51 dia. x 183 mm, 2 dia. x 7.2 in
Microphone net weight
336 g, 11.85 oz
