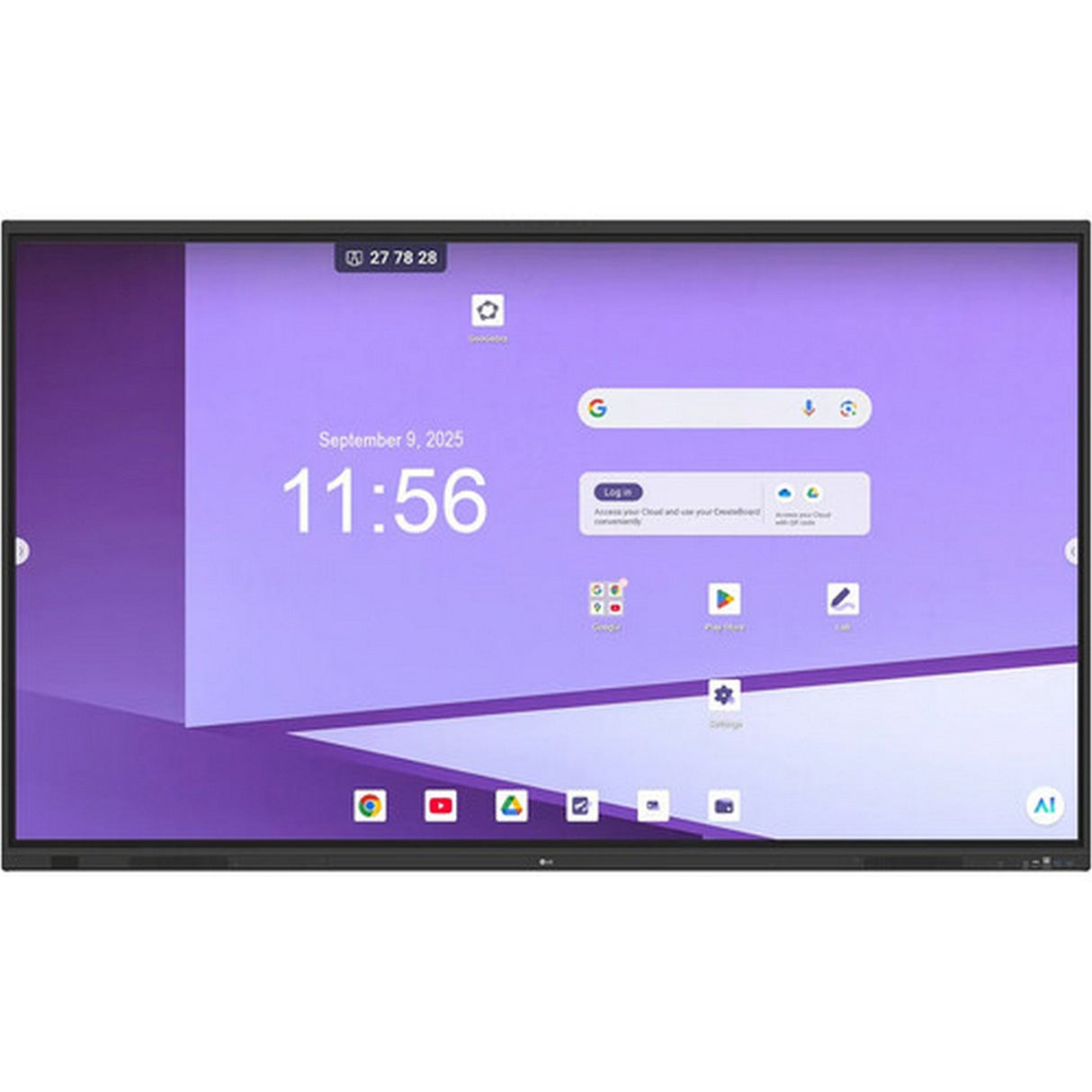

LG 86TR3DQ-B CreateBoard Standard Interactive Display, 86-Inch

LG 86TR3DQ-B CreateBoard Standard Interactive Display, 86-Inch

The LG 86TR3DQ-B CreateBoard Standard interactive display is an 86-inch 4K UHD smart board for classrooms, training rooms, conference spaces, and collaborative AV environments. It combines a large IPS touchscreen, Android 14 EDLA, 50-point multi-touch control, wireless sharing, built-in audio, and professional connectivity for interactive teaching and presentations.

This 86-inch interactive display is built for teams that need a commercial touchscreen for lessons, meetings, brainstorming, and hybrid collaboration. Users can write, draw, share content, run supported apps, and manage multiple windows on a large-format display designed for education and business spaces.

With Google-certified Android operation, Wi-Fi 6E, Bluetooth 5.3, Gigabit LAN, and OPS slot compatibility, the 86TR3DQ-B fits modern collaboration workflows. Its 4K UHD resolution, anti-glare safety glass, front-facing speakers, subwoofer, and built-in microphone support reliable communication in professional installations.

86-Inch 4K UHD CreateBoard Smart Board

• 4K UHD Resolution: Displays content at 3840 x 2160 for crisp text, detailed visuals, and clear shared materials.
• 50-Point Multi-Touch: Supports group interaction with up to 50 simultaneous touch points.
• Android 14 EDLA: Provides a Google-certified operating environment for compatible apps and collaboration tools.
• CreateBoard Share: Supports screen sharing for collaborative presentations and group work.
• Built-In Microphone: Includes an integrated 8-microphone system for meeting and classroom communication.
• Front Speaker and Subwoofer: Delivers built-in sound with two front speakers and a dedicated subwoofer.
• Wireless Connectivity: Includes Wi-Fi 6E and Bluetooth 5.3 for modern device and network connections.
• OPS Slot Compatible: Supports compatible OPS modules for expanded PC functionality without an external desktop.

LG 86TR3DQ-B Technical Specifications

• Model: 86TR3DQ-B
• Product Type: Interactive display / smart board
• Series: LG CreateBoard Standard
• Screen Size: 86"
• Panel Technology: IPS
• Backlight Type: Direct
• Aspect Ratio: 16:9
• Native Resolution: 3840 x 2160 UHD
• Refresh Rate: 60Hz
• Brightness: 400 nits typical
• Contrast Ratio: 1200:1
• Dynamic Contrast Ratio: 5000:1
• Color Gamut: NTSC 72%
• Viewing Angle: 178° x 178°
• Color Depth: 8-bit + FRC, 1.07 billion colors
• Response Time: 8ms
• Surface Treatment: 25% haze
• Lifetime: 50,000 hours minimum
• Operation Hours: 16/7
• Orientation: Landscape
• Operating System: Android 14 EDLA
• CPU: Octa-core A73 x 4 + A53 x 4
• GPU: Mali-G52 MP8
• RAM: 8GB
• Storage: 64GB
• Internal Memory: 64GB eMMC
• Wi-Fi: 802.11 a/b/g/n/ac/ax Wi-Fi 6E
• Bluetooth: Bluetooth 5.3
• LAN: Gigabit LAN
• HDMI Input: 3, including 1 front and 2 rear
• DisplayPort Input: 1
• RGB Input: 1 VGA
• Audio Input: 1
• RS-232C Input: 1
• RJ45 LAN Input: 1
• USB Input: 5 x USB 3.0 Type-A, 1 x USB 2.0 Type-A, 2 x USB Type-C
• USB-C Power Delivery: Up to 65W without OPS, with DisplayPort Alt Mode
• HDMI Output: 1
• Audio Output: 1 analog audio output, 1 optical SPDIF output
• Touch USB: 3, including 1 front and 2 rear
• RJ45 LAN Output: 1
• Built-In Speakers: 20W x 2 plus 20W subwoofer
• Built-In Microphone: 8 microphones
• Multi-Touch Points: Maximum 50 points
• Touch Object Size: 0.08" diameter and larger
• Writing Height: 0.08" or less
• Touch Response Time: 5ms or less
• Touch Accuracy: ±0.04"
• Touch Interface: USB 2.0
• Protection Glass: Safety glass
• Protection Glass Thickness: 0.13"
• Protection Glass Type: Anti-glare tempered glass
• Protection Glass Transmission: 88% typical
• Anti-Reflective: Yes
• Shatter-Proof: Yes
• Supported Touch Operating Systems: Windows 10, Windows 8, Windows 7, Android, Linux, macOS, Chrome
• Auto Brightness Sensor: Yes
• Power Indicator: Yes
• Local Key Operation: Yes
• RS-232C Sync: LG RS-232C Command
• Picture-in-Picture: 1 external source
• Picture-by-Picture: 4 sources
• Screen Share: CreateBoard Share
• Setting Data Cloning: Yes
• Crestron Connected: Yes
• Smart Energy Saving: Yes
• Wake on LAN: Yes
• Network Ready: Fast Power On
• HDMI-CEC: Yes
• webRTC: Yes, through CreateBoard Share website mirroring
• LG ConnectedCare: Yes
• OPS Type Compatible: Slot
• OPS Power Built-In: Yes
• Conformal Coating: Power board
• Power Protection: Yes
• Bezel Color: Black
• Bezel Width: Top 1.01", right 0.59", left 0.59", bottom 1.71"
• Product Dimensions: 77.05" x 3.93" x 46.09"
• Product Weight: 119.3 lbs
• Carton Dimensions: 83.07" x 8.86" x 50.83"
• Packed Weight: 155.9 lbs
• Handles: 2
• VESA Mount Interface: 31.50" x 23.62"
• Operating Temperature: 32°F to 104°F
• Operating Humidity: 10% to 90%
• Power Supply: AC 100-240V, 50/60Hz
• Power Type: Built-in power
• Typical Power Consumption: 235W
• Maximum Power Consumption: 400W
• BTU: 802 BTU/hr typical, 1365 BTU/hr maximum
• DPM: 0.5W
• Power Off Consumption: 0.5W
• Safety Certification: CB / NRTL
• EMC Certification: FCC Class A / CE / KC
• ErP / Energy Star: Yes / Yes
• ePEAT: Bronze

What's Included

• Power Cord: 118.11" power cord
• USB Cable: 196.85" USB Type-A to Type-B cable
• USB-C Cable: 70.87" USB Type-C to USB Type-C cable
• HDMI Cable: 118.11" HDMI cable
• Writing Pens: 2 writing pens
• Remote Controller: Remote controller with batteries
• Wi-Fi Module: Included Wi-Fi module
• Documentation: User manual and quick setup guide
