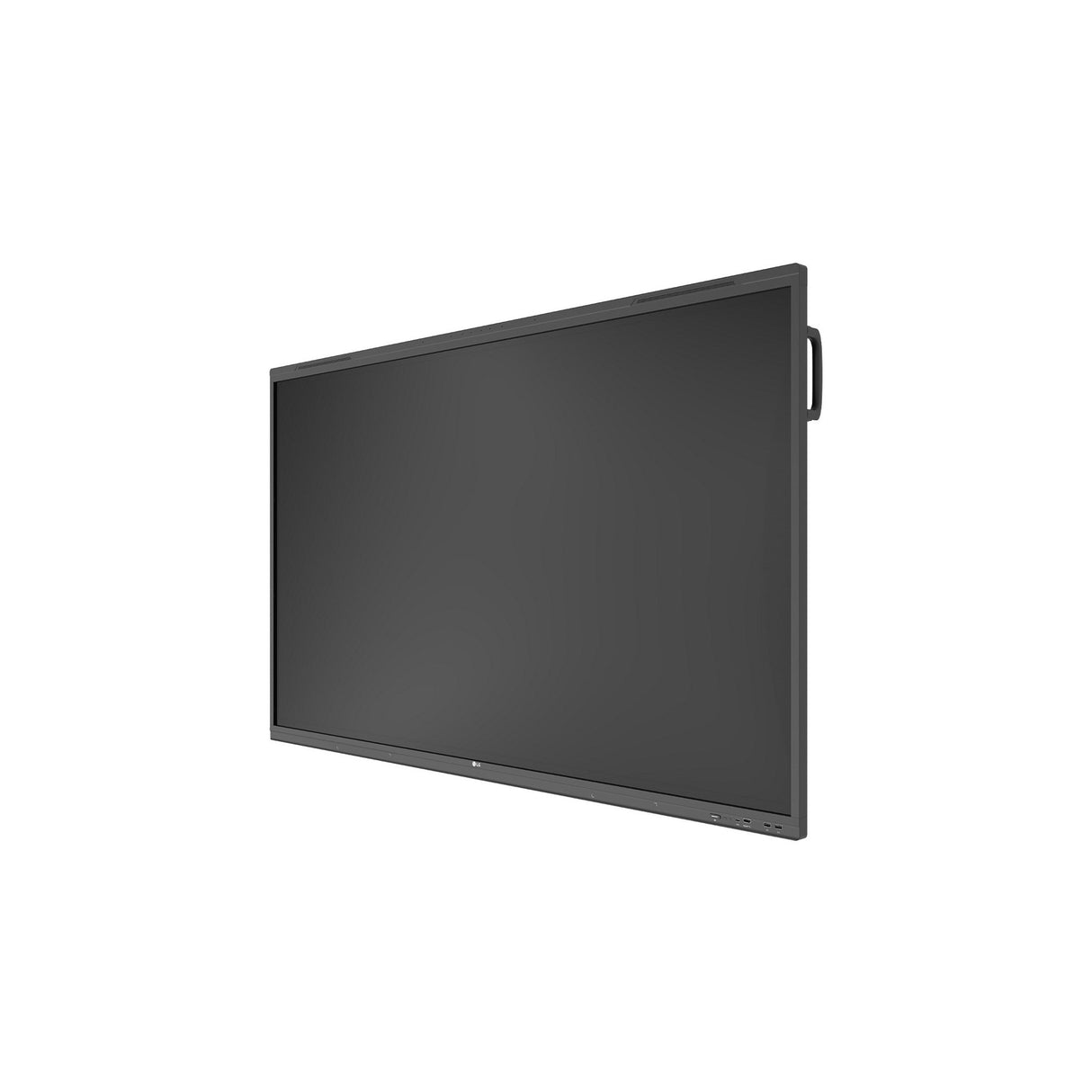

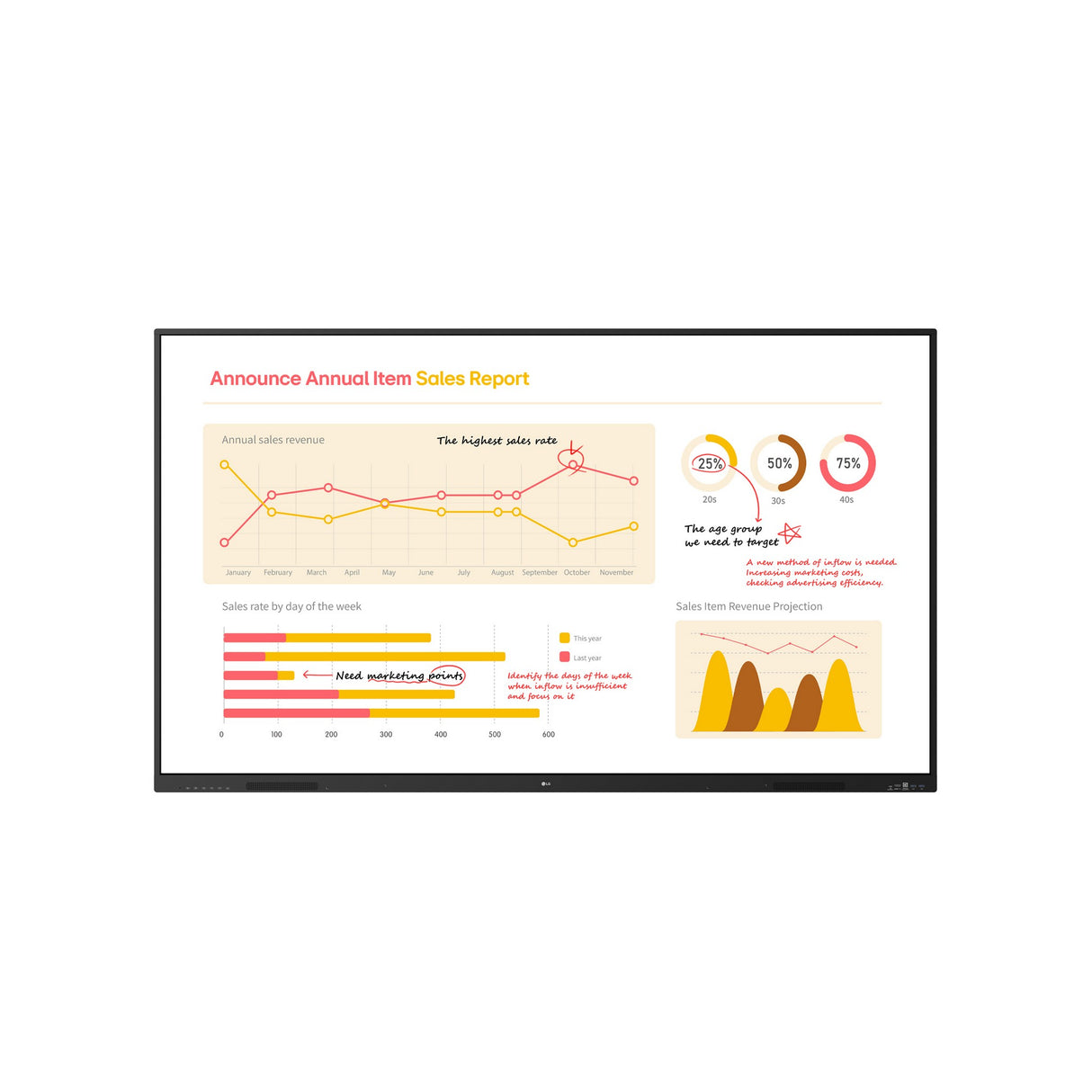

LG 86TR3PN-B CreateBoard Pro Interactive Display, 86-Inch

LG 86TR3PN-B CreateBoard Pro Interactive Display, 86-Inch

The LG 86TR3PN-B CreateBoard Pro interactive display is an 86-inch 4K UHD smart board for classrooms, training rooms, conference spaces, and collaborative work environments. It combines a large IPS touchscreen, Android 13 EDLA, built-in AI tools, Google Mobile Services authorization, and 50-point multi-touch control.

This 86-inch interactive display is ideal for educators, presenters, and teams that need a commercial touchscreen for teaching, brainstorming, video meetings, and shared content review. Buyers looking to purchase an 86-inch smart board, upgrade a classroom interactive display, or install a large-format collaboration screen get flexible writing, screen sharing, and content management tools.

CreateBoard Pro supports LG CreateBoard Lab, CreateBoard Share, and LG ConnectedCare for professional education and business workflows. Its built-in microphone array, quad speaker system, OPS slot, USB-C connectivity, and remote management features make it a strong fit for modern AV installations.

86-Inch 4K UHD CreateBoard Pro Smart Board

• 4K UHD Resolution: Displays content at 3840 x 2160 for detailed lessons, presentations, and collaborative visuals.
• 50-Point Multi-Touch: Supports simultaneous writing, gestures, and group interaction directly on the board.
• Android 13 EDLA: Provides a Google-authorized operating environment for compatible apps, accounts, and workflows.
• Built-In AI: Adds productivity-focused tools for interactive teaching, meetings, and content engagement.
• Microphone Array: Captures voice from the top-mounted built-in microphone array for lectures and meetings.
• Quad Speaker System: Uses four built-in speakers for clearer classroom and meeting room audio.
• CreateBoard Share: Enables wireless screen sharing for flexible collaboration from compatible devices.
• OPS Slot Compatible: Supports compatible OPS modules for ChromeOS or Windows-based workflows.

LG 86TR3PN-B Technical Specifications

• Model: 86TR3PN-B
• Product Type: Interactive display / smart board
• Series: LG CreateBoard Pro
• Screen Size: 86"
• Panel Technology: IPS
• Backlight Type: Direct
• Aspect Ratio: 16:9
• Native Resolution: 3840 x 2160 UHD
• Refresh Rate: 60Hz
• Brightness: 400 nit typical without glass
• Contrast Ratio: 4000:1
• Dynamic Contrast Ratio: 5000:1
• Color Gamut: NTSC 72%
• Viewing Angle: 178° x 178°
• Color Depth: 10-bit, 8-bit + FRC
• Response Time: 6.5ms typical
• Surface Treatment: 25% haze
• Lifetime: Up to 50,000 hours
• Operation Hours: 16/7
• Orientation: Landscape
• Operating System: Android 13 EDLA
• CPU: Octa-core A76 x 4 + A55 x 4
• GPU: Mali G52MP2
• Storage: 64GB
• Memory: 8GB RAM
• Wi-Fi: 802.11 a/b/g/n/ac/ax
• Bluetooth: Bluetooth 5.0
• LAN: Gigabit LAN
• HDMI Input: 4, HDCP 2.3
• DisplayPort Input: 1, HDCP 1.3 / 2.3
• Audio Input: 1
• RS-232C Input: 1
• RJ45 LAN Input: 1
• USB Type-C Input: 2
• USB 3.0 Type-A Input: 4
• USB 2.0 Type-A Input: 3
• HDMI Output: 1
• Audio Output: 1
• Touch USB Output: 2 x USB 2.0 Type-A
• RJ45 LAN Output: 1
• Built-In Speakers: 18W x 2 and 8W x 2
• Built-In Microphone: 8-microphone array
• Multi-Touch Points: Maximum 50 points
• Touch Object Size: 0.08" diameter and larger
• Writing Height: 0.04" or less
• Touch Response Time: 2.5ms or less
• Touch Accuracy: ±0.04" typical
• Touch Interface: USB 2.0
• Touch Operating System Support: Windows 10, Windows 8, Windows 7, Android
• Protection Glass Type: Safety glass
• Protection Glass Thickness: 0.13"
• Protection Glass Strengthening: Tempered strengthening
• Protection Glass Transmission: 88%
• Bezel Color: Black
• Bezel Width: Top 1.35", right 0.61", left 0.61", bottom 1.46"
• Product Dimensions: 77.10" x 3.40" x 46.10"
• Product Weight: 140 lbs
• Shipping Dimensions: 83.10" x 8.90" x 50.90"
• Shipping Weight: 176.6 lbs
• Handles: 2
• VESA Mount Interface: 31.50" x 23.62"
• Temperature Sensor: Yes
• Auto Brightness Sensor: Yes
• Power Indicator: Yes
• Picture-in-Picture: External source
• Screen Share: LG CreateBoard Share
• Smart Energy Saving: Yes
• Wake on LAN: Yes
• Network Ready: Fast Power On
• HDMI-CEC: Yes
• LG ConnectedCare: Yes
• OPS Compatibility: Yes
• OPS Power Built-In: Yes
• Operating Temperature: 32°F to 104°F
• Operating Humidity: 10% to 90%
• Power Supply: AC 100-240V, 50/60Hz
• Power Type: Built-in power
• Typical Power Consumption: 280W
• Maximum Power Consumption: 530W
• BTU: 1280 BTU/hr typical, 1945 BTU/hr maximum
• DPM: Less than 0.5W
• Power Off Consumption: Less than 0.5W
• Safety Certification: IEC62368, EN62368, GB4943, UL62368
• EMC Certification: FCC Class A
• Energy Star: Yes
• UPC: 195174087725

What's Included

• Power Cord: 118.11" power cord
• USB Cable: 196.85" USB Type-A to Type-B cable
• USB-C Cable: 70.87" USB Type-C to USB Type-C cable
• HDMI Cable: 118.11" HDMI cable
• Writing Pens: 2 writing pens
• User Manual: Included user manual
• Quick Setup Guide: Included quick setup guide
• Remote Controller: Included remote controller
• Wi-Fi Module: Included Wi-Fi module
