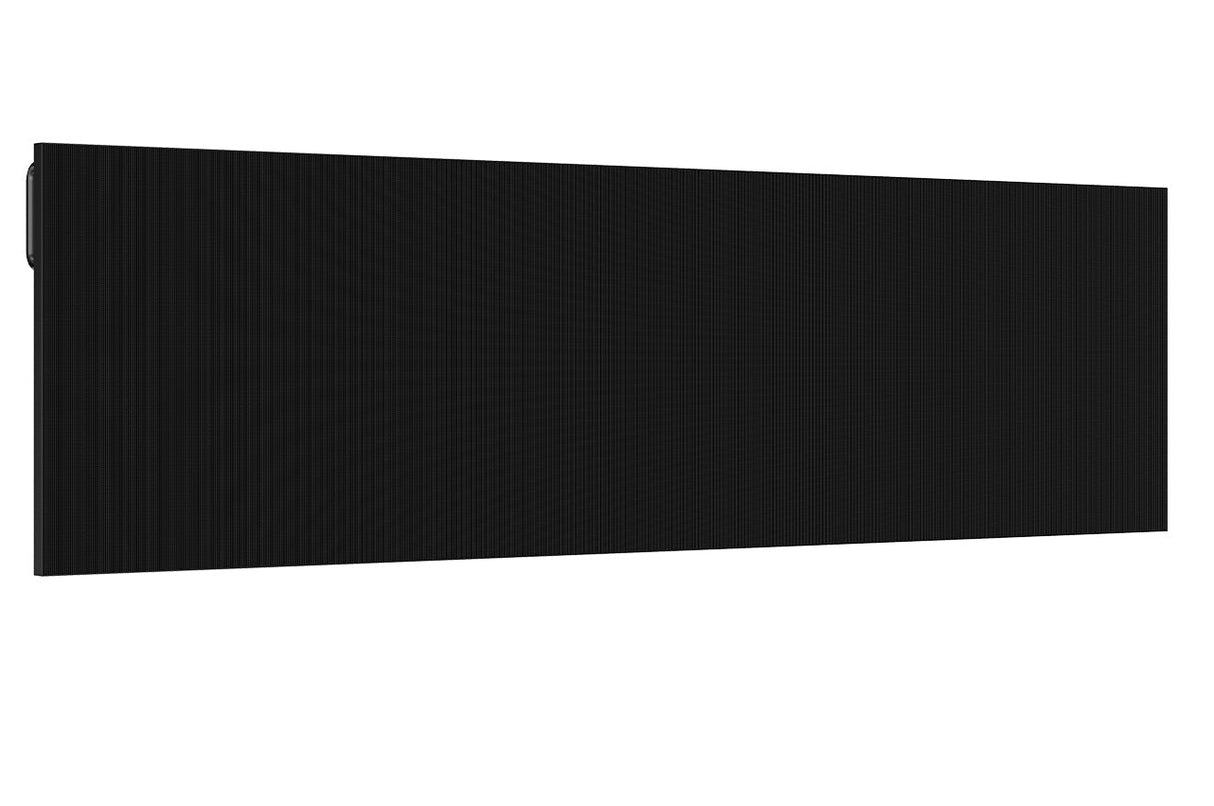

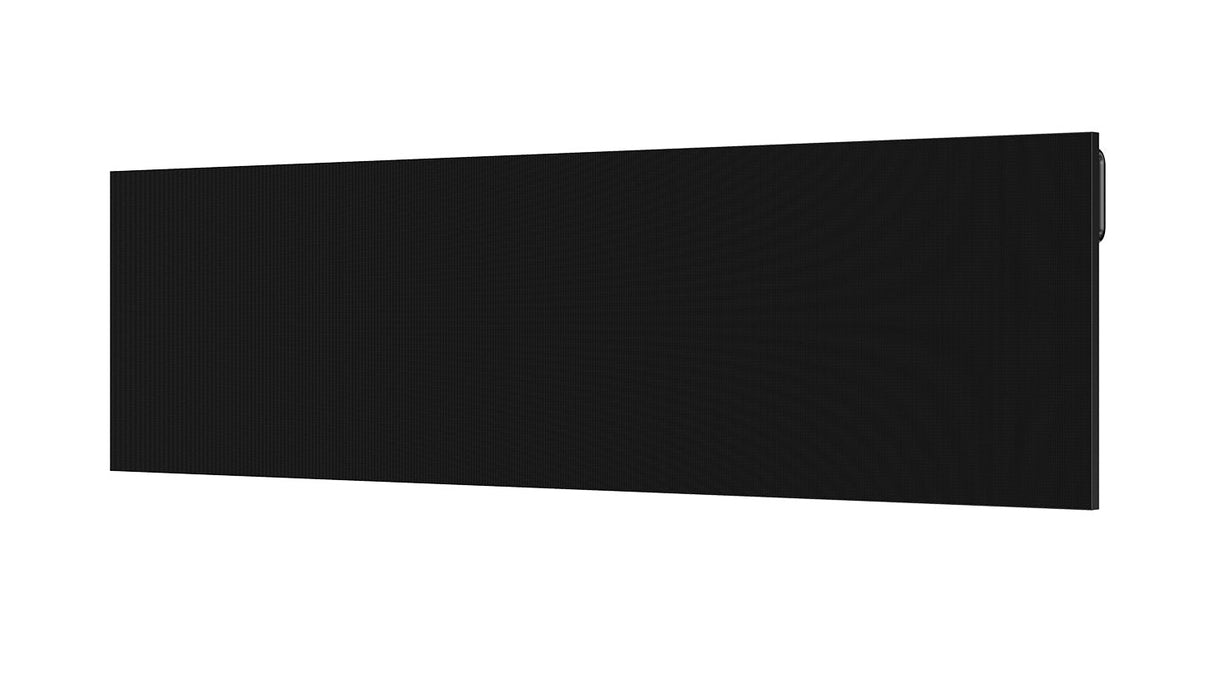

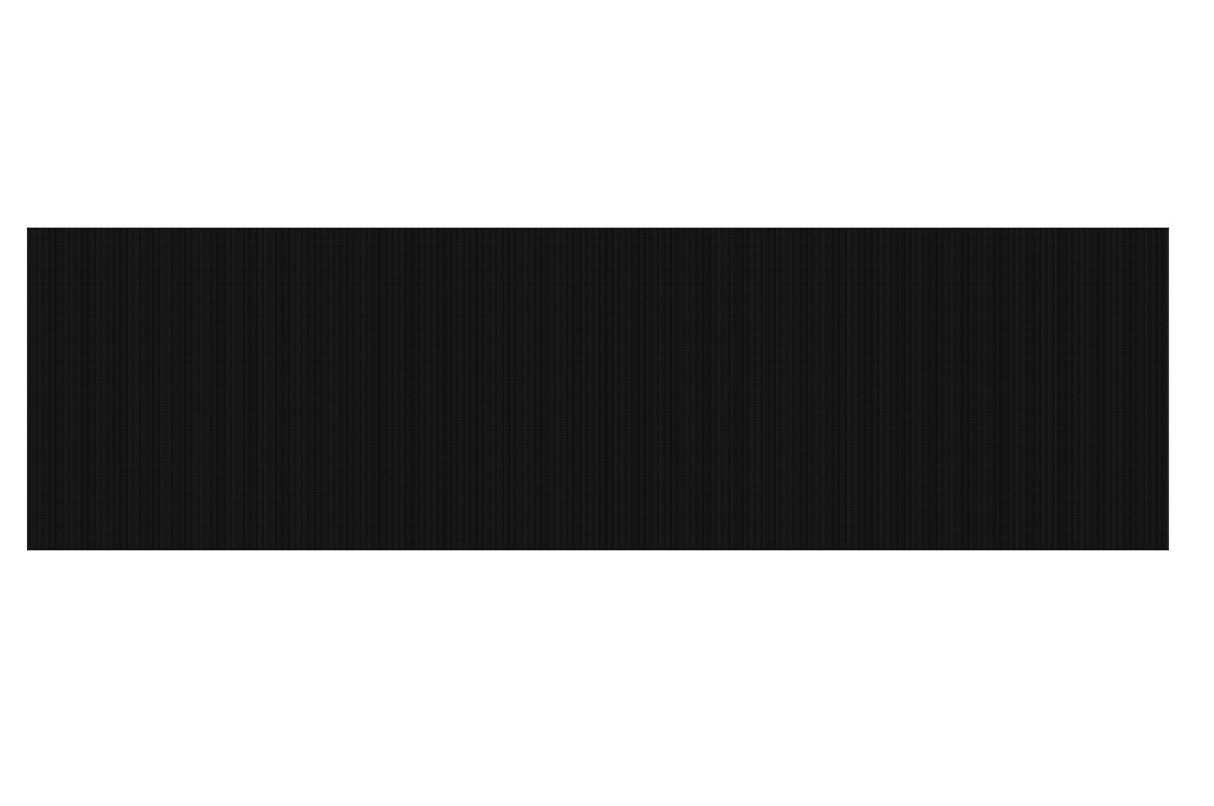

LG LUPA098 98-Inch 32:9 All-in-One Indoor LED Display

LG LUPA098 98-Inch All-in-One Indoor LED Display

The LG LUPA098 LED All-in-One Display is a 98-inch direct-view LED signage solution with an ultra-wide 32:9 format, 1.25 mm pixel pitch, 1,920 x 540 resolution, and 600-nit typical brightness. An embedded webOS 4.0 controller and dual 9W speakers create an integrated platform for commercial information, advertising, and wayfinding applications.

Designed for transportation hubs, corporate spaces, retail environments, control areas, and other installations that benefit from an extra-wide canvas, the LUPA098 combines 32 LED modules into one complete screen. Full front service access simplifies module and system-board maintenance, while a single AC power connection reduces installation complexity. VESA-compatible mounting supports flexible deployment, and compatible multi-screen configurations can combine up to 10 displays for larger digital signage installations.

The aluminum enclosure supports a 3,840 Hz refresh rate, 16-bit processing depth, 3,000:1 typical contrast ratio, and 150-degree horizontal and vertical viewing angles. LG specifies a 100,000-hour lifetime to half brightness, IP30 protection at the front and rear, operation at altitudes up to 5,000 meters, and compliance with ETL, EMC Class A, RoHS, REACH, and applicable fire-protection standards.

Key Features

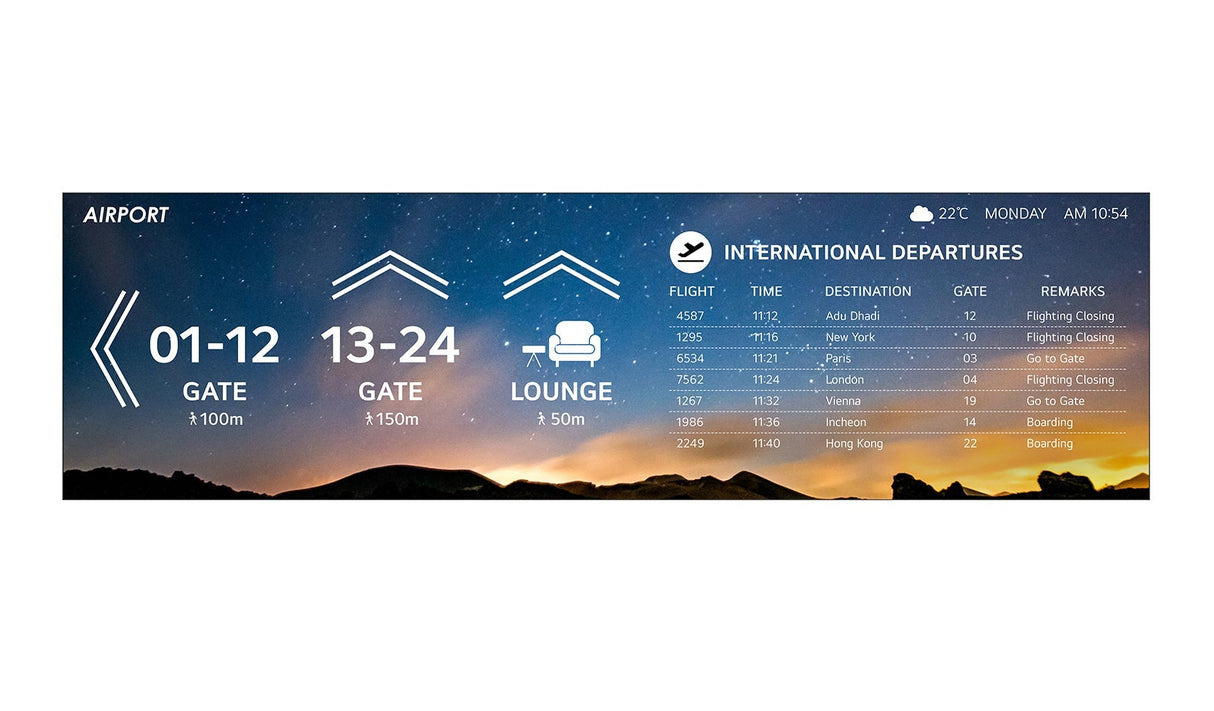

• 98-Inch Ultra-Wide Screen: The 32:9 format provides an extended horizontal canvas for transportation information, advertising, dashboards, and multi-zone content.
• 1.25 mm Pixel Pitch: Fine-pitch Single SMD LED construction supports detailed commercial signage with a native 1,920 x 540 screen resolution.
• 600-Nit Typical Brightness: Calibrated output supports clear indoor viewing in brightly illuminated professional environments.
• Integrated Signage Platform: An embedded webOS 4.0 controller and built-in 9W + 9W speakers reduce the need for separate playback and audio components.

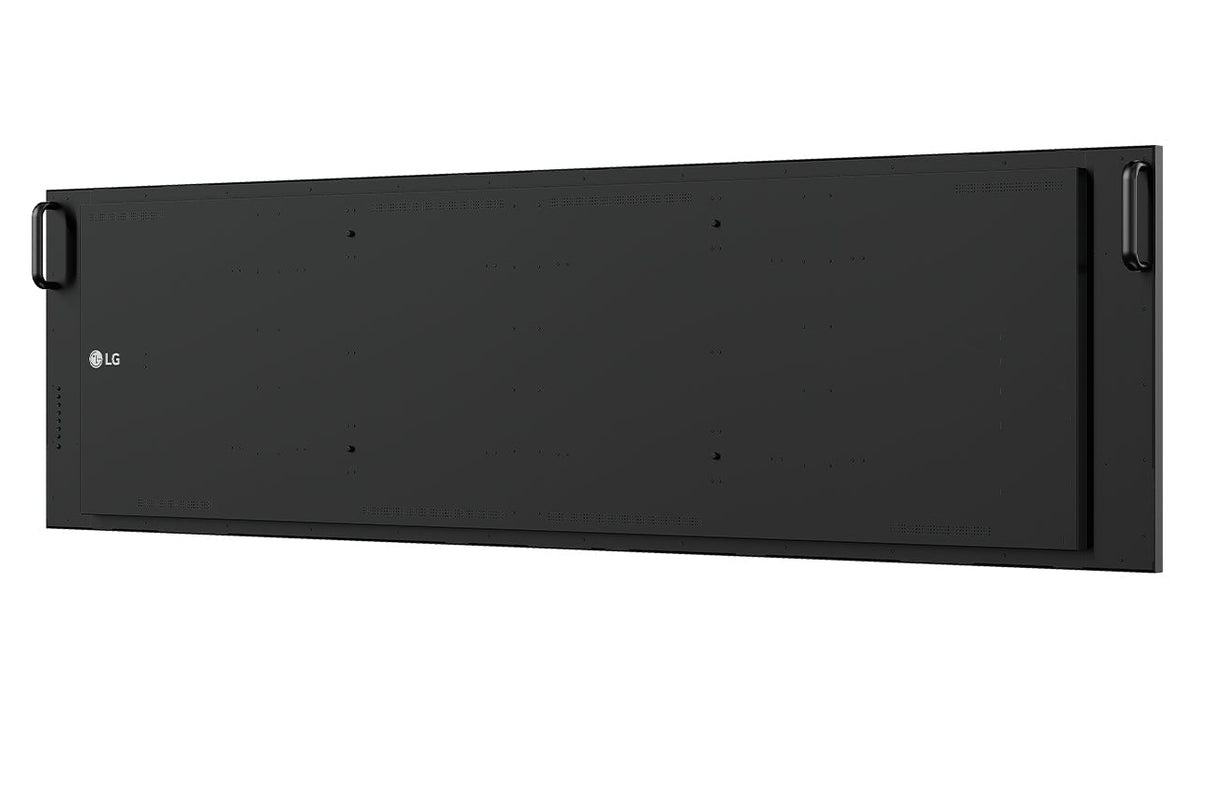

• Full Front Service Access: LED modules and serviceable system components can be accessed from the viewing side for easier maintenance.
• Simplified Power Connection: The display operates from a single AC power connection for cleaner, less complex installation.
• Flexible Installation: VESA-compatible mounting and side-by-side configurations of up to 10 screens support multiple commercial deployment styles.
• Professional Connectivity: Three HDMI inputs, DisplayPort, USB, LAN, RS-232C, IR, and optical digital audio output support signage and control integration.

Technical Specifications

• Model: LUPA098
• Display Type: Indoor direct-view LED all-in-one display
• Screen Size: 98 inches
• Aspect Ratio: 32:9
• Pixel Configuration: Single SMD
• Pixel Pitch: 1.25 mm
• Module Resolution: 240 x 135 pixels
• Module Dimensions: 11.8 x 6.6 inches
• Modules Per Screen: 8 x 4, 32 total
• Screen Resolution: 1,920 x 540 pixels
• Screen Dimensions: 94.7 x 26.8 x 2.3 inches
• Screen Weight: 85.8 lb
• Screen Surface Area: 1.62 m²
• Physical Pixel Density: 640,000 pixels/m²
• Cabinet Flatness: ±0.15 mm
• Cabinet Material: Aluminum
• Service Access: Full front access for all parts
• Brightness After Calibration: 600 nits typical
• Viewing Angle: 150° horizontal x 150° vertical
• Color Temperature: 3,200-9,300K
• Brightness Uniformity: 98%
• Color Uniformity: ±0.015 Cx, Cy
• Contrast Ratio: 3,000:1 typical
• Processing Depth: 16-bit
• Maximum Power Consumption: 540W per screen
• Average Power Consumption: 276W per screen
• Maximum Power Consumption per Area: 333W/m²
• Maximum Heat Dissipation: 1,842 BTU/h per screen
• Average Heat Dissipation: 942 BTU/h per screen
• Maximum Heat Dissipation per Area: 1,136 BTU/h/m²
• Power Supply: 100-240V
• Frame Rate: 50/60 Hz
• Refresh Rate: 3,840 Hz
• LED Lifetime: 100,000 hours to half brightness
• Operating Temperature: 0 to +40°C
• Operating Humidity: 10-90% RH
• Front IP Rating: IP30
• Rear IP Rating: IP30
• Operating Altitude: Up to 5,000 meters
• Built-In Speakers: 9W + 9W
• Controller: Embedded webOS 4.0
• HDMI Inputs: 3
• DisplayPort Input: 1
• USB: Yes
• LAN: Yes
• RS-232C: Input and output
• IR: Yes
• Digital Audio Output: SPDIF optical
• Wi-Fi: No
• Bluetooth: No
• Mounting Compatibility: VESA-compatible mounting holes
• Multi-Screen Configuration: N x M configurations supporting up to 10 screens
• Certifications: CB 62368-1 / 60950-1, ETL, EMC Class A
• Fire Protection: BS476 Part 7 Class 1 and EN 13501-1 Class B-s1, d0
• Environmental Compliance: RoHS, REACH
• Optional Accessory: Expansion Kit

What's In the Box

• IR Remote
