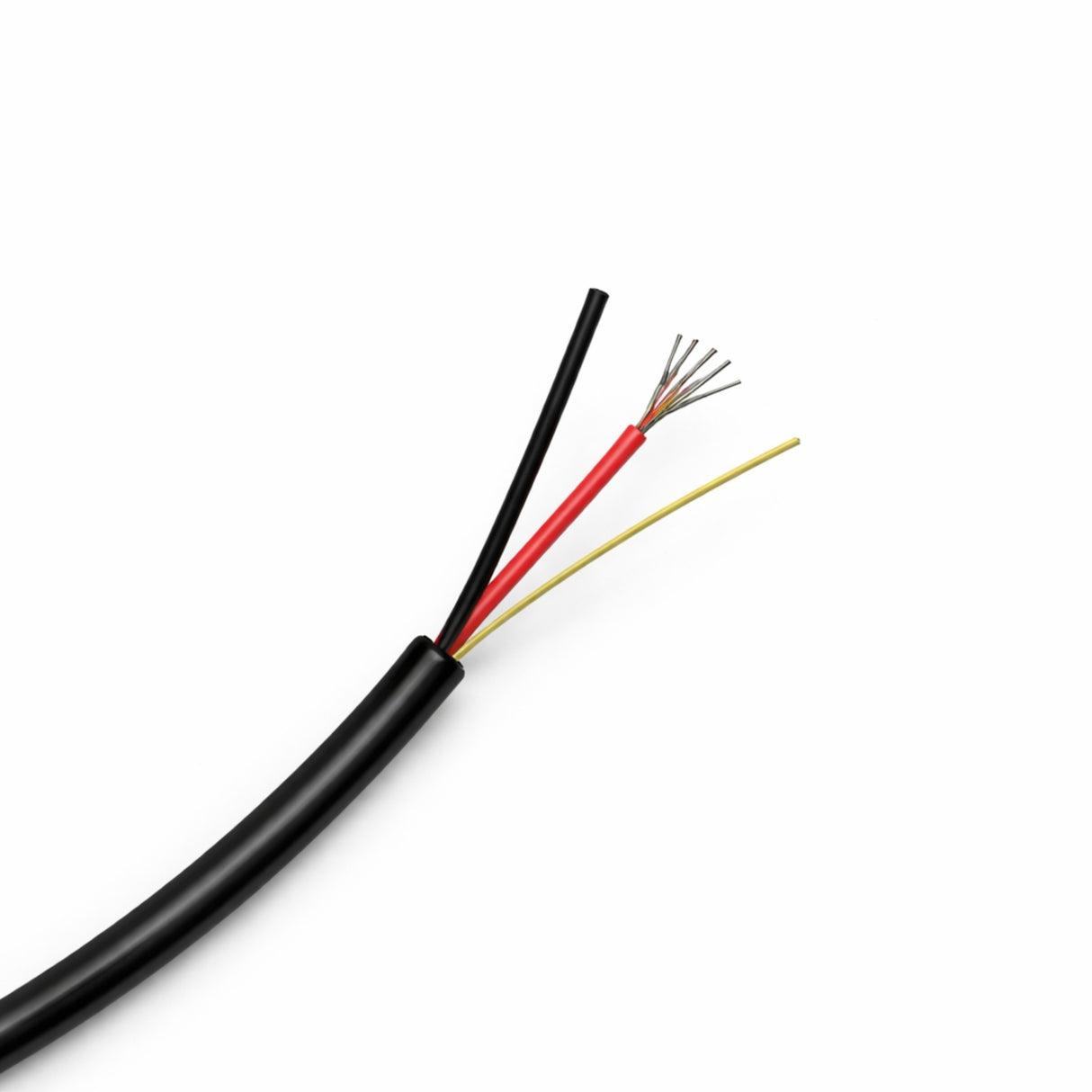

Liberty AV Solutions 22-1P-EZ-BLK 22 AWG 1-Pair Shielded Broadcast Audio Cable — 1000 ft Reel
The Liberty AV Solutions 22-1P-EZ-BLK is a high-performance 22 AWG, 1-pair shielded broadcast audio cable engineered for general-purpose line-level balanced audio, low-voltage control wiring, and RS-232C signaling in professional AV and broadcast installations. Rated NEC CMR and CEC CMG FT4, it supports balanced audio runs up to 450 feet (assuming 600 Ω source impedance) and ships on a 1,000-foot reel ready for large-scale deployment.
For AV integrators sourcing the best 22 AWG shielded cable for broadcast audio or bulk shielded audio cable for studio installation, the 22-1P-EZ-BLK delivers a decisive workflow advantage: the foil shield is bonded directly to the jacket, enabling clean, consistent EZ-Strip terminations without the frustration of stray shield material. This design eliminates a common source of installation errors and accelerates cable prep on high-count installs — a critical benefit for integrators working against tight project schedules.
The 22-1P-EZ-BLK is manufactured to UL444 standards and complies with NEC Articles 725 and 800, making it a code-compliant choice for in-wall and plenum-adjacent runs where CMR-rated cable is required. Its 100% aluminum/polyester foil shield paired with a 22 AWG tinned copper drain wire delivers reliable interference rejection across the full reel, while the RoHS-compliant construction satisfies environmental compliance requirements for commercial and institutional projects.
Key Features of the Liberty AV 22-1P-EZ-BLK Shielded Audio Cable
- EZ-Strip Shield Design: The foil shield is bonded directly to the PVC jacket, enabling fast, clean terminations and reducing installation time on high-density cable runs.
- 22 AWG 7-Strand Tinned Annealed Copper Conductors: Delivers consistent conductivity and long-term corrosion resistance — essential for permanent in-wall and rack room installations.
- 100% Aluminum/Polyester Foil Shield + Tinned Copper Drain: Provides complete coverage against electromagnetic interference, preserving signal integrity across full 450-foot balanced audio runs.
- NEC CMR / CEC CMG FT4 Rated: Meets NEC Articles 725 and 800 for in-wall riser installations, satisfying code requirements without requiring conduit on most commercial projects.
- RoHS Compliant: Meets EU RoHS Directive 2002/95/EC environmental requirements for use in commercial, institutional, and government installations worldwide.
- Tightly Twisted Pair Construction: Six twists per foot with a 2.0-inch pair lay length minimize crosstalk and optimize noise rejection for clean, hum-free line-level audio.
- 1,000-Foot Reel Format: Ships on a full 1,000-foot reel, enabling efficient bulk pulls on large-scale AV integration projects without mid-run splices.
Technical Specifications
- Part Number: 22-1P-EZ-BLK
- Conductor Gauge: 22 AWG
- Conductor Construction: 7-strand tinned annealed copper
- Conductor Diameter: 0.030" (0.76 mm)
- Number of Pairs: 1
- Pair Lay Length: 2.0" (51.0 mm)
- Twists per Foot: 6.0
- Insulation Material: Foam polyethylene
- Insulation Wall Thickness: 0.010" (0.25 mm)
- Insulation Diameter: 0.050" (1.27 mm)
- Conductor Color Codes: Black, Red
- Shield Construction: 100% aluminum/polyester foil tape + 22 AWG 7-strand tinned copper drain wire
- Jacket Material: Pressure extruded polyvinyl chloride (PVC)
- Jacket Color: Black
- Jacket Wall Thickness: 0.022" (0.56 mm)
- Overall Outside Diameter: 0.142" (3.60 mm)
- Impedance: 72 Ω
- DC Resistance: 16.6 Ω / 1,000 ft (54.45 Ω/km)
- Mutual Capacitance: 18.2 pF/ft (59.69 pF/m)
- Shield Capacitance: 30 pF/ft (98.40 pF/m)
- Velocity of Propagation: 78%
- Voltage Rating: 300V
- Maximum Current: 2.8A @ 25°C
- Max Balanced Audio Run: 450 ft (assuming 600 Ω source impedance)
- Pull Tension: 14 lbs (62 N)
- Bend Radius (Unloaded): 1.42" (36 mm)
- Bend Radius (Loaded): 2.84" (72 mm)
- NEC Rating: CMR, 75°C
- CEC Rating: CMG FT4, 60°C
- Compliance: UL444, NEC Articles 725 & 800, EU RoHS 2002/95/EC
- Reel Length: 1,000 ft (305 m)
- Weight per 1,000 ft: 17 lbs (25 kg/km)
