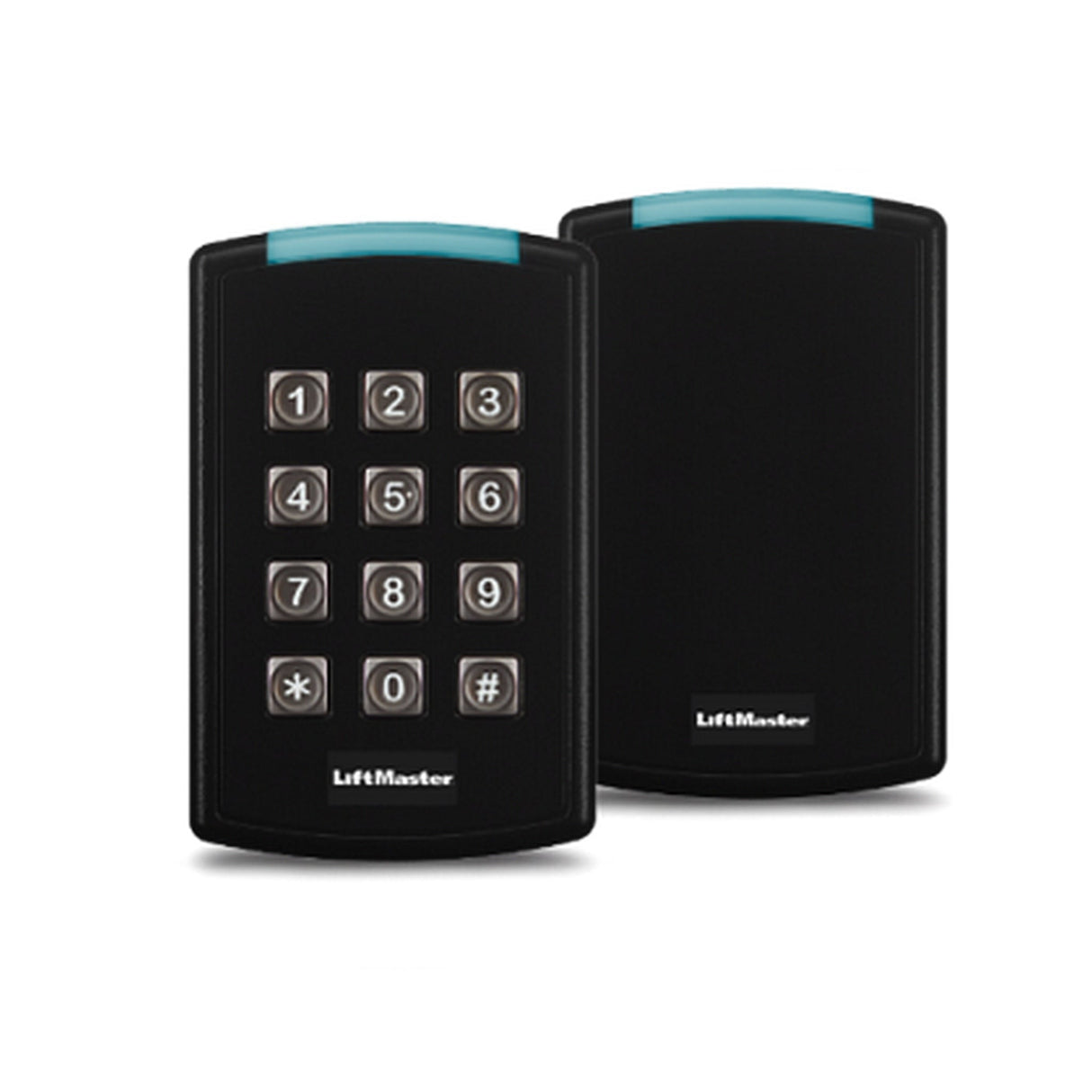

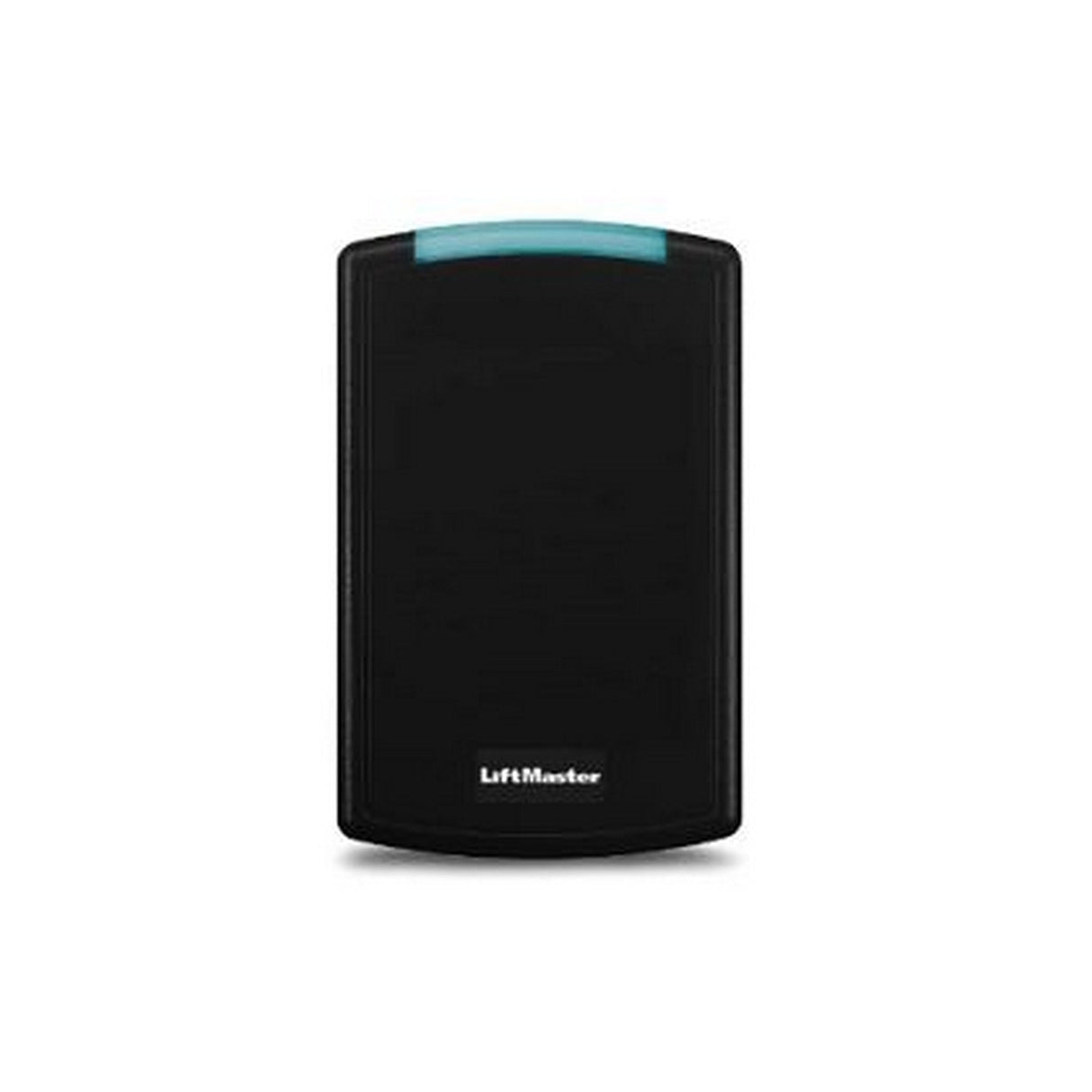

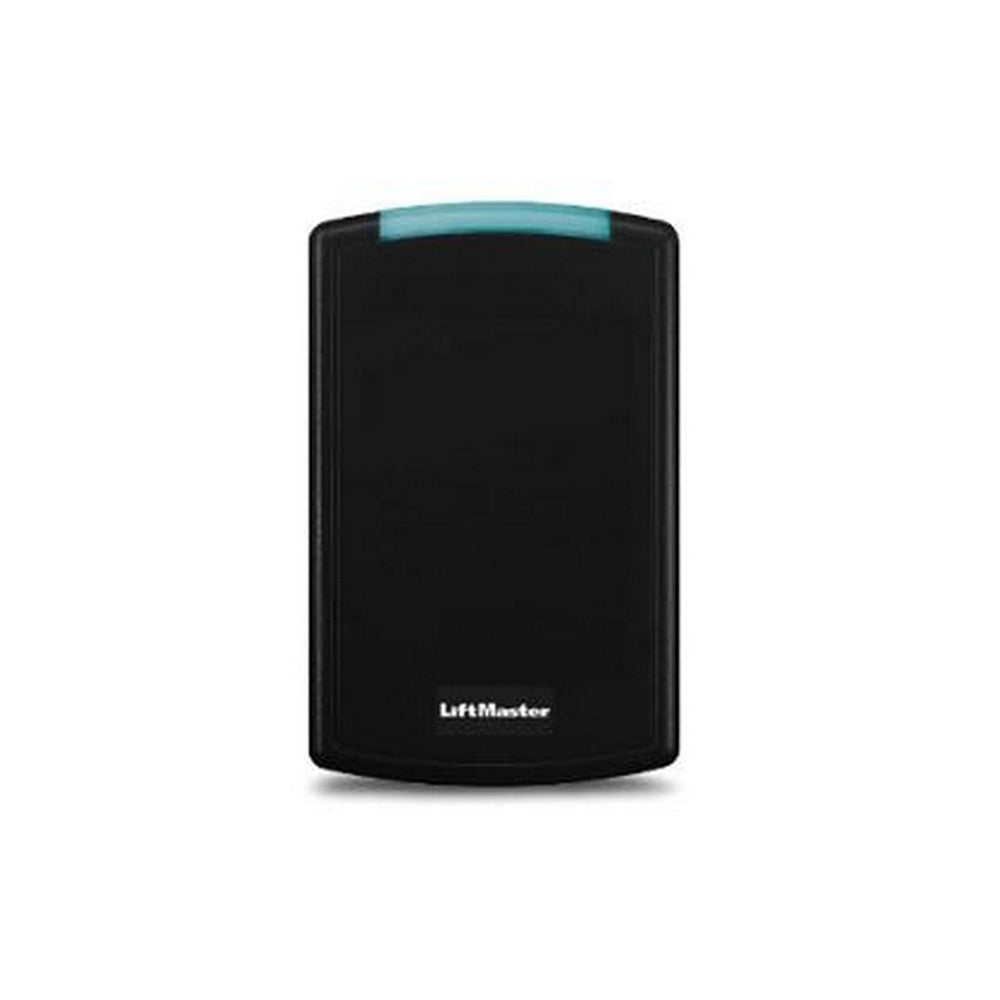

LiftMaster SRDRST Indoor/Outdoor Standard Smart Reader
LiftMaster SRDRST is a smart access reader designed for residential and community access control environments. It enables credential based entry for users through supported mobile devices and access credentials, supporting controlled door and gate workflows. This makes it ideal for properties that require secure access management with centralized control.
The reader integrates with compatible LiftMaster door controllers and supports multiple credential formats for flexible system design. It communicates with supported intercom and controller platforms to enable monitored access events and remote management.
Designed for durability and reliability, the SRDRST supports outdoor installations and long term operation in managed access environments. It provides consistent performance for communities seeking controlled and trackable access points.
Key Features
- Smart Reader Design: Provides credential based access for controlled entry points
- Mobile Credential Support: Enables access using supported mobile devices
- Controller Integration: Operates with compatible LiftMaster door controllers
- Multi Credential Formats: Supports multiple Wiegand input formats
- Outdoor Rated Construction: Designed for exterior installation environments
Technical Specifications
Connectivity
Dependent on Door Controller: CAPXLV2, CAPXM, CAPXS or CAP2D
Power Supply Voltage
5-16 VDC (Power supply not included)
Current
SRDRST - 120 mA average, 170 mA peak
Communications
OSDP Autodetect - communicates with up to 4 Smart Readers with the CAPXLV2 Intercom
OSDP Secure Channel remote firmware upgradability
Wiegand Input Data Format
26 BIT, 30 BIT, 37 BIT (HID), 37 BIT (Transcore), 32 BIT (MiFare), 56 BIT Proximity
Mounting Options
Single Gang, Surface Mount
Operating Temperature
UL tested -35° to 65°C and EN -40° to 70°C and 95% humidity
Anti Tamper Notification
Accelerometer based tamper detection
Warranty
1 year
