Lilliput A13 4K OLED HDMI/3G-SDI Broadcast Monitor, 13.3 Inch

Lilliput A13 13.3-Inch 4K OLED HDMI/3G-SDI Broadcast Monitor

The Lilliput A13 13.3-Inch 4K OLED Broadcast Monitor is a professional video display designed for filmmaking, broadcast production, and multicamera monitoring. Featuring a 3840 x 2160 OLED panel, 100,000:1 contrast ratio, 100% DCI-P3 color coverage, and HDMI, DisplayPort, and 3G-SDI connectivity, it delivers detailed image monitoring in a compact, portable format.

Built for cinematographers, camera operators, video engineers, and production studios, the A13 combines high-resolution monitoring with flexible video connectivity. Its 13.3-inch screen accommodates video village setups, camera monitoring stations, and compact editing environments where accurate image evaluation is essential. The OLED panel provides individually controlled pixels for deep blacks and precise contrast reproduction, while support for HDR PQ signals helps operators evaluate high-dynamic-range content. Four HDMI inputs, DisplayPort connectivity, and 3G-SDI input and loop-through connections allow integration with professional cameras, production switchers, and other video equipment. Multiview functionality also enables simultaneous monitoring of multiple sources.

The Lilliput A13 supports practical production tools, including focus peaking, false color, framing markers, pixel-to-pixel viewing, and customizable display controls. Its selectable Native, DCI-P3, and Rec.709 color modes accommodate different monitoring workflows. The included mounting bracket, sunshade, and removable VESA battery plate provide installation flexibility for studio and location production. With support for external DC power and compatible L-series batteries, the monitor adapts to professional environments requiring reliable, portable 4K video monitoring.

Key Features

• 13.3-Inch 4K OLED Display: Features a native 3840 x 2160 resolution with individually controlled OLED pixels for detailed image reproduction and deep black levels.
• Wide Color Gamut: Supports 100% DCI-P3 coverage with selectable Native, DCI-P3, and Rec.709 color modes for professional video monitoring.
• 100,000:1 Contrast Ratio: Provides substantial contrast separation for evaluating shadow detail, highlights, and overall image composition.
• Multiple Professional Video Inputs: Includes one HDMI 2.0 input, three HDMI 1.4b inputs, DisplayPort 1.2, and 3G-SDI connectivity for integrating multiple video sources.
• Quad-Split Multiview: Displays up to four video sources simultaneously, with picture-in-picture and picture-by-picture modes for multicamera monitoring.
• Professional Monitoring Tools: Includes focus peaking, false color, safety markers, aspect ratio guides, pixel-to-pixel viewing, and image orientation controls.
• HDR PQ Support: Supports the ST 2084 transfer function for monitoring compatible high-dynamic-range video signals.
• Flexible Power and Mounting: Supports 7-24V DC input, compatible L-series battery operation through the included plate, VESA mounting, and the supplied adjustable bracket.

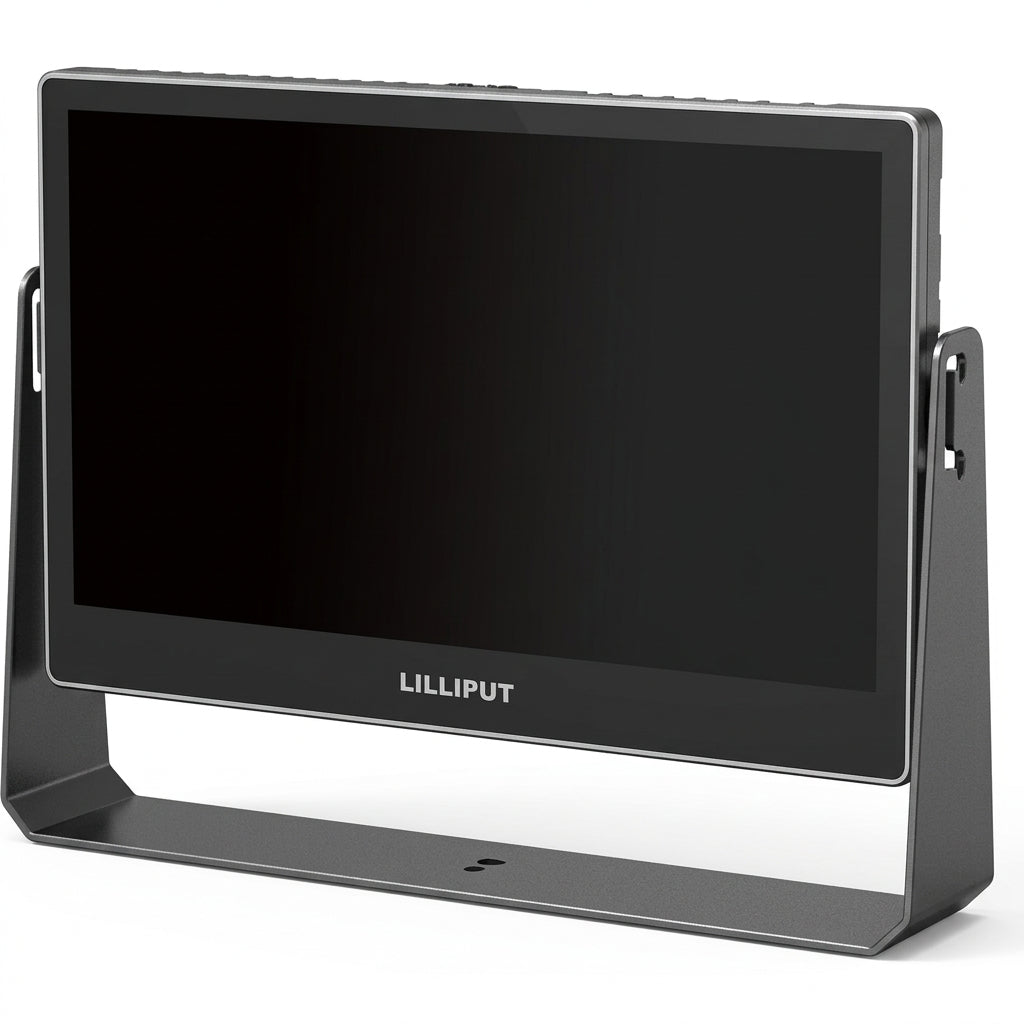

13.3-Inch 4K OLED Display for Professional Video Production

The Lilliput A13 uses a 13.3-inch OLED panel with a native Ultra HD resolution of 3840 x 2160 pixels. Unlike conventional LCD displays that rely on a shared backlight, OLED technology allows individual pixels to emit light independently. This design enables precise black reproduction and high contrast when monitoring complex lighting conditions.

With a specified 100,000:1 contrast ratio, the monitor provides substantial separation between dark and bright image areas. Its 400-nit brightness and 170-degree horizontal and vertical viewing angles support image evaluation from multiple positions around a production setup.

The screen uses a 16:9 aspect ratio and automatically scales compatible incoming video signals for display. This allows operators to monitor UHD, Full HD, and other supported video formats without requiring an external scaling device.

Wide Color Gamut and HDR Monitoring

The A13 supports 100% DCI-P3 color gamut coverage, making it suitable for productions requiring wide-gamut image monitoring. Operators can select between Native, DCI-P3, and Rec.709 display modes to match the monitoring requirements of different video workflows.

Support for the ST 2084 perceptual quantizer transfer function enables HDR PQ monitoring. Adjustable picture settings allow operators to modify image brightness, contrast, saturation, hue, sharpness, and color temperature.

Available color temperature settings include 5800K, 6500K, 7500K, 9300K, and a user-adjustable mode with independent red, green, and blue gain controls. These adjustments provide additional flexibility when matching the monitor to a production environment.

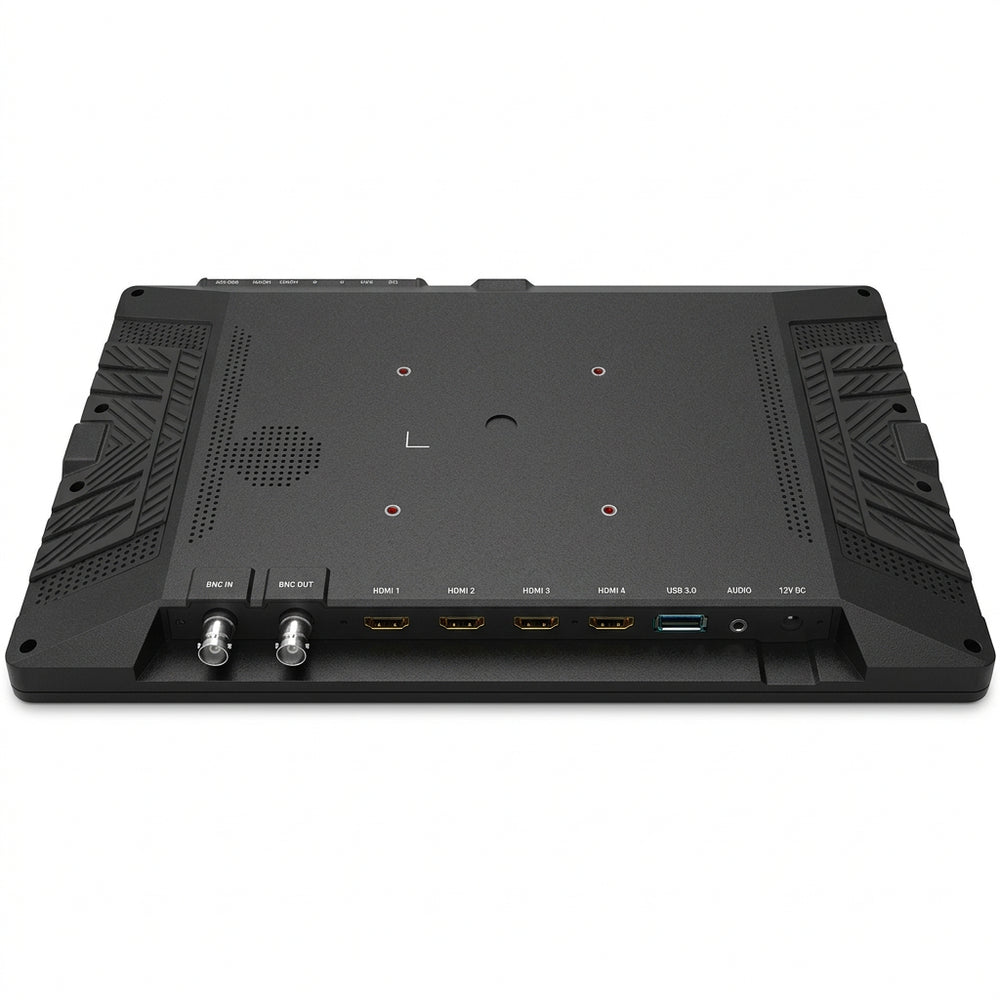

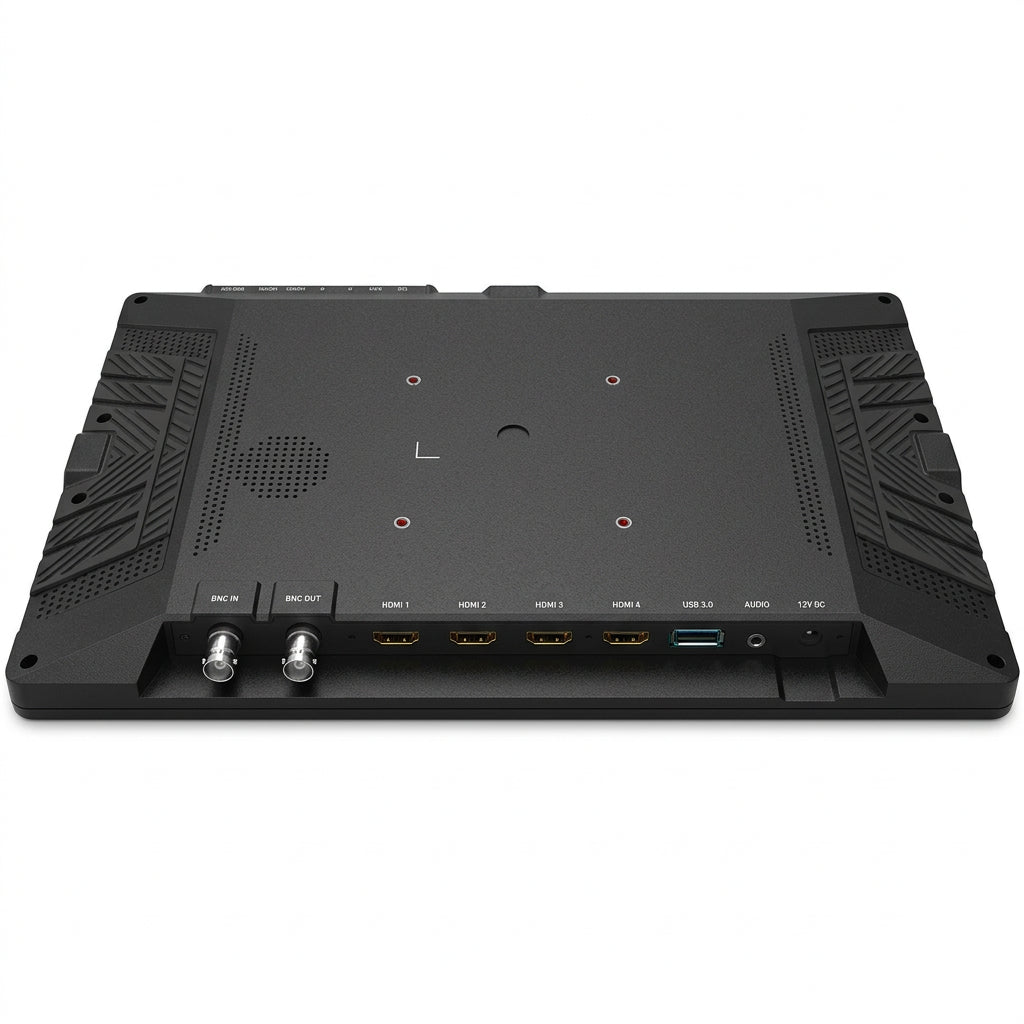

HDMI, DisplayPort, and 3G-SDI Video Connectivity

The Lilliput A13 provides several video input options for professional cameras, production equipment, and computer-based workflows.

HDMI Video Inputs

Four HDMI inputs accommodate multiple video sources. One HDMI 2.0 connection supports UHD 4K signals up to 60 fps, while three HDMI 1.4b inputs support UHD 4K signals up to 30 fps. This configuration enables operators to connect multiple devices without repeatedly changing cables.

DisplayPort 1.2 Input

The DisplayPort 1.2 connection supports UHD video resolutions up to 3840 x 2160 at 60 fps. This interface is useful for connecting compatible computers, video workstations, and other DisplayPort-equipped production equipment.

3G-SDI Input and Loop Output

A 3G-SDI input accepts professional HD video signals up to 1080p60. A corresponding 3G-SDI loop output allows the incoming SDI signal to continue to another compatible monitor or downstream device.

The SDI output functions as a loop-through connection rather than an HDMI-to-SDI signal converter.

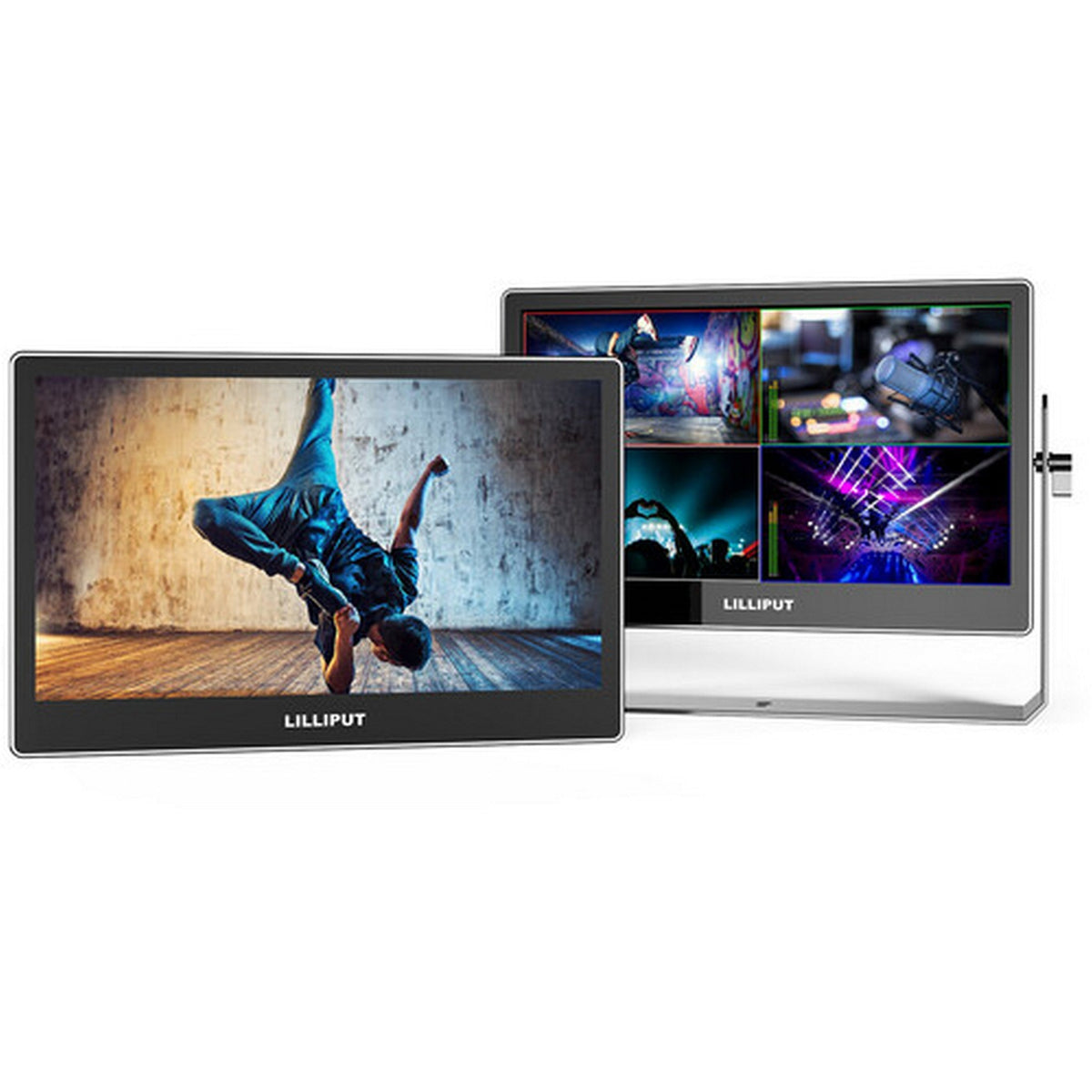

Quad-Split Multiview and Multicamera Monitoring

The A13 includes several display modes for monitoring multiple video feeds on one screen. Quad-view divides the display into four separate regions, allowing production crews to observe several connected sources simultaneously.

Picture-by-picture modes place two sources next to each other or arrange them vertically. Picture-in-picture mode displays a secondary source in a smaller window over the main image.

These functions are particularly useful for live video production, multicamera interviews, broadcast monitoring, and production environments where operators need to compare camera angles without using multiple displays.

Individual regions can be selected for adjustments, allowing operators to customize how sources appear within supported multiview configurations.

Professional Exposure, Focus, and Framing Tools

The monitor incorporates tools designed to assist camera operators during image acquisition and production monitoring.

Focus Peaking

Focus peaking identifies areas of strong image detail by displaying colored outlines around sharp edges. This helps camera operators assess manual focus during video recording.

False Color

False color monitoring provides a visual reference for evaluating image exposure. The feature helps operators identify differences in image brightness when adjusting camera settings and lighting.

Aspect Ratio and Safety Markers

Selectable framing guides support 16:9, 17:9, 4:3, 1.85:1, and 2.35:1 aspect ratios. Safety markers provide additional framing references with adjustable coverage percentages.

Pixel-to-Pixel Monitoring

Pixel-to-pixel mode displays incoming image pixels without conventional full-screen scaling, helping operators inspect image detail and focus.

Image Orientation and Freeze

Display rotation, image mirroring, and frame-freeze functions provide additional flexibility for unusual monitor positions and reviewing individual frames.

Portable Power and Flexible Mounting Options

The A13 supports DC input voltages from 7 to 24V and consumes no more than 20W under the manufacturer's specified 12V operating condition. This makes it suitable for external power supplies and compatible portable battery systems.

An included VESA battery plate supports compatible Sony L-series batteries. Optional V-mount and Anton Bauer battery mounting solutions provide additional power configuration options.

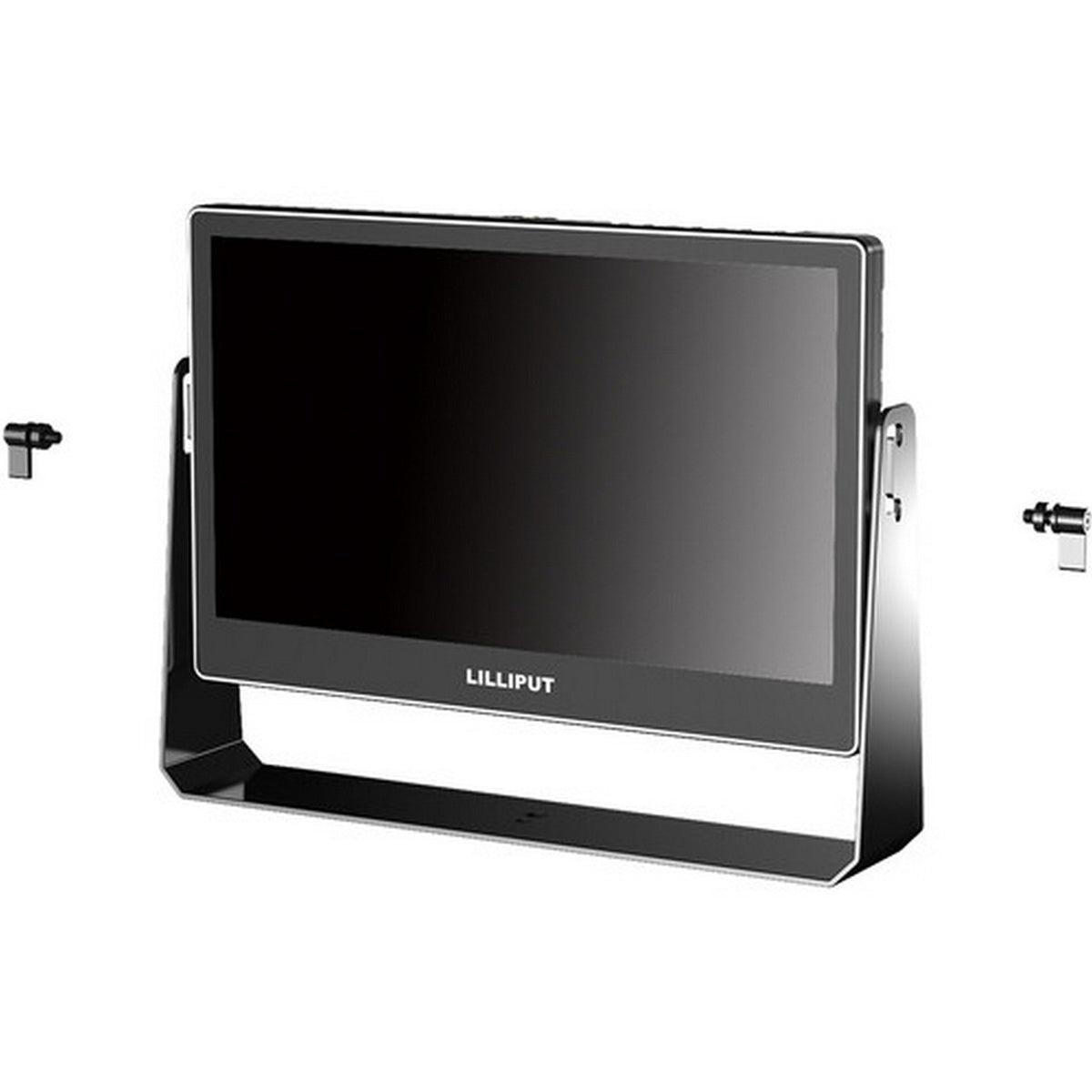

The monitor features a 75 x 75mm VESA mounting pattern, equivalent to approximately 3 x 3 inches. Its included adjustable mounting bracket supports positioning on suitable production surfaces and equipment.

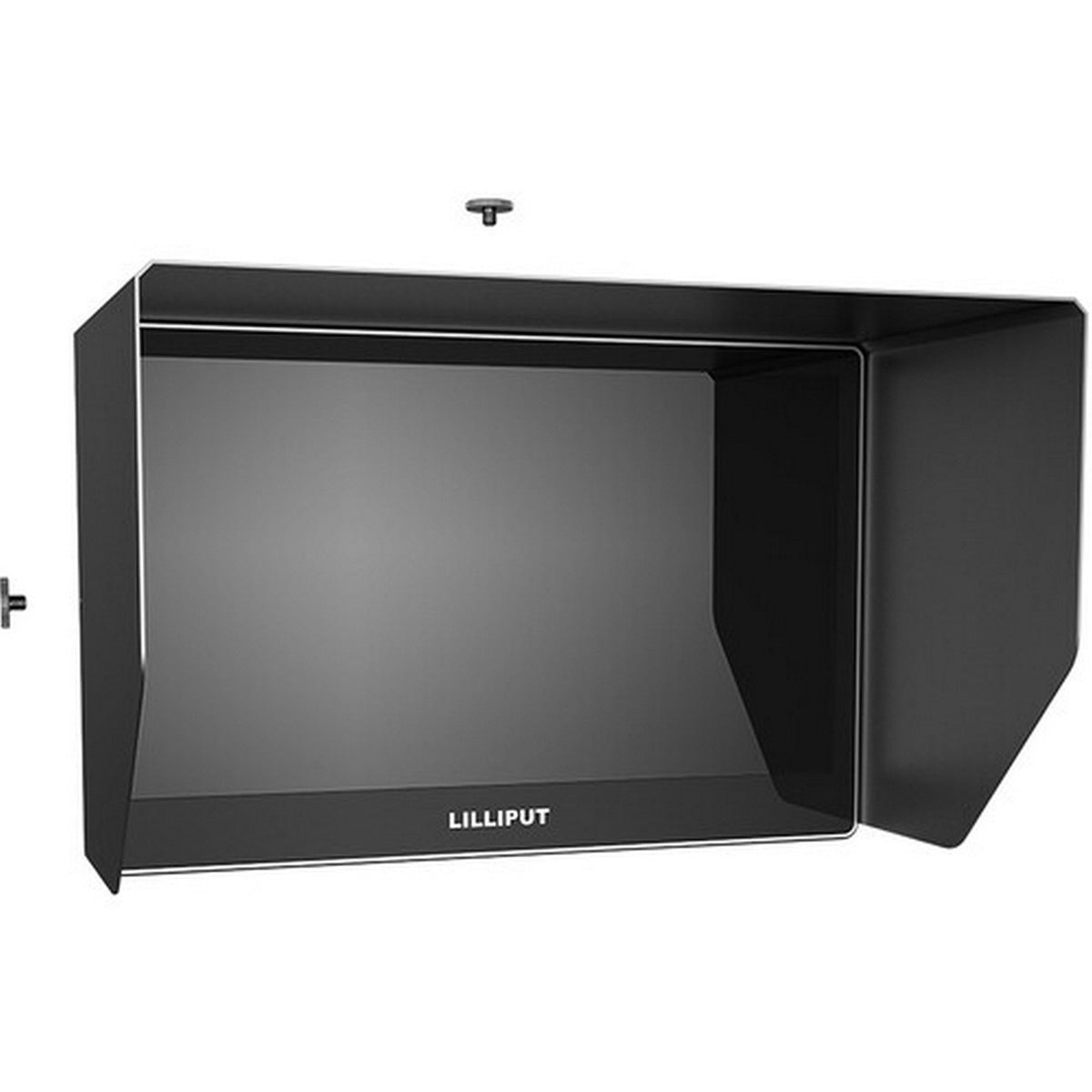

A removable sunshade helps reduce unwanted reflections during location work, while the integrated stereo speakers and headphone output provide convenient audio monitoring.

Technical Specifications

General Specifications

• Brand: Lilliput
• Model: A13
• Product Type: Professional OLED Broadcast Monitor
• Display Size: 13.3"
• Display Technology: OLED
• Native Resolution: 3840 x 2160
• Resolution Classification: Ultra HD 4K
• Aspect Ratio: 16:9
• Touchscreen: No
• HDR Support: Yes
• Wireless Connectivity: No
• Memory Card Slot: No

Display Performance

• Panel Type: OLED
• Display Resolution: 3840 x 2160
• Maximum Brightness: 400 cd/m2 (400 Nits)
• Contrast Ratio: 100,000:1
• Horizontal Viewing Angle: 170 Degrees
• Vertical Viewing Angle: 170 Degrees
• Color Gamut Coverage: 100% DCI-P3
• Selectable Color Spaces: Native, DCI-P3, Rec.709
• HDR Format: ST 2084 (PQ)
• Color Temperature Presets: 5800K, 6500K, 7500K, 9300K, User
• RGB Gain Adjustment: Supported
• Adjustable Image Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Color Temperature

Video Input Connections

• Total HDMI Inputs: 4
• HDMI 2.0 Inputs: 1
• HDMI 1.4b Inputs: 3
• DisplayPort Inputs: 1
• DisplayPort Version: 1.2
• SDI Inputs: 1 x 3G-SDI BNC
• Maximum HDMI 2.0 Resolution: 3840 x 2160 at 60 Hz
• Maximum HDMI 1.4b Resolution: 3840 x 2160 at 30 Hz
• Maximum DisplayPort Resolution: 3840 x 2160 at 60 Hz
• Maximum 3G-SDI Resolution: 1920 x 1080 at 60 Hz
• Automatic Input Detection: Supported

Video Output Connections

• SDI Loop Outputs: 1
• SDI Output Type: 3G-SDI BNC
• SDI Output Function: Input Signal Loop-Through

Supported HDMI 2.0 Video Formats

• UHD 2160p: 24, 25, 30, 50, 60 fps
• Full HD 1080p: 24, 25, 30, 50, 60 fps
• 1080i: 50, 60 Hz
• 720p: 50, 60 fps

Supported HDMI 1.4b Video Formats

• UHD 2160p: 24, 25, 30 fps
• Full HD 1080p: 24, 25, 30, 50, 60 fps
• 1080i: 50, 60 Hz
• 720p: 50, 60 fps

Supported DisplayPort Video Formats

• UHD 2160p: 24, 25, 30, 50, 60 fps
• Full HD 1080p: 24, 25, 30, 50, 60 fps
• 1080i: 50, 60 Hz
• 720p: 50, 60 fps

Supported 3G-SDI Video Formats

• Full HD 1080p: 24, 25, 30, 50, 60 fps
• 1080PsF: 24, 25, 30 fps
• 1080i: 50, 60 Hz
• 720p: 50, 60 fps

Multiview and Display Functions

• Single-Source Monitoring: Supported
• Dual-Source Side-by-Side: Supported
• Dual-Source Top-and-Bottom: Supported
• Picture-in-Picture: Supported
• Quad-Split Monitoring: Supported
• Maximum Simultaneous Display Regions: 4
• Input Region Selection: Supported
• Picture-in-Picture Position Adjustment: Supported
• Picture-in-Picture Size Adjustment: Supported
• Picture-in-Picture Transparency Adjustment: Supported
• Input Source Swapping: Supported

Professional Monitoring Functions

• Focus Peaking: Supported
• False Color: Supported
• Pixel-to-Pixel Monitoring: Supported
• Center Marker: Supported
• Safety Markers: 80%, 85%, 88%, 90%, 93%, 95%
• Aspect Ratio Markers: 16:9, 17:9, 4:3, 1.85:1, 2.35:1
• Check Field: Red, Green, Blue
• Frame Freeze: Supported
• Underscan: Supported
• Image Rotation: 0, 90, 180, 270 Degrees
• Horizontal Image Mirroring: Supported
• Vertical Image Mirroring: Supported
• Assignable Function Button: Supported

Audio Specifications

• Embedded Audio Input: HDMI and SDI
• Built-In Speakers: 2
• Speaker Configuration: Stereo
• Headphone Output: 1 x 3.5mm (1/8")
• Headphone Audio Channels: 2
• Audio Sampling Rate: 48 kHz
• Audio Bit Depth: 24-Bit
• Adjustable Audio Volume: Supported

Power Specifications

• Power Input: DC
• Supported Input Voltage: 7-24V DC
• Power Consumption: 20W Maximum at 12V
• Portable Battery Compatibility: Sony L-Series Batteries with Included Battery Plate
• Optional Battery Mounting: V-Mount or Anton Bauer Battery Plate
• AC Power Operation: Supported with Included Power Adapter

Mounting and Physical Specifications

• Mounting Standard: VESA
• VESA Mount Pattern: Approximately 3" x 3"
• Tripod/Accessory Mounting: 3 x 1/4"-20 Female
• Included Mounting Hardware: Adjustable Gimbal Bracket and VESA Battery Plate
• Dimensions (L x W x H): 12.6" x 8.2" x 1"
• Net Weight: 2.5 lb

Environmental Specifications

• Operating Temperature: 32 to 122 Degrees Fahrenheit
• Storage Temperature: -4 to 140 Degrees Fahrenheit
• Environmental Resistance Rating: Not Rated

Packaging Specifications

• Package Dimensions (L x W x H): 16.3" x 10.5" x 3.1"
• Package Weight: 5.9 lb
• Manufacturer Warranty: 1-Year Limited

What's In the Box

• 1 x Lilliput A13 13.3-Inch 4K OLED Broadcast Monitor
• 1 x VESA L-Series Battery Plate
• 1 x DC Power Adapter
• 1 x Sunshade
• 1 x Adjustable Gimbal Mounting Bracket
• 1 x HDMI A-to-A Cable (31.5")
• 1 x User Manual Card
