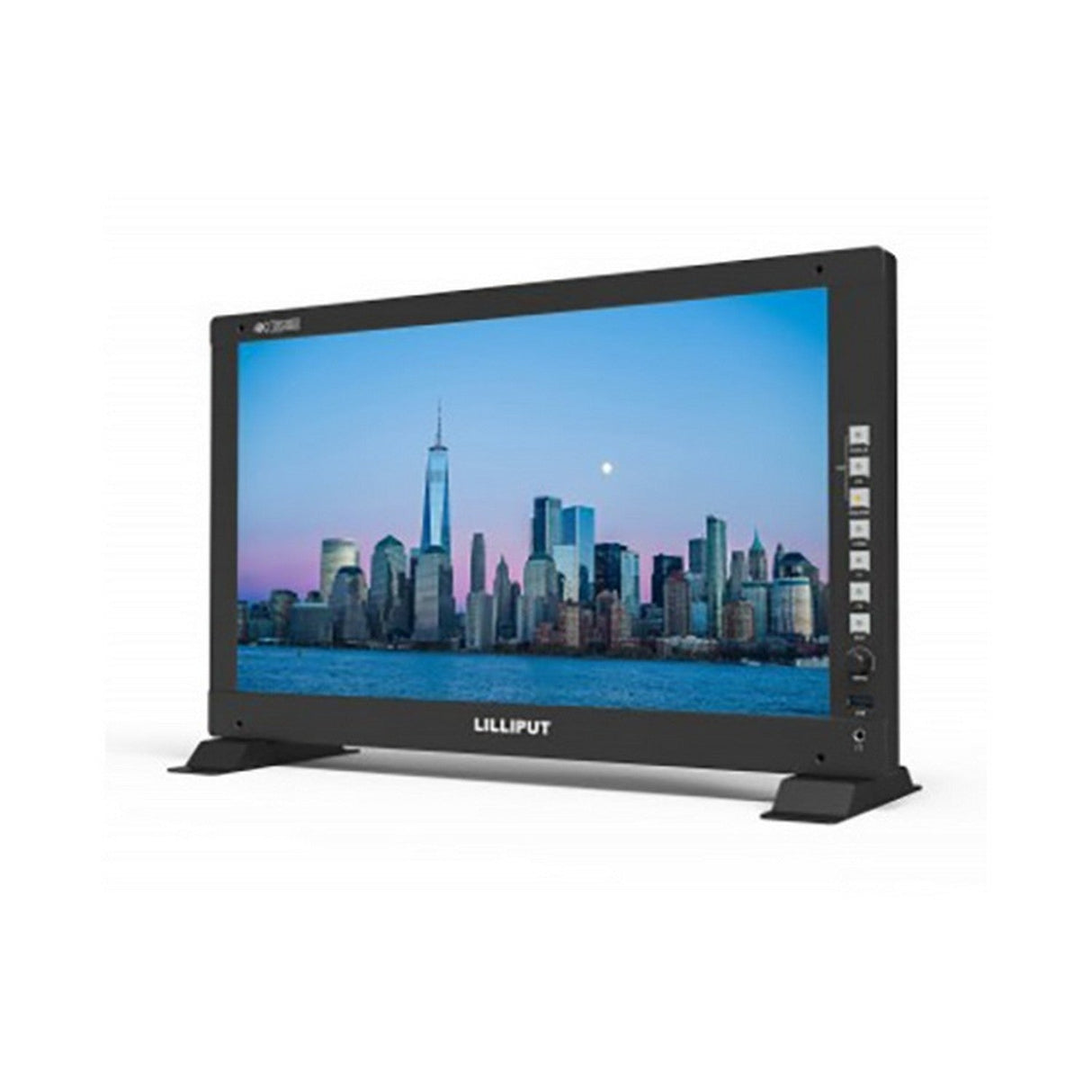

Lilliput Q17 Pro 17.3-Inch 12G-SDI/4K HDMI 2.0 Production Monitor, V-Mount

Lilliput Q17 Pro 17.3-Inch 12G-SDI/4K HDMI 2.0 Production Monitor, V-Mount

The Lilliput Q17 is a 17.3-inch production monitor with 1920x1080 resolution, 12G-SDI, 3G-SDI, HDMI 2.0 and SFP. The Q17 pro 12G-SDI broadcast production monitor is perfect for camcorder and DSLR applications for taking photos and movies. The 12G-SDI, 12G SFP+, 4K HDMI and other signal transmission methods are integrated into this display to avoid being lost in the choice question for video signals. Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces, it can support up to 4096x2160 (60p, 50p, 30p, 25p, 24p) & 3840x2160 (60p, 50p, 30p, 25p, 24p) signal. 12G SFP+ interface, which allows to transmit 12G-SDI signal via SFP optical module, is suitable for most broadcast field. The color calibration of Q17 model is including color spaces (SMPTE_C, Rec709 and EBU) and color temperature (3200K, 5500K, 6500K, 7500K,9300K) and gammas (value from 1.8 to 2.8). It can support remote control application. To connect your computer to control the monitor via applications the interfaces of RS422 in and RS422 out can realize synchronization control of multiple monitors like picture, source, marker, audio, function, UMD. It can support Audio Vector, HDR and 3DLUT function.

12G-SDI / 4K HDMI Signal
12G-SDI, 4K HDMI, 12G SFP+ and other signal transmission methods are integrated into this display, to avoid being lost in the choice question for video signals. Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces, it can support up to 4096x2160 (60p, 50p, 30p, 25p,24p) & 3840x2160 (60p, 50p, 30p, 25p, 24p) signal. 12G SFP+ interface, which allows to transmit 12-SDI signal via SFP optical module, is suitable for most broadcast field.

Color Spaces
It is different from the old single-color space “Native” mode used to match the colors of its screen, there are also three modes to choose, including “SMPTE_C”, “Rec709” and “EBU”. Aim to restore the original color in different color spaces picture.

Color Temperature
According to the different senses of the pictures, filmmaker have their own preferences for different color temperatures. The default is 3200K / 5500K / 6500K / 7500K / 9300K five color temperature conditions, can also be customized according to user needs.

Gammas
Gamma redistributes tonal level closer to how our eyes perceive them. Since Gamma value is adjusted from 1.8 to 2.8, more bits would be left to describe the dark tones where the camera is relatively less sensitive.

Key Features

• Support standard 12G-SDI input interface (x2), 3G-SDI input interface (x2), and support Single-Link, Dual-Link and Quad-Link signals
• Support HDMI 2.0/1.4 inputs and loop outputs
• Support SFP optical Connector input, optical module for optional
• Loop output signals support up to 3840x2160 23.98/24/25/29.97/30/50/59.94/60p and 4096x2160
• 23.98/24/25/29.97/30/47.95/48/50/59.94/60p
• Monitor control via LAN, GPI, RS422
• Customized Menu Knob
• Support customized various waveform mode: Waveform/Vector/Histogram/4 Bar Display/Audio
• Vector/Level Meter
• HDR (High Dynamic Range) display supporting ST 2084 and Hybrid Log Gamma
• Gamma selection: 1.8-2.8
• Custom 3D LUT file load through USB

Technical Specifications

Display
Size
17.3”
Resolution
1920 x 1080
Brightness
300cd/m2
Aspect ratio
16:9
Viewing Angle
178°/178°(H/V)
Anamorphic de-squeeze
2x, 1.5x, 1.33x
HDR
ST2084 300/1000/10000/HLG
Supported Log formats
Sony SLog / SLog2 / SLog3
Look up table (LUT) support
3D LUT (. cube format)
Technology
Calibration to Rec.709 with optional calibration unit
Video Input
SDI
2x12G, 2x3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
HDMI
1xHDMI 2.0
Video Loop Output (Uncompressed true 10-bit or 8-bit 422)
SDI
2x12G, 2x3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
HDMI
1xHDMI 2.0
Supported In / Out Formats
SDI
720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
HDMI
720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
Audio In/Out (48kHz PCM Audio)
SDI
12ch 48kHz 24-bit
HDMI
2ch 24-bit
Ear Jack
3.5mm - 2ch 48kHz 24-bit
Built-in Speakers
2
Remote Control
RS422
In / out
GPI
1
LAN
1
Power
Operating power
=32W
DC In
DC 12-24V
Compatible batteries
V-Lock or Anton Bauer Mount
Input voltage (battery)
14.4V nominal
Environment
Operating Temperature
0 Degrees C~50 Degrees C
Storage Temperature
-20 Degrees C~60 Degrees C
Other
Dimension (LWD)
434x263x54mm
Weight
3.2kg
Item Includes
1x Lilliput Q17 17.3 Inch 12G-SDI / 4K HDMI 2.0 Signal Production Monitor - 1920x1080 Resolution
